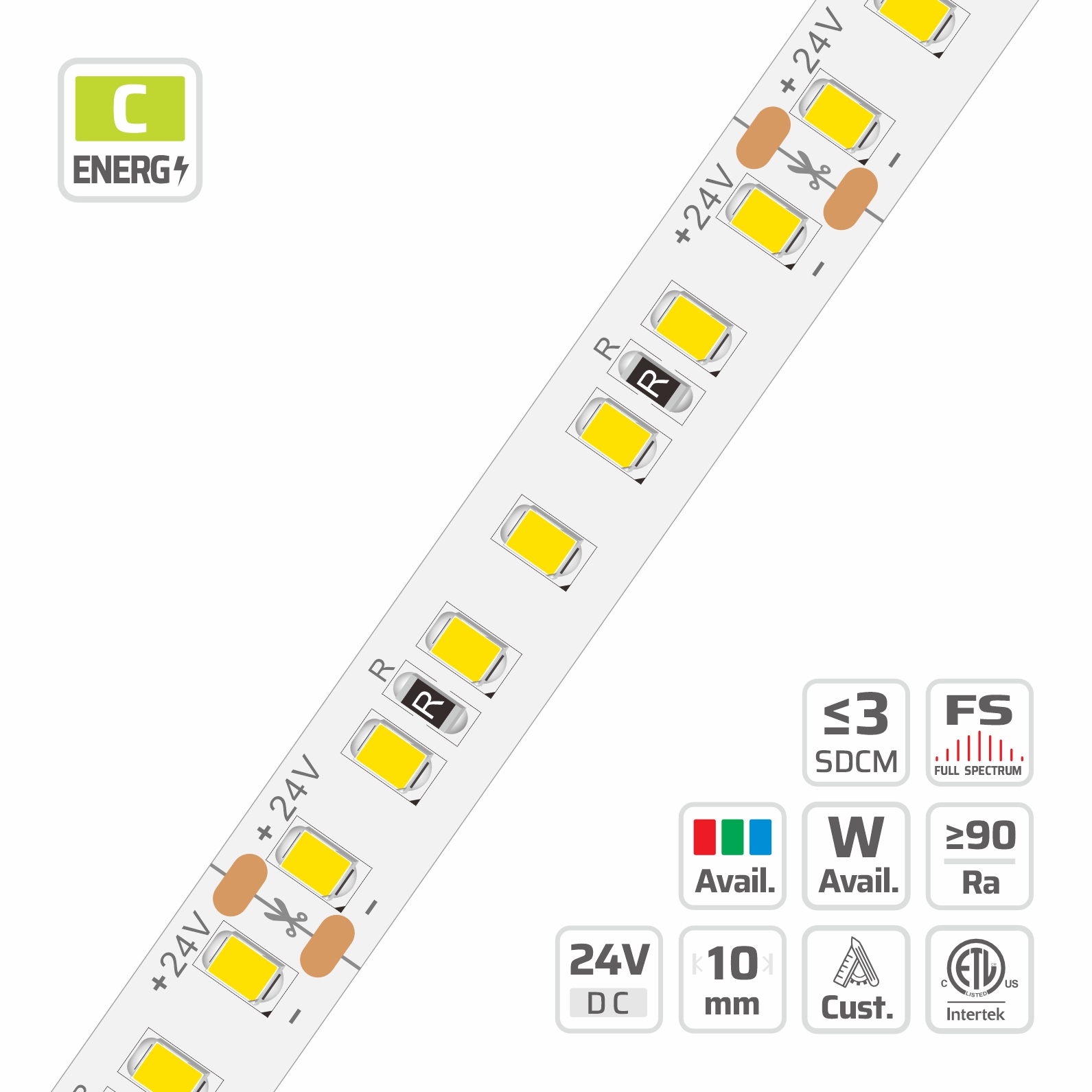

10mm | 24V | 140LEDs | 10W | 50cut | #2518 | 2835 High Lumen Classic LED Strip Light
The robust pure copper LED frame, with a diameter greater than 1 millimeter and encapsulated in 99.99% pure gold wire, along with large chip integration, allows the LED to withstand up to 150mA, yet in our practical LED strips, we use a maximum of 60mA, which is less than 50% of its capacity. This product, manufactured by the DENO factory, not only boasts high efficiency and excellent heat dissipation but also stands out as a popular and classic 2835 high lumen LED strip light. Depending on your specific application needs, different power options can be adjusted accordingly.
The cutting length of this 140 LEDs/m 2835 LED strip light is the same as that of the 120 LEDs/m strip, with intervals of 50mm. However, compared to the 120 LEDs/m version, this 140LEDs per meter 2835 LED strip offers higher light efficiency. At the same power, the temperature of the 140 LEDs/m version is better regulated.
Technical Details
| Part No. |
DL-F28A70V24-2518-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
140 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
10W/m |
| Lumen/m (max.) |
3530 lm/m @4000K |
| Lumen/W (max.) |
126 lm/W @4000K |
| Color |
White |
| CRI |
Ra ≥80 ,Ra ≥90 ,Ra ≥95 |
| SDCM |
≤3 Step 1Bin |
| Beam Angle |
120° |
| PCB Width |
10mm |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
5 years |
Related Specifications
Length(max.): 5m(16.4′) ¹⁾
Cutting Unit: 7LEDs/50mm(1.968”)
LED Spacing: 7.1mm(0.28”)
LED Height: 0.9mm（0.035″）
Mounting: 3M (USA)
Min. bend: Φ60mm(2.362″)
Copper foil: 3oz ²⁾
Pure Gold wire: 99.99%
On-off times: 10000（test times）
Eye security:IEC 62471
Certification:UL
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
¹⁾ Single-sided input can reach up to 5 meters, while dual-sided input extends up to 10 meters.
²⁾ 3oz means a thickness of 3 times 34.79µm, rather than the commonly used 25µm or 18µm per ounce in the market.
Product Photo-electric Parameters
28.8W/m¹⁾
| Power | CRI | Color | C.C.T. | LM/m | LM/W | Erp 2019 |
| 27.84W/m | Ra≥90 | SWW | 1900K | 2664.3 | 95.7 | F |
| 27.84W/m | Ra≥90 | SWW | 2300K | 2968.2 | 106.6 | F |
| 27.84W/m | Ra≥90 | WW | 2700K | 3211.6 | 115.4 | E |
| 27.84W/m | Ra≥90 | WW | 3000K | 3379.8 | 121.4 | E |
| 27.84W/m | Ra≥90 | WW | 3500K | 3440.1 | 123.6 | E |
| 27.84W/m | Ra≥90 | NW | 4000K | 3523.0 | 126.5 | E |
| 27.84W/m | Ra≥90 | NW | 5000K | 3520.9 | 126.5 | E |
| 27.84W/m | Ra≥90 | PW | 6500K | 3377.7 | 121.3 | E |
14.4W/m²⁾
| Power | CRI | Color | C.C.T. | LM/m | LM/W | Erp 2019 |
| 13.68W/m | Ra≥90 | SWW | 1900K | 1785 | 130.5 | F |
| 13.68W/m | Ra≥90 | SWW | 2300K | 1988 | 145.4 | E |
| 13.68W/m | Ra≥90 | WW | 2700K | 2152 | 157.3 | E |
| 13.68W/m | Ra≥90 | WW | 3000K | 2264 | 165.5 | E |
| 13.68W/m | Ra≥90 | WW | 3500K | 2305 | 168.5 | E |
| 13.68W/m | Ra≥90 | NW | 4000K | 2360 | 172.6 | E |
| 13.68W/m | Ra≥90 | NW | 5000K | 2359 | 172.3 | E |
| 13.68W/m | Ra≥90 | PW | 6500K | 2263 | 165.4 | E |
Ra≥95 / FS³⁾
| Power | CRI | Color | C.C.T. | LM/m | LM/W | Erp 2019 |
| 13.68W/m | Ra≥95 | WW | 2700K | 1323 | 96 | F |
| 13.68W/m | Ra≥95 | WW | 3000K | 1397 | 102 | F |
| 13.68W/m | Ra≥95 | WW | 3500K | 1439 | 105 | F |
| 13.68W/m | Ra≥95 | NW | 4000K | 1478 | 108 | F |
¹⁾ 28.8W/m version: The calculated theoretical value is 28.8W/m, while the actual tested value of the product is 27.84W/m. This high-power LED strip version is usually customized for customers with special application requirements and is commonly used in conjunction with additional heat-dissipating aluminum materials. The power range for this 2835 LED strip light is customizable between 4.8W/m and 28.8W/m.
²⁾ 14.4W/m version: The calculated theoretical value is 14.4W/m, while the actual tested value of the product is 13.68W/m. Single-sided input can reach up to 5 meters (one end cable), while dual-sided input extends up to 10 meters (dual ends cable).
³⁾ This product offers options for a CRI greater than 95 or Full Spectrum. Please refer to the relevant parameter table in Table 3 for the photometric and electrical parameters of the LED strip light.
* The table only shows parameters for Ra ≥90 2835 ultra-density Built-in IC LED Strip Light. We can provide Render Index of Ra≥80, Ra≥90, and Ra≥95, with full-spectrum options available. For specific color scheme requirements, customization is welcome. Custom designs are a specialty of DENO.
** Output data tolerance may vary by up to 10~15%. The output data is tested according to IES TM-30-15 standards. Output data is specified for IP20 one meter. IP protection processes may alter dimensions, CCT, and luminous flux.
