    DL-F60A50V12-Lens-6710-*

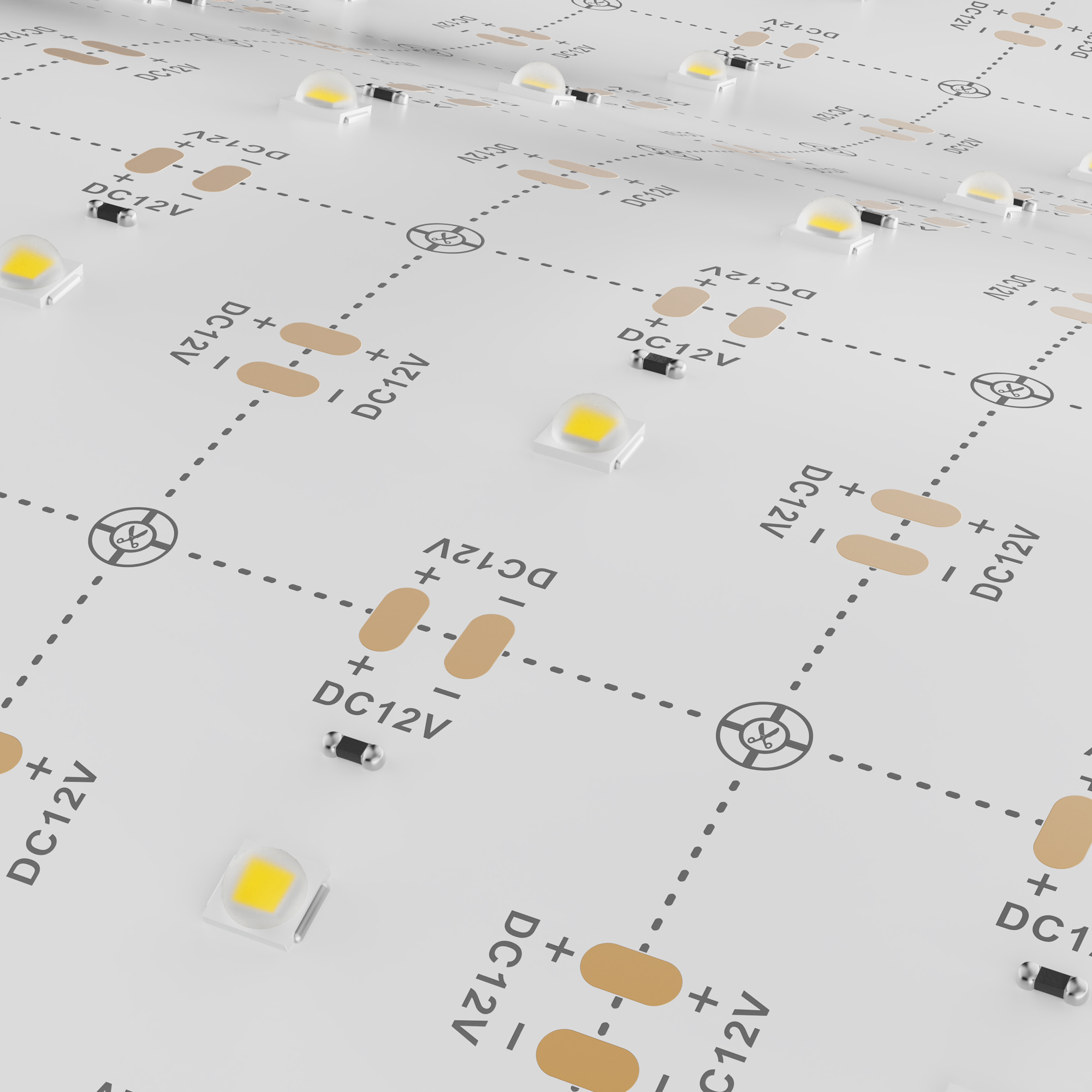

    Membrane top is encapsulated with environmental silicon material, which has high light transmittance, reflow light decay, high temperature resistance. and can be reflow soldered to protect the led chip well. It has large-area bracket heat sink, fast heat conduction, and low light decay.

    Request A Quote
    Category:

    Technical Details

    Part No.

    DL-F60A50V12-Lens-6710-*
    SMD Type

    6060 SMD
    LED Qty

    50 LEDs/m
    Voltage

    DC 12V
    Power Option

    ≤ 60W/m
    Lumen/m (max.)

    2625
    Lumen/W (max.)

    85
    Color

    White
    CRI

    Ra ≥80
    PCB Width

    480*240mm
    Beam Angle

    160°

    Related Specifications

    Length: 480*240mm(18.89*9.44′′)

    Cutting Unit: 1LEDs/48*48mm(18.89*18.89′′)

    LED Spacing: 48mm(1.88′′)

    LED Height: 3mm(0.118′′)

    Mounting: 3M tape

    Min. Bend Diameter: Φ60mm(2.362′′)

    IP Rate: IP20

    Product Photo-electric Parameters

    Power CRI Color Color Temperature LM/m LM/W Energy Efficiency Class
    30W Ra≥80 WW 2700K 2100 68 G
    30W Ra≥80 WW 3000K 2190 71 G
    30W Ra≥80 NW 4000K 2340 75 G
    30W Ra≥80 NW 6500K 2470 80 G
    30W Ra≥80 PW 10000K 2625 85 F



    Product Downloads

    Specification

    DL-F60A50V12-Lens-106M7-Specifications

    Testing Report

    DL-F60A50V12-Lens-106M7-30W-4000K-CRI80-Testing Report

    Manual

    LED-Strip-User Manual.pdf

    WaterproofManual.pdf



    Certificate

    CE Certificate

    ROHS Certificate

    ETL Certificate

    FCC Certificate
