    DL-F56A120V24-2351-*

    Adopt pure copper strong LED frame,99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.

    Request A Quote
    Categories: ,

    Technical Details

    Part No.

    DL-F56A120V24-2351-*

    SMD Type

    5630 Series

    LED Qty

    240 LEDs/m

    Voltage

    DC 24V

    Power Option

    ≤ 48W/m

    Lumen/m (max.)

    4875

    Lumen/W (max.)

    127

    Color

    White

    CRI

    Ra ≥80

    PCB Width

    15mm

    SDCM

    ≤5 Step 1Bin

    Related Specifications

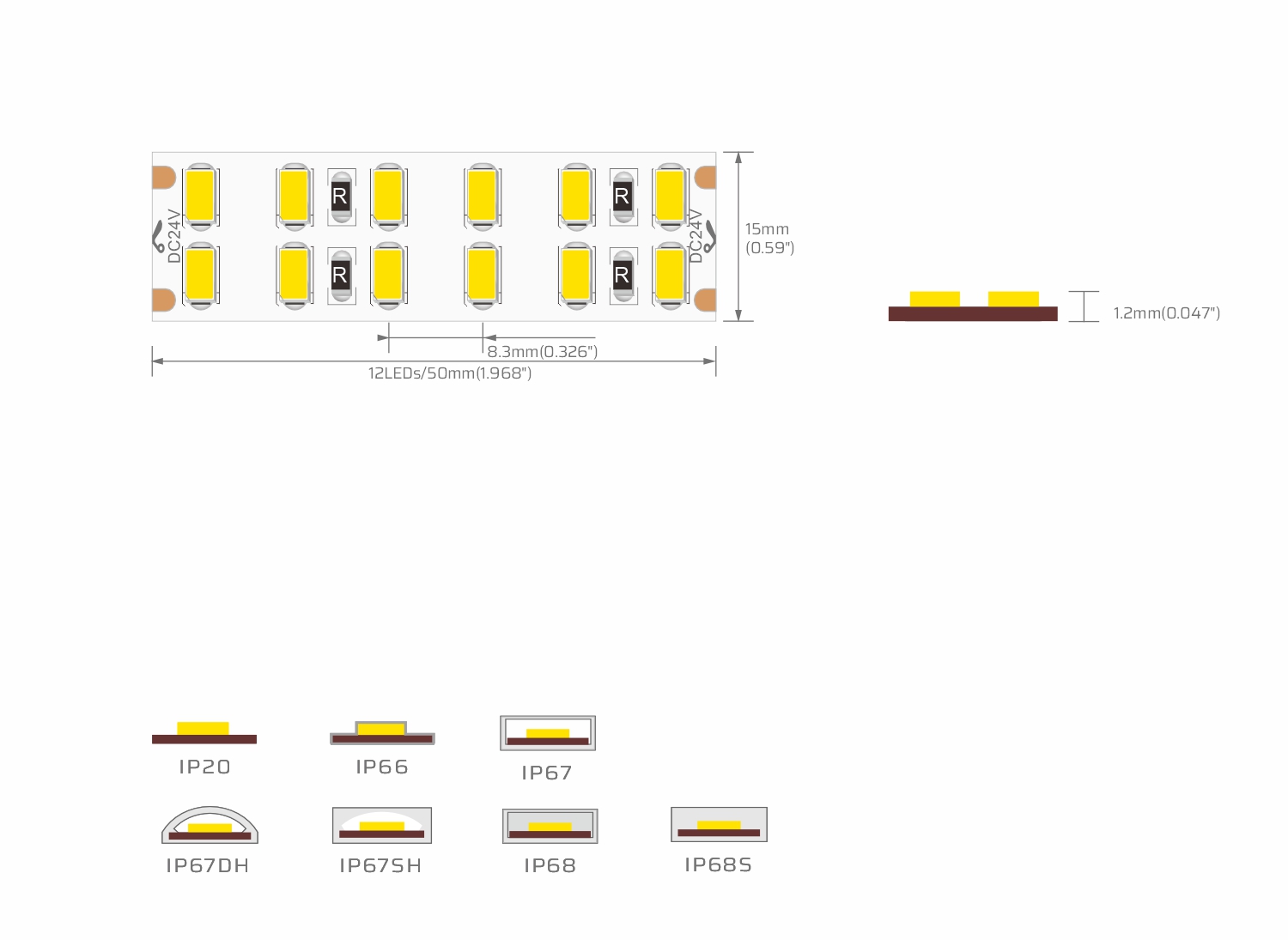

    Length: 5M(16.4′)/roll

    Cutting Unit: 12LEDs/50mm(1.968′′)

    LED Spacing: 8.3mm(0.326′′)

    LED Height: 1.2mm(0.047′′)

    Mounting: 3M tape

    Min. Bend Diameter: Φ60mm(2.362′′)

    Copper foil: 2oz

    Product Photo-electric Parameters

    Power CRI Color Color Temperature LM/m LM/W Energy Efficiency Class
    38.4W Ra≥80 WW 2700K 4220 110 E
    38.4W Ra≥80 WW 3000K 4340 113 E
    38.4W Ra≥80 NW 4000K 4490 117 E
    38.4W Ra≥80 NW 5000K 4680 122 E
    38.4W Ra≥80 PW 6500K 4875 127 E

    Product Downloads

    Specification

    DL-F56A120V24-15mm-512M3-Specifications

    Testing Report

    DL-F56A120V24-15mm-512M3-Testing-Report

    DL-F56A120V24-15mm-512M3-IES

    Manual

    LED-Strip-User Manual.pdf

    WaterproofManual.pdf

    Certificate

    CE Certificate

    ROHS Certificate

    ETL Certificate

    FCC Certificate

    Product Accessories

    No accessories for this product now！
