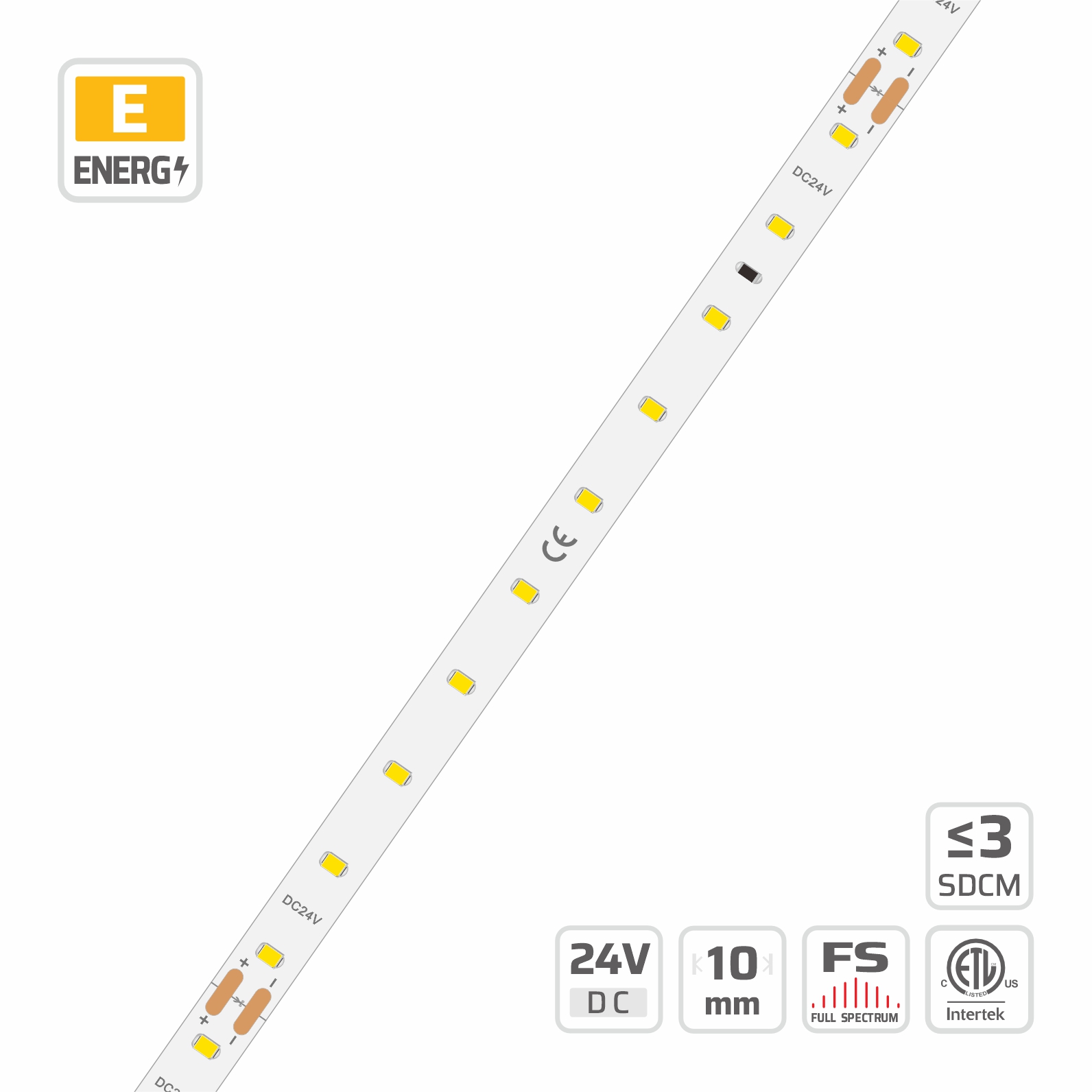

DL-F28A30V24-8466-*
Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications.
Technical Details
| Part No. |
DL-F28A30V24-8466-* |
|---|---|
| SMD Type |
2835 Series |
| LED Qty |
60 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
≤ 4.8W/m |
| Lumen/m (max.) |
540 |
| Lumen/W (max.) |
120 |
| Color |
White |
| CRI |
Ra ≥80 , Ra ≥90 , Ra ≥95 |
| PCB Width |
10mm |
| SDCM |
≤3 Step 1Bin |
Related Specifications
Length: 40M(131.23′)/roll
Cutting Unit: 10LEDs/166.66mm(6.561′′)
LED Spacing: 6.2mm(0.244′′)
LED Height: 0.9mm(0.035′′)
Mounting: 3M tape
Min. Bend Diameter: Φ60mm(2.362′′)
Copper foil: 3oz
Product Photo-electric Parameters
Ra≥80
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Energy Efficiency Class |
| 4.8W | Ra≥80 | SWW | 1900K | 405 | 91 | F |
| 4.8W | Ra≥80 | SWW | 2300K | 435 | 99 | F |
| 4.8W | Ra≥80 | WW | 2700K | 475 | 108 | F |
| 4.8W | Ra≥80 | WW | 3000K | 505 | 114 | E |
| 4.8W | Ra≥80 | WW | 3500K | 515 | 117 | E |
| 4.8W | Ra≥80 | NW | 4000K | 540 | 123 | E |
| 4.8W | Ra≥80 | NW | 5000K | 535 | 121 | E |
| 4.8W | Ra≥80 | PW | 6500K | 530 | 120 | E |
Product Downloads
Specification
Certificate
