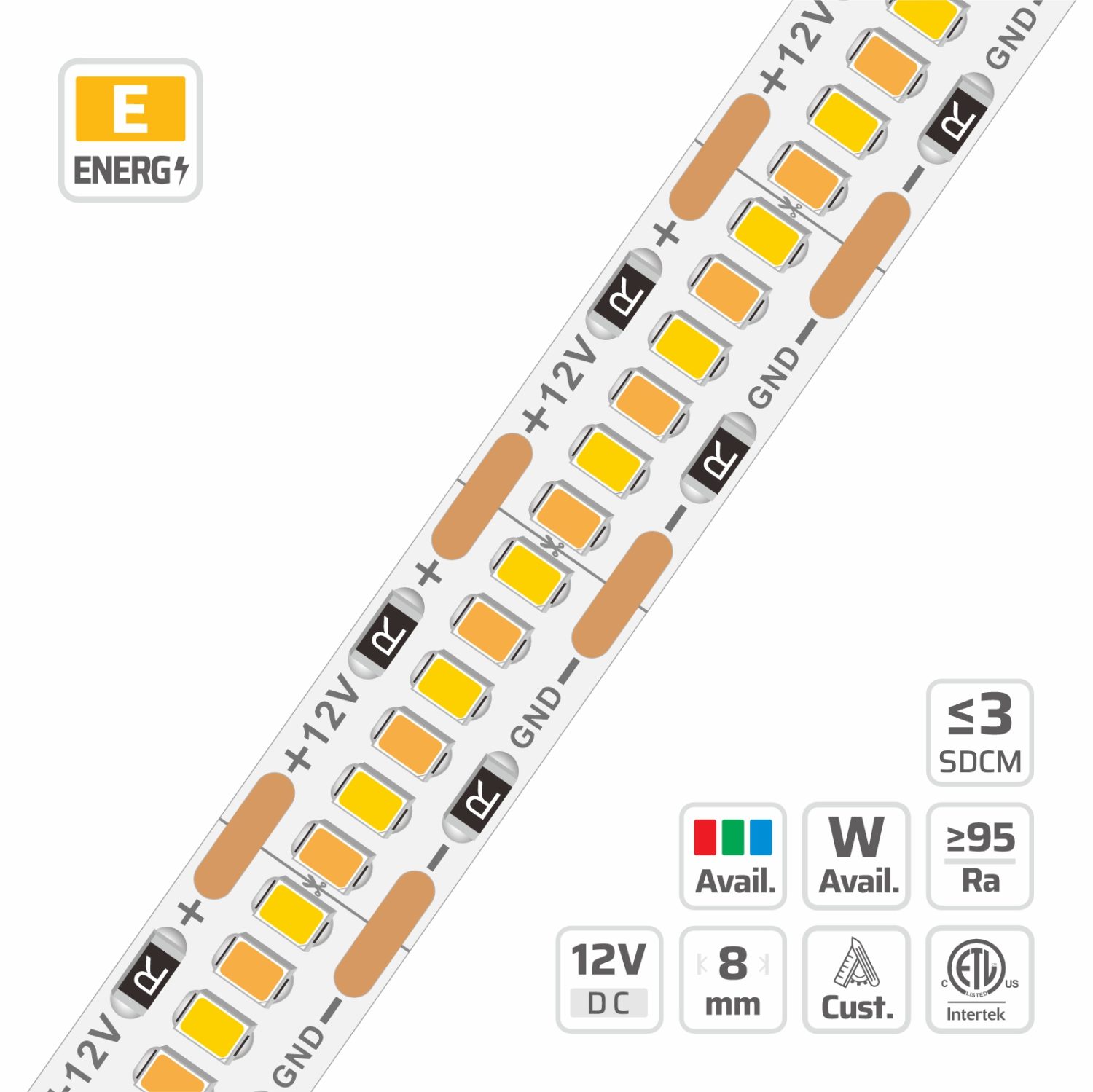

8mm | 12V | 1420LEDs | 9.6W | 14.28cut | #4995 One Loop CCT Micro-Cut Ultra-density LED strip light
Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications.
Only one loop CCT tunnable LED strip is outfitted with extremely bright LED chips and strong adhesive backing. Special heat resistant PCB layout, copper layer 2Oz that make sure lower voltage drop and excellent heat dissipation.
The flexible design of LED strips allows for bright lighting almost any space you can imagine,which is quite suitable for back lighting and general lighting in aluminum frames or under cabinet, and is commonly used by architects and lighting designers in professional installations.
Technical Details
Part No. |
DL-F22A210V12-4995-* |
---|---|
SMD Type |
2216 SMD |
LED Qty |
420 LEDs/m |
Voltage |
DC 12V |
Power Option |
9.6W/m |
Lumen/m (max.) |
1020 lm/m @4000K |
Lumen/W (max.) |
105 lm/W @4000K |
Color |
CCT |
CRI |
Ra ≥95 |
PCB Width |
8mm |
SDCM |
≤3 Step 1Bin |
Beam Angle |
120° |
IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
Warranty |
5 years |
Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 6LEDs/14.28mm(0.562′′)
LED Spacing: 2.3mm(0.090′′)
LED Height: 0.7mm(0.027′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 2oz
On-off times: 10000(test times)
Eye security:IEC 62471
Certification:UL
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
Power | CRI | Color | Color Temperature | LM/m | LM/W | Energy Efficiency Class |
9.6W | Ra≥95 | WW | 2700K | 985 | 100 | F |
9.6W | Ra≥95 | PW | 6500K | 1080 | 110 | E |
9.6W | Ra≥95 | W+P | 4000K | 1020 | 105 | F |
