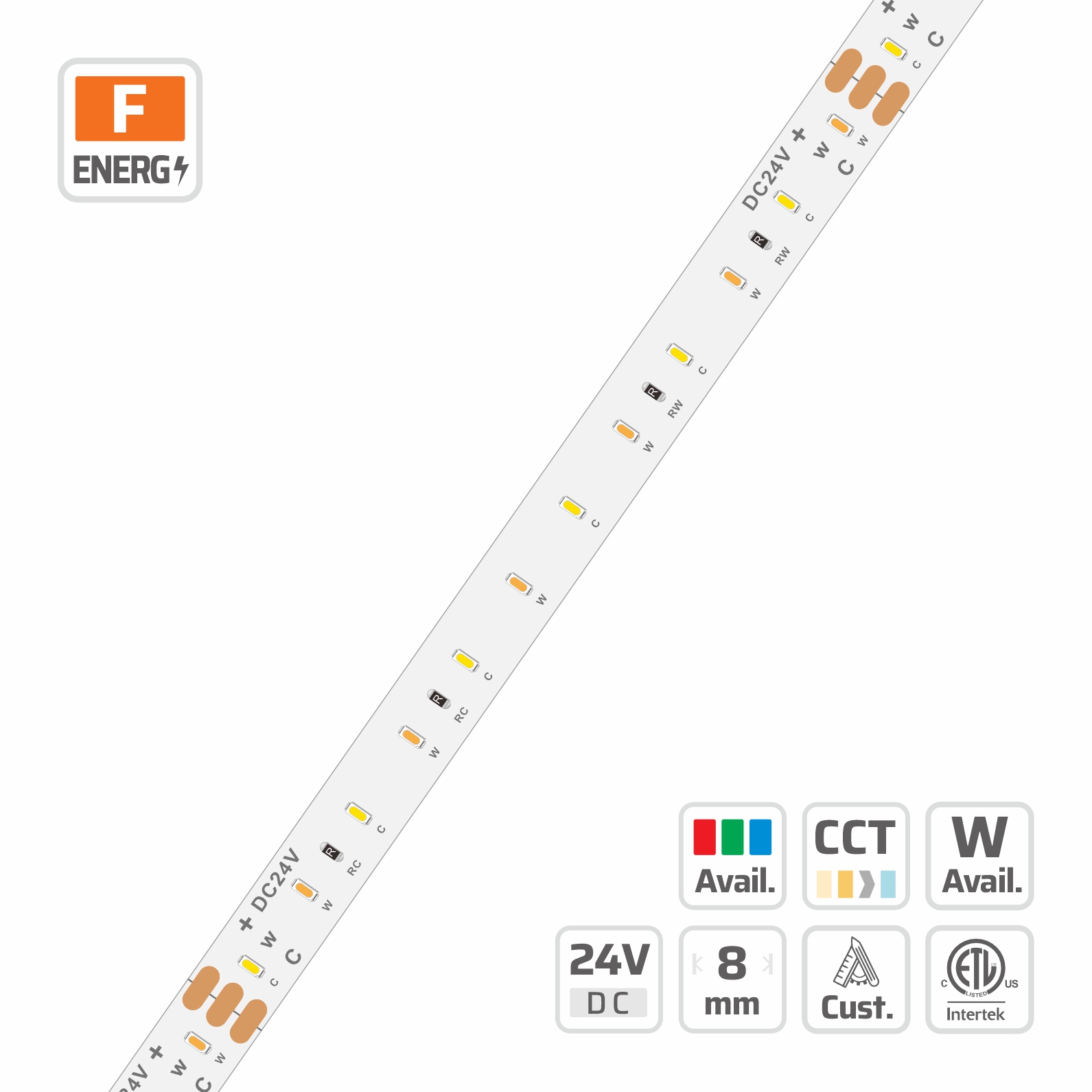

8mm | 24V | 120LEDs | 9.6W | 100cut | #6017 CCT LED Strip Light
Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce the LED damage in different applications.
Technical Details
| Part No. |
DL-F21A60V24-6017-* |
|---|---|
| SMD Type |
2110 SMD |
| LED Qty |
120 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
9.6W/m |
| Lumen/m (max.) |
805 lm/m @4000K |
| Lumen/W (max.) |
86 lm/W @4000K |
| Color |
CCT |
| CRI |
Ra ≥90 |
| SDCM |
≤5 Step 1Bin |
| PCB Width |
8mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
5 years |
Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 12LEDs/100mm(3.937′′)
LED Spacing: 8.3mm(0.326′′)
LED Height: 1.2mm(0.047′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 2oz
On-off times: 10000（test times）
Certification:UL
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Energy Efficiency Class |
| 4.8W | Ra≥90 | WW | 2700K | 380 | 82 | F |
| 4.8W | Ra≥90 | PW | 6500K | 445 | 94 | F |
| 9.6W | Ra≥90 | W+P | 4000K | 805 | 86 | F |
