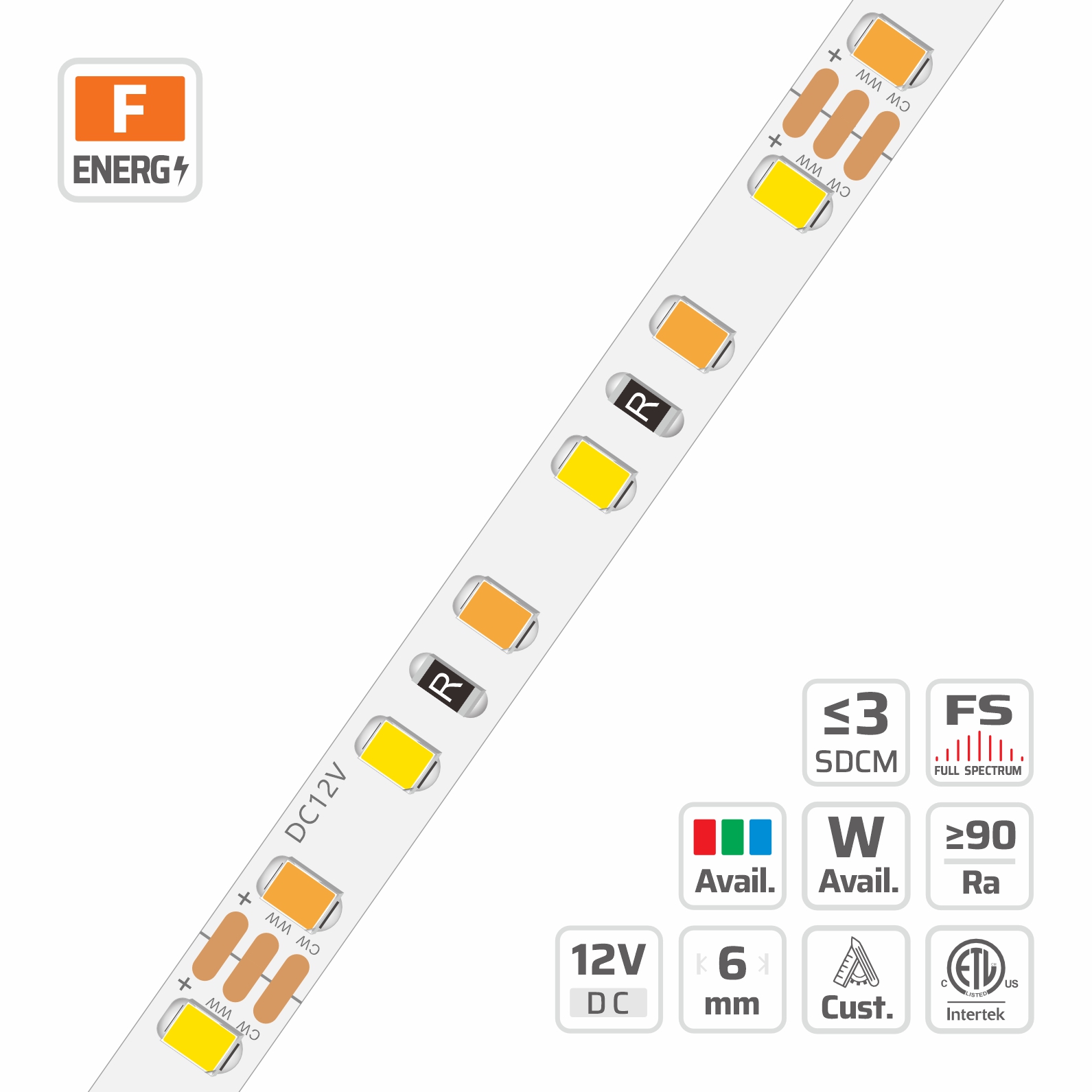

6mm | 12V | 120LEDs | 24W | 50cut | #1727 | 2835 CCT LED Strip Light
Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications.
Technical Details
| Part No. |
DL-F28A60V12-1727-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
120 LEDs/m |
| Voltage |
DC 12V |
| Power Option |
24W/m |
| Lumen/m (max.) |
2430 lm/m @4000K |
| Lumen/W (max.) |
105 lm/W @4000K |
| Color |
CCT |
| CRI |
Ra ≥80 ,Ra ≥90 |
| SDCM |
≤3 Step 1Bin |
| PCB Width |
6mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP65 ,IP67 ,IP68 |
| Warranty |
5 years |
Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 6LEDs/50mm(1.968′′)
LED Spacing: 8.3mm(0.326′′)
LED Height: 0.9mm(0.035′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
Pure Gold wire: 99.99%
On-off times: 10000（test times）
Eye security:IEC 62471
Certification:UL
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Energy Efficiency Class |
| 12W | Ra≥80 | WW | 2700K | 1280 | 112 | E |
| 12W | Ra≥80 | PW | 6500K | 1420 | 124 | E |
| 24W | Ra≥80 | W+P | 4000K | 2430 | 106 | F |
