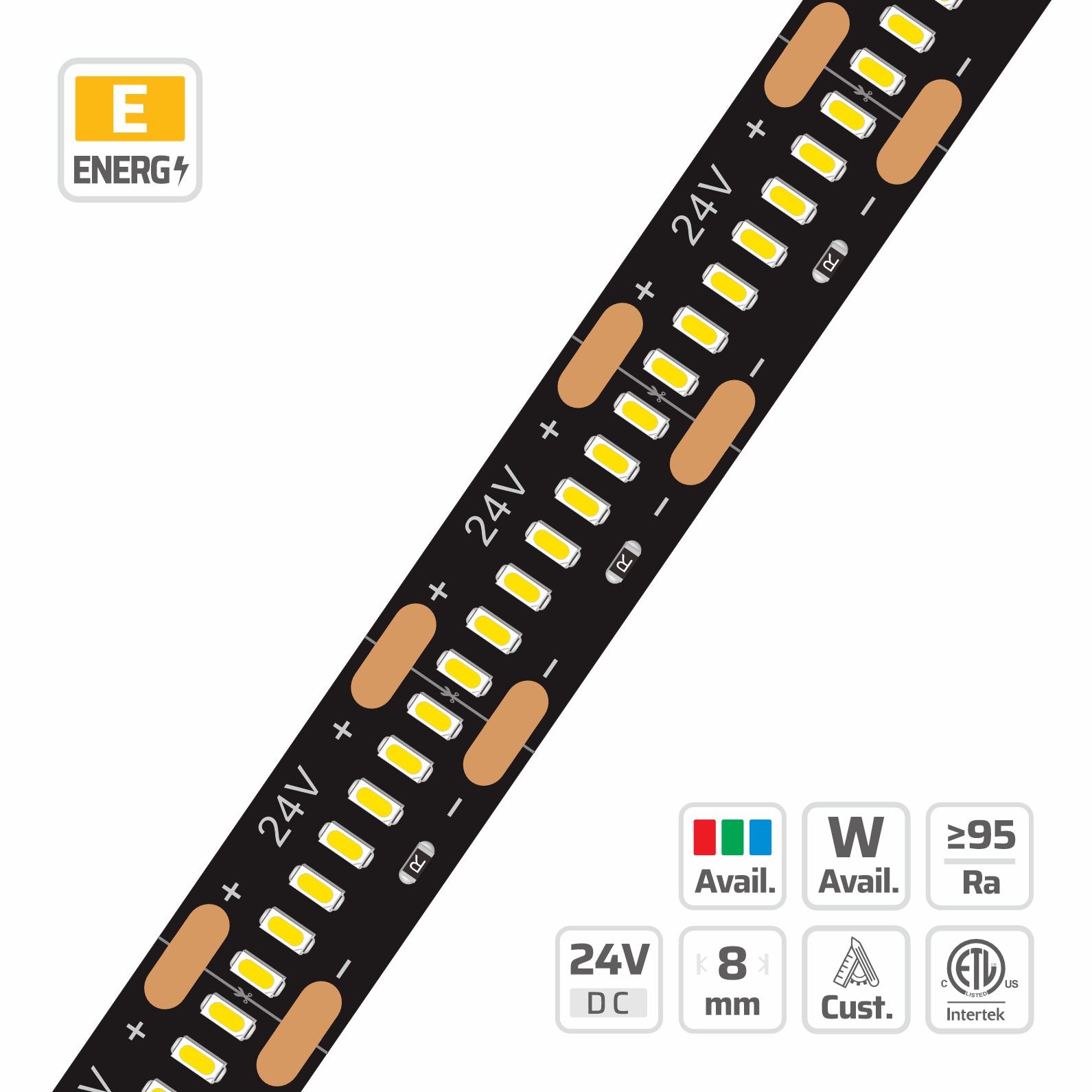

8mm | 24V | 20cut | 350LED |Ultra Density | 5379
Click to enlarge

    8mm | 24V | 62.5cut | 336LED |Ultra Density | 6016

    Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce the LED damage in different applications.

    Request A Quote
    Category:

    Technical Details

    Part No.

    DL-F21A168V24-6016-*

    SMD Type

    2110 Series

    LED Qty

    336 LEDs/m

    Voltage

    DC 24V

    Power Option

    23W/m

    Lumen/m (max.)

    635

    Lumen/W (max.)

    49

    Color

    RGB

    PCB Width

    8mm

    Related Specifications

    Length: 5M(16.4′)/roll

    Cutting Unit: 21LEDs/62.5mm(2.460′′)

    LED Spacing: 8.9mm(0.350′′)

    LED Height: 3.3mm(0.047′′)

    Mounting: 3M tape

    Min. Bend Diameter: Φ60mm(2.362′′)

    Copper foil: 2oz

    Product Photo-electric Parameters

    Power Color LM/m LM/W
    14.4W RGB 635 49
    4.8W R 65 15
    4.8W G 475 116
    4.8W B 125 28



    Product Downloads

    Specification

    DL-F21A168V24-RGB-8mm-166M0-Specifications

    Testing Report

    DL-F21A168V24-RGB-8mm-166M0-14.4W-Testing Report

    Manual

    LED-Strip-User Manual.pdf

    WaterproofManual.pdf



    Certificate

    CE Certificate

    ROHS Certificate

    ETL Certificate

    FCC Certificate

    Product Accessories

    No accessories for this product now！
