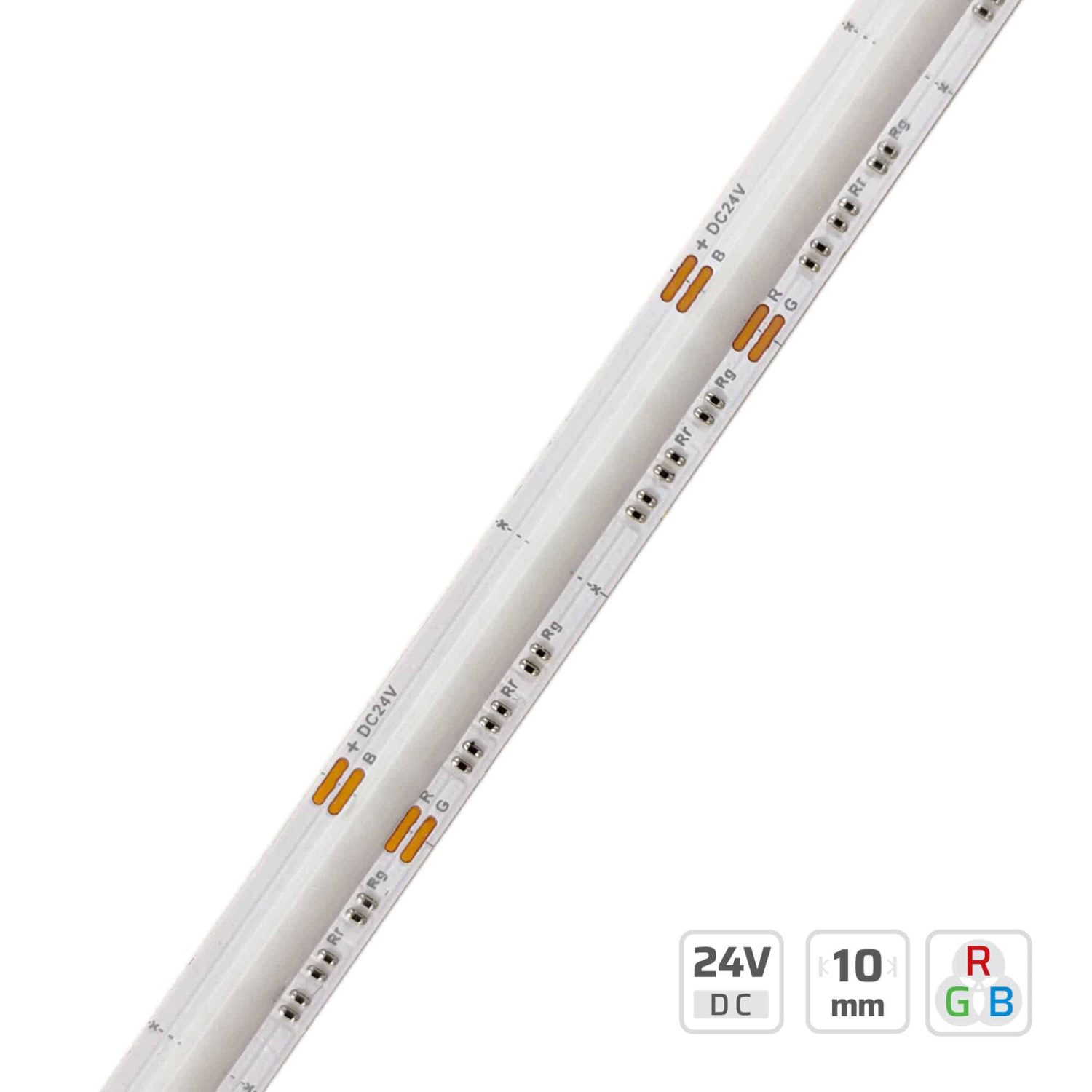

10mm | 24V | 15W | 22.8cut | #8448 | SOB RGB LED Strip Light
New COB Pro Digital series, with more thicker PCB, better for heat dissipation, and keep the good consistent brightness from begin to end. Built-in chip protection stents, more resistant to bending.
More resistant to bending than 3838RGB and 5050RGB，more sturdy.
The glue on the surface make the strip provide uniform luminescence and anti-glare.
Compatible with most of the RGB controllers in the markets.
No need for additionaldiffused covers .Perfect for areas withlow clearance or reflective surfaces to eliminate spot-glare.
Technical Details
| Part No. |
DL-COB ProA462V24-RGB-8448-* |
|---|---|
| SMD Type |
SOB |
| Voltage |
DC 24V |
| Power Option |
≤ 14.4W/m |
| Lumen/m (max.) |
285 |
| Lumen/W (max.) |
20 |
| Color |
RGB |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 |
| Warranty |
5 years |
Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 22.82mm(0.898′′)
LED Height: 1.8mm(0.0786′′)
Mounting: 3M tape
Min. Bend Diameter: Φ60mm(2.362′′)
Copper foil: 2oz
On-off times: 10000（test times）
Certification:UL
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | Color | LM/m | LM/W |
| 14.4W | RGB | 285 | 20 |
| 9W | R | 10 | 10 |
| 3W | G | 65 | 65 |
| 2W | B | 14 | 14 |
Product Downloads
Specification
Testing Report
Certificate
Product Accessories
No accessories for this product now！
