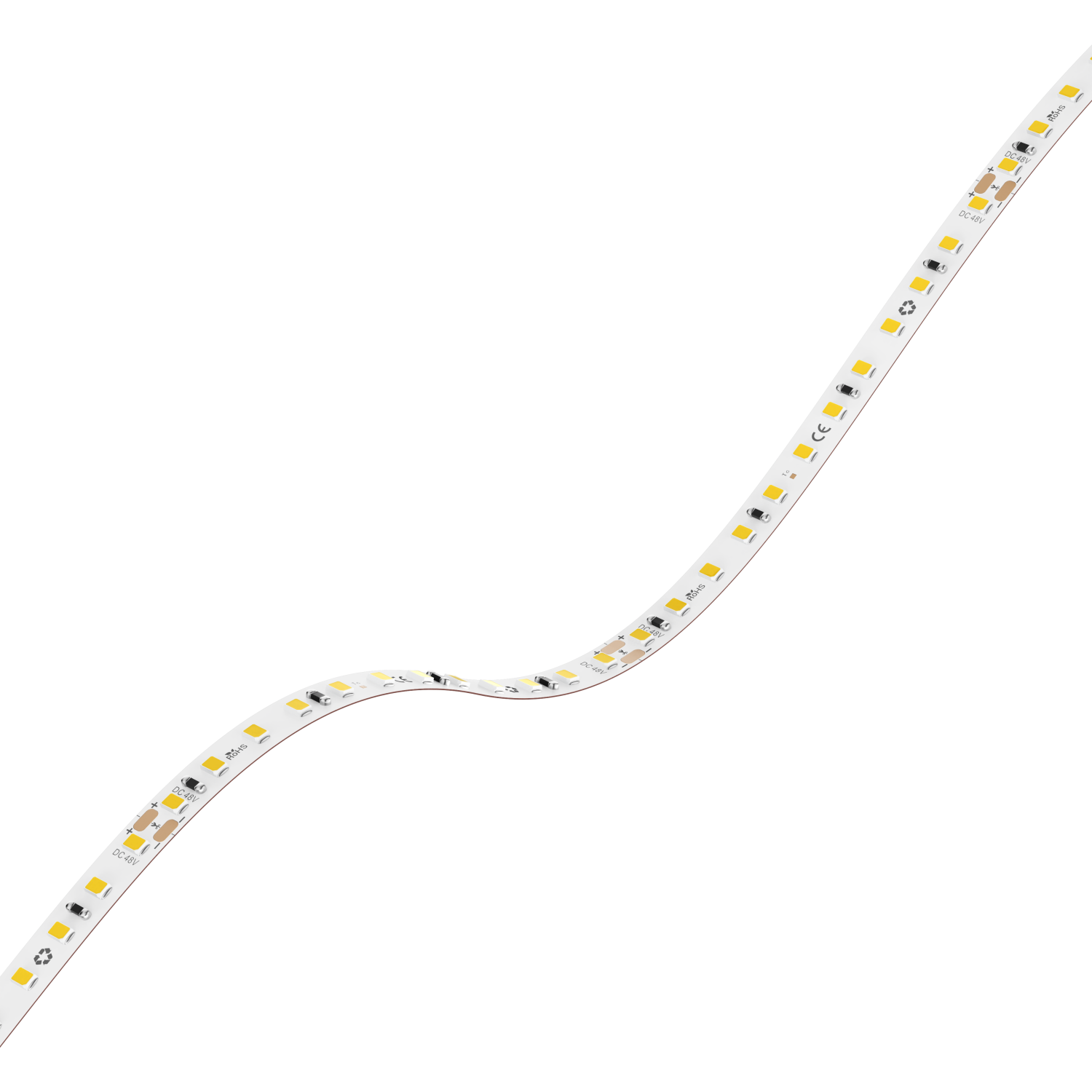

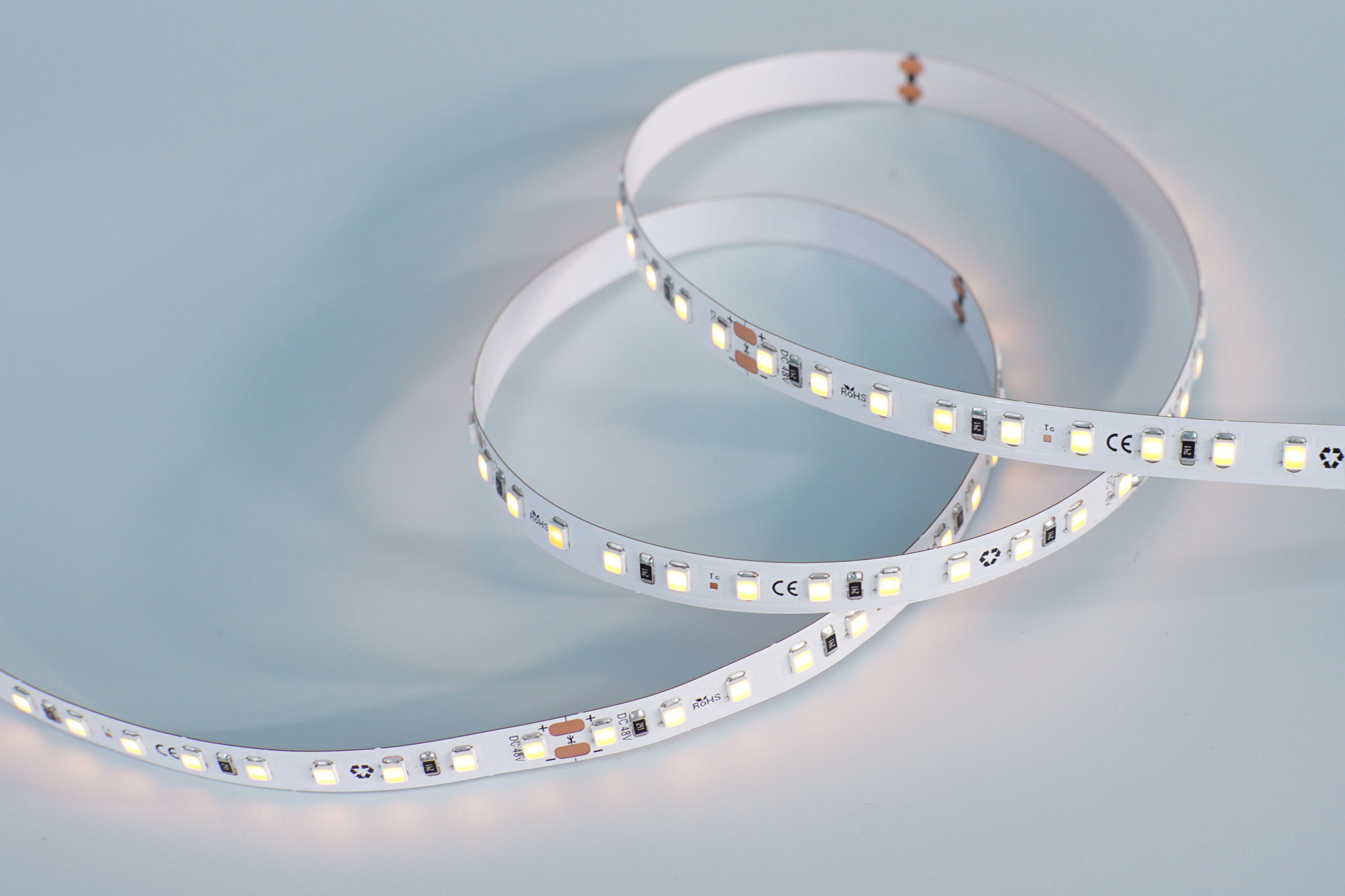

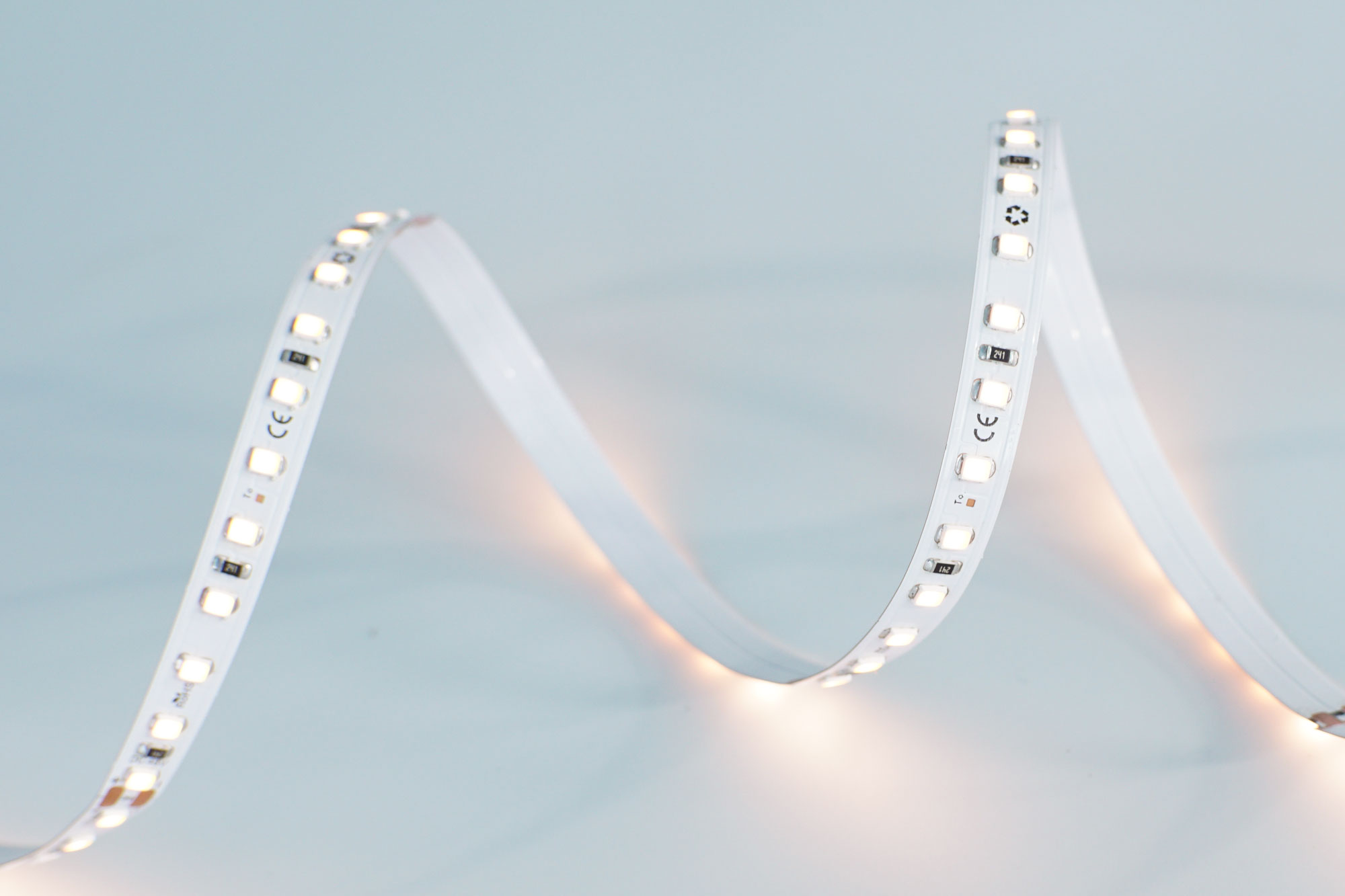

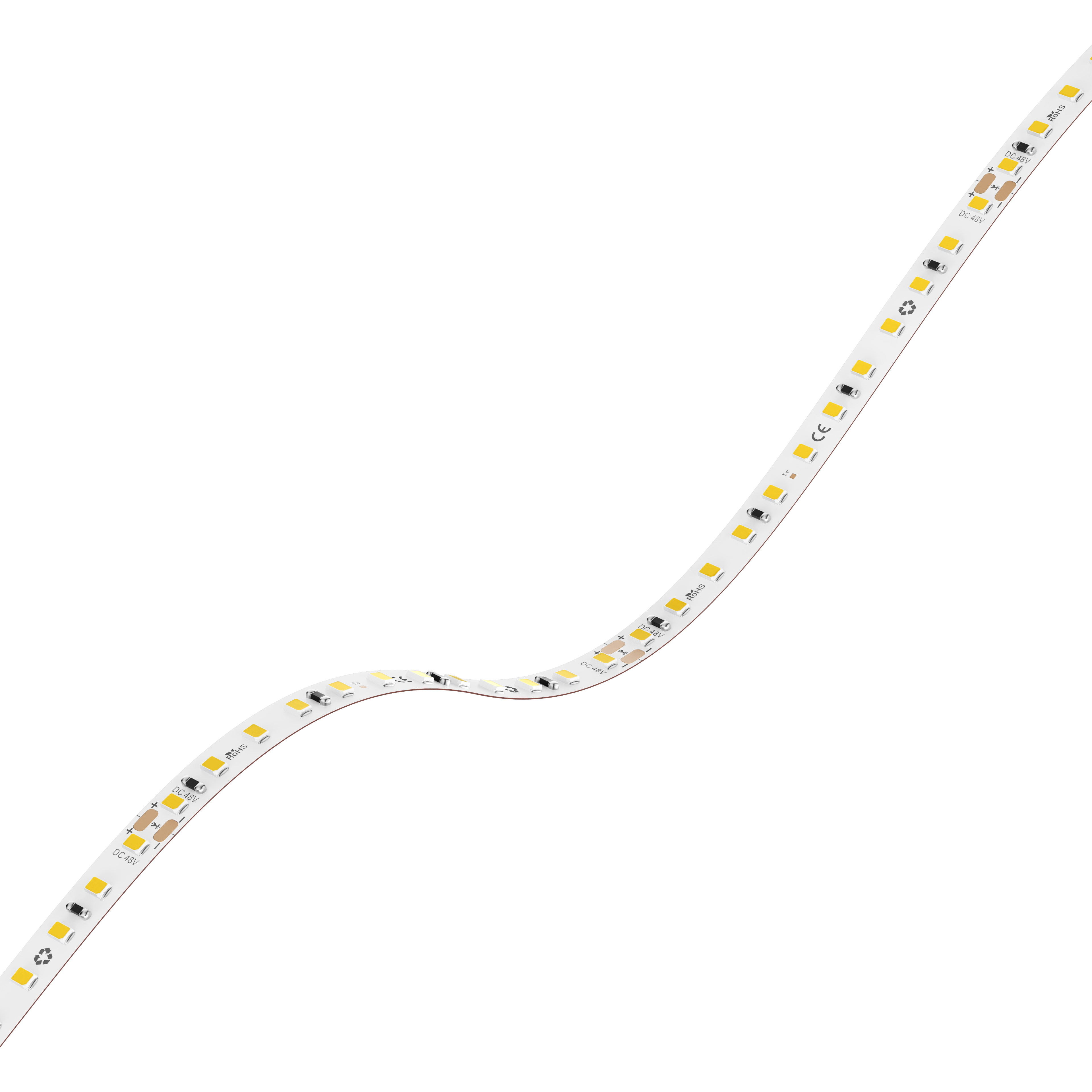

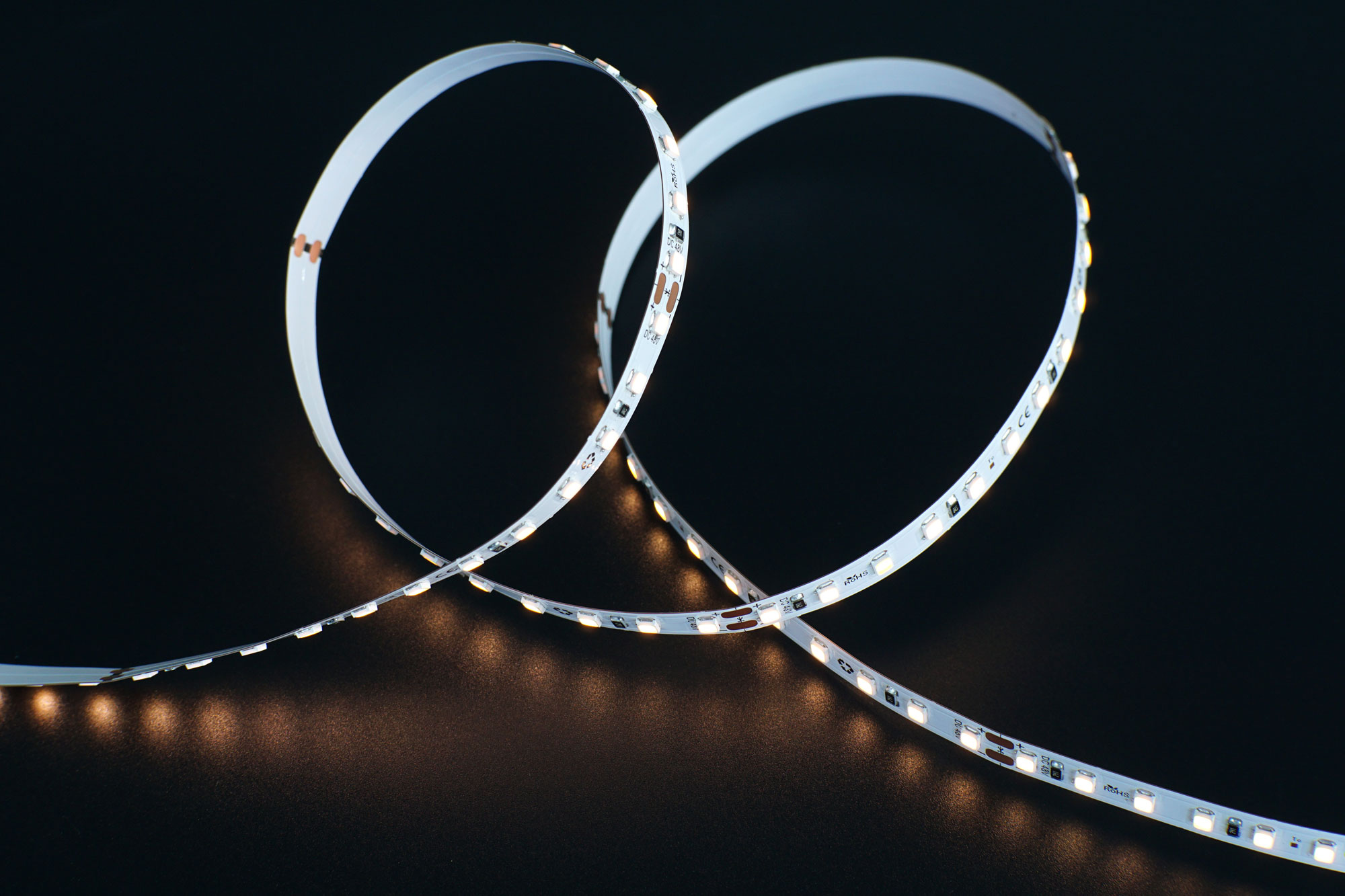

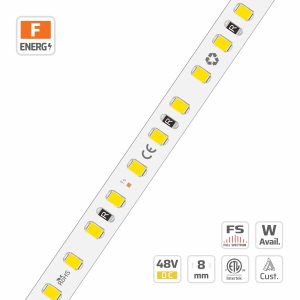

8mm | 48V | 120LEDs | 7W | 100mm/cut | #18205 | 2835 High-Efficiency Classic Stable LED Strip
- With thicker PCB, better for heat dissipation, keep the good consitent brightness from begin to end.
- With built-in chip protection stents, make it higher power available. Special power is customizable.
- Wide CCT range for option from 2700K~6500K. Customizable full spectrum, 120° view angel high color efficiency.
- No need extra covers. Perfect for area with low clearance or reflective surfaces to eliminate spot-glare.
Technical Details
| Part No. |
DL-F28A60V48-18205-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
120 LEDs/m |
| Voltage |
DC 48V |
| Power Option |
7W/m |
| Lumen/m (max.) |
728 lm/m @4000K,7W |
| Lumen/W (max.) |
104 lm/W @4000K,7W |
| Color |
White |
| CRI |
Ra ≥80 |
| SDCM |
≤3 Step 1Bin |
| PCB Width |
8mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
3 years |

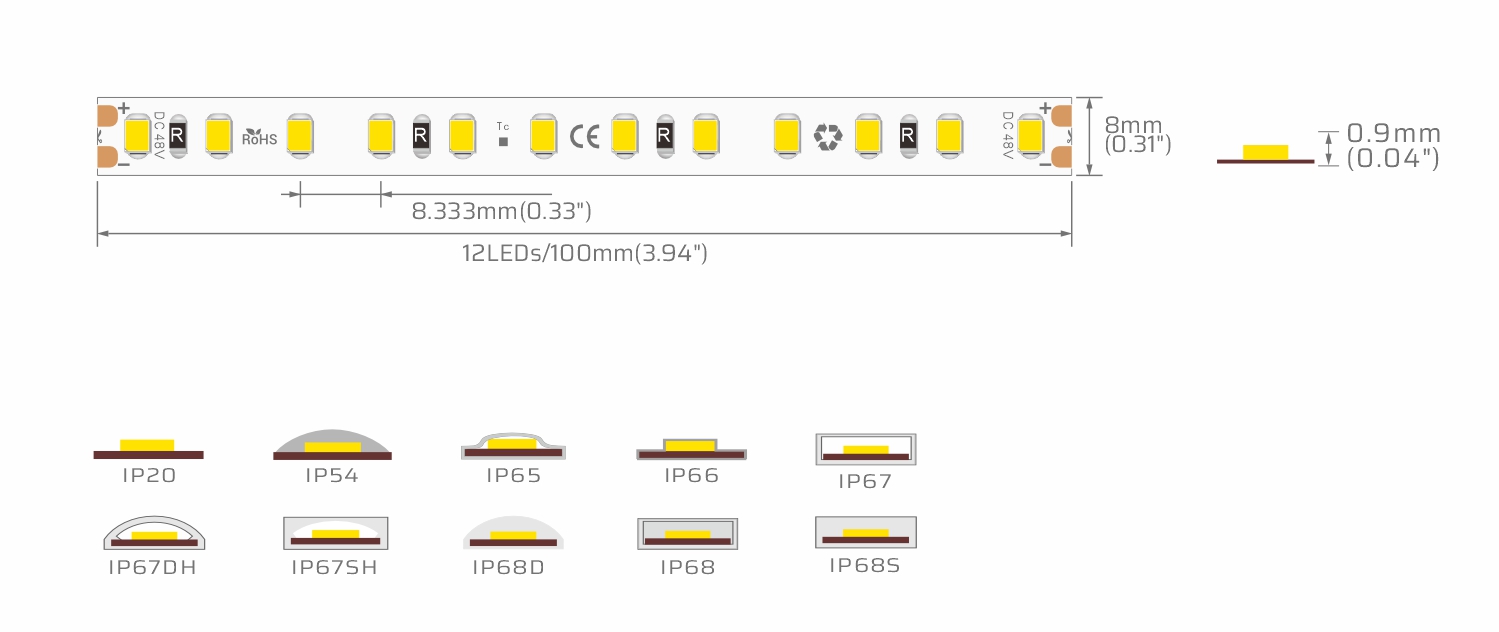

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 12LEDs/100mm(3.94′′)
LED Spacing: 8.333mm(0.33′′)
Height: 0.9mm(0.04′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 3oz
Lifetime: 50000h
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 7W/m | Ra≥80 | SWW | 1800K | 689 | 98 | F |
| WW | 2700K | 805 | 115 | E | ||
| WW | 3000K | 863 | 123 | E | ||
| NW | 4000K | 904 | 129 | E | ||
| PW | 6500K | 825 | 118 | E | ||
| Ra≥90 | SWW | 1800K | 550 | 79 | G | |
| WW | 2700K | 663 | 95 | F | ||
| WW | 3000K | 698 | 100 | F | ||
| NW | 4000K | 728 | 104 | F | ||
| PW | 6500K | 698 | 100 | F | ||
| FS | WW | 2700K | 538 | 77 | G | |
| WW | 3000K | 568 | 81 | G | ||
| WW | 3500K | 585 | 84 | G | ||
| NW | 4000K | 601 | 86 | F |
