8mm | 24V | 240LEDs | 23W | 50mm/cut | #18450 | 2835 CCT Tunable LED Strip
- Tunable White CCT design offers both white light, making this lamp suitable for both work and leisure needs.
- This tunable white LED strip features 2835 LED chips, creating a brighter, softer, and more uniform lighting effect.
- With a high-density design of 240 LEDs per meter, it ensures even light distribution.
- An 8mm narrow board design enhances installation compatibility, making it suitable for various tight spaces.
- Light can be switched between red and white using a controller, meeting a variety of lighting needs.
- Ideal for decorative lighting, architectural lighting, commercial lighting, and home lighting in scenarios that require tunable white CCT effects.
Technical Details
| Part No. |
DL-F28A120V24-18450-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
240 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
23W/m |
| Lumen/m (max.) |
1839 lm/m @2700K，23W |
| Lumen/W (max.) |
81 lm/W @2700K，23W |
| Color |
CCT |
| CRI |
Ra ≥90 |
| PCB Width |
8mm |
| SDCM |
≤3 Step 1Bin |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
5 years |

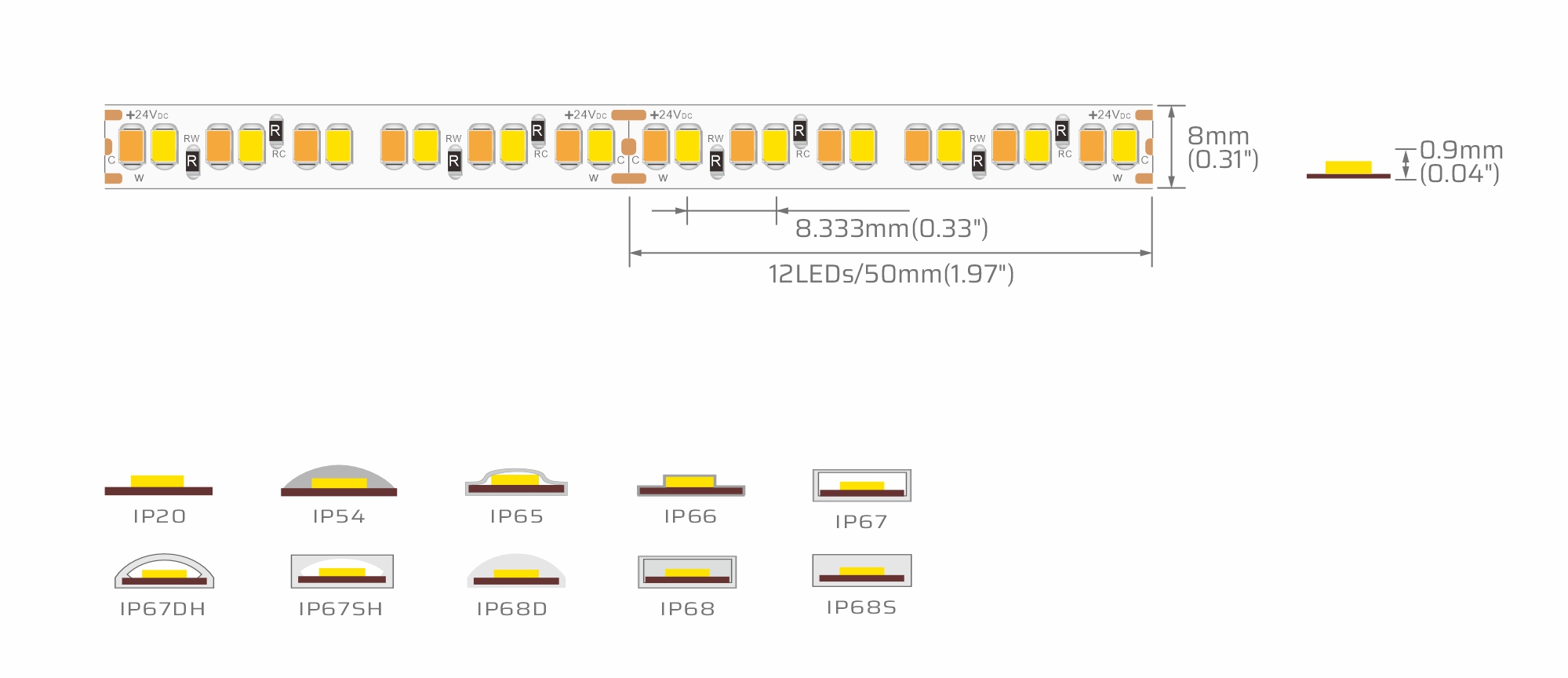

Related Specifications
Length(max.): 5M(16.4′)
Cutting Unit: 12LEDs/50mm(1.97′′)
LED Spacing: 8.333mm(0.33′′)
LED Height: 0.9mm(0.04′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 3oz
Lifetime: 50000h
Certified: CE/RoHS
EMC compliance: EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | CCT | LM/m | LM/W | Erp |
| 11.5W/m | Ra≥90 | Warm White | 1800K | 686 | 61 | G |
| 11.5W/m | Ra≥90 | Cold White | 3000K | 1166 | 104 | F |
| 23W/m | Ra≥90 | Warm+Pure White | 2700K | 1839 | 81 | G |
