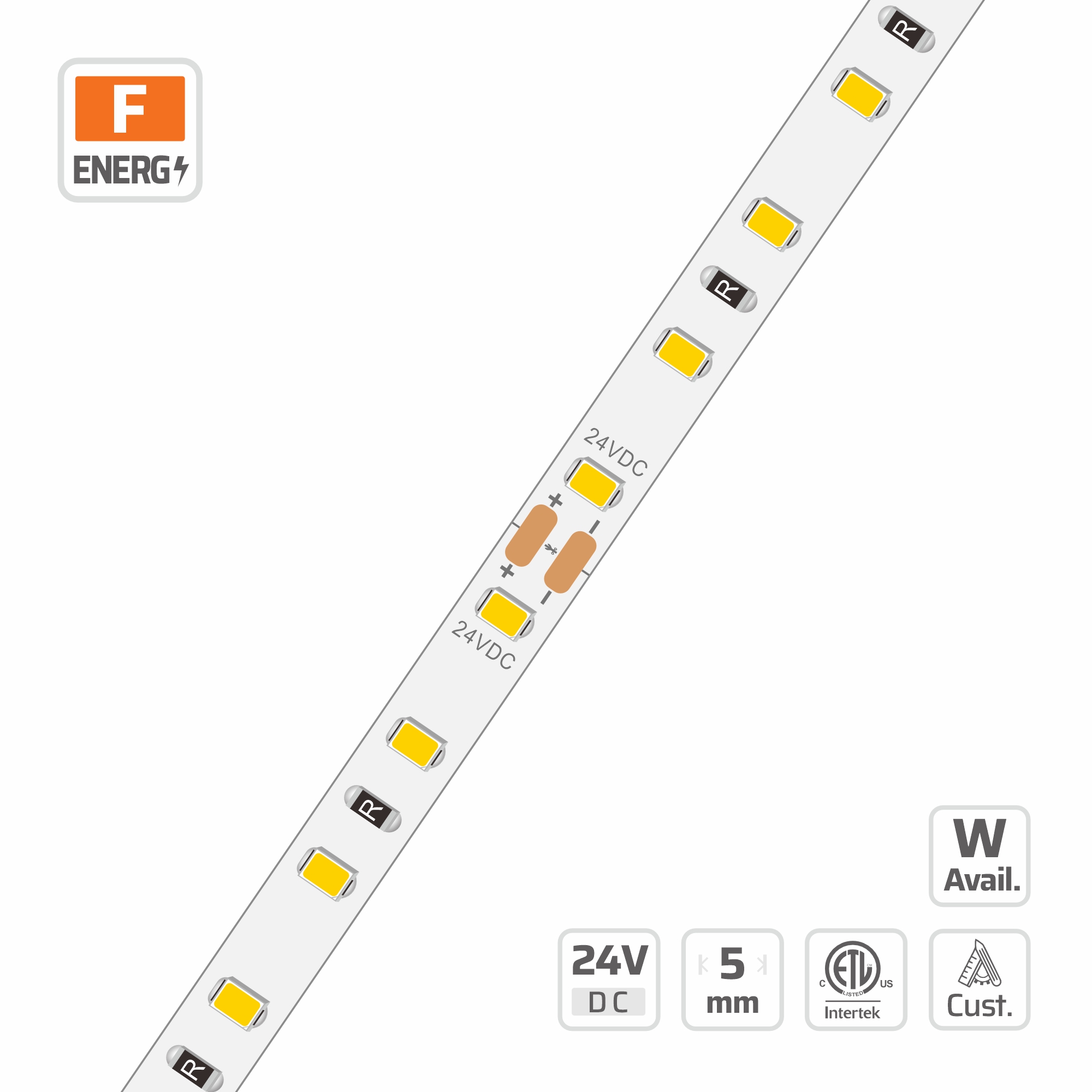

5mm | 24V | 120LEDs | 9.6W | 50mm/cut | #16798 | 2216 Ultra Narrow CV LED Strip
- Utilizes high-quality 2216 LED chips, delivering outstanding brightness and color consistency.
- Ultra-narrow width design with only 5mm wide PCB, suitable for narrow installation spaces.
- Features a constant voltage (CV) power supply method, ensuring stable brightness output across varying loads.
- Supports multiple dimming modes: PWM, DALI, 0-10V, meeting diverse dimming requirements.
- Suitable for applications requiring high brightness and uniformity, such as commercial lighting, exhibitions, and decorative lighting.
Technical Details
| Part No. |
DL-F22A60V24-16798-* |
|---|---|
| SMD Type |
2216 SMD |
| LED Qty |
120 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
9.6W/m |
| Lumen/m (max.) |
922 lm/m @4000K，9.6W |
| Lumen/W (max.) |
96 lm/W @4000K，9.6W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
5mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
3 years |
Related Specifications

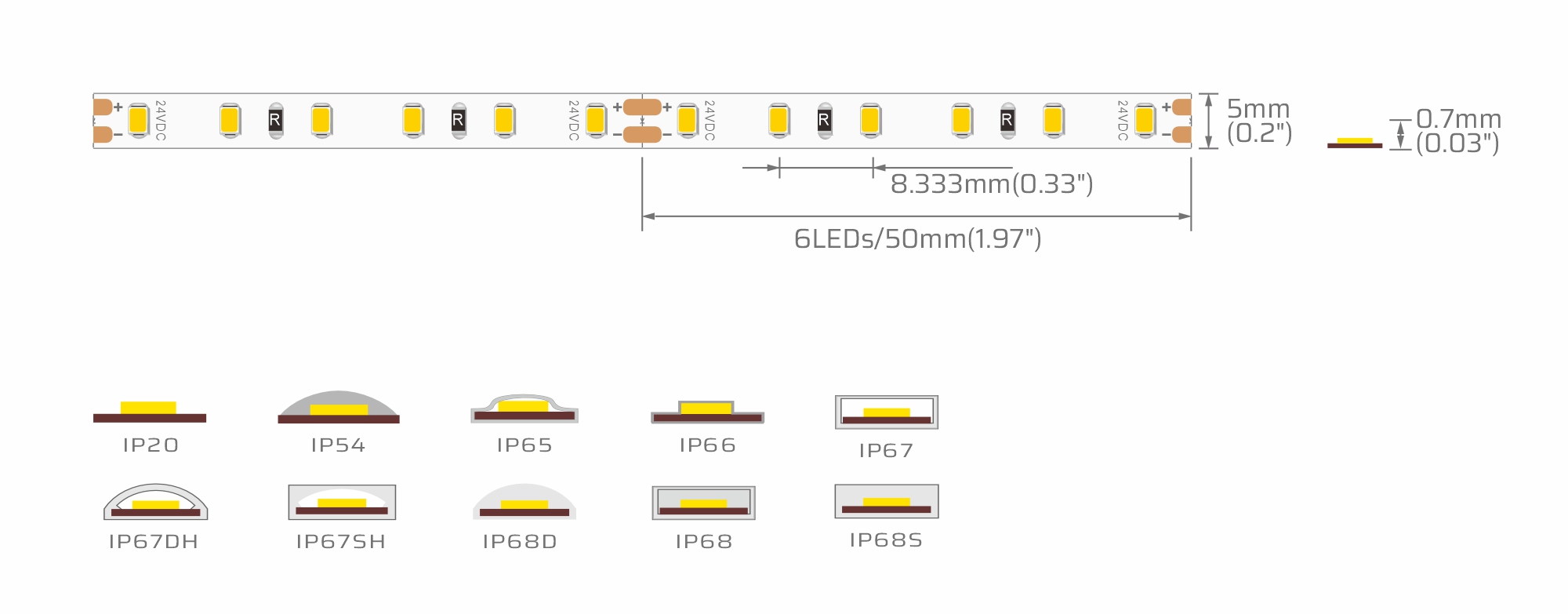

Length(max.): 5M(16.4′)
Cutting Unit: 6LEDs/50mm(1.97′′)
LED Spacing: 8.333mm(0.33′′)
LED Height: 0.7mm(0.03′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 2oz
Lifetime: 50000h
Certified: CE/RoHS
EMC compliance: EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 9.6W/m | Ra≥90 | SWW | 1800K | 697 | 73 | G |
| WW | 2700K | 840 | 88 | F | ||
| WW | 3000K | 884 | 92 | F | ||
| NW | 4000K | 922 | 96 | F | ||
| PW | 6500K | 884 | 92 | F | ||
| FS | WW | 2700K | 681 | 71 | G | |
| WW | 3000K | 719 | 75 | G | ||
| WW | 3500K | 741 | 77 | G | ||
| NW | 4000K | 761 | 79 | G |
