48V | 10mm | 300LEDs | 15W | 50cut | #15926 | 48V High output SOB CV Series
- DC48V input supports up to 15 meters of continuous length.
- Highly flexible SOB linear light, equipped with a thicker PCB for enhanced heat dissipation, ensuring excellent luminance uniformity from start to end.
- The specially designed surface provides uniform light output with anti-glare features.
- Offers a wide color temperature range from 1800K to 6500K with a 120° beam angle for high color rendering efficiency.
- No additional cover is needed, making it ideal for areas with low clearance or reflective surfaces to effectively eliminate hot spots and glare.
Technical Details
| Part No. |
DL-FSOBA150V48-15926-* |
|---|---|
| SMD Type |
SOB |
| LED Qty |
300 LEDs/m |
| Voltage |
DC 48V |
| Power Option |
15W/m |
| Lumen/m (max.) |
1288 lm/m @4000K,15W |
| Lumen/W (max.) |
86 lm/W @4000K,15W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
3 years |

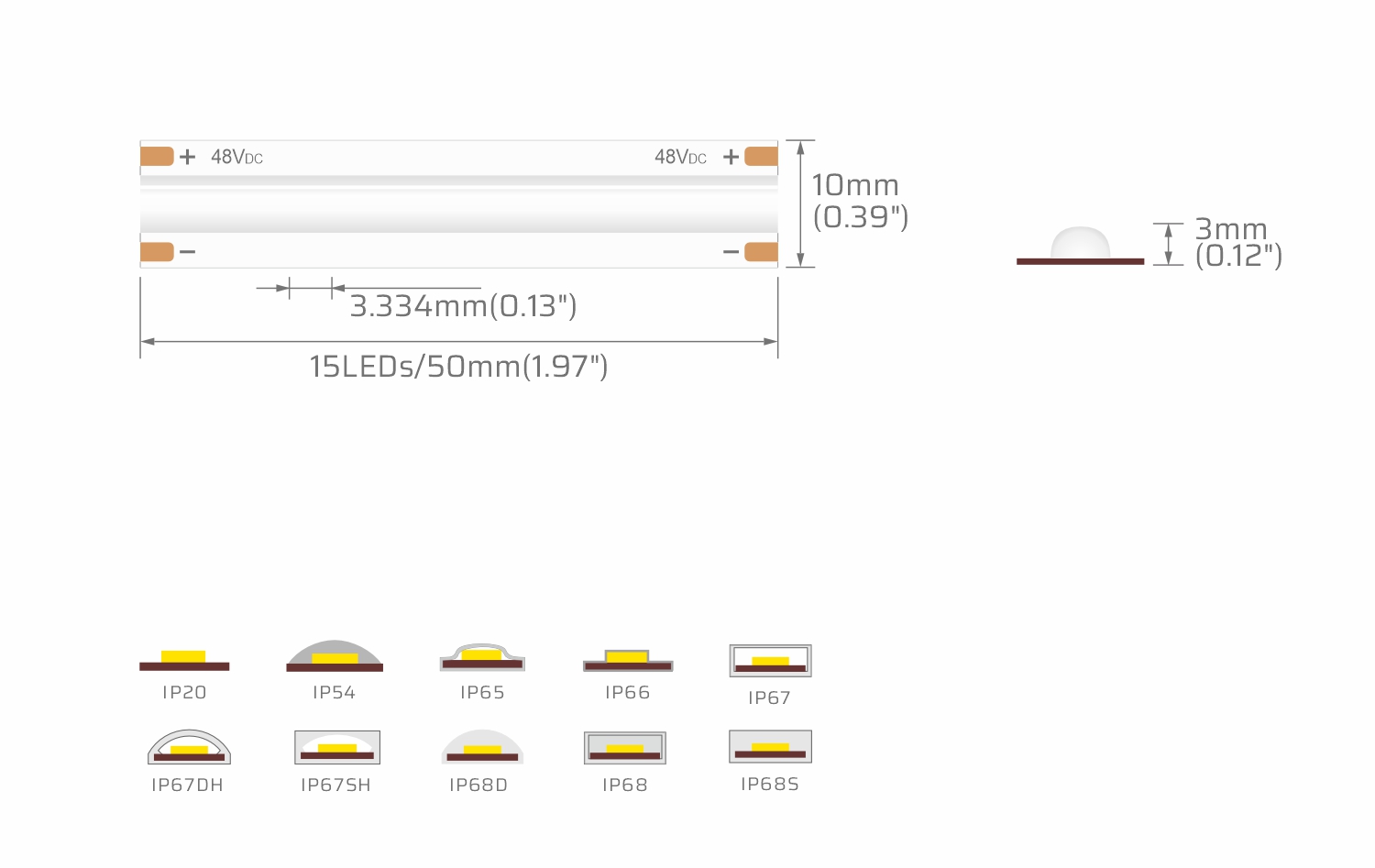

Related Specifications
Length(max.): 15M(49.2′)/roll
Cutting Unit: 15LEDs/50mm(1.969′′)
LED Spacing: 3.334mm(0.131′′)
Height: 3.0mm(0.118′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 15W/m | Ra≥90 | SWW | 1800K | 974 | 65 | G |
| WW | 2700K | 1174 | 78 | G | ||
| WW | 3000K | 1236 | 82 | G | ||
| NW | 4000K | 1288 | 86 | F | ||
| PW | 6500K | 1235 | 82 | G | ||
| FS | WW | 2700K | 952 | 64 | G | |
| NW | 3000K | 1005 | 67 | G | ||
| NW | 3500K | 1035 | 69 | G | ||
| PW | 4000K | 1063 | 71 | G |
