12mm | 24V | 280LEDs | 20W | 100mm/cut | #18341 | 2835 R+C Tunable Color Temperature LED Strip
- The red and white tunable color temperature design effectively compensates for insufficient natural light, ensuring that meat appears with a vibrant, fresh red hue while avoiding dullness.
- Supports independent red and white channel control via PWM controllers, allowing for 0–100% linear dimming and seamless mixing, enabling on-site adjustments to achieve “meaty red” or “milky bright” color temperatures.
- Compatible with various dimming methods including PWM, DALI, and 0-10V, catering to diverse lighting control needs.
- Enhances food presentation, increasing product appeal and encouraging customer purchasing desire.
- Versatile application, particularly suitable for supermarkets, fresh food sections, fruit markets, seafood markets, butcher shops, and restaurants.
Technical Details
| Part No. |
DL-F28A140V24-18341-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
280 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
20W/m |
| Lumen/m (max.) |
1880 lm/m @R+6000K,20W |
| Lumen/W (max.) |
94 lm/W @R+6000K,20W |
| Color |
CCT |
| CRI |
Ra ≥80 |
| SDCM |
≤3 Step 1Bin |
| PCB Width |
12mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
5 years |

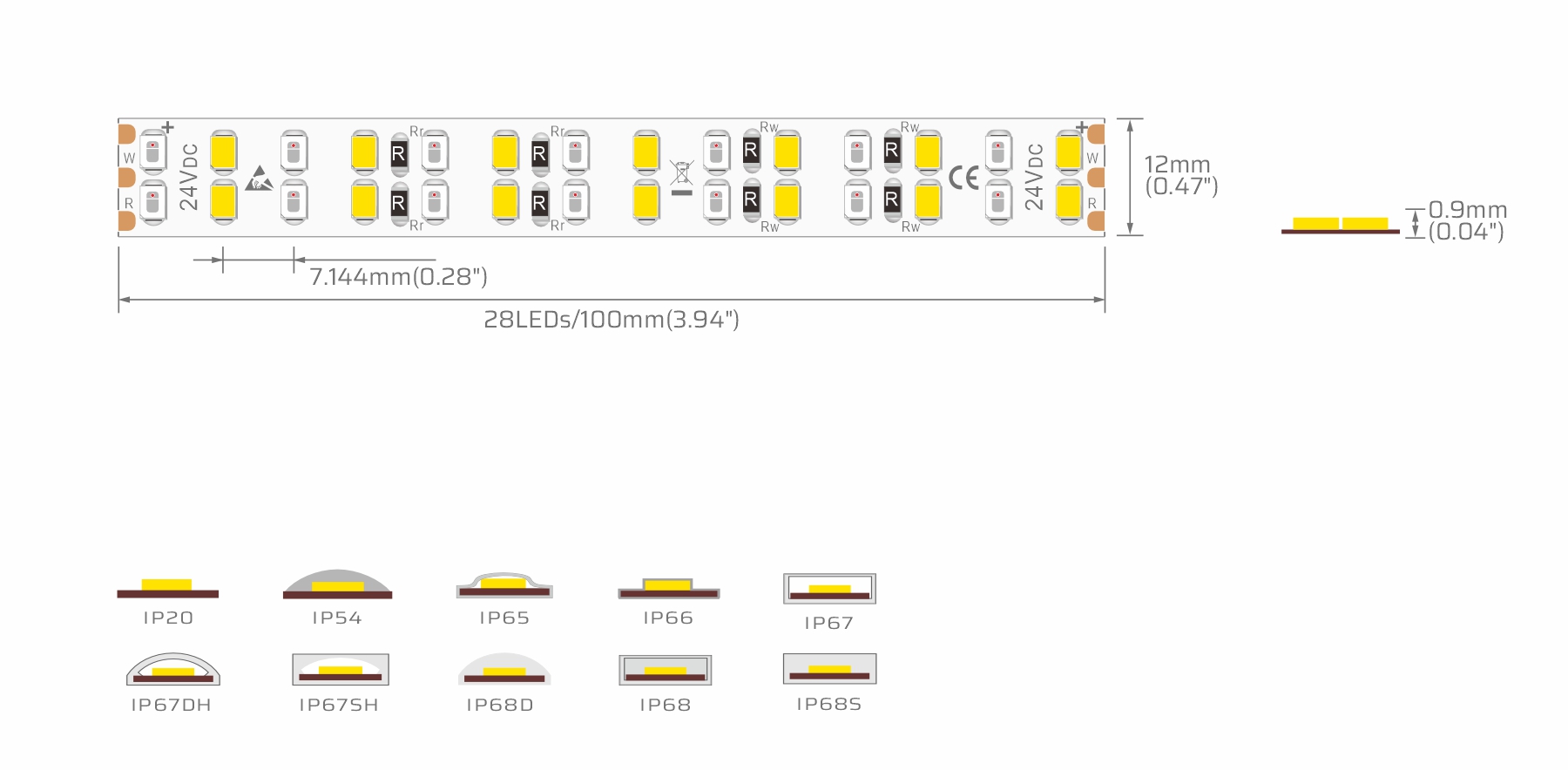

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 28LEDs/100mm(3.94′′)
LED Spacing: 7.144mm(0.28′′)
Height: 0.9mm(0.04′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 3oz
Lifetime: 50000h
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | Color | CRI | Wavelength(λ) | LM/m | LM/W | Erp |
| 9.8W/m | Red | / | 630~635nm | 377 | 38 | G |
| 10.2W/m | 6000K | Ra≥90 | 450~455nm | 1532 | 150 | D |
| 20W/m | R+6000K | / | 630~635nm | 1880 | 94 | F |
