DL-F50A98V24-16795-*

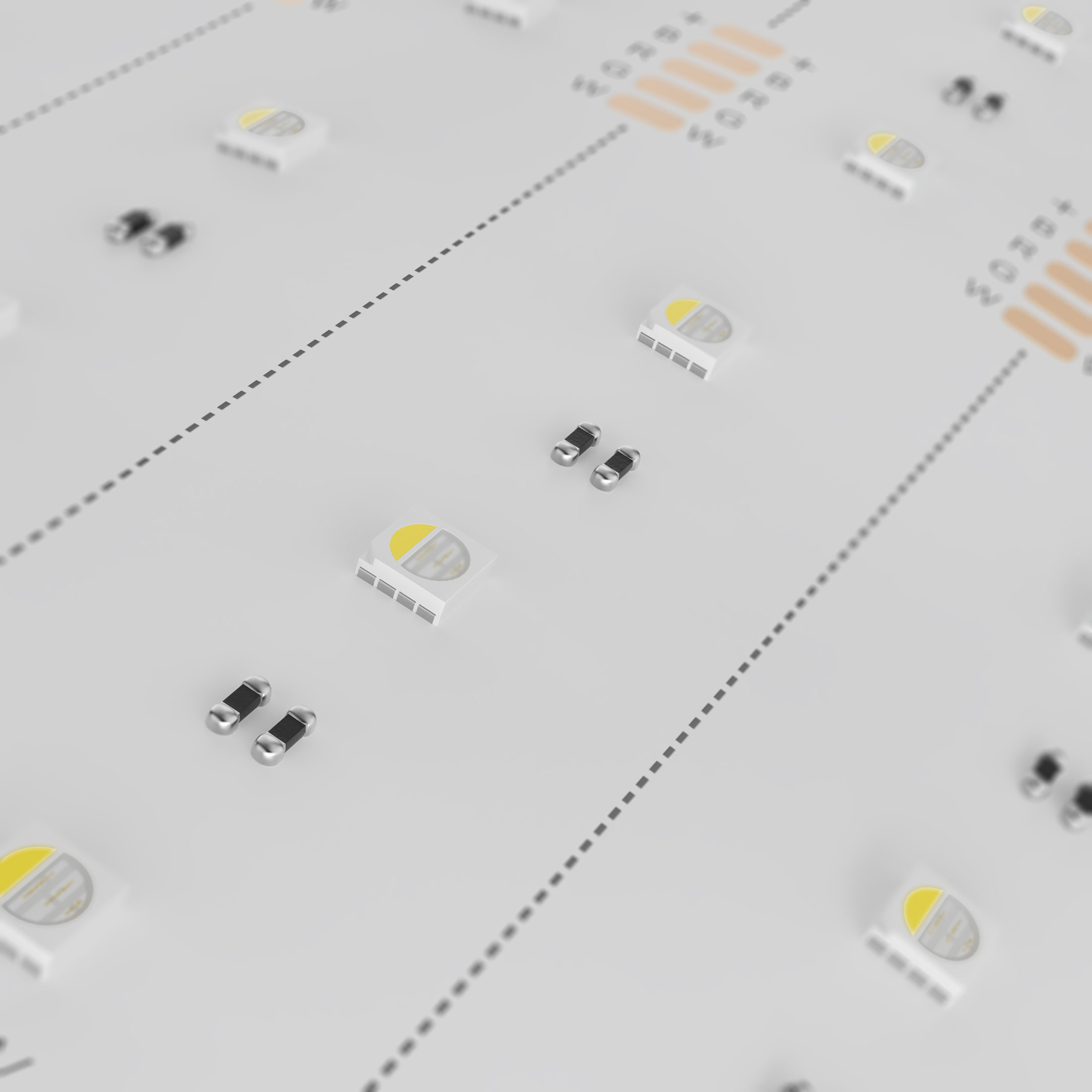

- Mixes RGBW 4 chip in 1 LED, with tunable fucntion combine. Up to 4 billion colors to choose from.
- With the addition of white light, much brighter colors and a softer pastel range are produced to satisfy the exacting color requirements of any lighting design.

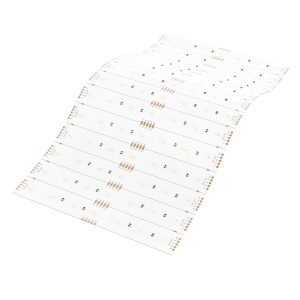

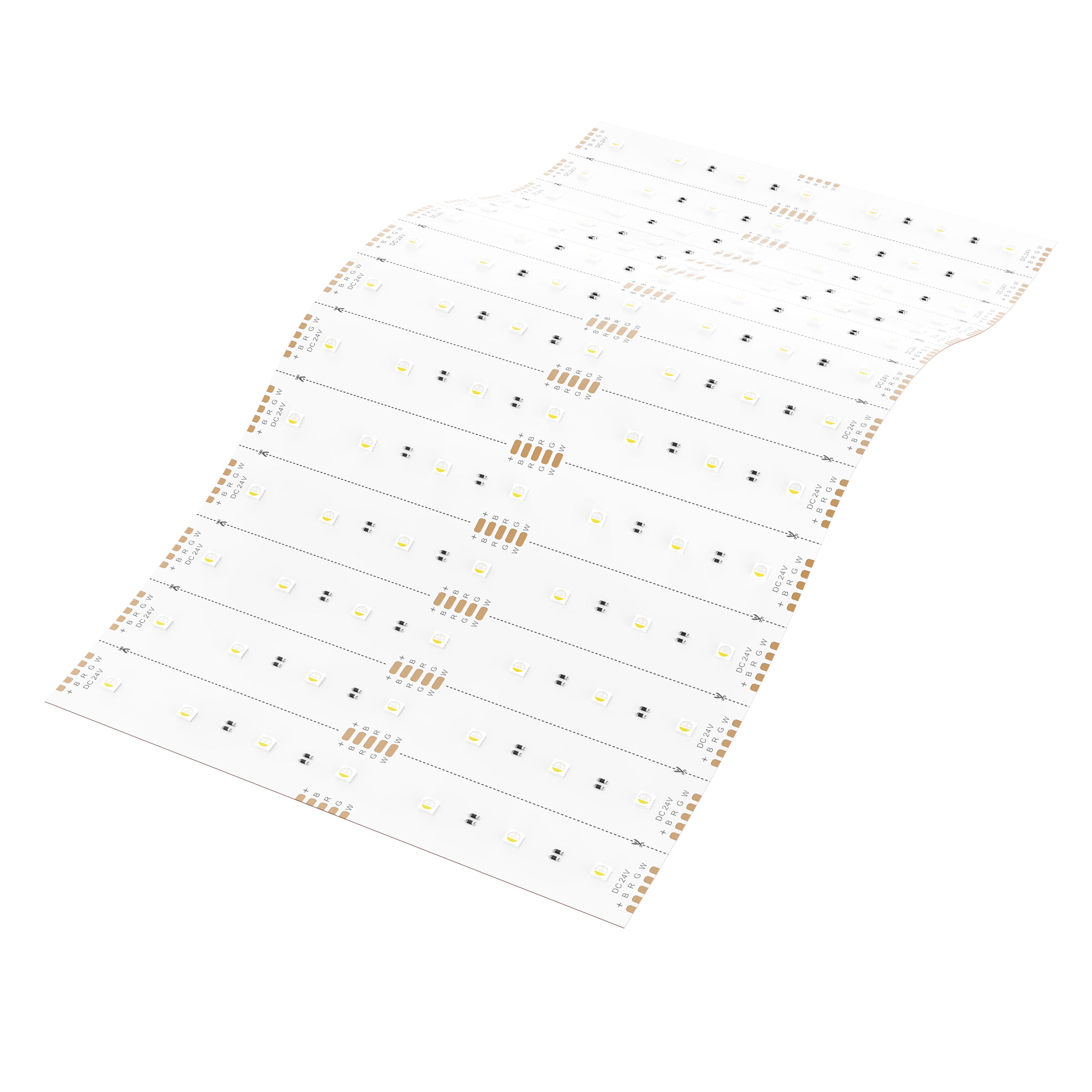

- LED light sheet design, suitable for creating large-area surface lighting.
- Efficient heat dissipation design, ensuring long-term stable operation.
- Ideal for backlighting, architectural lighting, advertising displays, and stage lighting applications.
Technical Details
| Part No. |
DL-F50A98V24-16795-* |
|---|---|
| SMD Type |
5050 SMD |
| LED Qty |
98 LEDs/sheet |
| LED Qty-N |
60~120 LEDs/sheet |
| Voltage |
DC 24V |
| Power Option |
12W/sheet |
| Lumen/sheet (max.) |
948 lm/sheet |
| Lumen/W (max.) |
79 lm/W |
| Color |
RGBW |
| PCB Width |
240mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 |

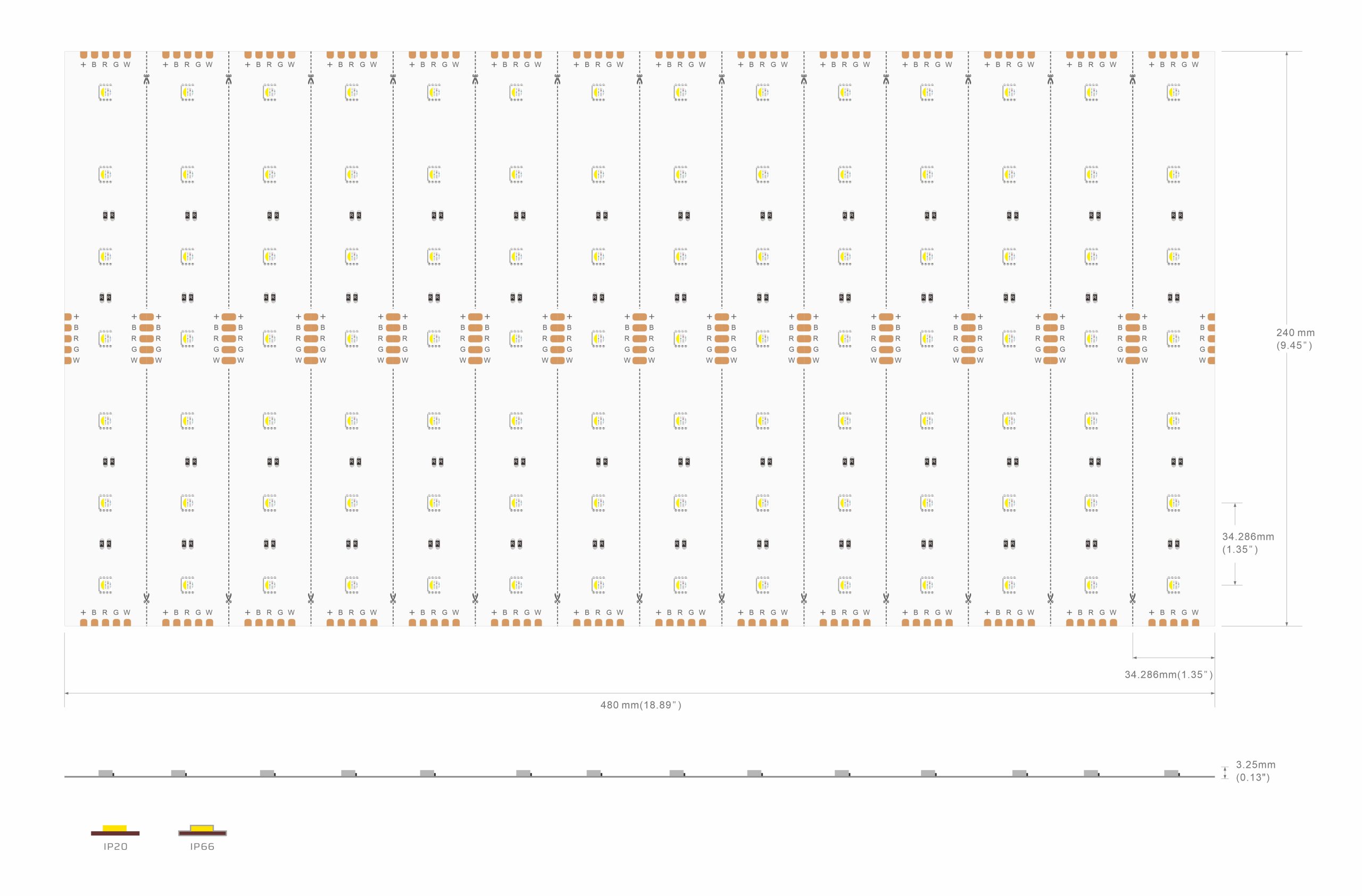

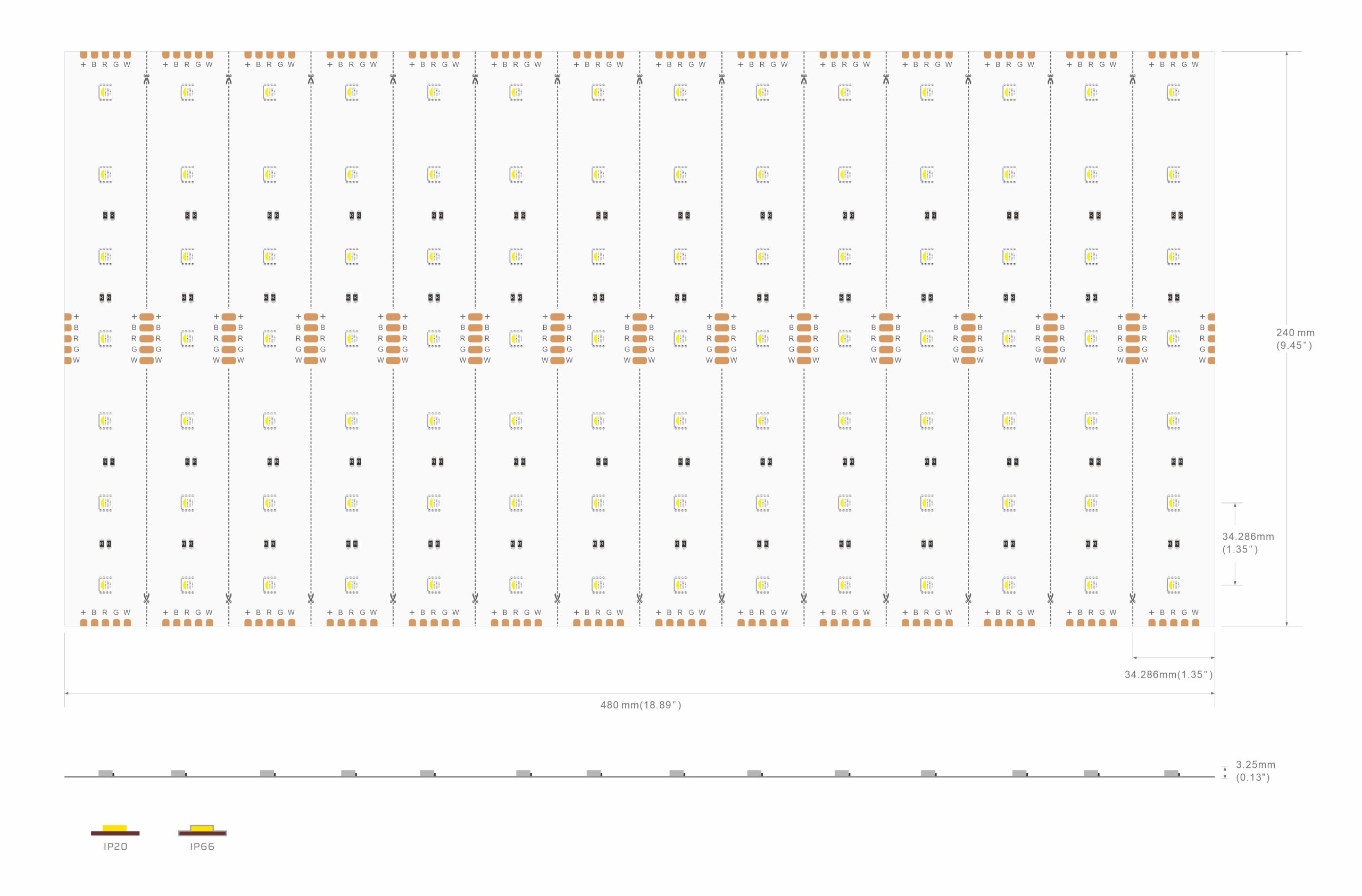

Related Specifications
Length: 480*240mm(18.89*9.45′′)
Cutting Unit: 7LEDs/34.286*240mm(1.35*9.45′′)
LED Spacing: 34.286mm(1.35′′)
LED Height: 3.25mm(0.13′′)
Mounting: 3M tape
Min. Bend Diameter: Φ60mm(2.36′′)
IP Rate: IP20、IP66
Product Photo-electric Parameters
| Power | Color | Wavelength(λ) | LM/m | LM/W | Erp |
| 12W/m | RGBW | / | 948 | 79 | G |
| 3W/m | Red | 630~635nm | 108 | 36 | G |
| 3W/m | Green | 515~520nm | 390 | 130 | E |
| 3W/m | Blue | 465~470nm | 105 | 35 | G |
| 3W/m | WW | 3000K | 360 | 120 | E |
