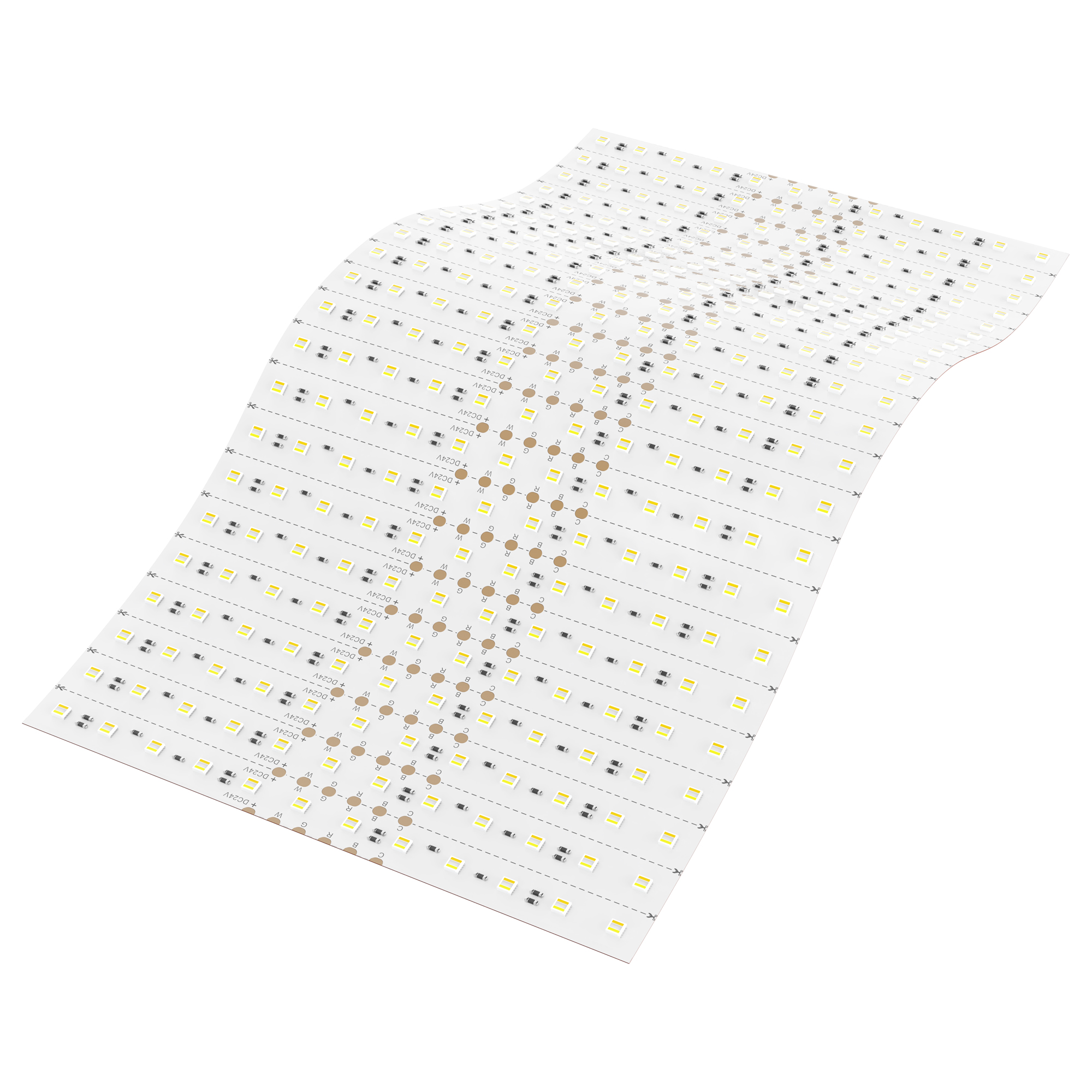

    DL-F50A144V24-6432-*

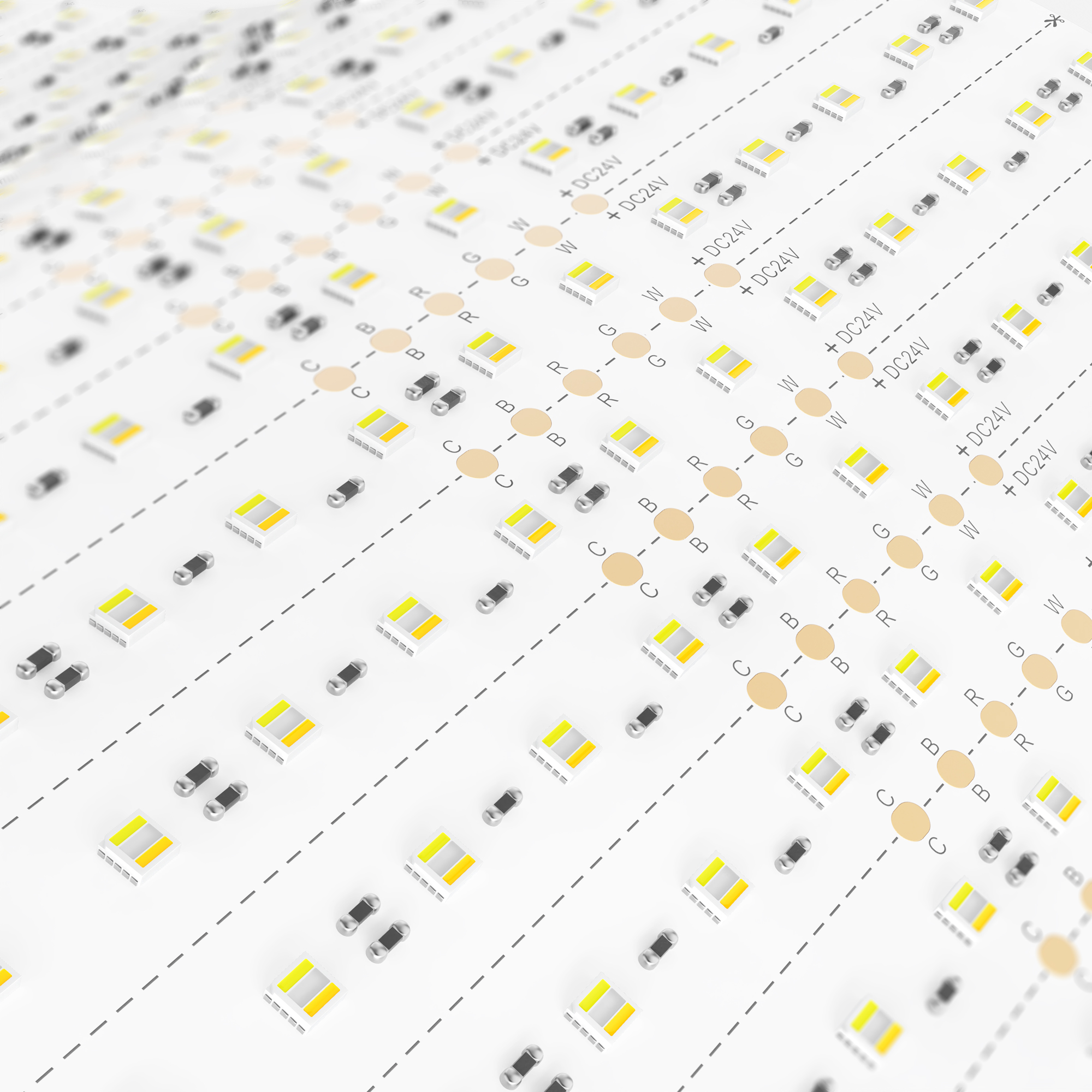

    Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LEDs in different applications.

    Request A Quote
    Category:

    Technical Details

    Part No.

    DL-F50A144V24-6432-*
    SMD Type

    5050 SMD
    LED Qty

    288 LEDs/m
    Voltage

    DC 24V
    Power Option

    ≤ 115W/m
    Lumen/m (max.)

    4735
    Lumen/W (max.)

    50
    Color

    RGB5C
    CRI

    Ra ≥80
    PCB Width

    480*240mm
    Beam Angle

    120°

    Related Specifications

    Length: 480*240mm(18.89*9.44′′)

    Cutting Unit: 12LEDs/20*240mm(0.787*9.44′′)

    LED Spacing: 20mm(0.787′′)

    LED Height: 1.9mm(0.074′′)

    Mounting: 3M tape

    Min. Bend Diameter: Φ60mm(2.362′′)

    IP Rate: IP20

    Product Photo-electric Parameters

    Power CRI Color LM/m LM/W
    90W – RGB+CCT 4735 50
    18W – R 580 30
    18W – G 1215 65
    18W – B 255 14
    18W Ra≥80 2700K 1285 69
    18W Ra≥80 6500K 1650 88



    Product Downloads

    Specification

    DL-F50A288V24-5CP-326M4-Specifications

    Testing Report

    DL-F50A288V24-5CP-326M4-90W-Testing Report

    Manual

    LED-Strip-User Manual.pdf

    WaterproofManual.pdf



    Certificate

    CE Certificate

    ROHS Certificate

    ETL Certificate

    FCC Certificate

    Product Accessories

    No accessories for this product now！
