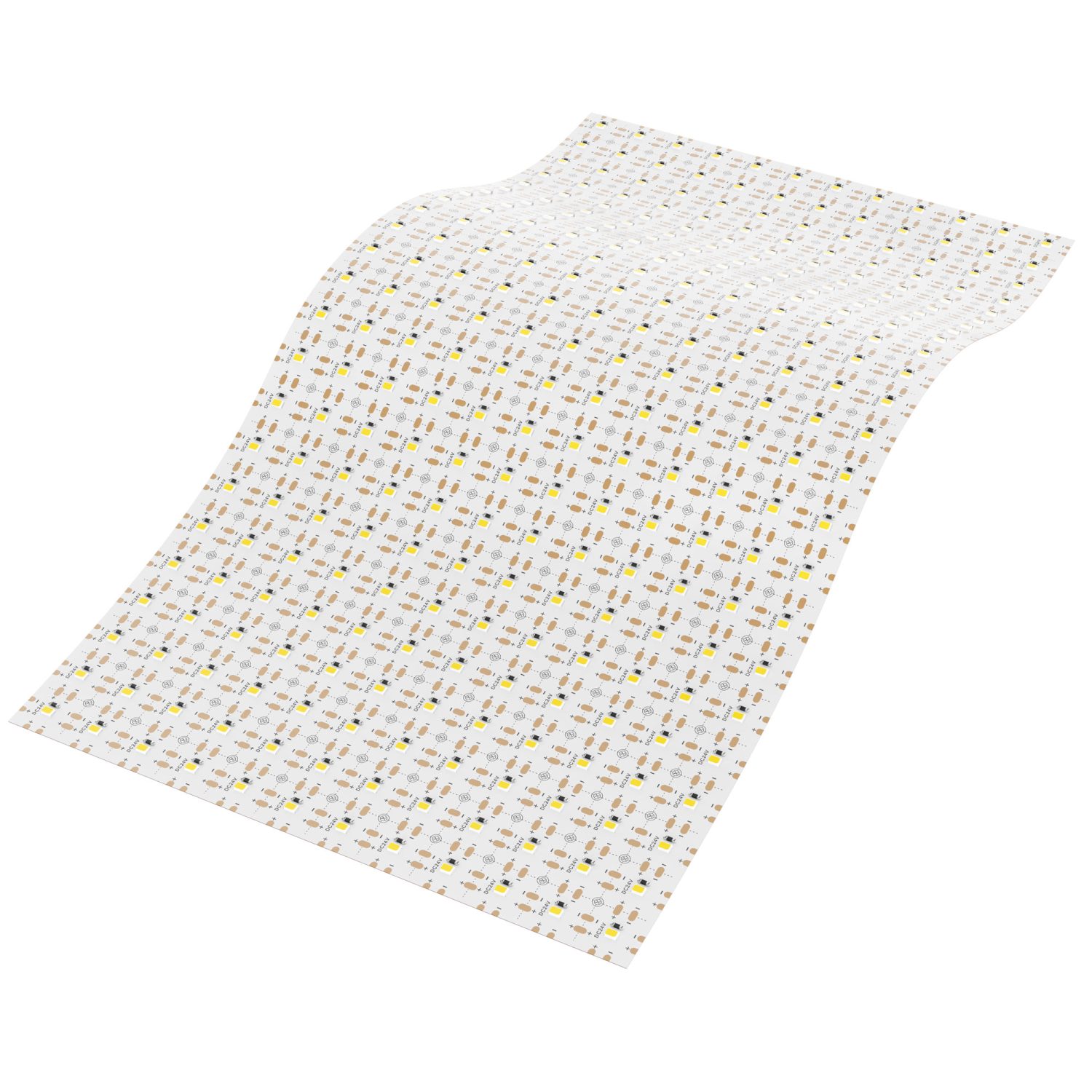

DL-F28A144V24-6433-*
Back to products
DL-F50A144V24-6432-*
Click to enlarge

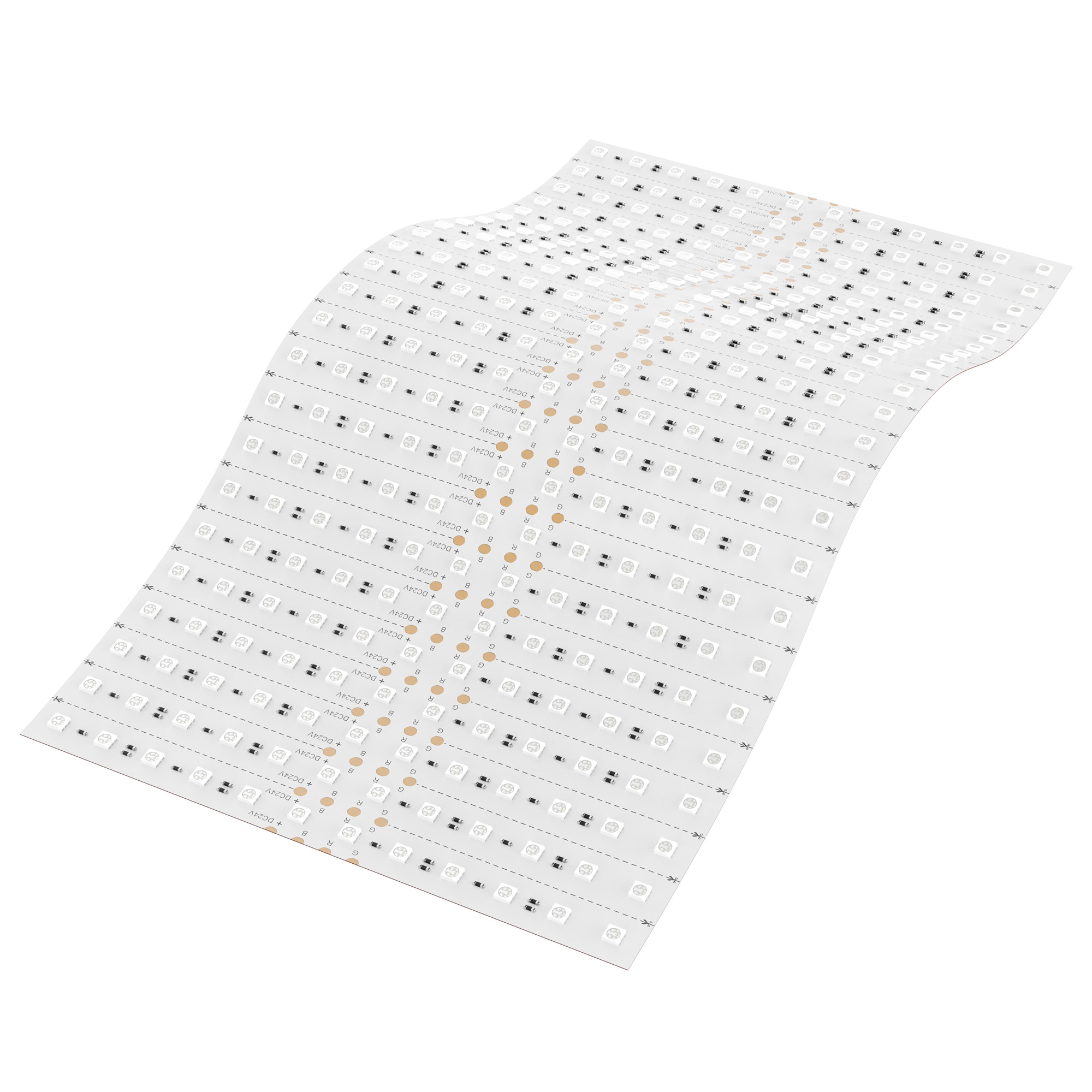

    DL-F50A144V24-6352-*

    Multiple colors are available like monochrome white light, RGB, RGBW, and CCT. The highest density can reach 288 LEDs/panel. The smallest cutting size could be 20mm*240mm, single led .

    Request A Quote
    Category:

    Technical Details

    Part No.

    DL-F50A144V24-6352-*
    SMD Type

    5050 SMD
    LED Qty

    288 LEDs/m
    Voltage

    DC 24V
    Power Option

    ≤ 70W/m
    Lumen/m (max.)

    1855
    Lumen/W (max.)

    29
    Color

    RGB
    PCB Width

    480*240mm
    Beam Angle

    120°

    Related Specifications

    Length: 480*240mm(18.89*9.44′′)

    Cutting Unit: 12LEDs/20*240mm(0.787*9.44′′)

    LED Spacing: 20mm(0.787′′)

    LED Height: 3mm(0.118′′)

    Mounting: 3M tape

    Min. Bend Diameter: Φ60mm(2.362′′)

    IP Rate: IP20

    Product Photo-electric Parameters

    Power Color LM/m LM/W
    65W RGB 1855 29
    21.6W R 435 20
    21.6W G 1275 59
    21.6W B 285 13



    Product Downloads

    Specification

    DL-F50A288V24-RGB-526M3-Specifications

    Testing Report

    DL-F50A288V24-RGB-526M3-65W-Testing Report

    Manual

    LED-Strip-User Manual.pdf

    WaterproofManual.pdf



    Certificate

    CE Certificate

    ROHS Certificate

    ETL Certificate

    FCC Certificate

    Product Accessories

    No accessories for this product now！
