    DL-F28A288V24-6600-*

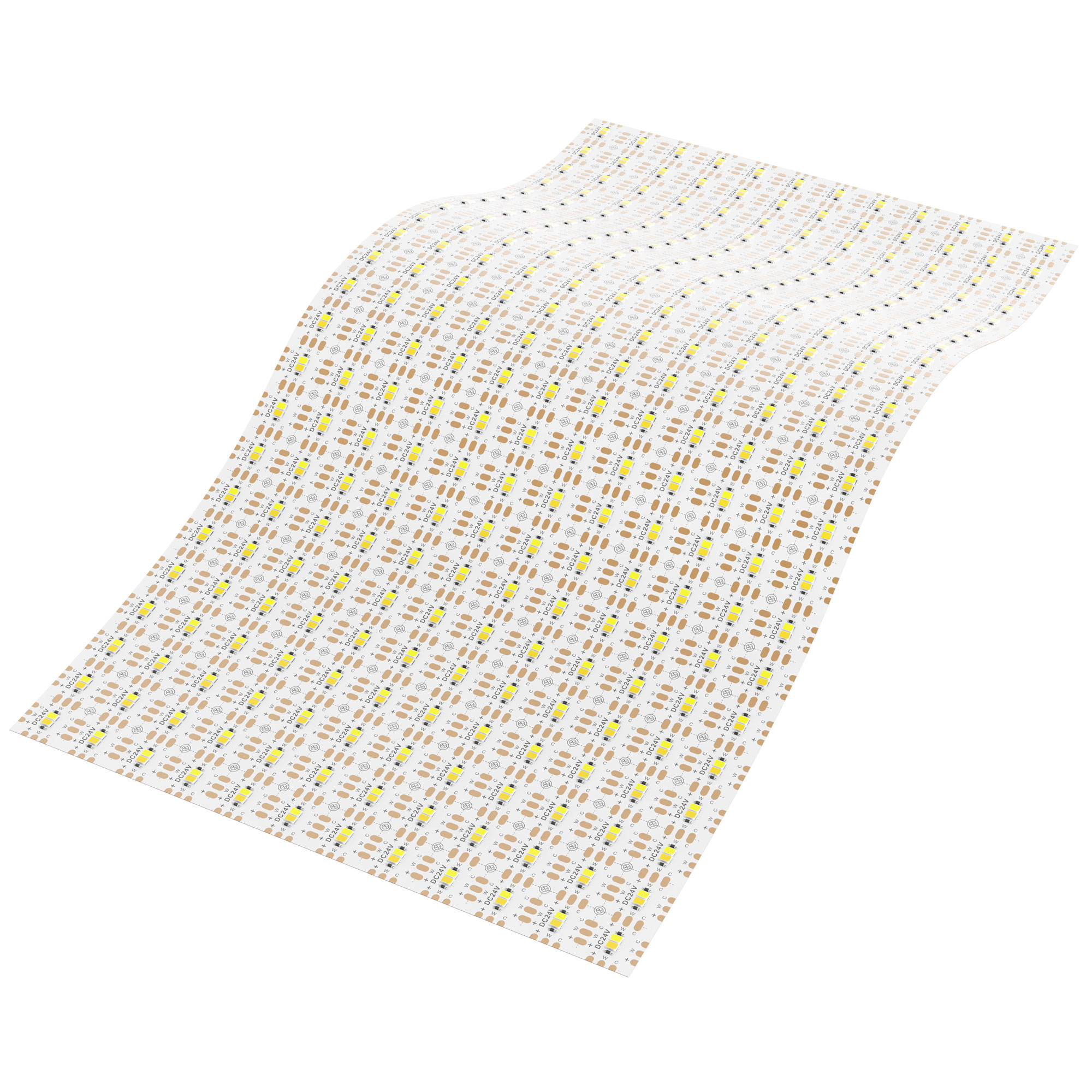

    For backlighting solutions which are sensitive to curvy and space, requiring the thinnest lighting solutions, flexible panel light is the most suitable option.

    Request A Quote
    Category:

    Technical Details

    Part No.

    DL-F28A288V24-6600-*

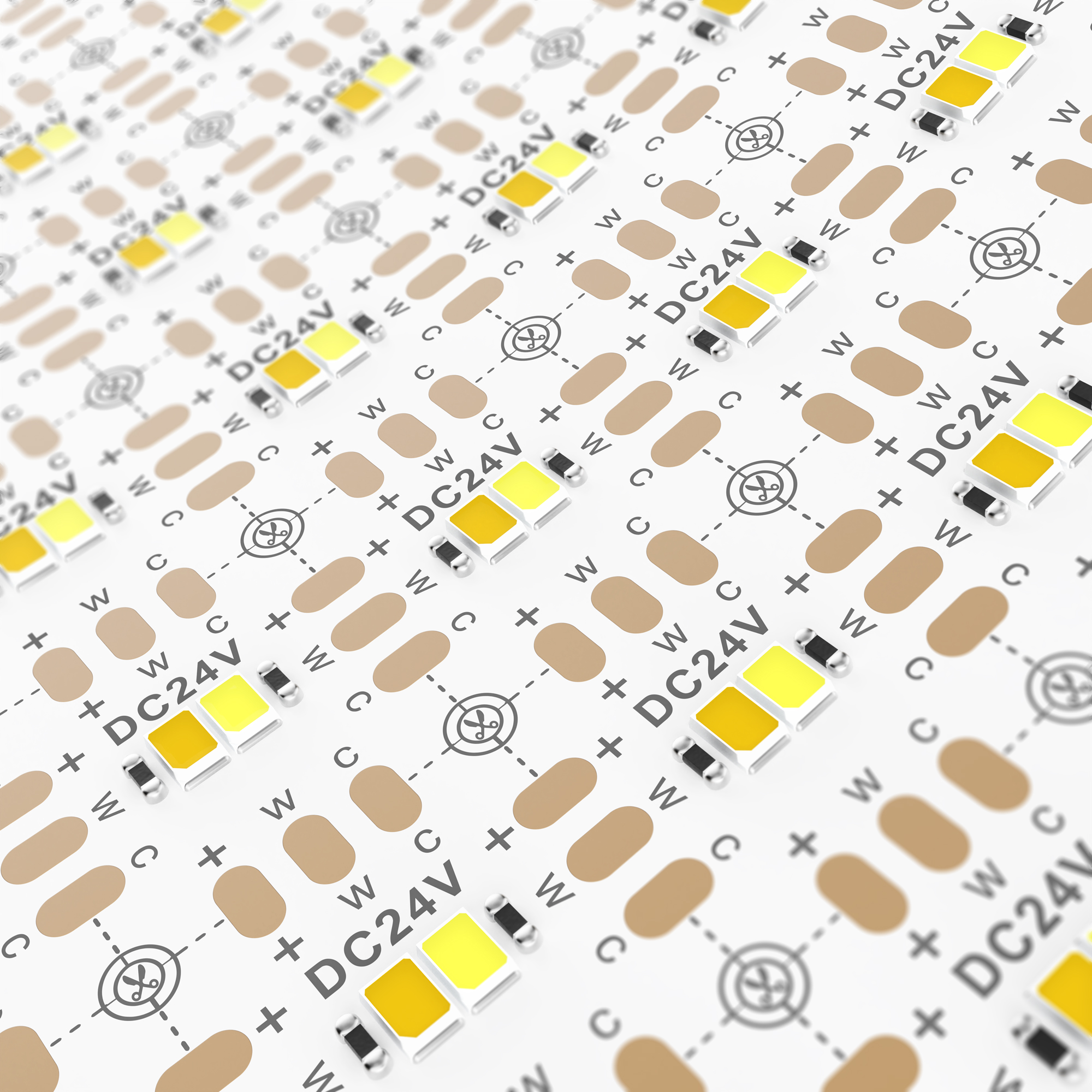

    SMD Type

    2835 Series

    LED Qty

    576 LEDs/m

    Voltage

    DC 24V

    Power Option

    ≤ 97W/m

    Lumen/m (max.)

    10315

    Lumen/W (max.)

    88

    Color

    CCT

    CRI

    Ra ≥80

    PCB Width

    480*240mm

    Beam Angle

    120°

    Related Specifications

    Length: 480*240mm(18.89*9.44′′)

    Cutting Unit: 2LEDs/20*20mm(0.787*0.787′′)

    LED Spacing: 20mm(0.787′′)

    LED Height: 0.9mm(0.0735′′)

    Mounting: 3M tape

    Min. Bend Diameter: Φ60mm(2.362′′)

    IP Rate: IP20

    Product Photo-electric Parameters

    Power CRI Color Color Temperature LM/m LM/W Energy Efficiency Class
    60W Ra≥80 WW 2700K 5075 84 G
    60W Ra≥80 PW 6500K 5635 93 F
    120W Ra≥80 W+P 4000K 10315 88 F

    Product Downloads

    Specification

    DL-F28A576V24-006M6-Specifications

    Testing Report

    DL-F28A576V24-006M6-120W-CCT-CRI80-Testing Report

    Manual

    LED-Strip-User Manual.pdf

    WaterproofManual.pdf



    Certificate

    CE Certificate

    ROHS Certificate

    ETL Certificate

    FCC Certificate
