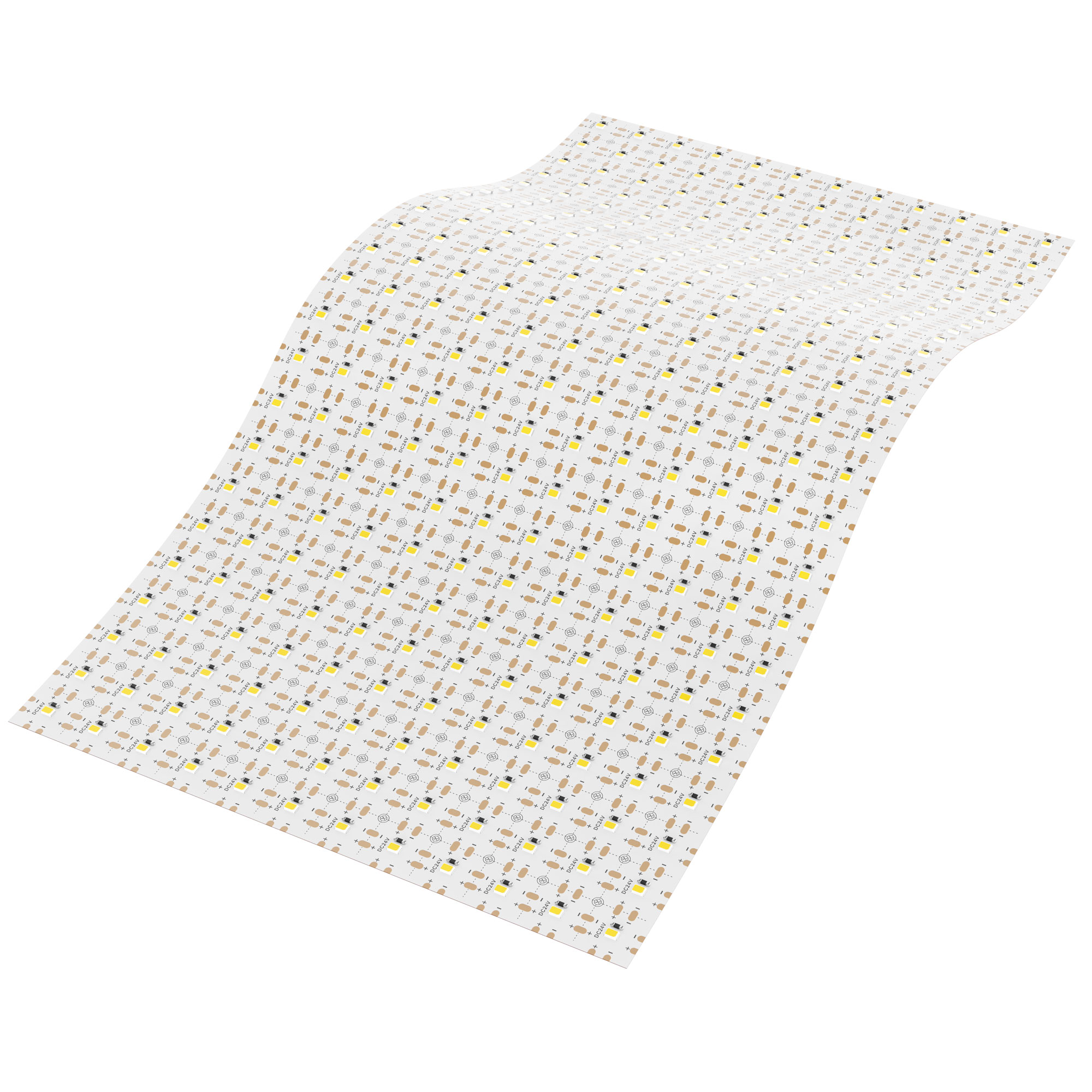

    DL-F28A144V24-6433-*

    For backlighting solutions which are sensitive to curvy and space, requiring the thinnest lighting solutions, flexible panel light is the most suitable option.

    Request A Quote
    Category:

    Technical Details

    Part No.

    DL-F28A144V24-6433-*
    SMD Type

    2835 SMD
    LED Qty

    288 LEDs/m
    Voltage

    DC 24V
    Power Option

    ≤ 70W/m
    Lumen/m (max.)

    5940
    Lumen/W (max.)

    99
    Color

    White
    CRI

    Ra ≥80
    PCB Width

    480*240mm
    Beam Angle

    120°

    Related Specifications

    Length: 480*240mm(18.89*9.44′′)

    Cutting Unit: 1LEDs/20*20mm(0.787*0.787′′)

    LED Spacing: 20mm(0.787′′)

    LED Height: 3mm(0.118′′)

    Mounting: 3M tape

    Min. Bend Diameter: Φ60mm(2.362′′)

    IP Rate: IP20

    Product Photo-electric Parameters

    Power CRI Color Color Temperature LM/m LM/W Energy Efficiency Class
    60W Ra≥80 WW 2700K 4920 82 G
    60W Ra≥80 WW 3000K 5135 85 F
    60W Ra≥80 NW 4000K 5340 89 F
    60W Ra≥80 NW 5000K 5640 94 F
    60W Ra≥80 PW 6500K 5940 99 F

    Product Downloads

    Specification

    DL-F28A288V24-336M4-Specifications

    Testing Report

    DL-F28A288V24-336M4-60W-3000K-CRI80-Testing Report

    Manual

    LED-Strip-User Manual.pdf

    WaterproofManual.pdf



    Certificate

    CE Certificate

    ROHS Certificate

    ETL Certificate

    FCC Certificate

    Product Accessories

    No accessories for this product now！
