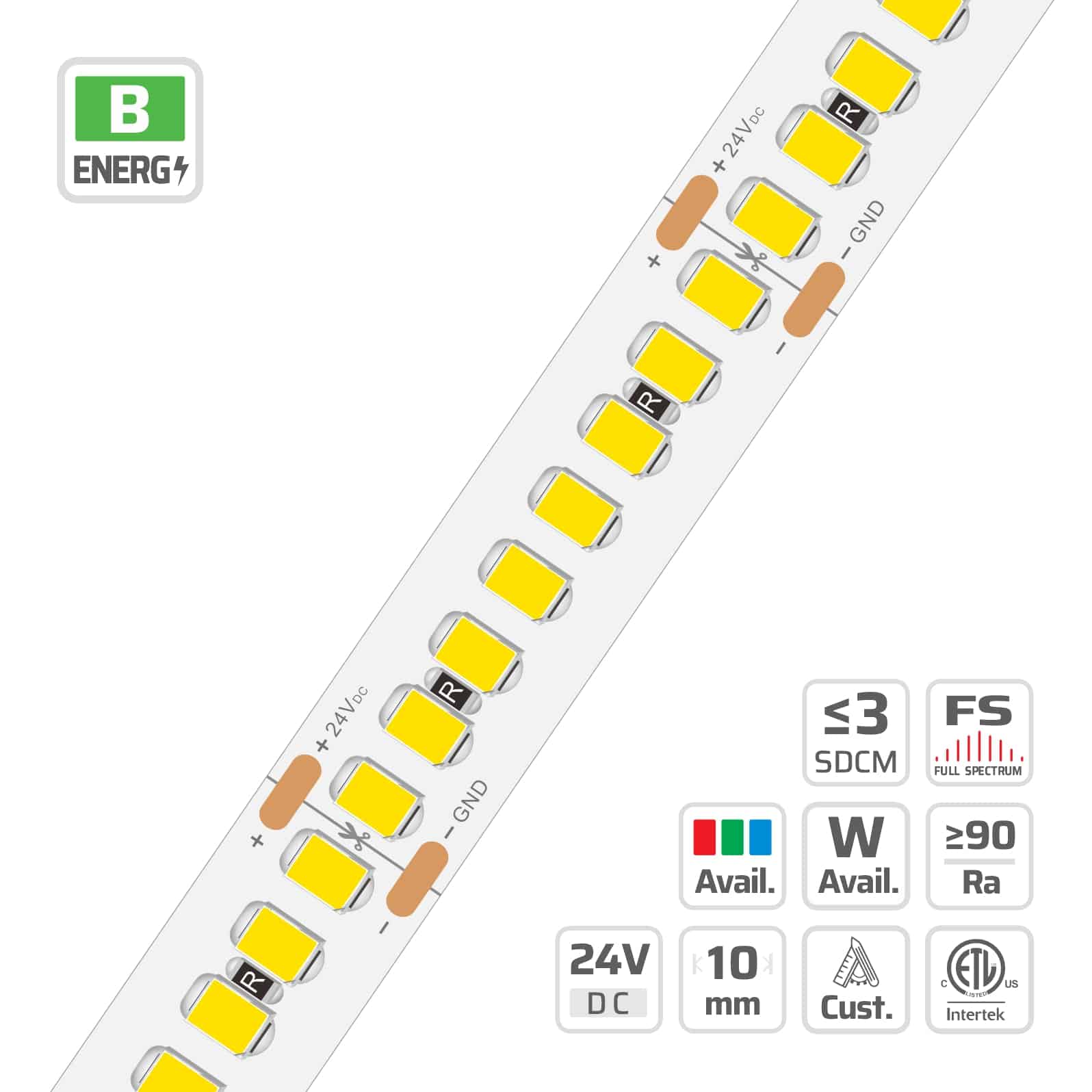

10mm | 24V | 240LEDs | 15W | 33.3cut | #3493 | 2835 High Lumen High Light Efficacy Ultra- Density LED Strip Light

Name: 10mm | 24V | 240LEDs | 15W | 33.3cut | #3493 | 2835 High Lumen High Light Efficacy Ultra- Density LED Strip Light - Shenzhen Deno Lighting Electronic Co., Ltd
SKU: DL-F28A120V24-3493-*

Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications.

Category: High Light Efficacy Series

Technical Details

Part No.	DL-F28A120V24-3493-*
SMD Type	2835 SMD
LED Qty	240 LEDs/m
Voltage	DC 24V
Power Option	15W/m
Lumen/m (max.)	3780 lm/m @5000K
Lumen/W (max.)	195 lm/W @5000K
Color	White
CRI	Ra ≥80 , Ra ≥90 , Ra ≥95
SDCM	≤3 Step 1Bin
PCB Width	10mm
Beam Angle	120°
IP Process	IP20 , IP66 , IP54 , IP65 , IP67 , IP68
Warranty	5 years

Related Specifications

Length(max.): 5M(16.4′)/roll

Cutting Unit: 8LEDs/33.33mm(1.312′′)

LED Spacing: 4.1mm(0.161′′)

LED Height: 0.9mm(0.035′′)

Mounting: 3M tape

Min. Bend: Φ60mm(2.362′′)

Copper foil: 3oz

Pure Gold wire: 99.99%

On-off times: 10000（test times）

Eye security:IEC 62471

Certification:UL

Certified:CE/RoHS/ETL

EMC compliance:EN 55015

Product Photo-electric Parameters

Ra≥80

Power	CRI	Color	Color Temperature	LM/m	LM/W	Energy Efficiency Class
19.2W	Ra≥80	SWW	1900K	2870	148	D
19.2W	Ra≥80	SWW	2300K	3200	165	C
19.2W	Ra≥80	WW	2700K	3450	178	C
19.2W	Ra≥80	WW	3000K	3625	187	B
19.2W	Ra≥80	WW	3500K	3675	190	B
19.2W	Ra≥80	NW	4000K	3785	195	B
19.2W	Ra≥80	NW	5000K	3780	195	B
19.2W	Ra≥80	PW	6500K	3625	187	B

Ra≥90

Power	CRI	Color	Color Temperature	LM/m	LM/W	Energy Efficiency Class
19.2W	Ra≥90	SWW	1900K	2305	119	E
19.2W	Ra≥90	SWW	2300K	2570	133	E
19.2W	Ra≥90	WW	2700K	2790	144	D
19.2W	Ra≥90	WW	3000K	2945	152	D
19.2W	Ra≥90	WW	3500K	3005	155	D
19.2W	Ra≥90	NW	4000K	3065	158	D
19.2W	Ra≥90	NW	5000K	3065	158	D
19.2W	Ra≥90	PW	6500K	2945	152	D

Ra≥95

Power	CRI	Color	Color Temperature	LM/m	LM/W	Energy Efficiency Class
19.2W	Ra≥95	WW	2700K	2260	117	E
19.2W	Ra≥95	WW	3000K	2395	124	E
19.2W	Ra≥95	WW	3500K	2470	128	E
19.2W	Ra≥95	NW	4000K	2530	131	E
