8mm | 24V | 416LEDs | 15W | 19.23mm/cut | #18241 | 1515 2-Row 45° High Density LED Strip Light
- Ultra-narrow 8mm width with dual-row 45° tilted design effectively reduces light wastage and enhances lighting efficiency.
- Uses compact 1515 high CRI LEDs to ensure excellent color rendering and natural lighting effect.
- High-density design with 480 LEDs per meter ensures uniform light distribution.
- Supports multiple dimming modes: PWM, DALI, 0-10V, meeting diverse dimming requirements.
- Suitable for applications requiring high brightness and uniformity, such as commercial lighting, exhibitions, and decorative lighting.
Technical Details
| Part No. |
DL-F15A208V24-18241-* |
|---|---|
| SMD Type |
1515 SMD |
| LED Qty |
416 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
15W/m |
| Lumen/m (max.) |
2069 lm/m @4000K，15W |
| Lumen/W (max.) |
138 lm/W @4000K，15W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
8mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
3 years |
Related Specifications

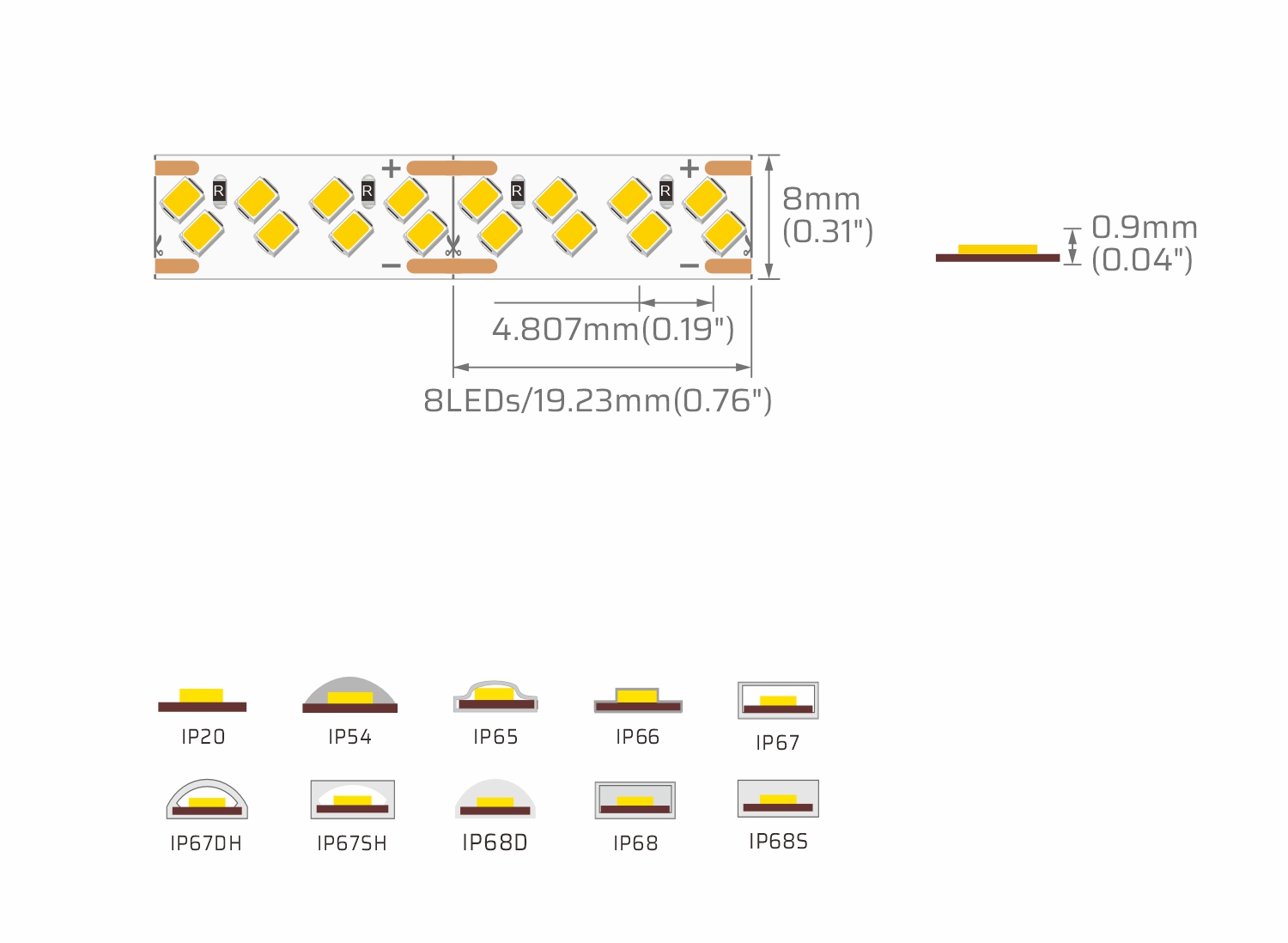

Length(max.): 5M(16.404′)/roll
Cutting Unit: 8LEDs/19.23mm(0.76′′)
LED Spacing: 4.807mm(0.19′′)
LED Height: 0.9mm(0.04′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 2oz
Lifetime: 50000h
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 15W/m | Ra≥90 | SWW | 1800K | 1565 | 104 | F |
| WW | 2700K | 1886 | 126 | E | ||
| WW | 3000K | 1985 | 132 | E | ||
| NW | 4000K | 2069 | 138 | D | ||
| PW | 6500K | 1983 | 132 | E | ||
| FS | WW | 2700K | 1529 | 102 | F | |
| WW | 3000K | 1614 | 108 | F | ||
| WW | 3500K | 1663 | 111 | E | ||
| NW | 4000K | 1708 | 114 | E |
