8mm | 24V | 320LEDs | 14.4W | 25cut | #11236-N | 2216 High Light Efficiency LED Strips
- Highly bending relibility SOB Liner light. With thicker PCB, better for heat dissipation, keep the good consitent
- brightness from begin to end.
- Special surface provide uniform luminescence and anti-glare.
- With built-in chip protection stents, make it higher power available. Special power is customizable.
- Wide CCT range for option from 1800K~7500K. Customizable full spectrum, 120° view angel high color efficiency.
- High CRI95, Full specturm is also available.
- Versatile Lighting Solution: Ideal for backlighting, in-frame lighting, under-cabinet lighting, and various architectural applications. Its exceptional adaptability and performance make it a preferred choice among professionals.
Technical Details
| Part No. |
DL-F22A160V24-11236-N-* |
|---|---|
| SMD Type |
2216 SMD |
| LED Qty |
320LEDs/m |
| Voltage |
DC 24V |
| Power Option |
14.4W/m |
| Lumen/m (max.) |
2077 lm/m @4000K，14.4W |
| Lumen/W (max.) |
144 lm/W @4000K，14.4W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
8mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
3 years |

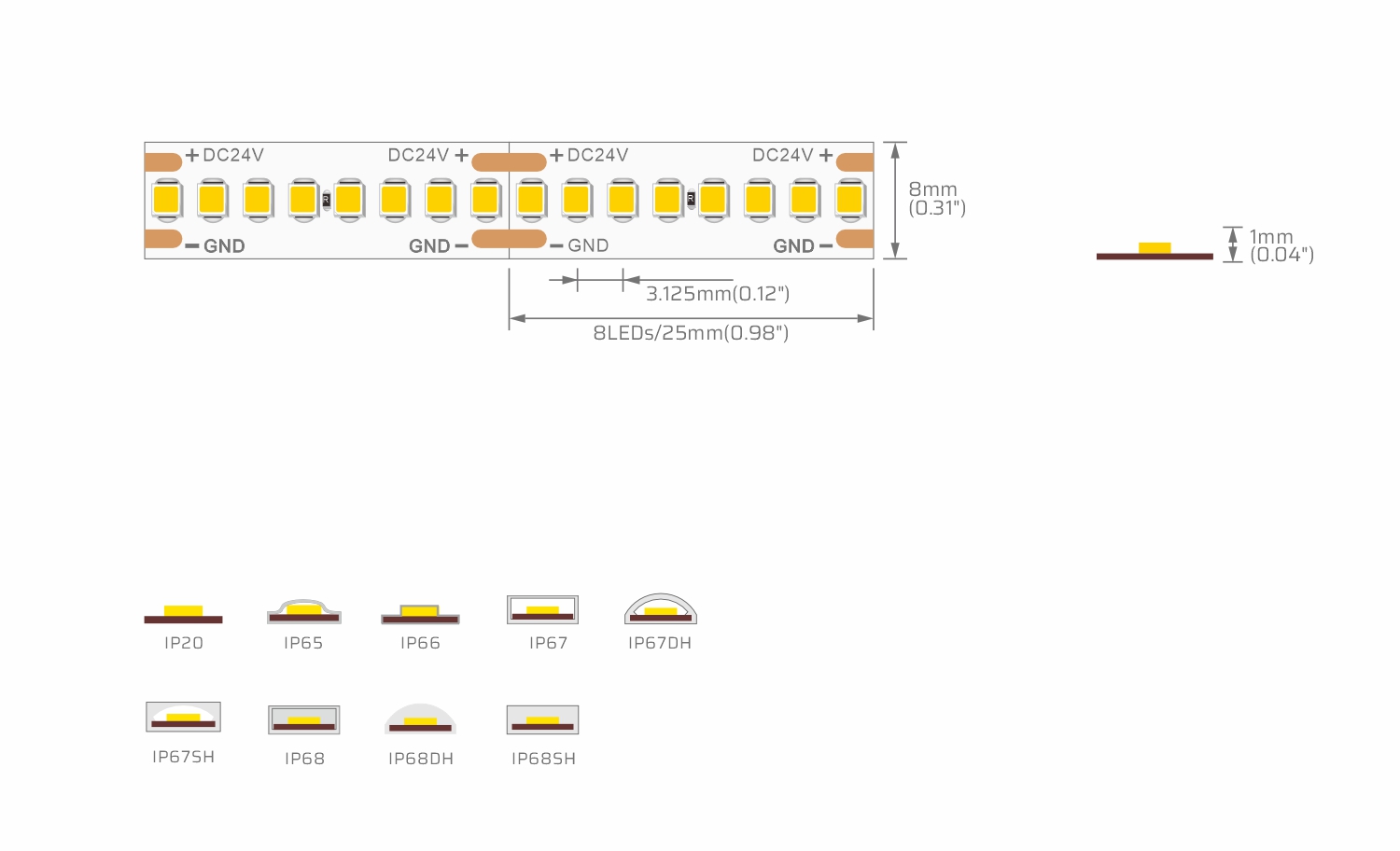

Related Specifications
Length(max.): 5M(16.4′)
Cutting Unit: 8LEDs/25mm(0.984′′)
LED Spacing: 3.125mm(0.123′′)
LED Height: 1.0mm(0.039′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000
Certified: CE/RoHS
EMC compliance: EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 14.4W/m | Ra≥90 | SWW | 1800K | 1571 | 109 | F |
| WW | 2700K | 1894 | 131 | E | ||
| WW | 3000K | 1993 | 138 | D | ||
| NW | 4000K | 2077 | 144 | D | ||
| PW | 6500K | 1992 | 138 | D | ||
| FS | WW | 2700K | 1535 | 106 | F | |
| NW | 3000K | 1621 | 112 | E | ||
| NW | 3500K | 1670 | 116 | E | ||
| PW | 4000K | 1715 | 119 | E |
