8mm | 24V | 256LEDs | 12W | 31.25cut | #17000-N | 2216 High Density LED Strip
- High-density design with 256 LEDs per meter, providing professional linear lighting effect.
- With thicker PCB, better for heat dissipation, keep the good consitent brightness from begin to end.
- Utilizes integrated extrusion process, ensuring stable structure and performance.
- Supports multiple external dimming modes: 0-10V, DALI, PWM.
- Suitable for architectural lighting, bars, home decoration, cabinets, living rooms, bedrooms, hotels, club lighting, theaters, stores, restaurants, and home DIY lighting.
Technical Details
| Part No. |
DL-F22A128V24-17000-N-* |
|---|---|
| SMD Type |
2216 SMD |
| LED Qty |
256 LEDs/m |
| LED Qty-N |
241~300 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
12W/m |
| Lumen/m (max.) |
1823 lm/m @4000K,12W |
| Lumen/W (max.) |
152 lm/W @4000K,12W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
8mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
3 years |

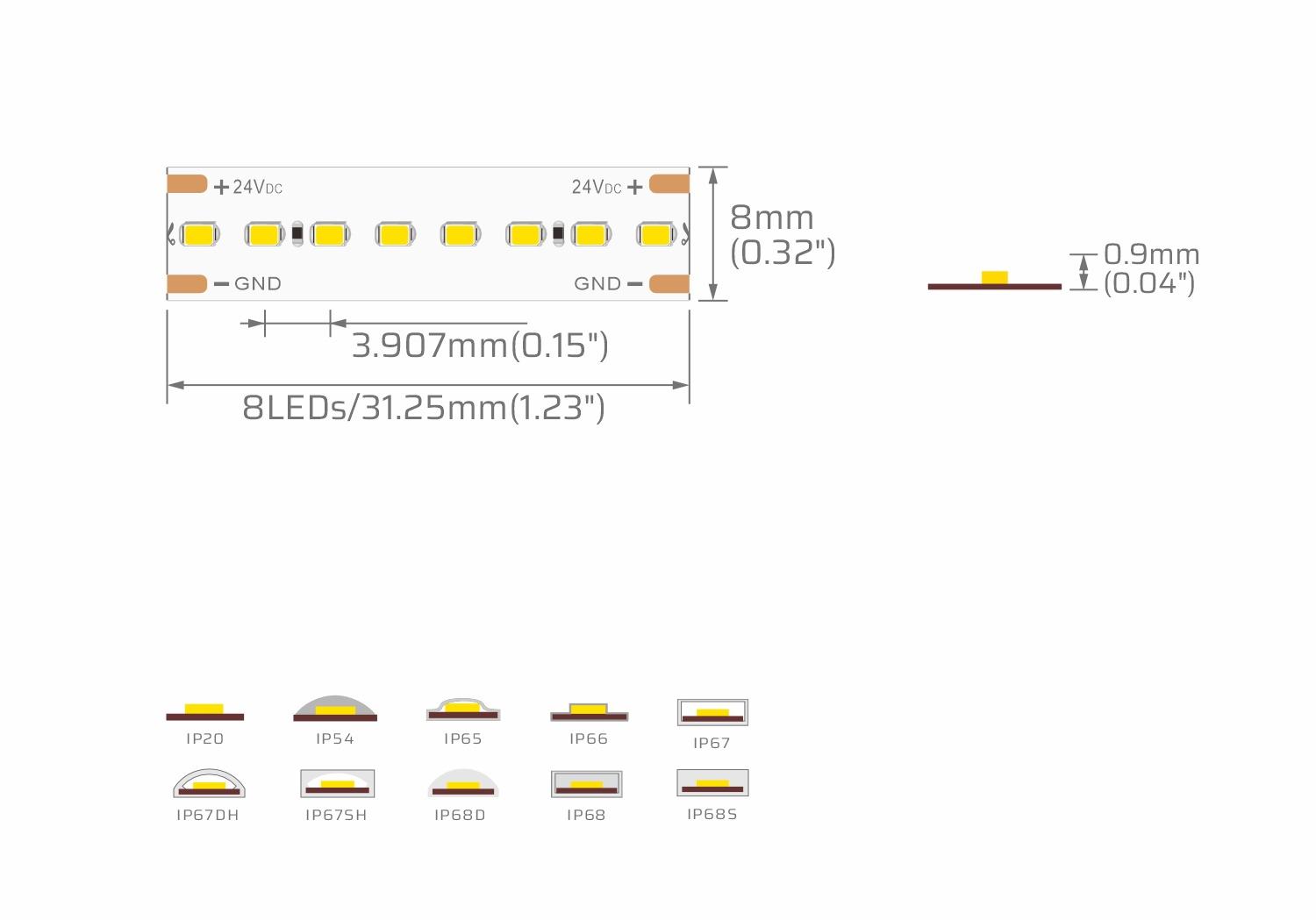

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 8LEDs/31.25mm(1.23′′)
LED Spacing: 3.907mm(0.154′′)
Height: 0.9mm(0.035′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 12W/m | Ra≥90 | SWW | 1800K | 1379 | 115 | E |
| WW | 2700K | 1662 | 139 | D | ||
| WW | 3000K | 1749 | 146 | D | ||
| NW | 4000K | 1823 | 152 | D | ||
| PW | 6500K | 1748 | 146 | D | ||
| FS | WW | 2700K | 1347 | 112 | E | |
| WW | 3000K | 1423 | 119 | E | ||
| WW | 3500K | 1465 | 122 | E | ||
| NW | 4000K | 1505 | 125 | E |
