8mm | 24V | 256LEDs | 12W | 31.25cut | #17000 | 2216 SOB High Density LED Strip
- High-density design with 256 LEDs per meter, providing professional linear lighting effect.
- Lower colloid height, suitable for special installation areas.
- Utilizes integrated extrusion process, ensuring stable structure and performance.
- Supports multiple external dimming modes: 0-10V, DALI, PWM.
- Suitable for architectural lighting, bars, home decoration, cabinets, living rooms, bedrooms, hotels, club lighting, theaters, stores, restaurants, and home DIY lighting.
Technical Details
| Part No. |
DL-FSOBA128V24-17000-* |
|---|---|
| SMD Type |
SOB |
| LED Qty |
256 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
12W/m |
| Lumen/m (max.) |
1431 lm/m @4000K,12W |
| Lumen/W (max.) |
119 lm/W @4000K,12W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
8mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP65 ,IP68 |
| Warranty |
5 years |

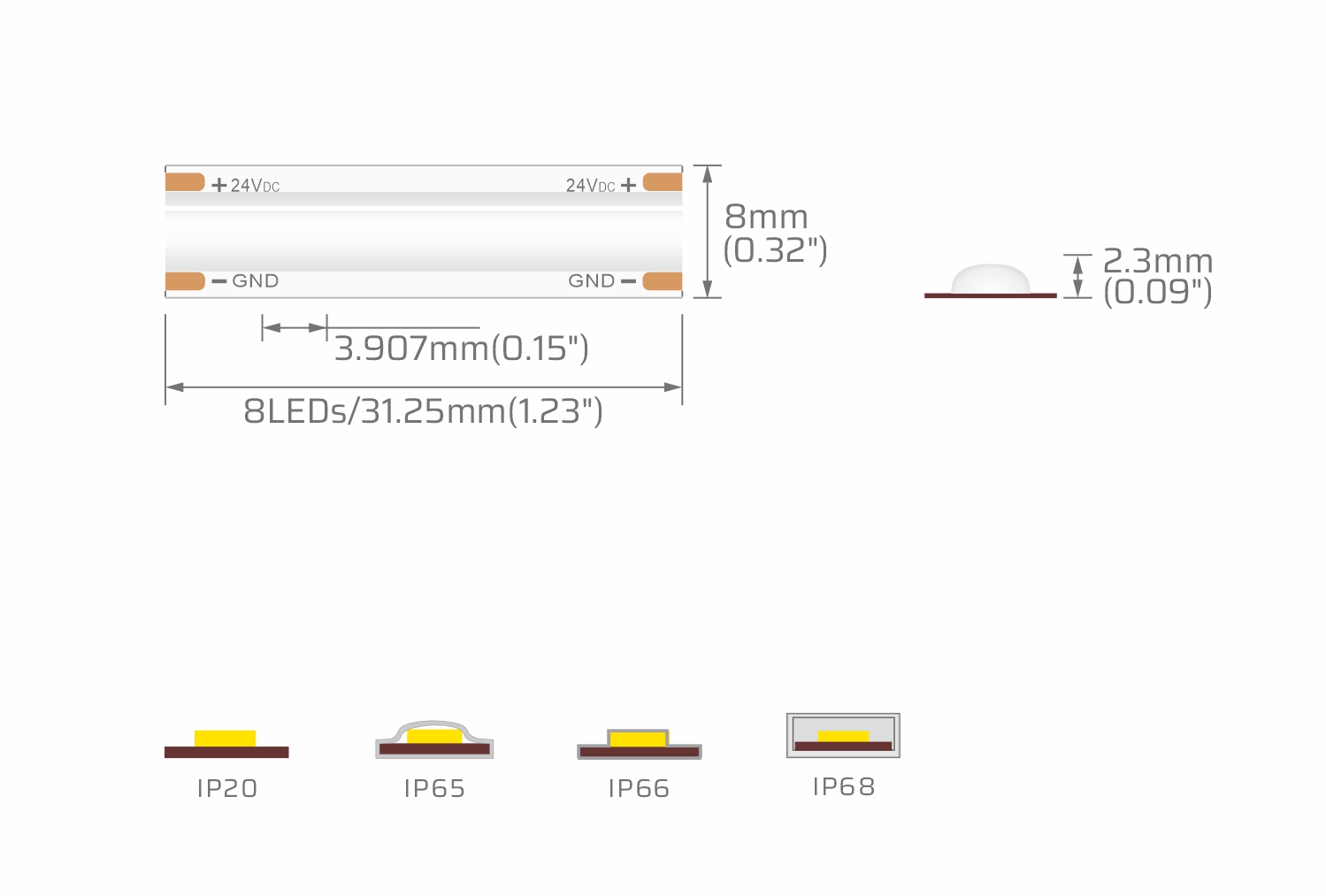

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 8LEDs/31.25mm(1.23′′)
LED Spacing: 3.907mm(0.154′′)
Height: 2.3mm(0.091′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 12W/m | Ra≥90 | SWW | 1800K | 1082 | 90 | F |
| WW | 2700K | 1305 | 109 | F | ||
| WW | 3000K | 1373 | 114 | E | ||
| NW | 4000K | 1431 | 119 | E | ||
| PW | 6500K | 1372 | 114 | E | ||
| FS | WW | 2700K | 1058 | 88 | F | |
| WW | 3000K | 1117 | 93 | F | ||
| WW | 3500K | 1150 | 96 | F | ||
| NW | 4000K | 1182 | 99 | F |
