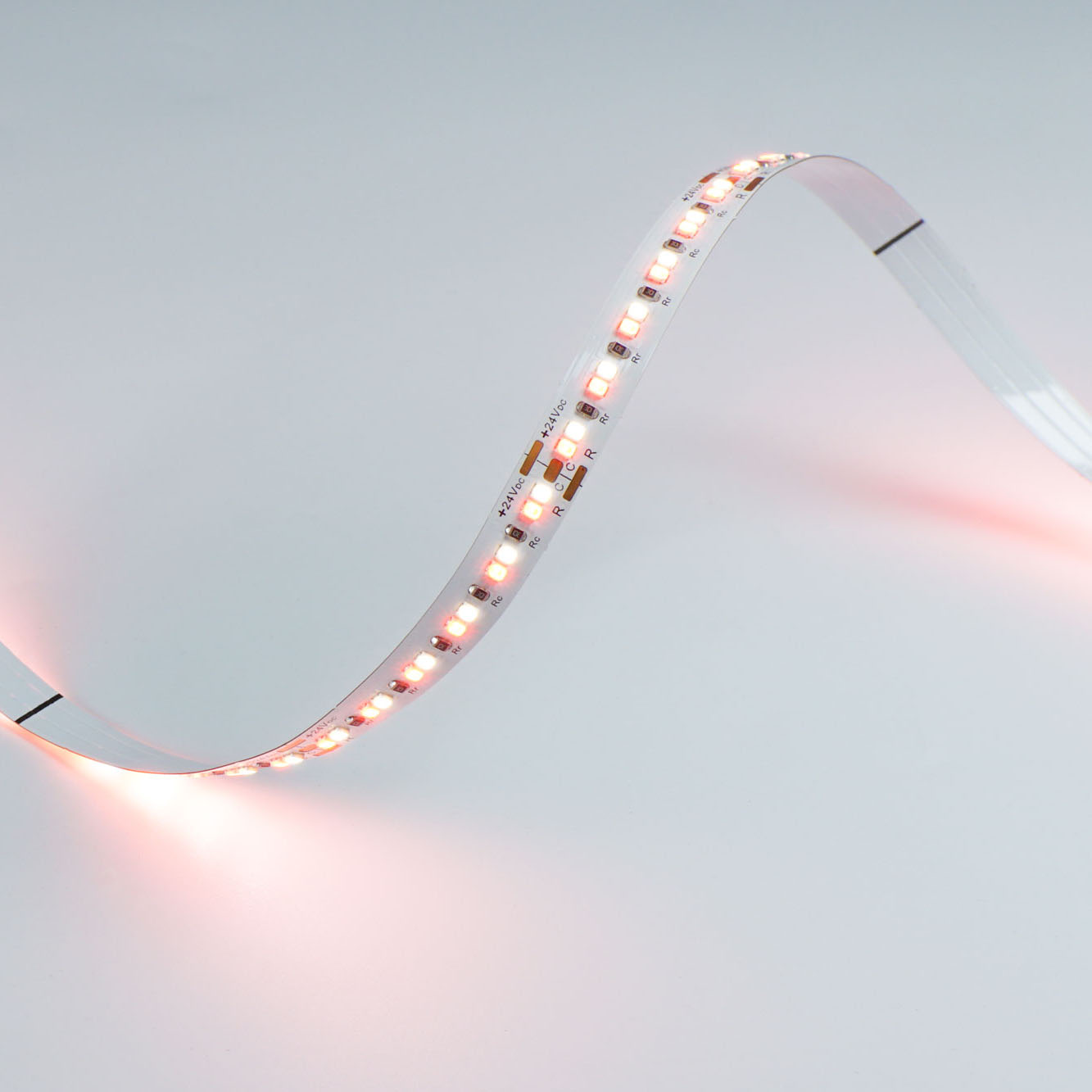

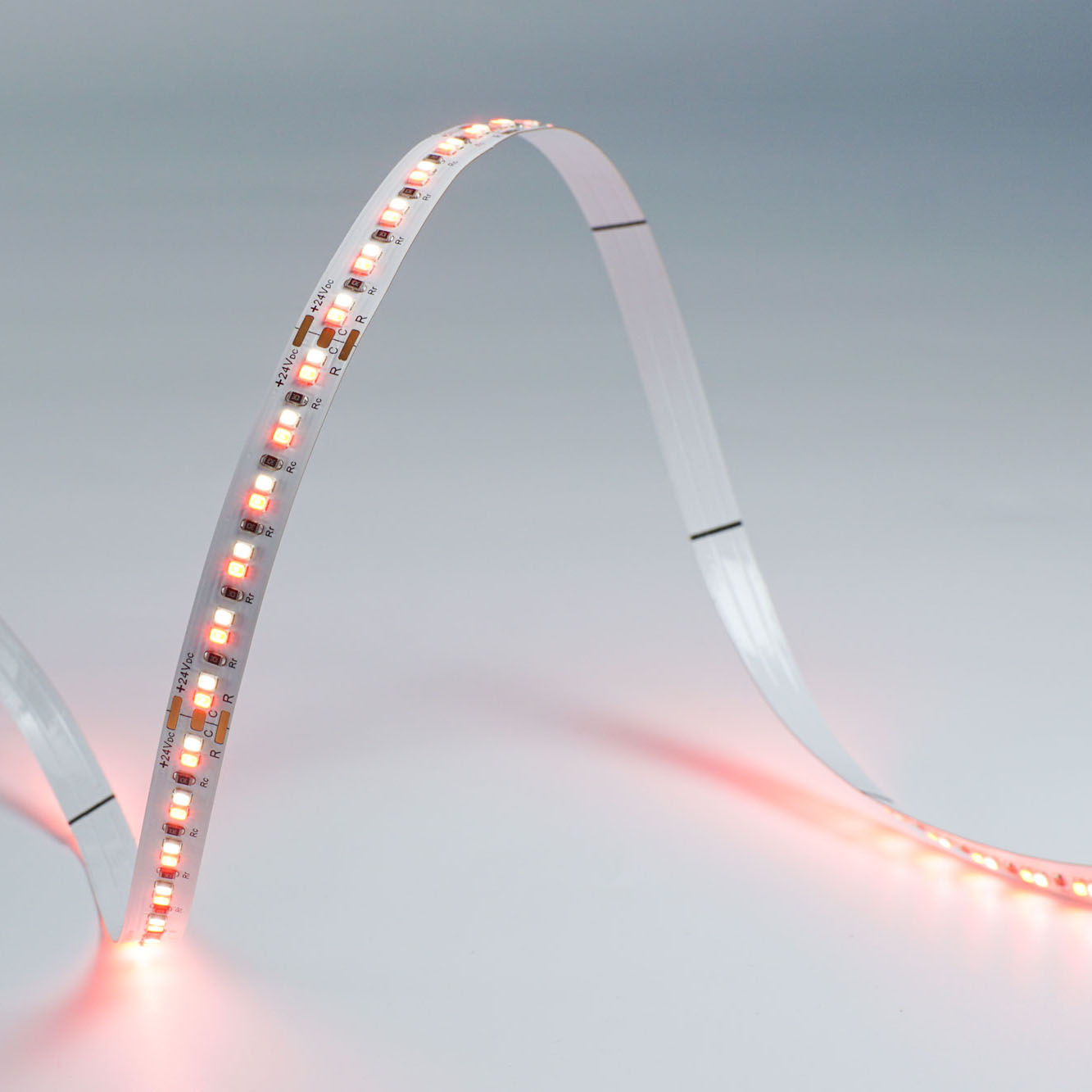

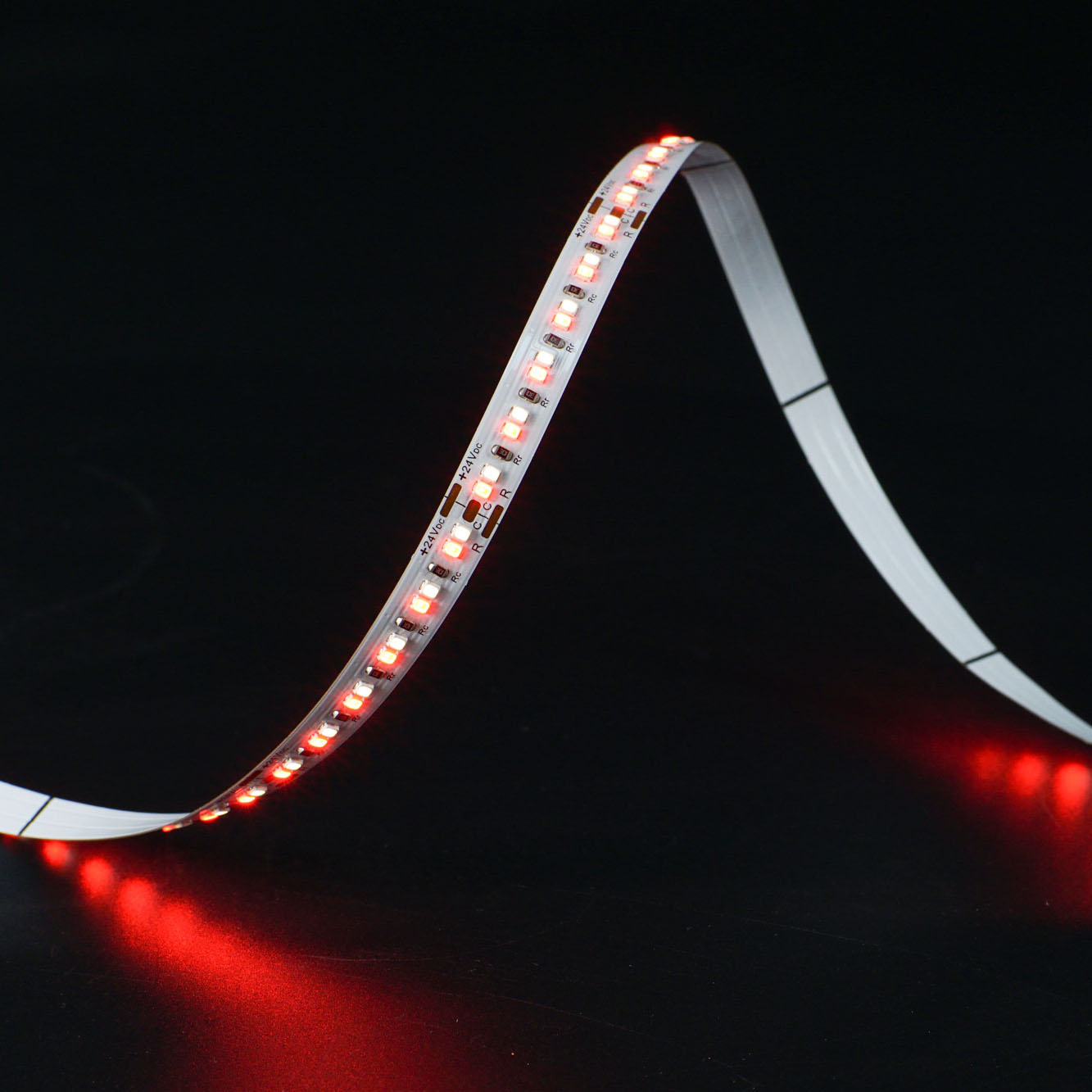

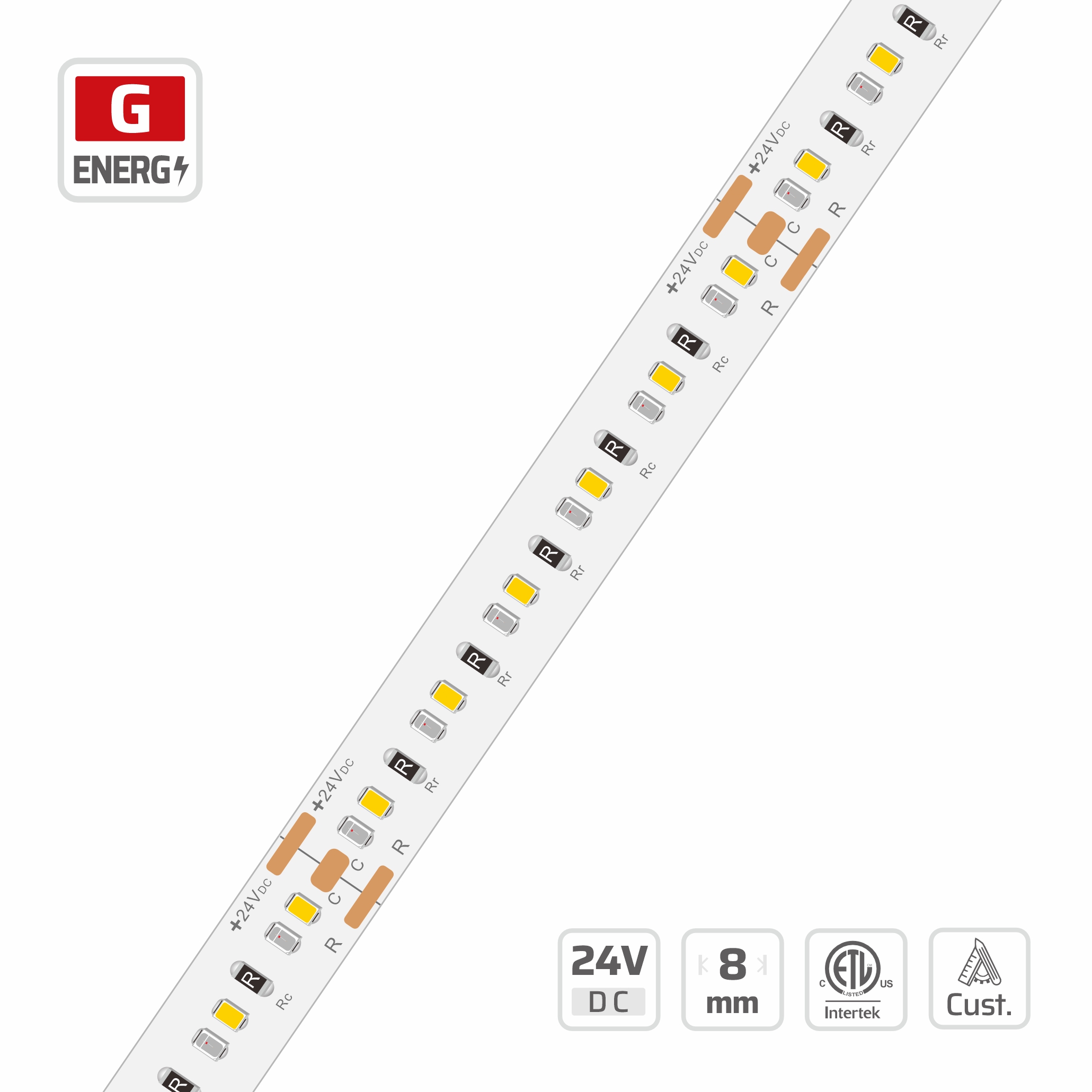

8mm | 24V | 240LEDs | 12W | 50mm/cut | #17353 | 2216 Tunable CCT LED Strip Red+White
- Innovative tunable CCT design combining red and white LEDs, offering unique lighting effects.
- High-density design with 240 LEDs per meter, ensuring uniform light distribution.
- Adjustable via controller, allowing seamless switching between red and white light to meet various lighting needs.
- High-quality PCB board ensures stability and reliability over prolonged use.
- Suitable for decorative lighting, architectural lighting, commercial lighting, and home lighting where tunable CCT lighting effects are needed.
Technical Details
| Part No. |
DL-F22A120V24-17353-* |
|---|---|
| SMD Type |
2216 SMD |
| LED Qty |
240 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
12W/m |
| Lumen/m (max.) |
936 lm/m @R+1800K，12W |
| Lumen/W (max.) |
77 lm/W @R+1800K，12W |
| Color |
R+C |
| CRI |
Ra ≥90 |
| PCB Width |
8mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
3 years |

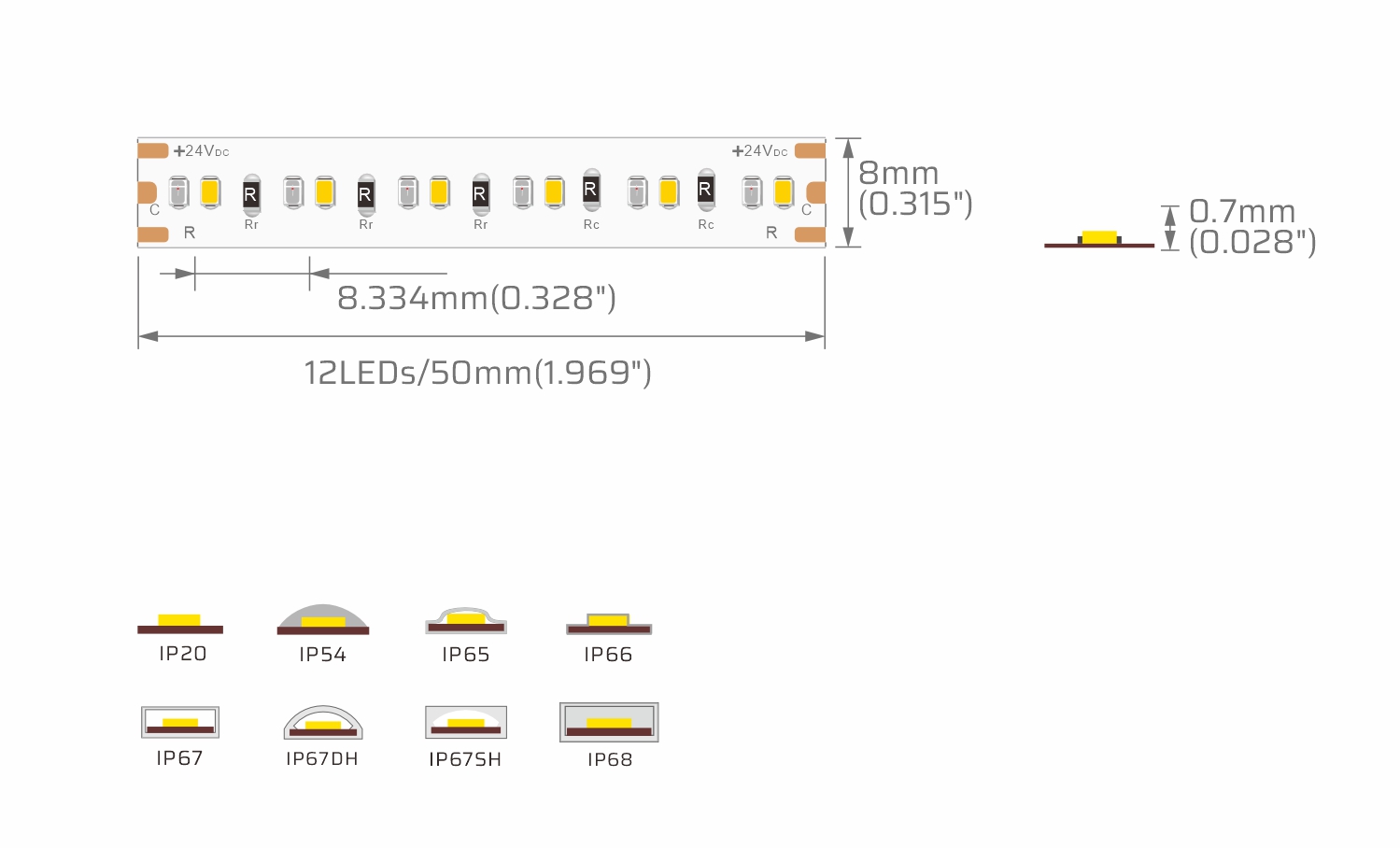

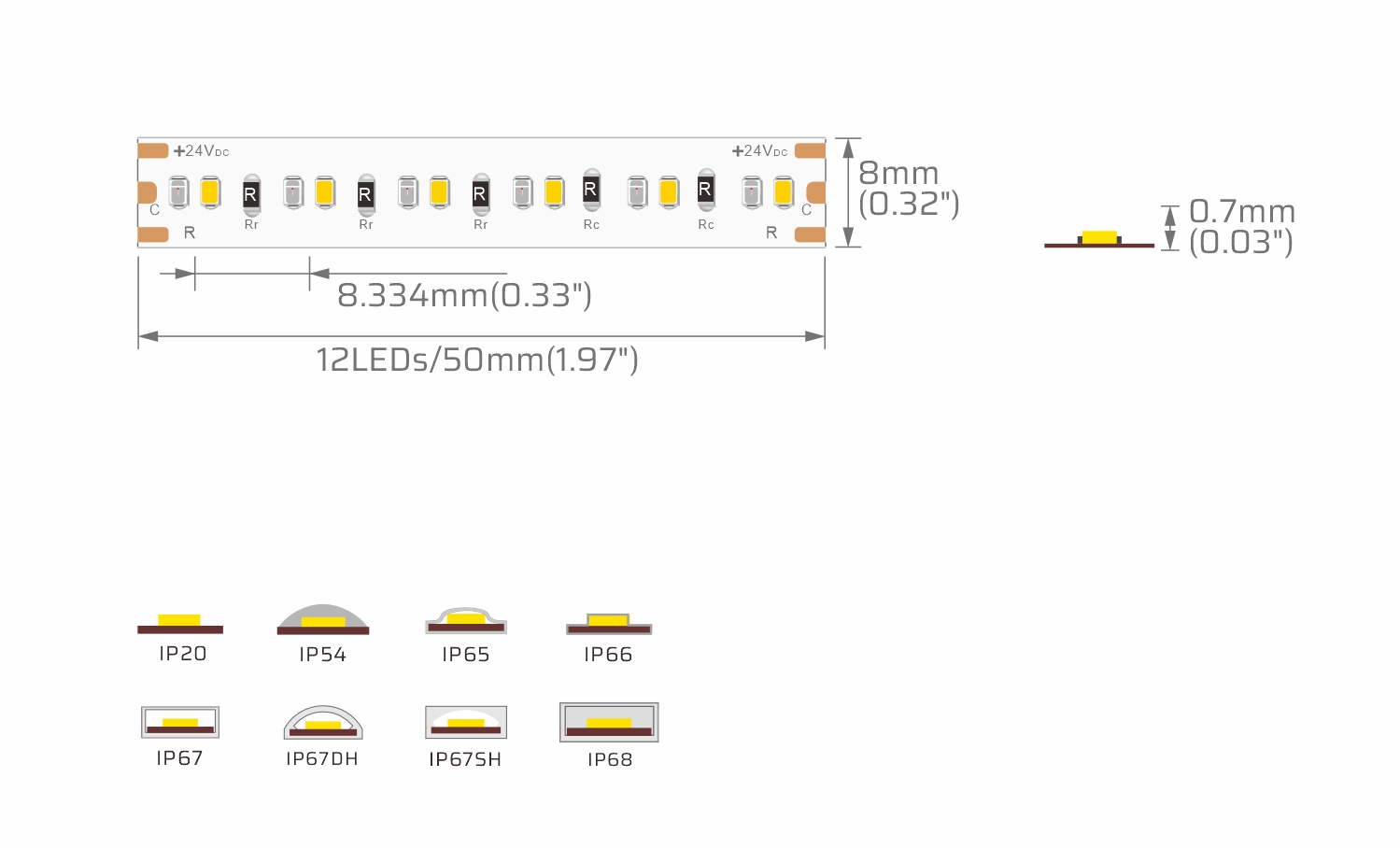

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 12LEDs/50mm(1.969′′)
LED Spacing: 8.334mm(0.328′′)
LED Height: 0.7mm(0.028′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
Lifetime: 50000h
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Wavelength( λ) | LM/m | LM/W | Erp |
| 12W/m | / | R+1800K | 630~635nm | 936 | 77 | G |
| 6.3W/m | / | R | 630~635nm | 266 | 42 | G |
| 6.1W/m | Ra ≥90 | C+3500K | 520~525nm | 678 | 111 | E |
