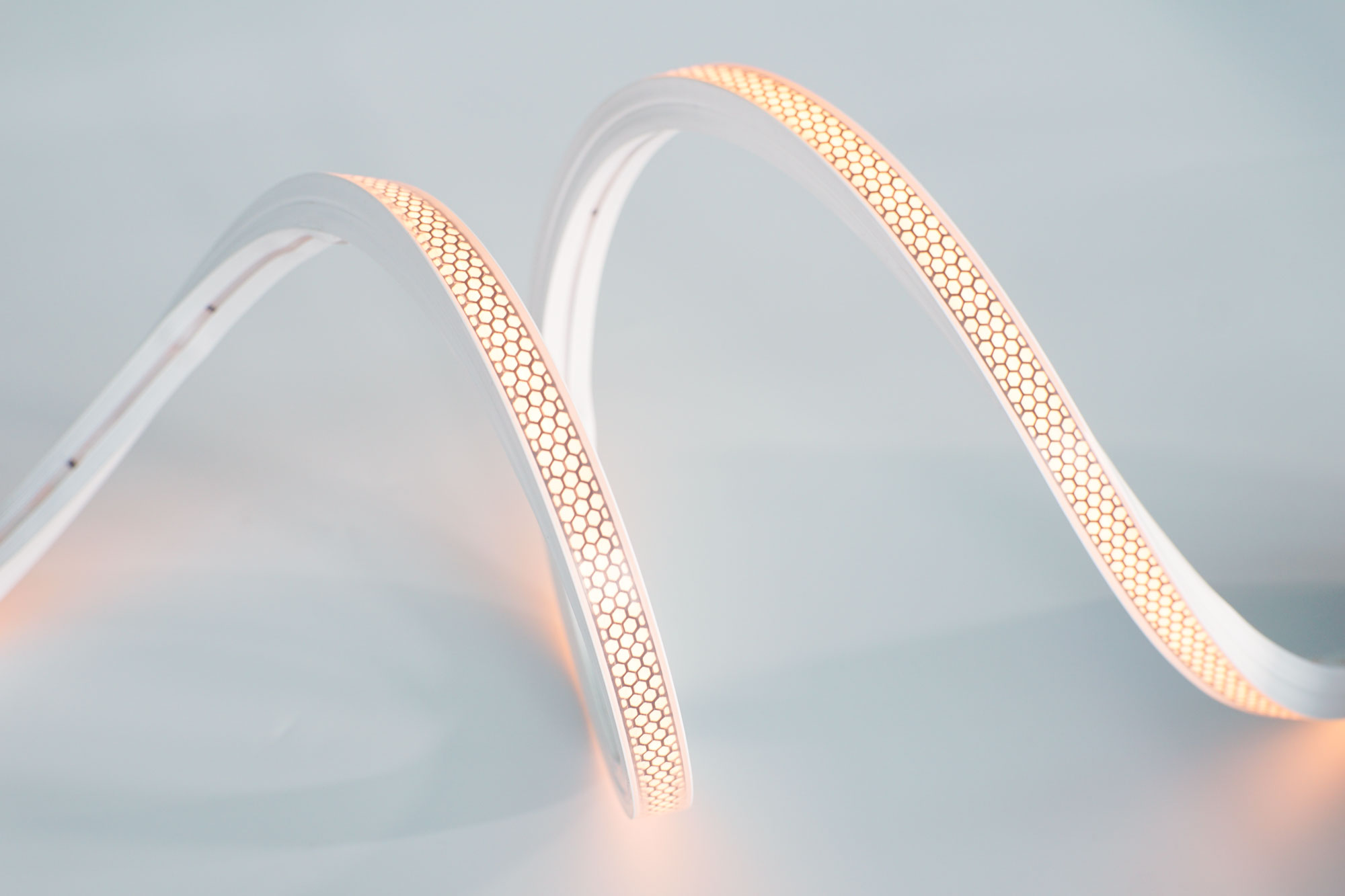

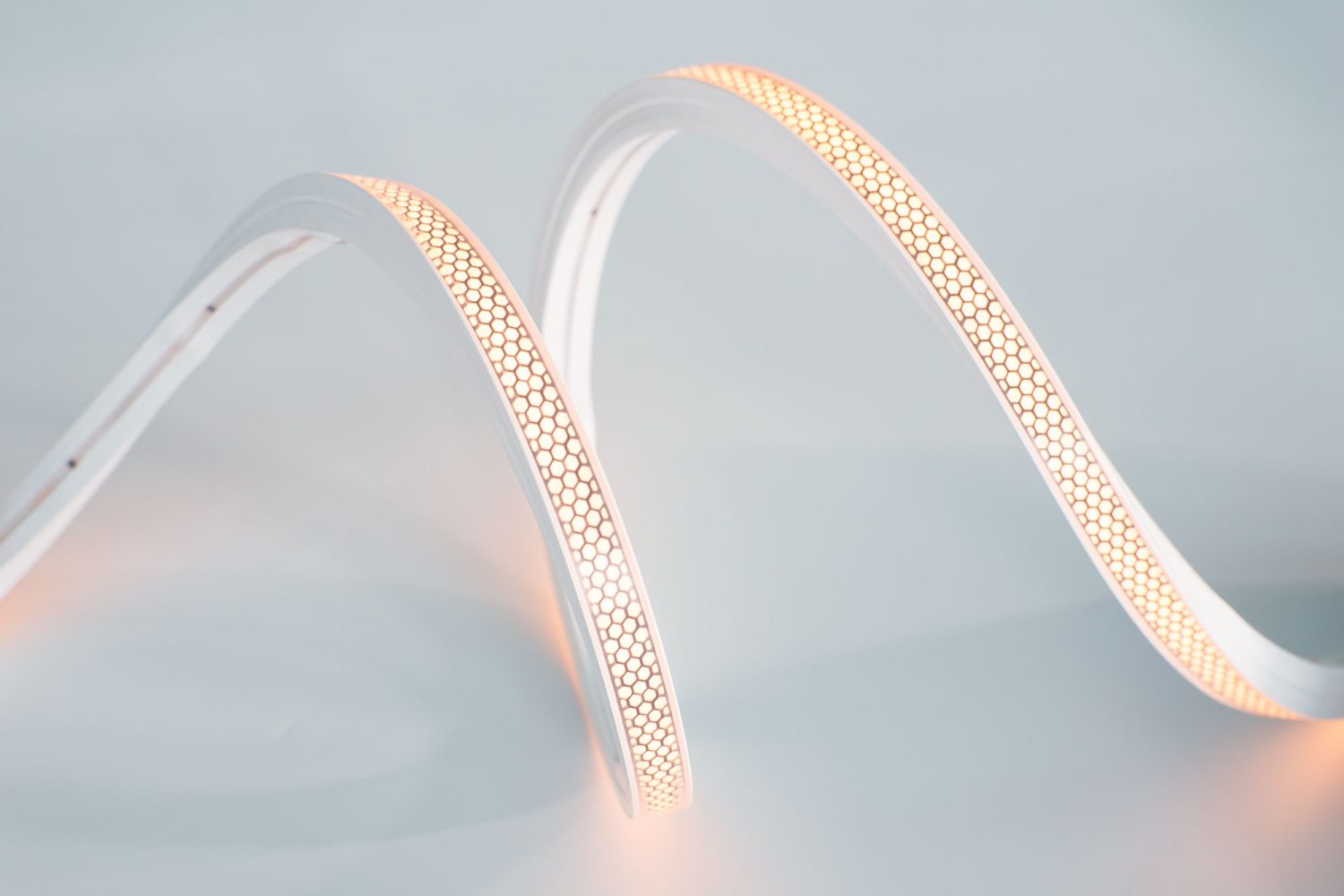

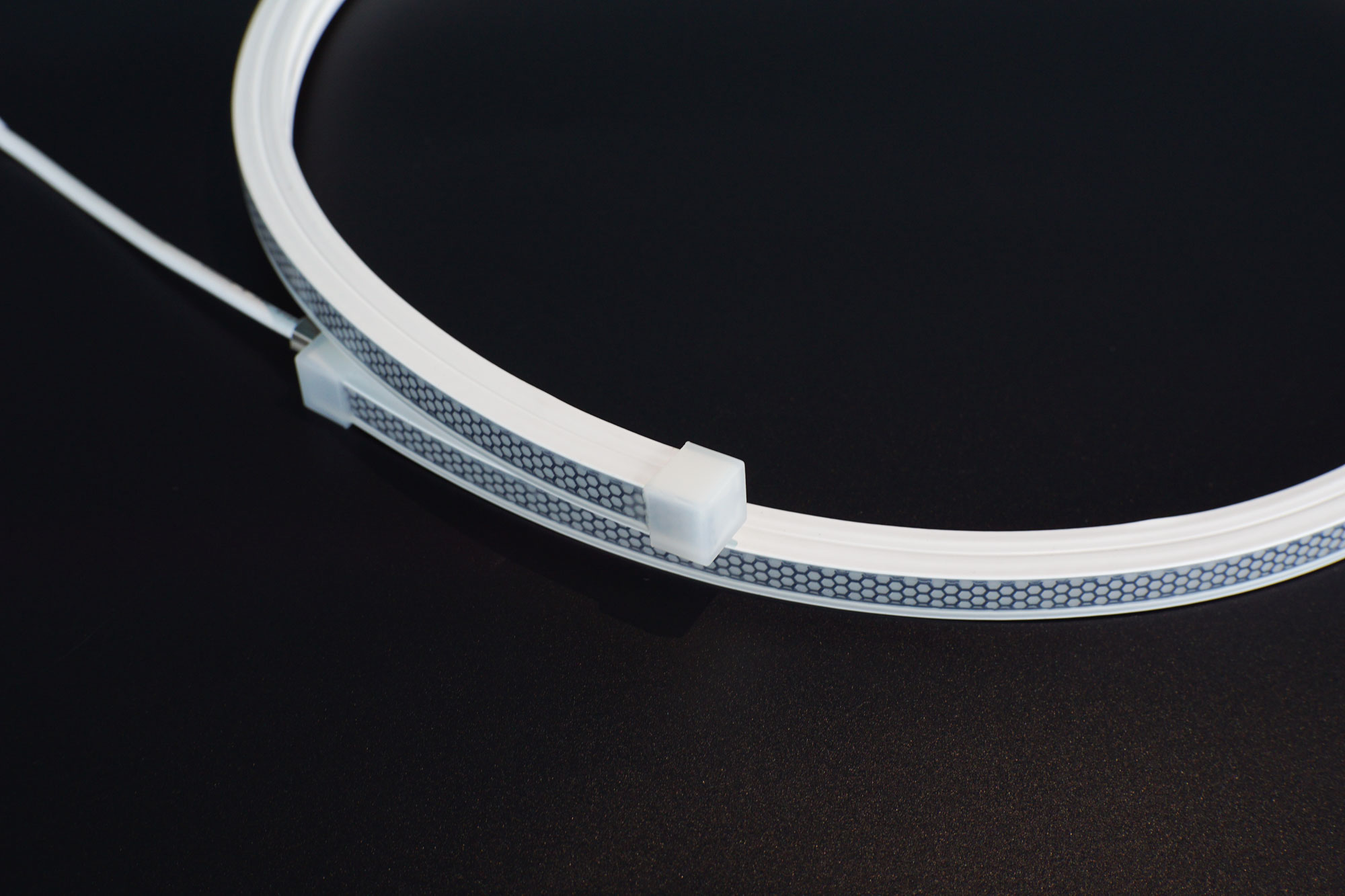

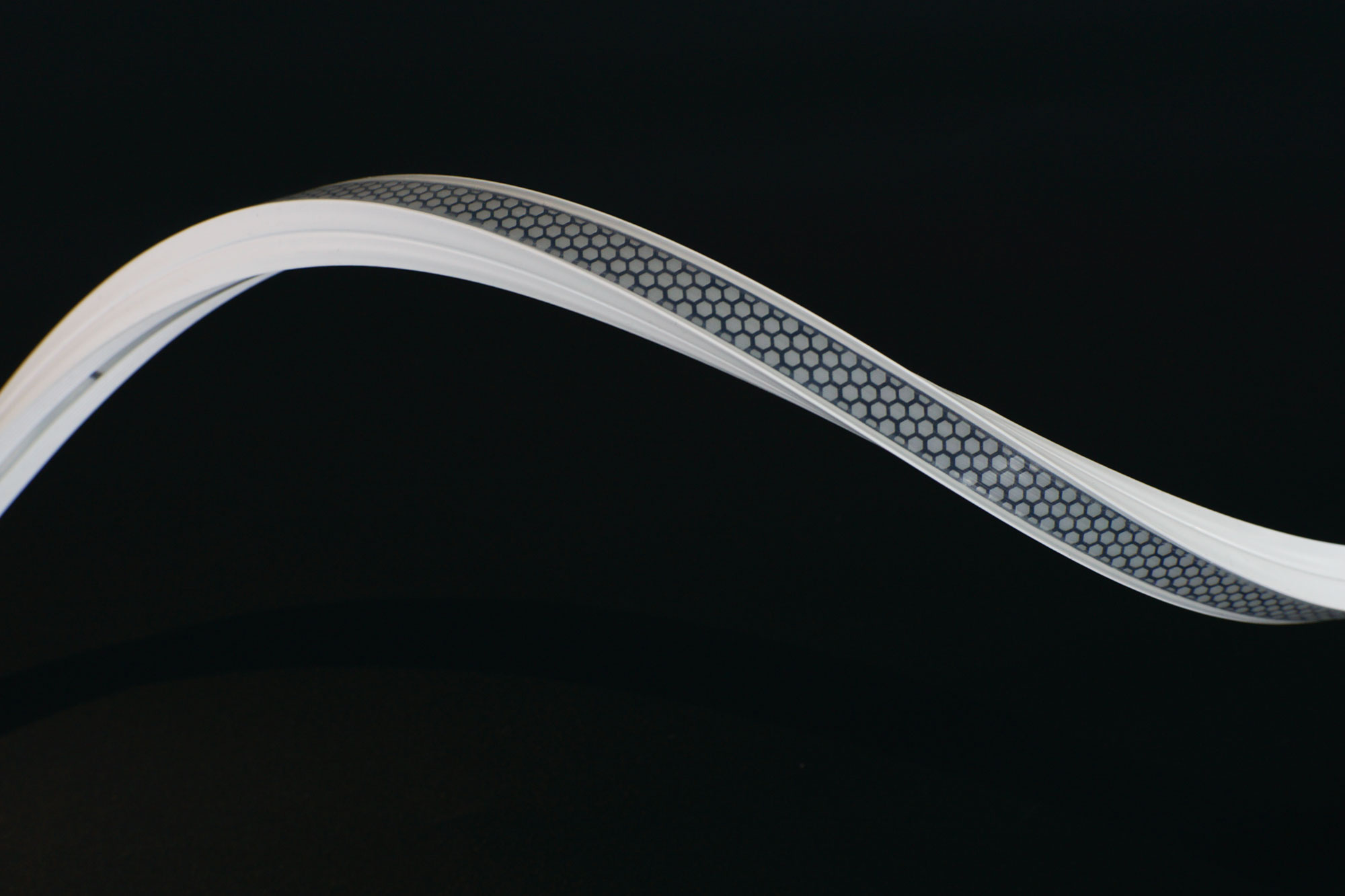

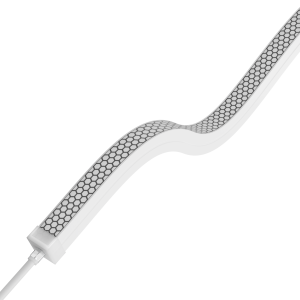

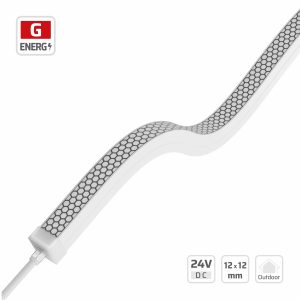

8mm | 24V | 128LEDs | 14.4W | 62.5mm/cut | #10419-GF | 12*12mm Glare-free Neon Lights 128LEDs/m
- 12*12mm silicone injection-moulded design, offering flexibility and durability.
- Adding micro-prism structures or soft-light coatings to the surface of the lamp tube can disperse the concentrated light beam into multi-angle soft light, reducing the brightness concentration.
- The light is soft and not glaring, so even prolonged direct viewing won’t cause dizziness or visual fatigue. It’s suitable for close observation or long-term stay scenarios.
- While eliminating glare, the neon lights still retain their rich colors and flexible shapes, allowing for customization of lines, patterns, etc., balancing aesthetics and practicality.
Category: Flexible LED Neon Strips
Technical Details
Part No. |
DL-NF28C64V24-10419-1212-GF-* |
---|---|
SMD Type |
2835 SMD |
LED Qty |
128 LEDs/m |
Voltage |
DC 24V |
Power Option |
14.4W/m |
Lumen/m (max.) |
379 lm/m @4000K,14.4W |
Lumen/W (max.) |
26 lm/W @4000K,14.4W |
Color |
White |
CRI |
Ra ≥90 |
PCB Width |
8mm |
Beam Angle |
120° |
IP Process |
IP67 |
Warranty |
3 years |
Related Specifications
Length(max.): 5M(16.4′)
Cutting Unit: 8LEDs/62.5mm(2.46′′)
LED Spacing: 7.8mm(0.31′′)

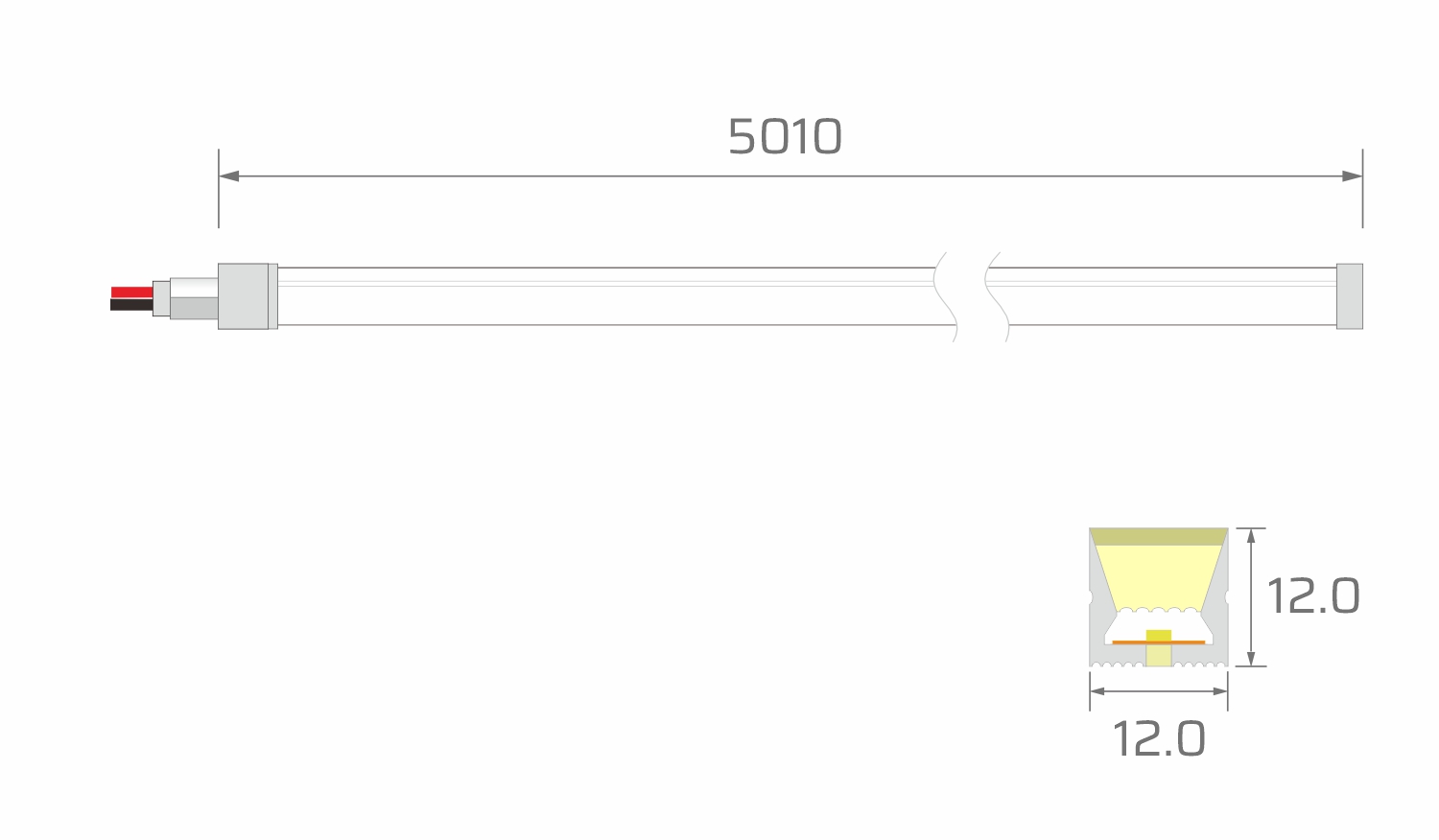

Size: 12x12mm
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 3oz
Lifetime: 50000h
Certified: CE/RoHS
EMC compliance: EN 55015

Product Photo-electric Parameters
Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
14.4W/m | Ra≥80 | SWW | 1800K | 374 | 26 | G |
WW | 2700K | 409 | 28 | G | ||
WW | 3000K | 465 | 32 | G | ||
NW | 4000K | 490 | 34 | G | ||
PW | 6500K | 435 | 30 | G | ||
Ra≥90 | SWW | 1800K | 287 | 20 | G | |
WW | 2700K | 345 | 24 | G | ||
WW | 3000K | 364 | 25 | G | ||
NW | 4000K | 379 | 26 | G | ||
PW | 6500K | 363 | 25 | G | ||
FS | WW | 2700K | 280 | 19 | G | |
WW | 3000K | 296 | 21 | G | ||
WW | 3500K | 305 | 21 | G | ||
NW | 4000K | 313 | 22 | G |
