6mm | 24V | 350LEDs | 8W | 20cut | #9677 ULtra-Density Ultra-Narrow PU LED Strip Light
- High density design with 300 LEDs per meter, providing exceptional linear lighting effect.
- Ultra-narrow width design with only 6mm, suitable for narrow installation spaces.
- PU potting RGB LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Technical Details
| Part No. |
DL-F21D175V24-9677-* |
|---|---|
| SMD Type |
2110 SMD |
| LED Qty |
350 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
8W/m |
| Lumen/m (max.) |
505 lm/m @4000K,8W |
| Lumen/W (max.) |
63 lm/W @4000K,8W |
| Color |
White |
| CRI |
Ra ≥90 |
| SDCM |
≤5 Step 1Bin |
| PCB Width |
4mm |
| Beam Angle |
120° |
| IP Process |
IP68 |
| Warranty |
3 years |
| mm/Cut - N |
11~20mm/cut |

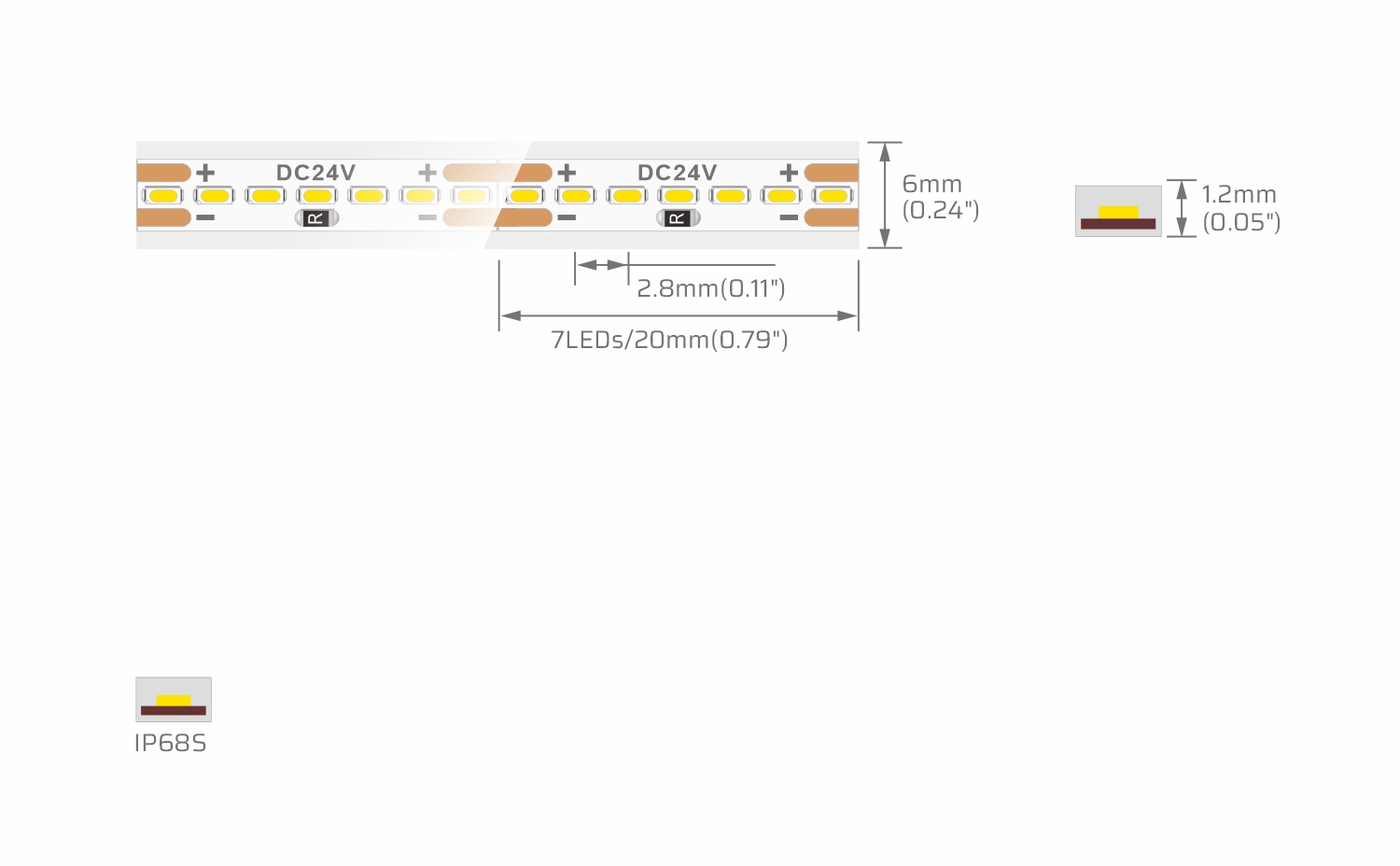

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 7LEDs/20mm(0.787′′)
LED Spacing: 2.8mm(0.110′′)
Width: 6mm(0.236′′)
Height: 4.5mm(0.177′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 4W/m | Ra≥90 | SWW | 1800K | 194 | 48 | G |
| SWW | 2300K | 216 | 54 | G | ||
| WW | 2700K | 233 | 58 | G | ||
| WW | 3000K | 246 | 61 | G | ||
| WW | 3500K | 250 | 63 | G | ||
| NW | 4000K | 256 | 64 | G | ||
| NW | 5000K | 256 | 64 | G | ||
| PW | 6500K | 245 | 61 | G | ||
| 8W/m | Ra≥90 | SWW | 1800K | 382 | 48 | G |
| SWW | 2300K | 425 | 53 | G | ||
| WW | 2700K | 460 | 58 | G | ||
| WW | 3000K | 484 | 61 | G | ||
| WW | 3500K | 493 | 61 | G | ||
| NW | 4000K | 505 | 63 | G | ||
| NW | 5000K | 504 | 63 | G | ||
| PW | 6500K | 484 | 61 | G | ||
| 11W/m | Ra≥90 | SWW | 1800K | 518 | 47 | G |
| SWW | 2300K | 577 | 53 | G | ||
| WW | 2700K | 625 | 57 | G | ||
| WW | 3000K | 657 | 60 | G | ||
| WW | 3500K | 669 | 61 | G | ||
| NW | 4000K | 685 | 62 | G | ||
| NW | 5000K | 685 | 62 | G | ||
| PW | 6500K | 657 | 60 | G |
