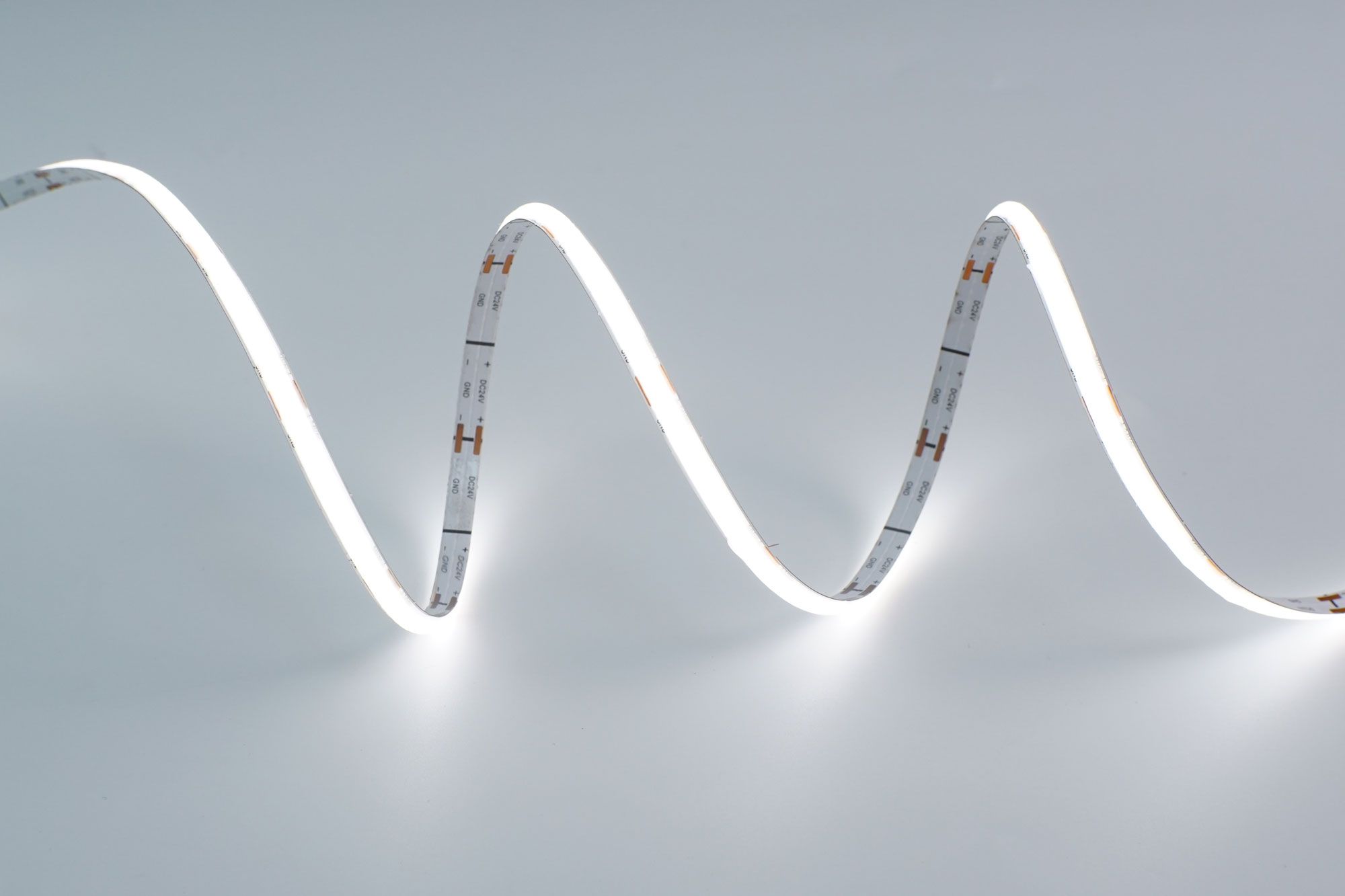

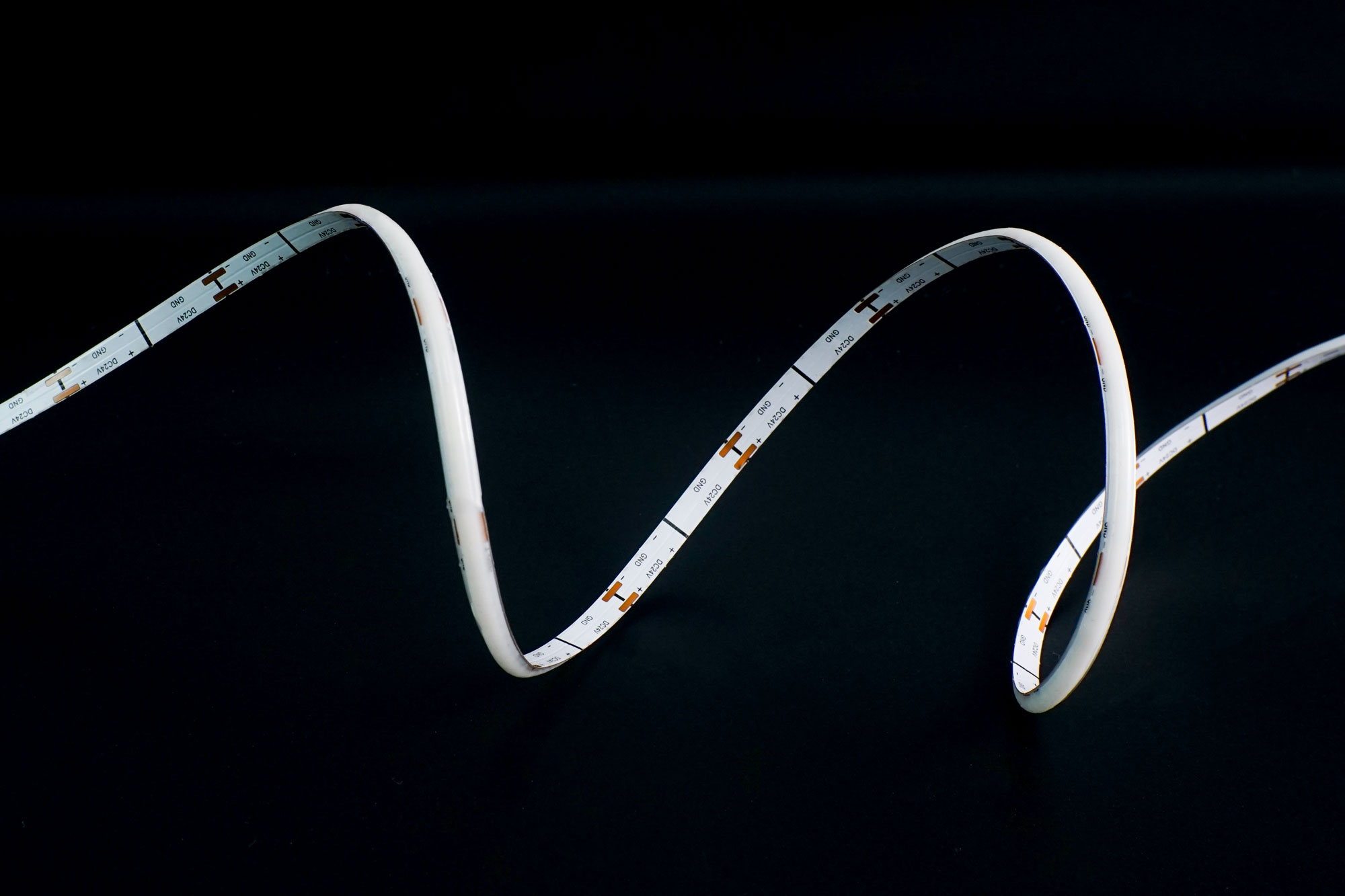

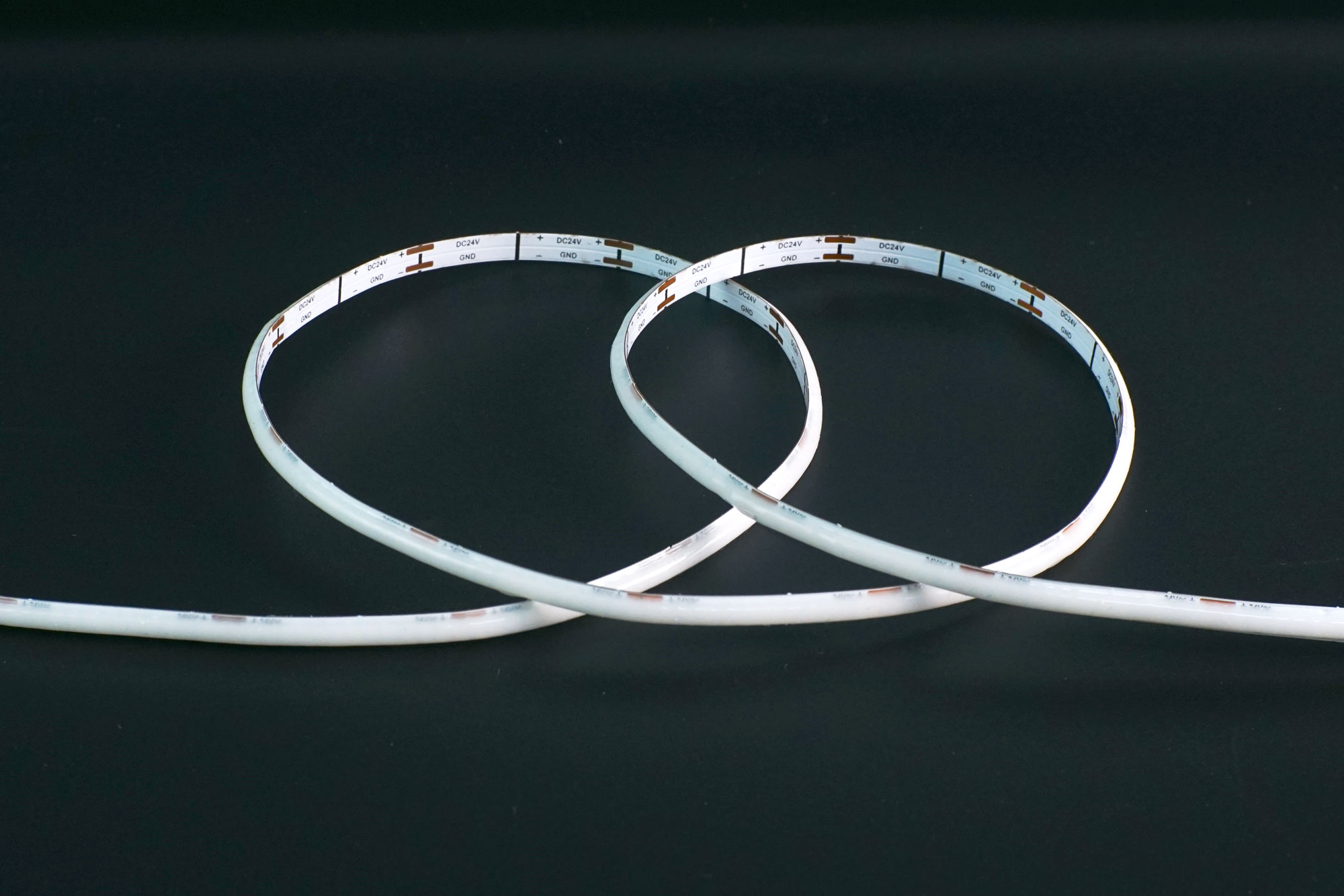

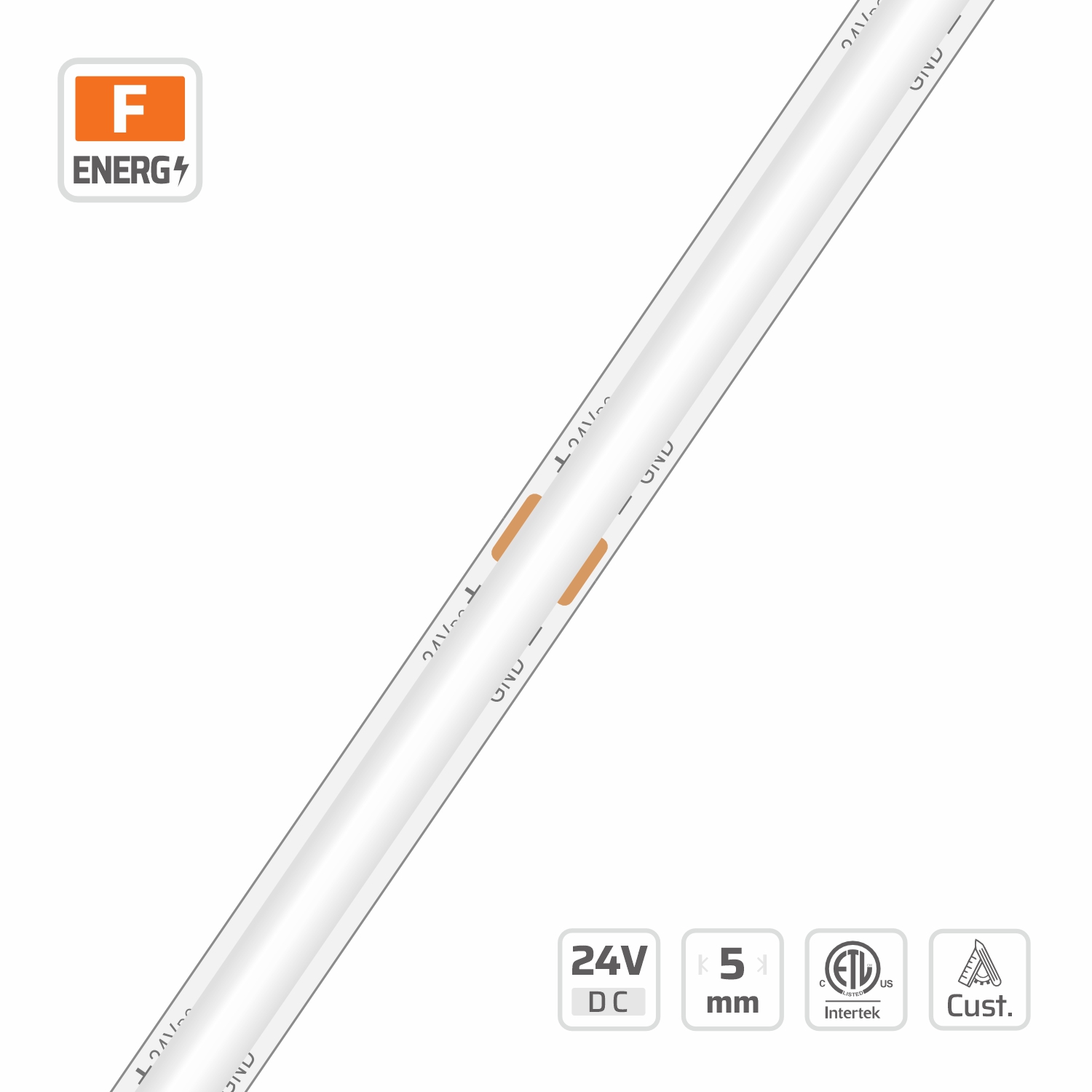

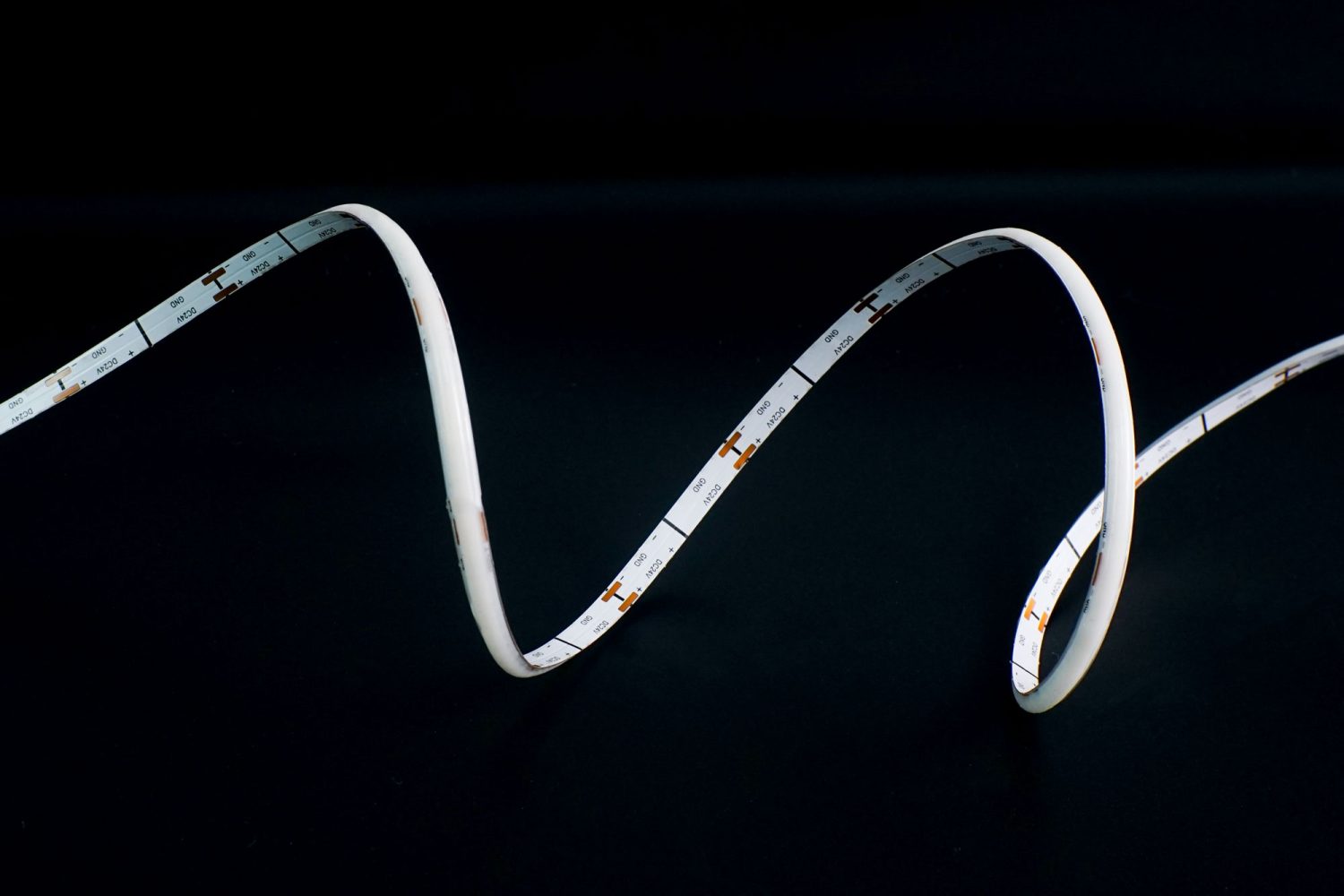

5mm | 24V | 420LEDs | 12W | 33.332mm/cut | #16416 | 1515 Ultra Narrow SOB LED Strip light
- It features an ultra-small LED design using 1515 LED chips and 420 LEDs, achieving extremely high density.
- The super high density ensures uniform light distribution.
- The 5mm ultra-narrow design is ideal for our micro fixture series, saving space and facilitating installation.
- SOB LED strips are widely used in residential, commercial, and outdoor lighting applications, catering to diverse lighting needs.
Technical Details
| Part No. |
DL-FSOBA210V24-16416-* |
|---|---|
| SMD Type |
SOB |
| LED Qty |
420 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
12W/m |
| Lumen/m (max.) |
1284 lm/m @4000K,12W |
| Lumen/W (max.) |
107 lm/W @4000K,12W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
5mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP65 |
| Warranty |
5 years |
Related Specifications

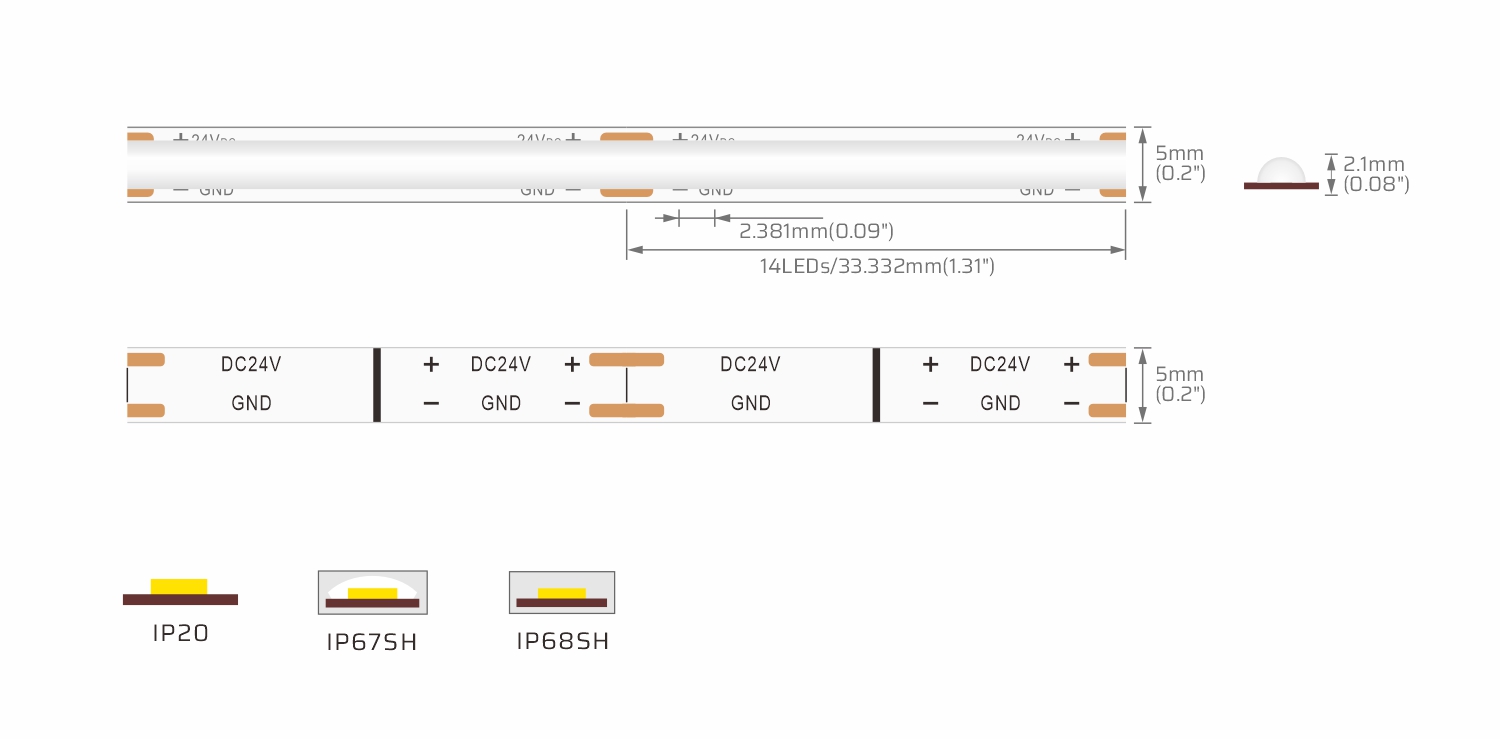

Length(max.): 5M(16.4′)/roll
Cutting Unit: 14LEDs/33.332mm(1.31′′)
LED Spacing: 2.381mm(0.09′′)
LED Height: 2.3mm(0.09′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 3oz
Lifetime: 50000h
Eye security:IC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 12W/m | Ra≥90 | SWW | 1800K | 971 | 81 | G |
| WW | 2700K | 1170 | 98 | F | ||
| WW | 3000K | 1232 | 103 | F | ||
| NW | 4000K | 1284 | 107 | F | ||
| PW | 6500K | 1231 | 103 | F | ||
| FS | WW | 2700K | 984 | 79 | G | |
| WW | 3000K | 1002 | 84 | G | ||
| WW | 3500K | 1032 | 86 | F | ||
| NW | 4000K | 1060 | 88 | F |
