5*5mm | 24V | 15W | 16.66cut | #16416 | 5*5mm Mini Neon LED Strip

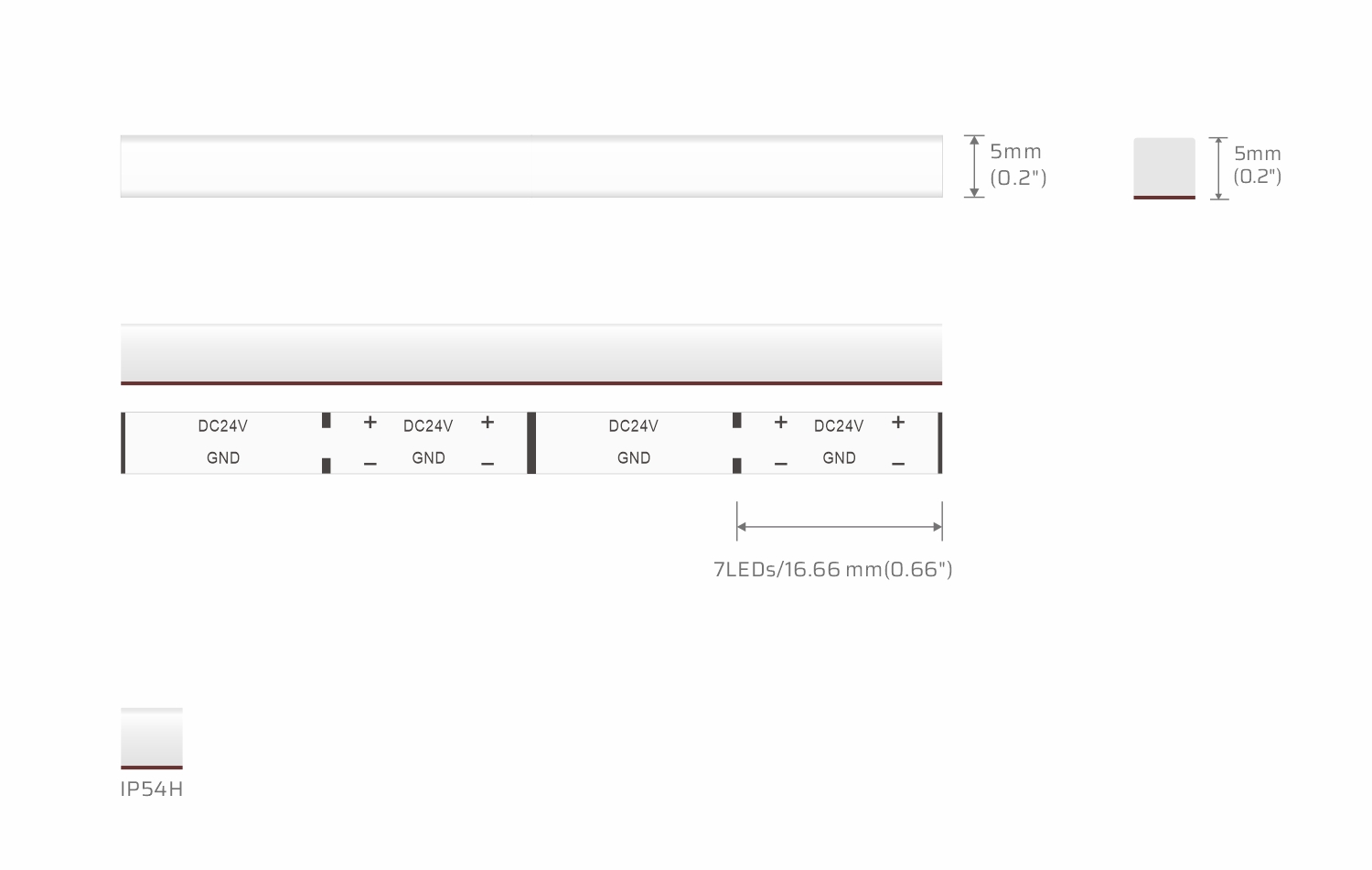

- Compact and precise square design: 5*5mm
- R2R FPC and silicone integrated molding, with no solder points or bulges, ensuring a smoother and more refined structure.
- 420 LEDs with high-density layout for soft and uniform lighting.
- IP54 waterproof and dustproof square design. Suitable for home auxiliary lighting and special contour lighting designs.
Technical Details
| Part No. |
DL-FSOBA210V24-16416-* |
|---|---|
| SMD Type |
SOB |
| Voltage |
DC 24V |
| Power Option |
15W/m |
| Lumen/m (max.) |
1357 lm/m @4000K |
| Lumen/W (max.) |
90 lm/W @4000K |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
5mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP54 |
| Warranty |
3 years |
Related Specifications
length(max.): 5m(16.4′)
Cutting unit: 7LEDs/16.66mm(0.656′′)
LED Spacing: 2.385mm(0.094′′)
LED Height: 5mm(0.197′′)
Mounting: 3M tape
Min. bend: Φ60mm(2.36″)
Copper foil: 3oz
On-off times: 10000（test times）
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 15W/m | Ra≥90 | SWW | 1800K | 1026 | 68 | G |
| WW | 2700K | 1237 | 83 | G | ||
| WW | 3000K | 1302 | 87 | F | ||
| NW | 4000K | 1357 | 90 | F | ||
| PW | 6500K | 1301 | 87 | F | ||
| FS | WW | 2700K | 1002 | 67 | G | |
| WW | 3000K | 1059 | 71 | G | ||
| WW | 3500K | 1090 | 73 | G | ||
| NW | 4000K | 1120 | 75 | G |
