25x25mm | 24V | 144LEDs | 22W | 41.66cut | #1942 | 25*25 3D Twistable Flexible Linear Neon light
- This is a special 3D linear neon lighting, more different from the traditional neon strip. The inside LED light is the special design, super resistant to bending and can be polarity twisted.
- Allows simultaneous positive bending, side bending and twisting, ultra-small bending angle, is a true 3D design.
- High power, high brightness, max continuous length up to 5m.
- Extra thick and sturdy silicone exterior, ultra-resistant to wear and tear.
- Special scenarios: Tunnel Lighting, Tram Contour Lighting, Subway Tunnel/Platform Lighting.
Technical Details
| Part No. |
DL-NF28C72V24-1942-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
144 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
22W/m |
| Lumen/m (max.) |
1297 lm/m @4000K，22W |
| Lumen/W (max.) |
59 lm/W @4000K，22W |
| Color |
White |
| CRI |
Ra ≥80 ,Ra ≥90 |
| SDCM |
≤3 Step 1Bin |
| PCB Width |
19mm |
| Beam Angle |
120° |
| IP Process |
IP67 |

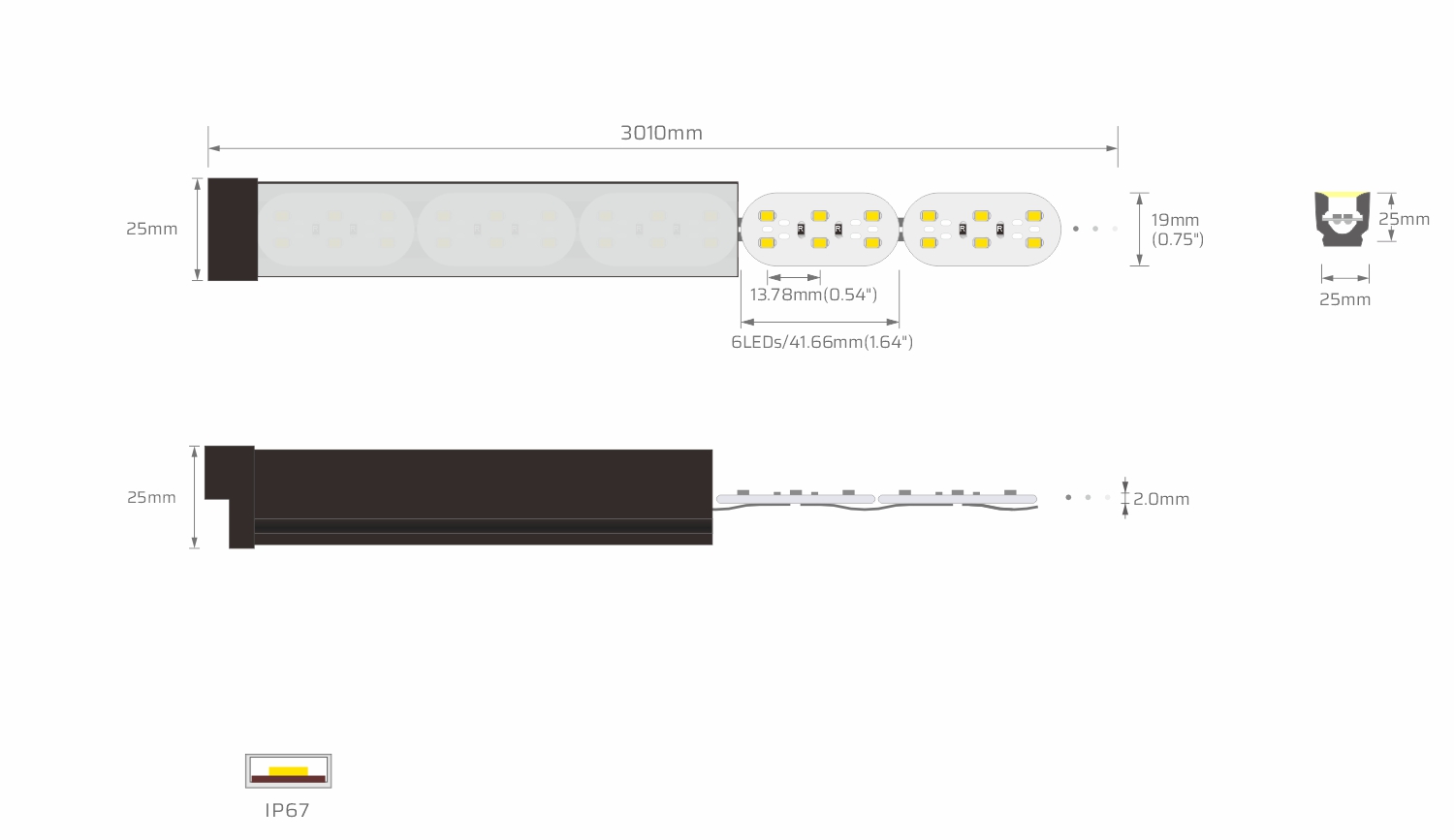

Related Specifications
Connection Length: 5M(16.404′)
Cutting Unit: 6LEDs/41.66mm(1.640″)
LED Spacing: 13.78mm(0.543″)
LED Height: 2.0mm(0.079″)
Min. Cutting Unit: 6 LEDs
Min. Cutting Length: 41.66mm
Copper foil: 3oz
On-off times: 10000
IP Process: IP67
Warranty: 3 years
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 22W/m | Ra≥80 | SWW | 1800K | 989 | 45 | G |
| WW | 2700K | 1125 | 51 | G | ||
| WW | 3000K | 1236 | 56 | G | ||
| NW | 4000K | 1297 | 59 | G | ||
| PW | 6500K | 1171 | 53 | G | ||
| Ra≥90 | SWW | 1800K | 777 | 35 | G | |
| WW | 2700K | 936 | 43 | G | ||
| WW | 3000K | 985 | 45 | G | ||
| NW | 4000K | 1027 | 47 | G | ||
| PW | 6500K | 985 | 45 | G | ||
| FS | WW | 2700K | 759 | 35 | G | |
| NW | 3000K | 801 | 36 | G | ||
| NW | 3500K | 825 | 38 | G | ||
| PW | 4000K | 848 | 39 | G |
