25*25mm | 24V | 24LEDs | 21W | 250mm/cut | #14903 | 2525 3D Twistable RGBW LED Strip Light
- 3D twistable RGBW design with comfortable dimensions, allowing for easy bending and shaping.
- Utilizes integrated silicone encapsulation and precision lenses to ensure uniform illumination, adapting to complex architectural contours.
- Compatible with PWM, DALI, and 0/1-10V dimming systems, offering better control over light intensity and ambiance.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Categories: 3D Lens strip, RGBW Series, Wall washing Lens strip
Technical Details
Part No. |
DL-F35C12V24-14903-* |
---|---|
SMD Type |
3535 SMD |
LED Qty |
24 LEDs/m |
Voltage |
DC 24V |
Power Option |
21W/m |
Lumen/m (max.) |
626 lm/m @RGBW,21W |
Lumen/W (max.) |
29 lm/W @RGBW,21W |
Color |
RGBW |
PCB Width |
18.4mm |
Beam Angle |
40° ,35° ,60° |
IP Process |
IP67 |
Warranty |
3 years |
Related Specifications

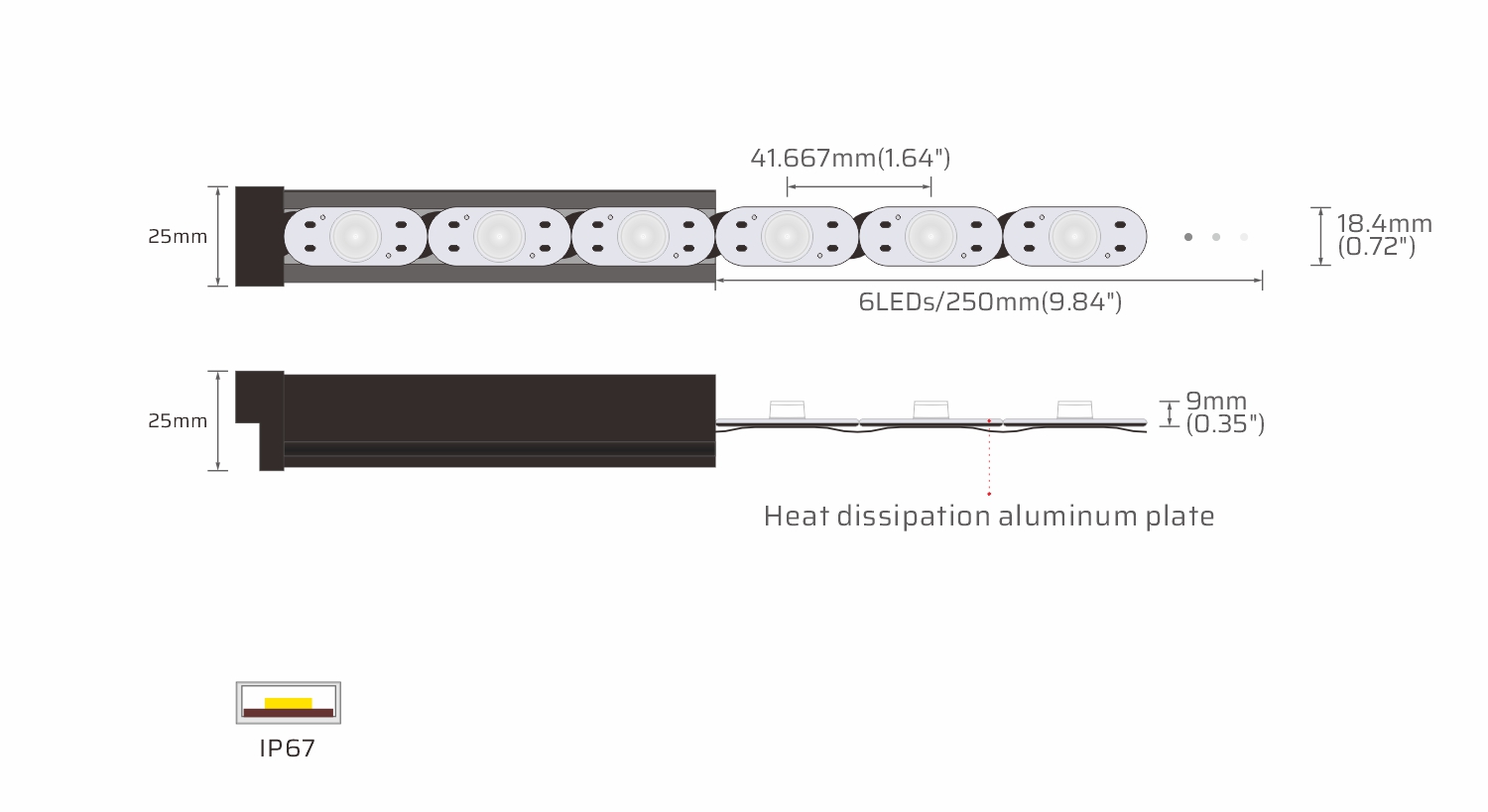

Length(max.): 5M(16.4′)/roll
Cutting Unit: 6LEDs/250mm(9.84′′)
LED Spacing: 41.667mm(1.64′′)
LED Height: 9mm(0.35′′)
Width:25*25mm
Weight:0.55kg
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 2oz
Lifetime: 50000h
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
Power | Color | Wavelength(位) | LM/m | LM/W | Energy Efficiency Class |
21W | RGBW | / | 626 | 29 | G |
5.4W | R | 630~635nm | 99 | 18 | G |
6.2W | G | 515~520nm | 264 | 43 | G |
3.2W | B | 465~470nm | 43 | 14 | G |
6.1W | W | 595~600nm | 272 | 44 | G |
