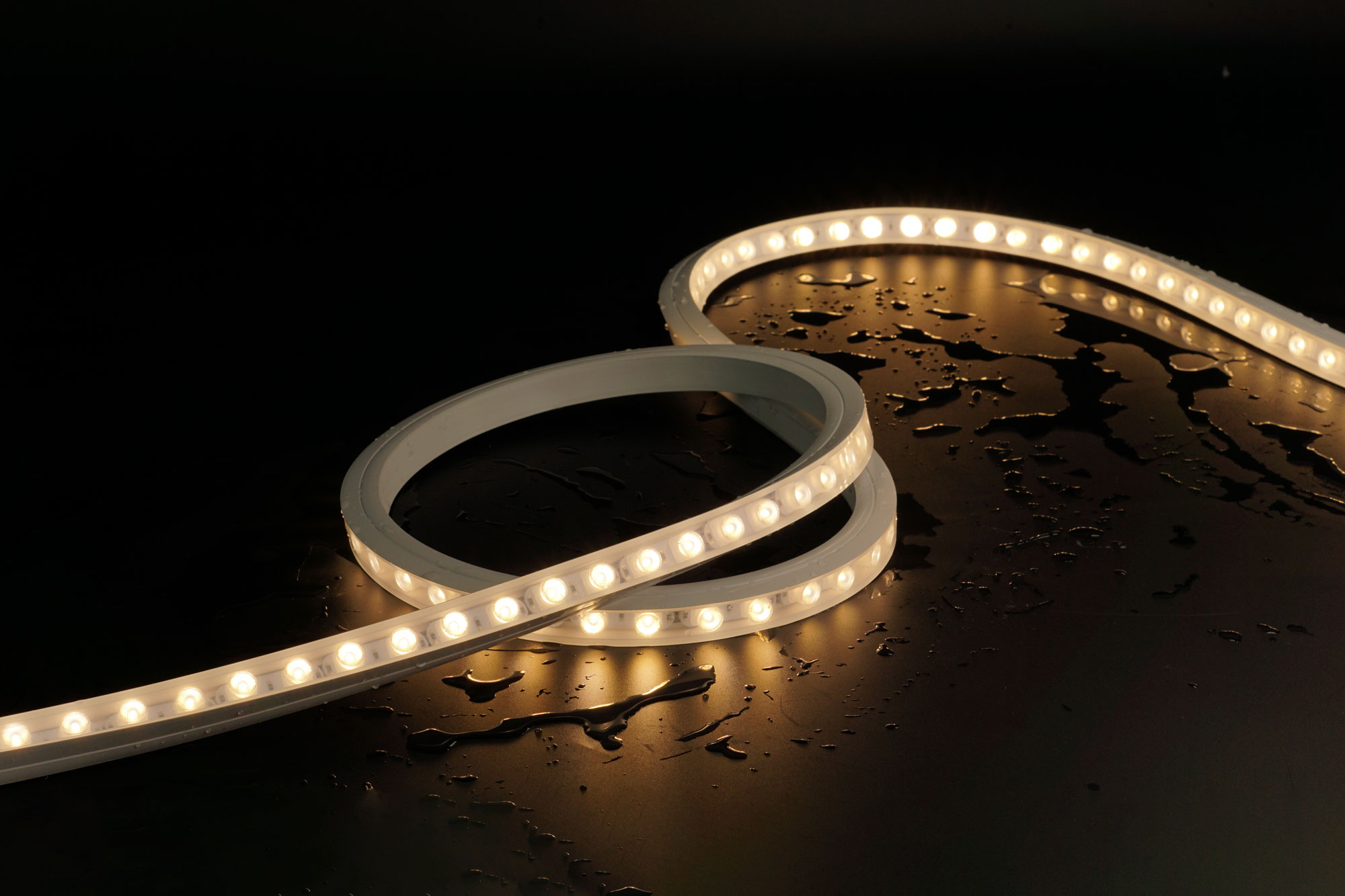

16*16mm | 24V | 48LEDs | 17.2W | 41.6mm/cut | #1241 | 1616 3D Twistable Wall washer LED light
- 3D flexible design with comfortable dimension 16x16mm , allowing easy concealment. • Proprietary optics deliver superior wall-washing performance, ensuring uniform illumination.
- Max continuous length reach 5M, reduce the wiring.
- Proprietary optics deliver superior wall-washing performance, ensuring uniform illumination.
- Highly flexible and versatile, perfect for recessed installations and adapting to complex architectural contours.
- Features integrated silicone encapsulation and precision lenses, enhancing durability and optical efficiency.
- Customizable to meet diverse architectural lighting requirements, offering bespoke solutionsfor unconventional structures.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Categories: Wall washing Lens strip, 3D Lens strip
Technical Details
Part No. |
DL-F28G24V24-1241-* |
---|---|
SMD Type |
2835 SMD |
LED Qty |
48 LEDs/m |
Voltage |
DC 24V |
Power Option |
17.2W/m |
Lumen/m (max.) |
1008 lm/m @4000K |
Lumen/W (max.) |
59 lm/W @4000K |
Color |
White |
CRI |
Ra ≥80 ,Ra ≥90 ,Ra ≥95 |
SDCM |
≤3 Step 1Bin |
PCB Width |
12mm |
Beam Angle |
35*60° ,35° |
IP Process |
IP67 |
Related Specifications
Connection Length: 5M(16.4′)
Cutting Unit:2LEDs/41.6mm(1.638″)
LED Spacing: 20.8mm(0.819″)
LED Height: 8.4mm(0.331″)
Min. Cutting Unit: 2 LEDs
Min. Cutting Length: 41.6mm
Copper foil: 3oz
Lifetime: 50000h
IP Process: IP67
Warranty: 3 years

Product Photo-electric Parameters
Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
17.2W/m | Ra≥80 | SWW | 1800K | 964 | 56 | G |
WW | 2700K | 1108 | 64 | G | ||
WW | 3000K | 1206 | 70 | G | ||
NW | 4000K | 1265 | 74 | G | ||
PW | 6500K | 1147 | 67 | G | ||
Ra≥90 | SWW | 1800K | 762 | 44 | G | |
WW | 2700K | 919 | 53 | G | ||
WW | 3000K | 967 | 56 | G | ||
NW | 4000K | 1008 | 59 | G | ||
PW | 6500K | 966 | 56 | G | ||
FS | WW | 2700K | 744 | 43 | G | |
NW | 3000K | 786 | 46 | G | ||
NW | 3500K | 810 | 47 | G | ||
PW | 4000K | 832 | 48 | G |
