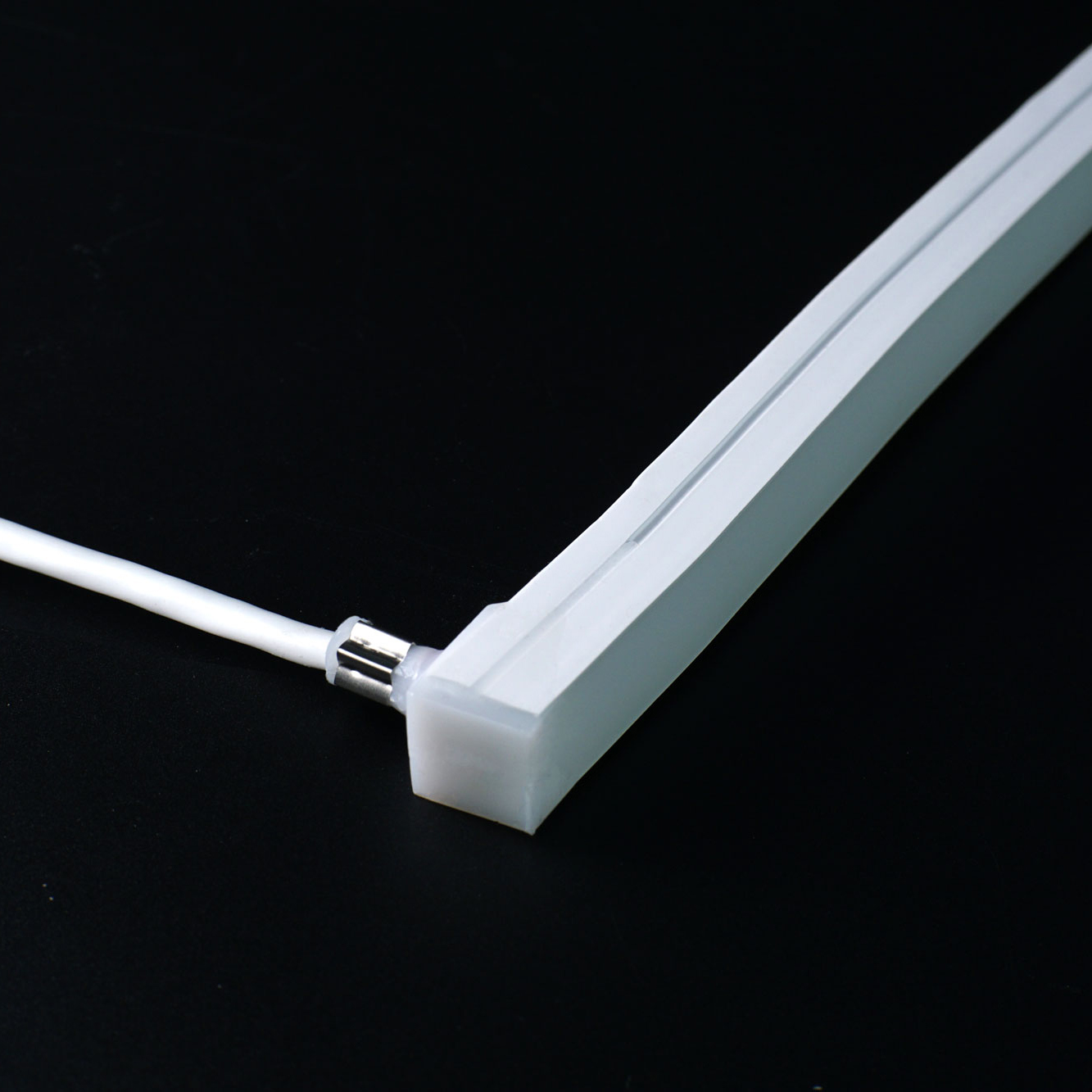

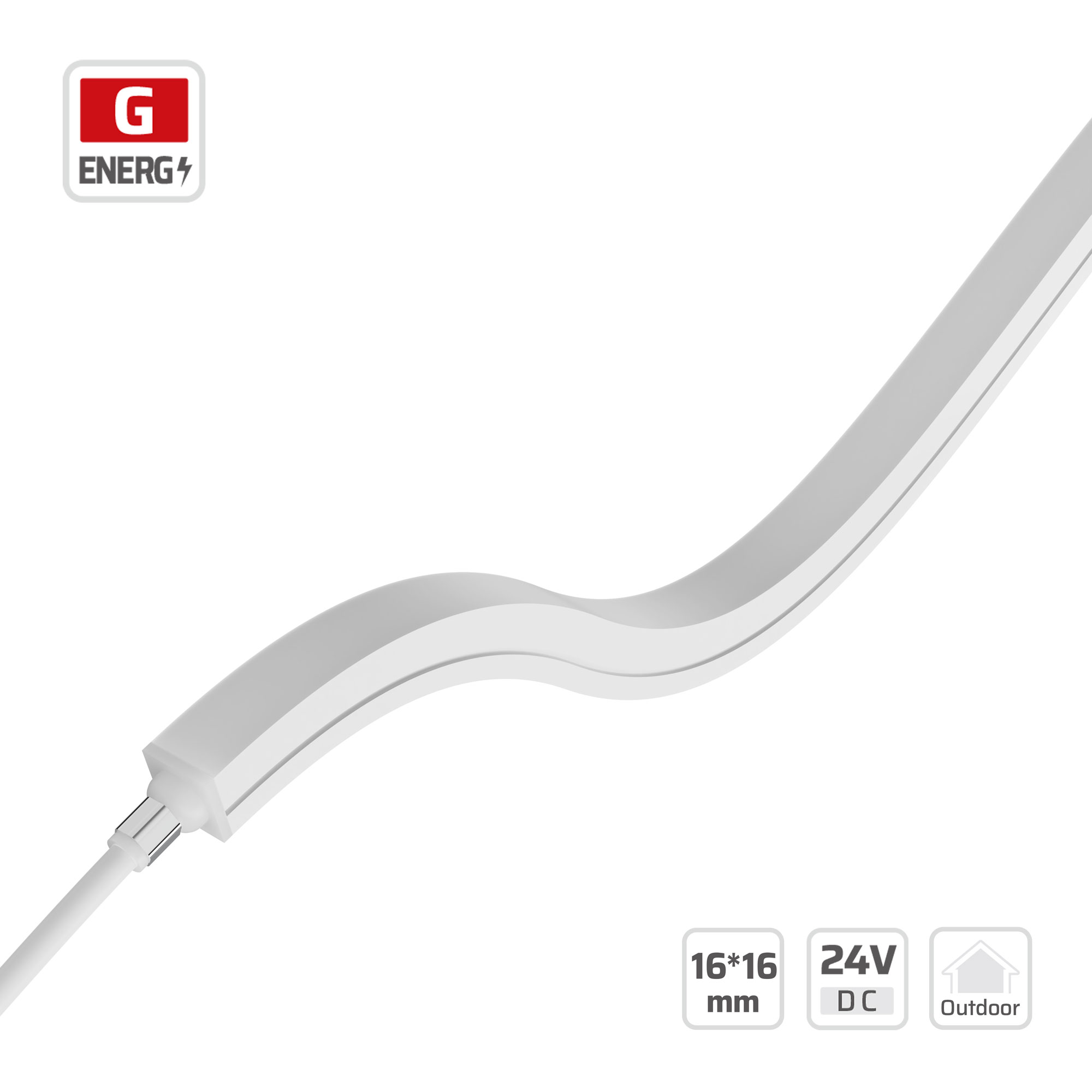

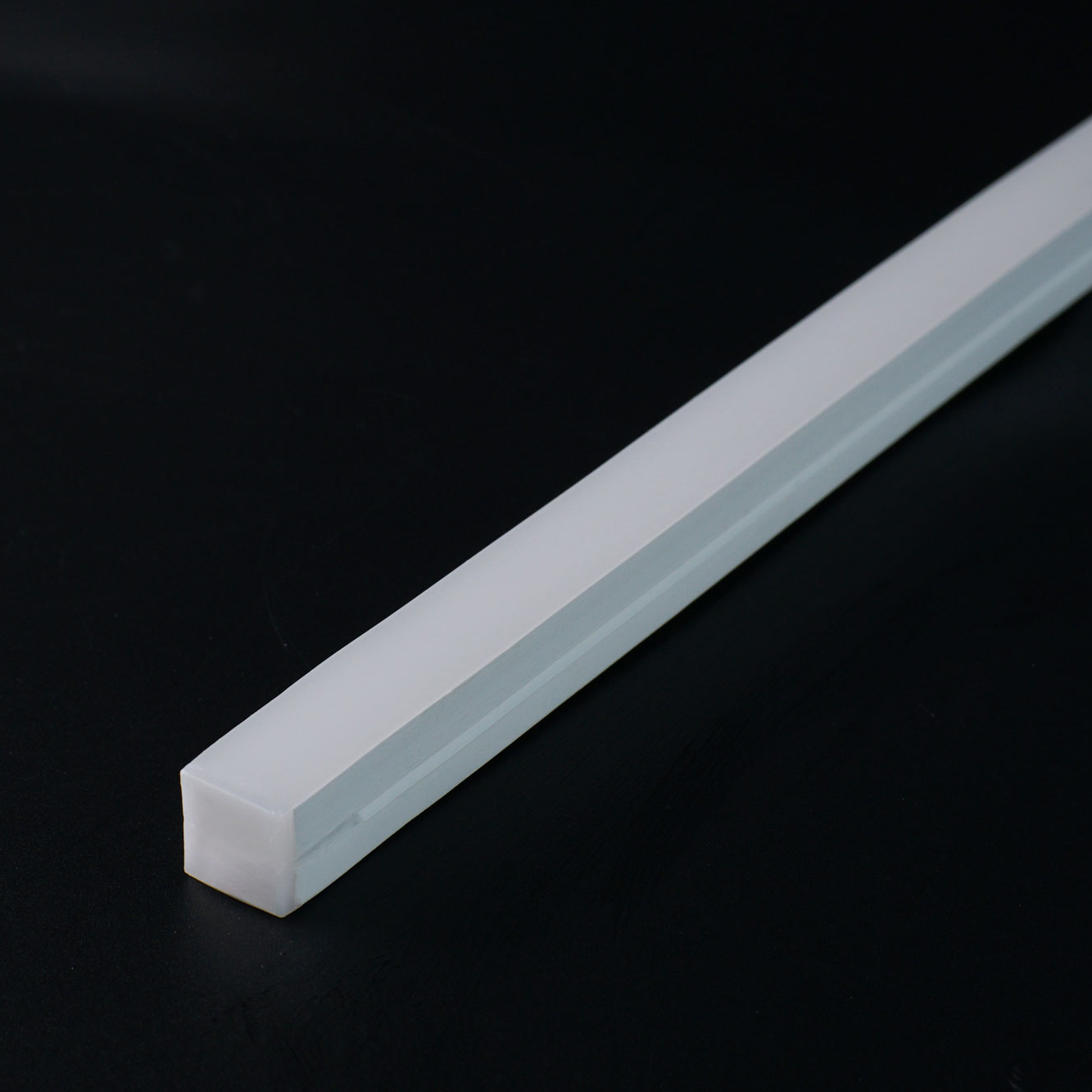

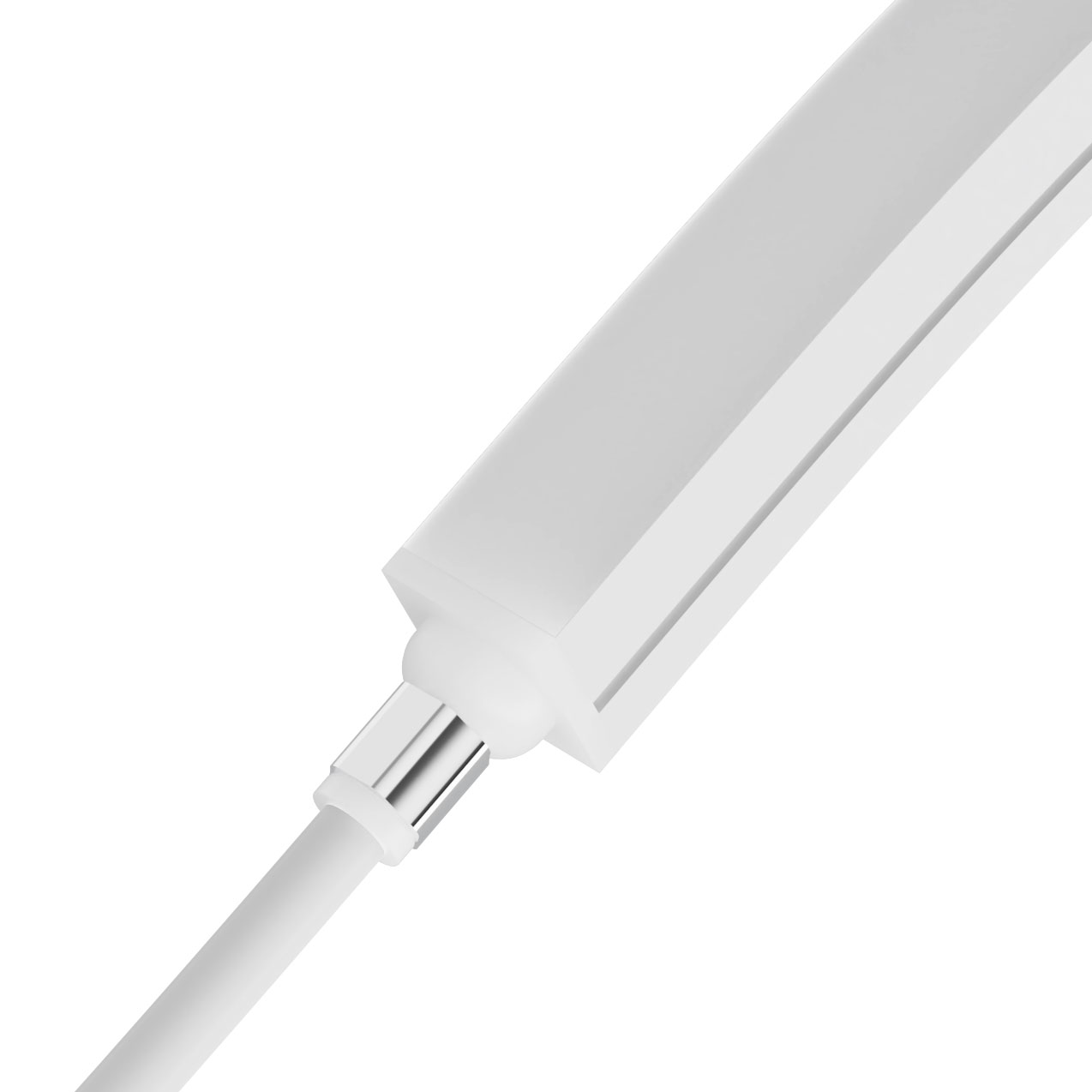

16*16mm | 24V | 120LEDs | 12W | 50mm/cut | #1616T-EE | 1616 Silicone Flexible Neon Light
- 16x16mm silicone injection-moulded design, offering flexibility and durability.
- Full encapsulation protection with high resistance: salt, water, UV, abrasion, and chemical corrosion resistant.
- High-performance silicone material with stable molecular structure, ensuring no discoloration or aging during long-term use.
- Precision manufacturing process, ensuring uniform light distribution and minimizing light dark zones.

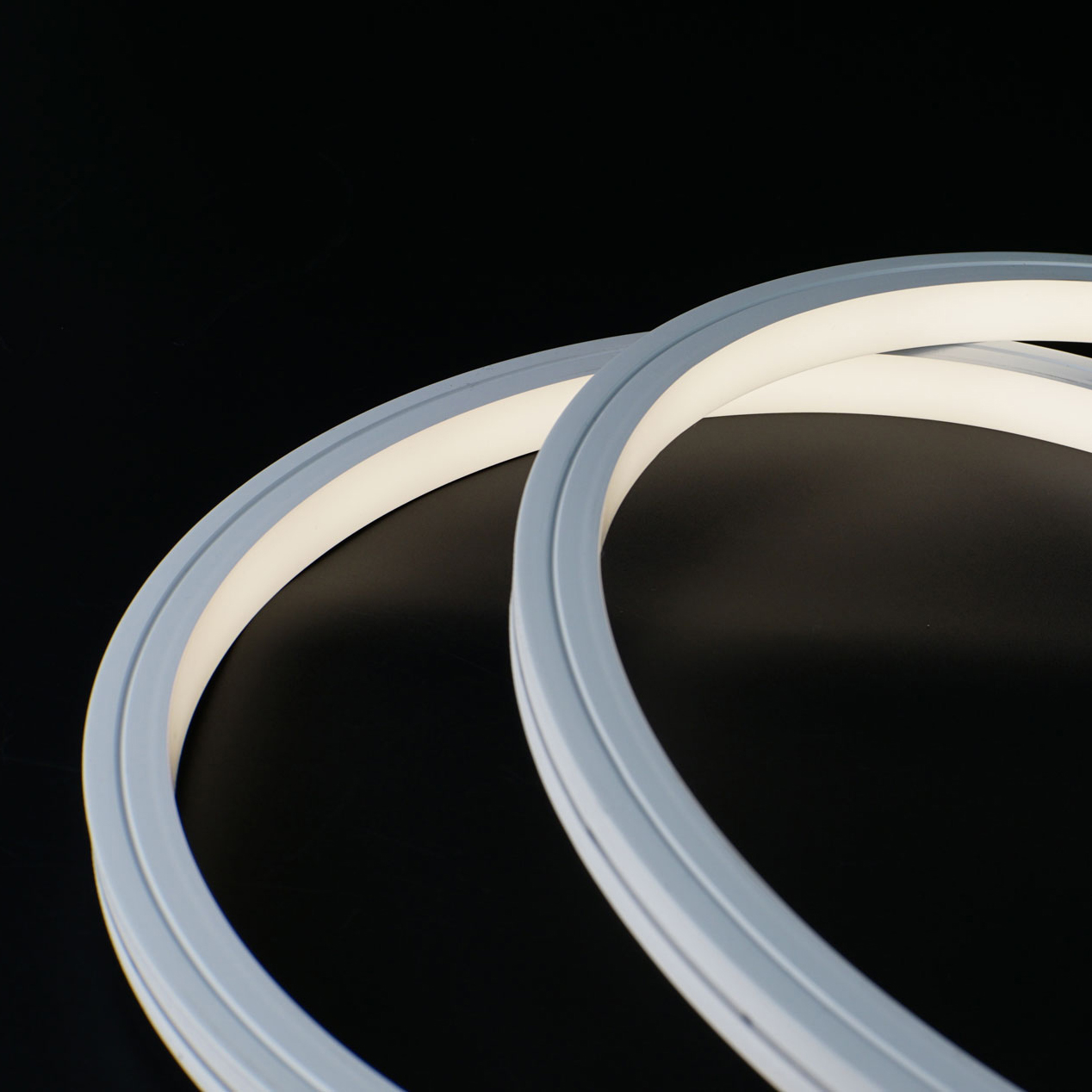

- Multi-angle bending performance, freely shapeable, meeting various creative lighting requirements.
- Widely applicable in indoor and outdoor scenarios: architectural contours, landscape decoration, commercial displays, artistic lighting.
Categories: Injection-moulded, Flexible LED Neon Strips, TOP BEND SERIES
Technical Details
Part No. |
DL-NF28C60V24-1616T-EE-* |
---|---|
SMD Type |
2835 SMD |
LED Qty |
120 LEDs/m |
Voltage |
DC 24V |
Power Option |
12W/m |
Lumen/m (max.) |
571 lm/m @4000K |
Lumen/W (max.) |
48 lm/W @4000K |
Color |
White |
CRI |
Ra ≥80 ,Ra ≥90 ,Ra ≥95 |
PCB Width |
10mm |
Beam Angle |
120° |
IP Process |
IP67 |
Warranty |
3 years |
Related Specifications
Length(max.): 5M(16.4′)
Cutting Unit: 6LEDs/50mm(1.97′′)
LED Spacing: 8.334mm(0.33′′)

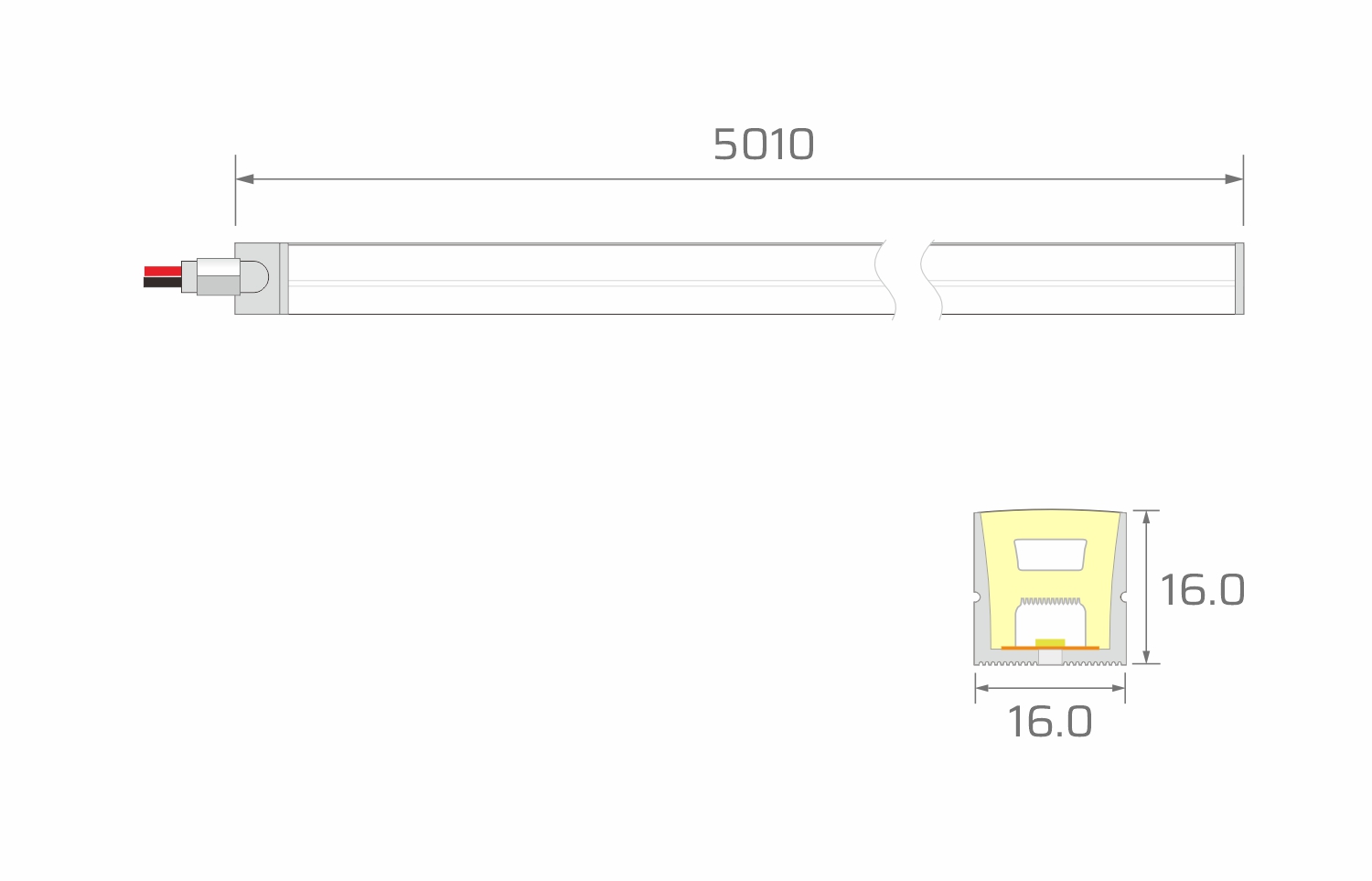

Size: 16x16mm
Copper foil: 3oz
Min. Bend: Φ60mm(2.36″)
Lifetime: 50000h
Certified: CE/RoHS
EMC compliance: EN 55015

Product Photo-electric Parameters
Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
12W/m | Ra≥80 | SWW | 1800K | 550 | 46 | G |
WW | 2700K | 626 | 52 | G | ||
WW | 3000K | 689 | 57 | G | ||
NW | 4000K | 721 | 60 | G | ||
PW | 6500K | 651 | 54 | G | ||
Ra≥90 | SWW | 1800K | 432 | 36 | G | |
WW | 2700K | 521 | 43 | G | ||
WW | 3000K | 548 | 46 | G | ||
NW | 4000K | 571 | 48 | G | ||
PW | 6500K | 548 | 46 | G | ||
FS | WW | 2700K | 422 | 35 | G | |
WW | 3000K | 446 | 37 | G | ||
WW | 3500K | 459 | 38 | G | ||
NW | 4000K | 472 | 39 | G |
Product Downloads
Specification
Testing Report
Certificate
Product Accessories
No accessories for this product now!
