14mm | 24V | 60LEDs | 14.4W | 100cut | #5326 | 5050 RGBW PU LED Strip Light
- Mixes RGBW 4 chip in 1 LED, with tunable fucntion combine. Up to 4 billion colors to choose fromWith the addition of white light, much brighter colors and a softer pastel range are produced to satisfy
- the exacting color requirements of any lighting design.
- PU potting RGB LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Categories: PU integrated extrusion, Flexible LED Strips
Technical Details
Part No. |
DL-F50D30V24-5326-* |
---|---|
SMD Type |
5050 SMD |
LED Qty |
60LEDs/m |
Voltage |
DC 24V |
Power Option |
14.4W/m |
Lumen/m (max.) |
744 lm/m @RGBW,14.4W |
Lumen/W (max.) |
55 lm/W @RGBW,14.4W |
Color |
RGBW |
SDCM |
≤5 Step 1Bin |
PCB Width |
12mm |
Beam Angle |
120° |
IP Process |
IP68 |
Warranty |
3 years |

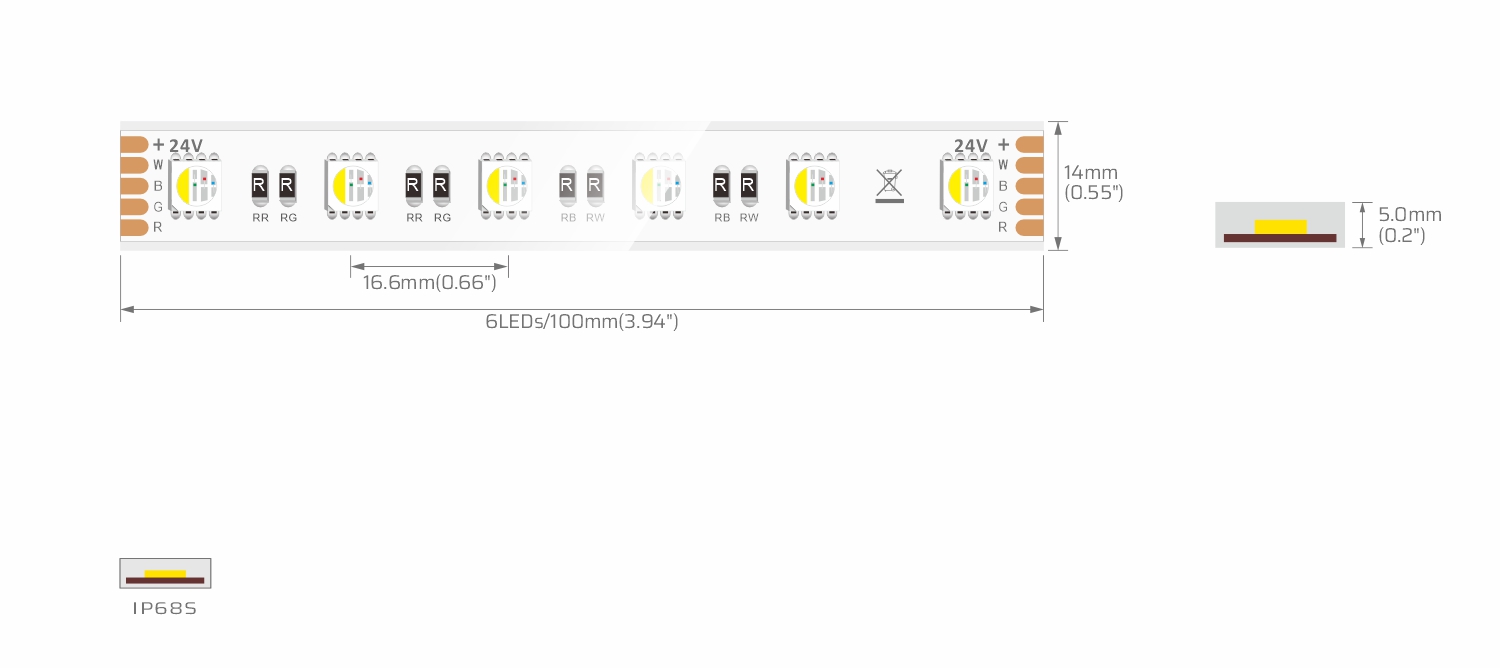

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 6LEDs/100mm(3.937′′)
LED Spacing: 16.6mm(0.654′′)
Width:14mm(0.551′′)
Height: 5.0mm(0.197′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000(test times)
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015

Product Photo-electric Parameters
Power | CRI | Color | LM/m | LM/W | Energy Efficiency Class |
14.4W | – | RGBW | 744 | 55 | G |
3.6W | – | R | 111 | 31 | G |
2.4W | – | G | 222 | 92 | G |
3.8W | – | B | 74 | 19 | G |
3.8W | Ra≥80 | 4000K | 362 | 94 | F |
