12mm | 24V | 736LEDs | 12W | 21.7cut | #8215 Ice Blue & Lemon yellow PU LED Strip Light

PU potting LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
Once cured, PU material effectively seals out moisture, making the strip suitable for outdoor or humid environments.
PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
The cured PU material retains some elasticity, adapting to the bending and vibrations of the LED strip.
The Ice Blue Flexible Strip Light is suitable for various scenes, such as living rooms, bedrooms, and studies, creating a comfortable atmosphere and decorative effect. In commercial spaces, it performs well in hotels, KTVs, shopping malls, and other venues, providing attractive decorations and lighting effects.

Technical Details

Part No.

DL-F16D368V24-8215-*

SMD Type

1608 SMD

LED Qty

736 LEDs/m

Voltage

DC 24V

Power Option

12W/m

Lumen/m (max.)

787 lm/m @Blue,12W

Lumen/W (max.)

67 lm/W @Blue,12W

Color

RGB

PCB Width

12mm

Beam Angle

120°

IP Process

IP68

Warranty

3 years

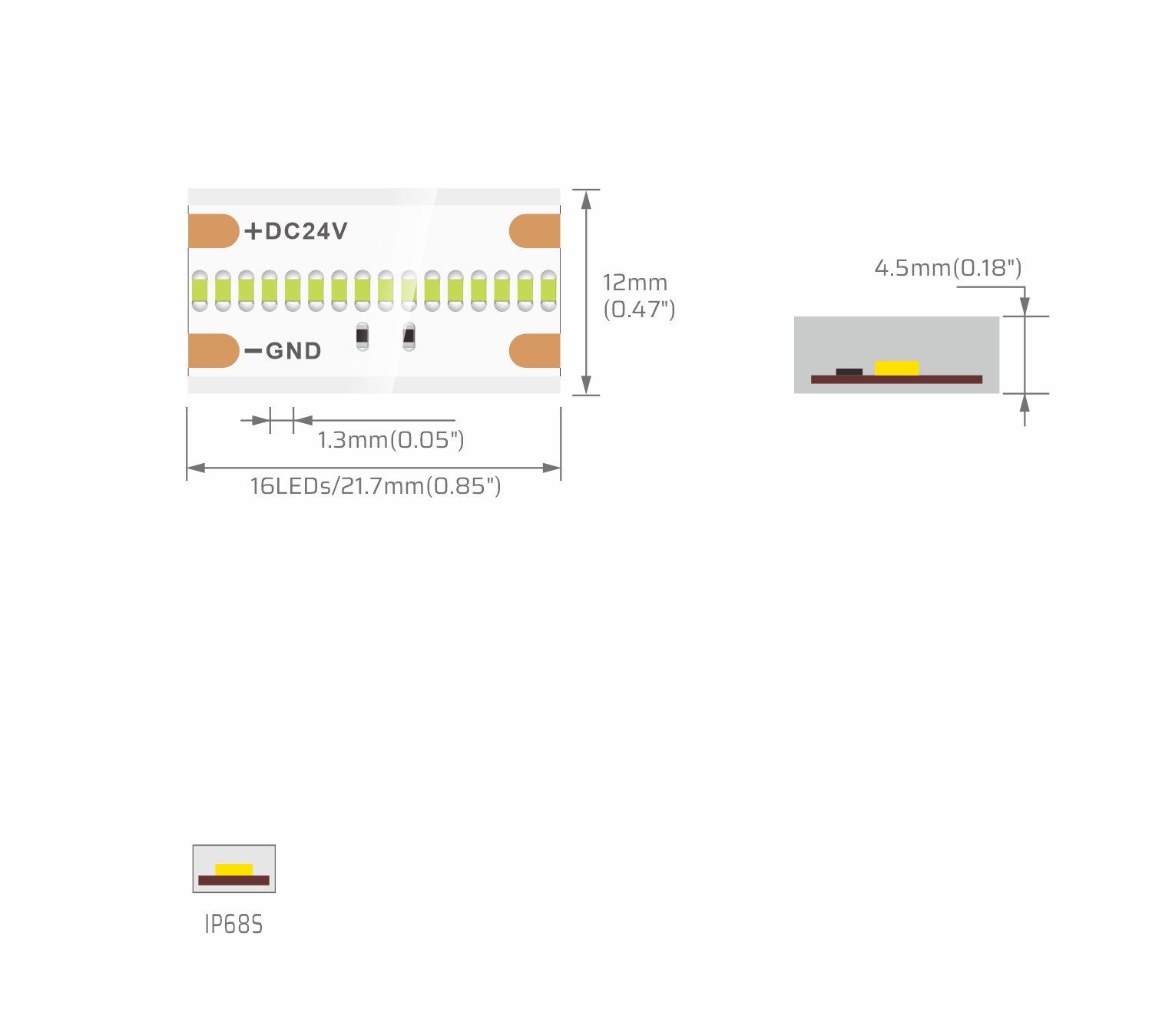

Related Specifications

Length(max.): 5M(16.4′)/roll

Cutting Unit: 16LEDs/21.7mm(0.854′′)

LED Spacing: 1.3mm(0.051′′)

Width:12mm(0.472′′)

Height: 4.5mm(0.177′′)

Mounting: 3M tape

Min. Bend: Φ60mm(2.362′′)

Copper foil: 3oz

On-off times: 10000(test times)

Eye security:IEC 62471

Certified:CE/RoHS

EMC compliance:EN 55015

Product Photo-electric Parameters

Power Color LM/m LM/W
12.3W Lemon yellow 1353 110
12W Ice blue 787 67
