12mm | 24V | 60LEDs | 14.4W | 100cut | #1495 | 5050 RGB PU LED Strip Light
- RGB Mixes Series with 3-chip in one SMD, super bright SMD5050 or small package SMD3528 optional to meet special need.
- With the addition of white light, much brighter colors and a softer pastel range are produced to satisfy the exacting color requirements of any lighting design.
- PU potting RGB LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for decorative backlighting and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden,bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
Technical Details
| Part No. |
DL-F50D30V24-1495-* |
|---|---|
| SMD Type |
5050 SMD |
| LED Qty |
60 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
14.4W/m |
| Lumen/m (max.) |
629 lm/m @RGB,14.4W |
| Lumen/W (max.) |
44 lm/W @RGB,14.4W |
| Color |
RGB |
| PCB Width |
12mm |
| Beam Angle |
120° |
| IP Process |
IP68 |
| Warranty |
3 years |

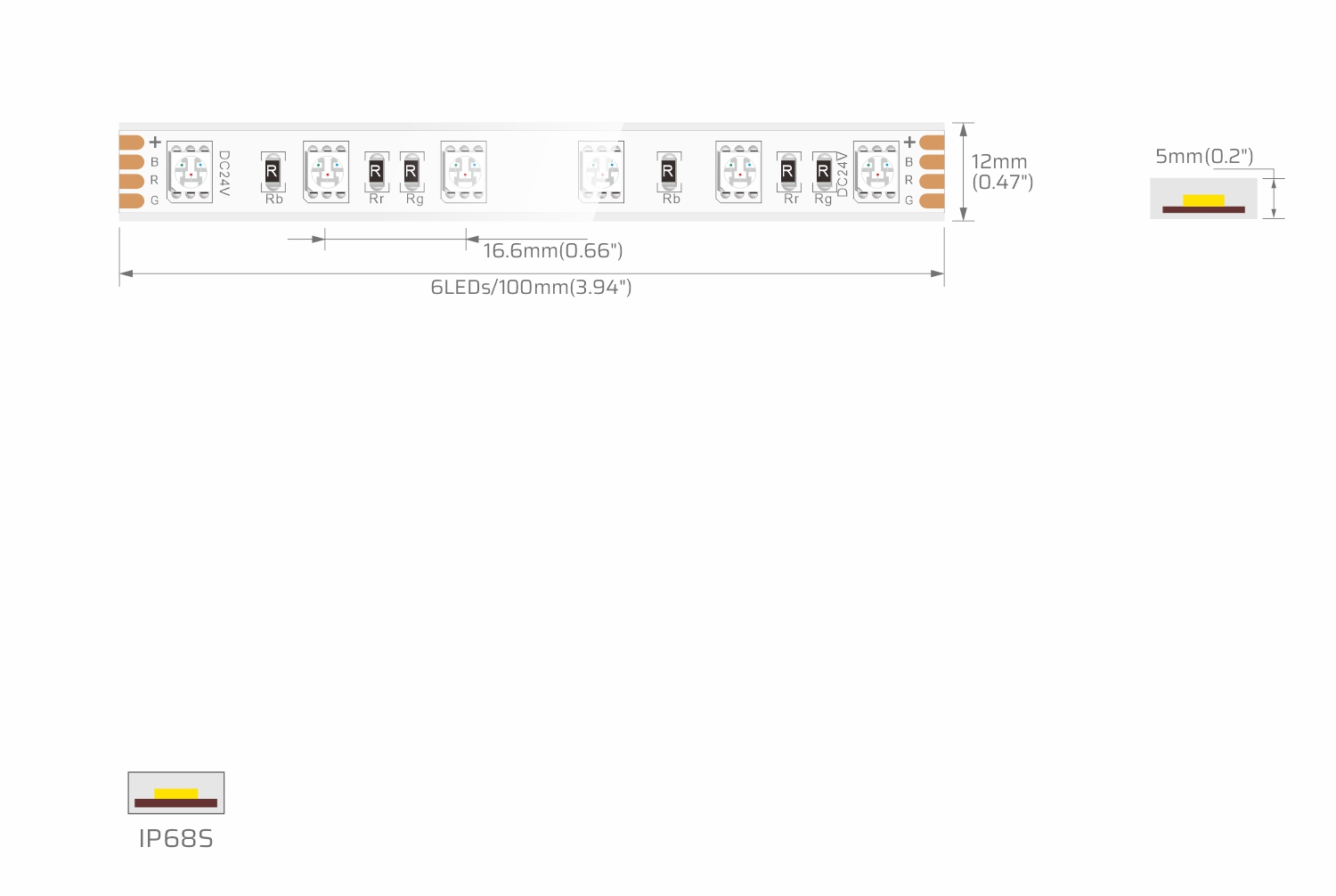

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 6LEDs/100mm(3.937′′)
LED Spacing: 16.6mm(0.653′′)
Width:12mm(0.472′′)
Height: 5mm(0.197′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | Color | Wavelength | LM/m | LM/W | Energy Efficiency Class |
| 14.4W | RGB | 460nm | 629 | 44 | G |
| 4.1W | R | 630nm | 133 | 32 | G |
| 5.4W | G | 520nm | 428 | 80 | G |
| 5.3W | B | 465nm | 94 | 18 | G |
