12mm | 24V | 300LEDs | 14.4W | 20cut | #1688 Classic Series PU LED Light Strips
- The 2216 Version LED Strip Light provides architectural-grade lighting with vibrant color rendering.
- PU potting RGB LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Technical Details
| Part No. |
DL-F22D150V24-1688-* |
|---|---|
| SMD Type |
2216 SMD |
| LED Qty |
300 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
14.4W/m |
| Lumen/m (max.) |
1398 lm/m @4000K,14.4W |
| Lumen/W (max.) |
97 lm/W @4000K,14.4W |
| Color |
White |
| CRI |
Ra ≥90 |
| SDCM |
≤5 Step 1Bin |
| PCB Width |
12mm |
| Beam Angle |
120° |
| IP Process |
IP68 |
| Warranty |
3 years |

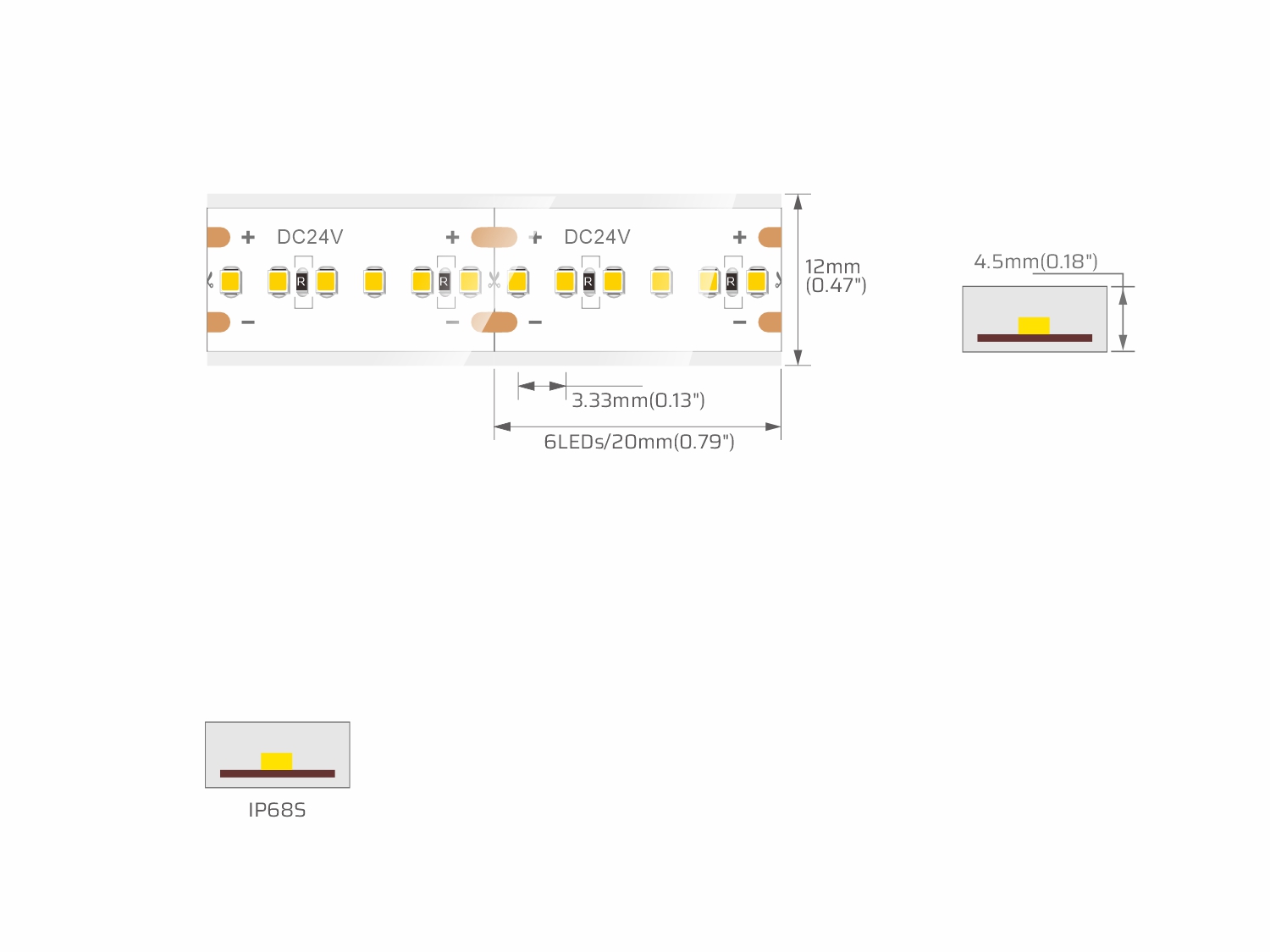

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 6LEDs/20mm(0.787′′)
LED Spacing: 3.33mm(0.131′′)
Width:12mm(0.472′′)
Height: 4.5mm(0.177′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 12W/m | Ra≥90 | SWW | 1800K | 889 | 74 | G |
| SWW | 2300K | 991 | 83 | G | ||
| WW | 2700K | 1072 | 89 | F | ||
| WW | 3000K | 1128 | 94 | F | ||
| WW | 3500K | 1148 | 96 | F | ||
| NW | 4000K | 1176 | 98 | F | ||
| NW | 5000K | 1175 | 98 | F | ||
| PW | 6500K | 1127 | 94 | F | ||
| 14.4W/m | Ra≥90 | SWW | 1800K | 1057 | 73 | G |
| SWW | 2300K | 1178 | 82 | G | ||
| WW | 2700K | 1274 | 89 | F | ||
| WW | 3000K | 1341 | 93 | F | ||
| WW | 3500K | 1365 | 95 | F | ||
| NW | 4000K | 1398 | 97 | F | ||
| NW | 5000K | 1397 | 97 | F | ||
| PW | 6500K | 1340 | 93 | F | ||
| 16.8W/m | Ra≥90 | SWW | 1800K | 1223 | 73 | G |
| SWW | 2300K | 1363 | 81 | G | ||
| WW | 2700K | 1474 | 88 | F | ||
| WW | 3000K | 1552 | 92 | F | ||
| WW | 3500K | 1579 | 94 | F | ||
| NW | 4000K | 1617 | 96 | F | ||
| NW | 5000K | 1616 | 96 | F | ||
| PW | 6500K | 1551 | 92 | F |
