12mm | 24V | 280LEDs | 10W | 25cut | #5991 | 2110 Ultra Density PU LED strip light
- This super intense LED strip uses SMD2110 LEDs with slimmer LEDs and denser arrangement, this fine pitch strip can
- provide evener light distribution and help create a more natural lighting environment.
- SDCM one BIN only, these strips are great for providing elegant and discreet lighting.
- PU potting RGB LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Technical Details
| Part No. |
DL-F21D140V24-5991-* |
|---|---|
| SMD Type |
2110 SMD |
| LED Qty |
280 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
10W/m |
| Lumen/m (max.) |
1046 lm/m @4000K,10W |
| Lumen/W (max.) |
105 lm/W @4000K,10W |
| Color |
White |
| CRI |
Ra ≥90 |
| SDCM |
≤3 Step 1Bin |
| PCB Width |
12mm |
| Beam Angle |
120° |
| IP Process |
IP68 |
| Warranty |
3 years |

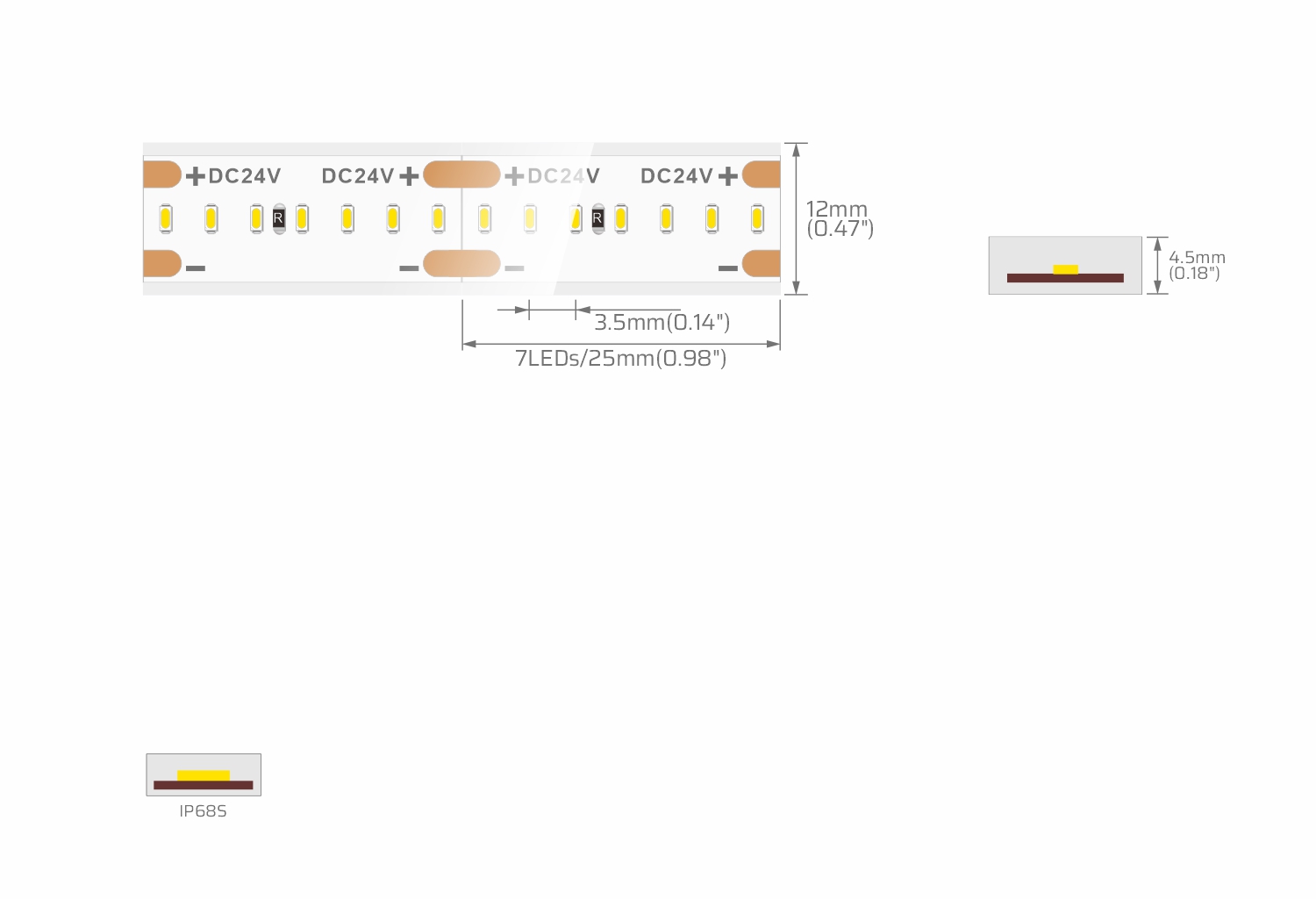

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 7LEDs/25mm(0.984′′)
LED Spacing: 3.5mm(0.137′′)
Width:12mm(0.472′′)
Height: 4.5mm(0.177′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 10W/m | Ra≥90 | SWW | 1800K | 791 | 79 | G |
| SWW | 2300K | 881 | 88 | F | ||
| WW | 2700K | 954 | 95 | F | ||
| WW | 3000K | 1003 | 100 | F | ||
| WW | 3500K | 1021 | 102 | F | ||
| NW | 4000K | 1046 | 105 | F | ||
| NW | 5000K | 1045 | 105 | F | ||
| PW | 6500K | 1003 | 100 | F | ||
| 14.4W/m | Ra≥90 | SWW | 1800K | 1120 | 78 | G |
| SWW | 2300K | 1248 | 87 | F | ||
| WW | 2700K | 1350 | 94 | F | ||
| WW | 3000K | 1421 | 99 | F | ||
| WW | 3500K | 1447 | 101 | F | ||
| NW | 4000K | 1481 | 103 | F | ||
| NW | 5000K | 1481 | 103 | F | ||
| PW | 6500K | 1420 | 99 | F | ||
| 19.2W/m | Ra≥90 | SWW | 1800K | 1465 | 76 | G |
| SWW | 2300K | 1632 | 85 | F | ||
| WW | 2700K | 1766 | 92 | F | ||
| WW | 3000K | 1858 | 97 | F | ||
| WW | 3500K | 1892 | 99 | F | ||
| NW | 4000K | 1937 | 101 | F | ||
| NW | 5000K | 1936 | 101 | F | ||
| PW | 6500K | 1857 | 97 | F |
