12mm | 24V | 240LEDs | 14.4W | 25cut | #2783 PU LED Light Strips
- PU potting 2216 LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Technical Details
| Part No. |
DL-F22D120V24-2783-* |
|---|---|
| SMD Type |
2216 SMD |
| LED Qty |
240 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
14.4W/m |
| Lumen/m (max.) |
1413 lm/m @4000K,14.4W |
| Lumen/W (max.) |
98 lm/W @4000K,14.4W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP68 |
| Warranty |
3 years |

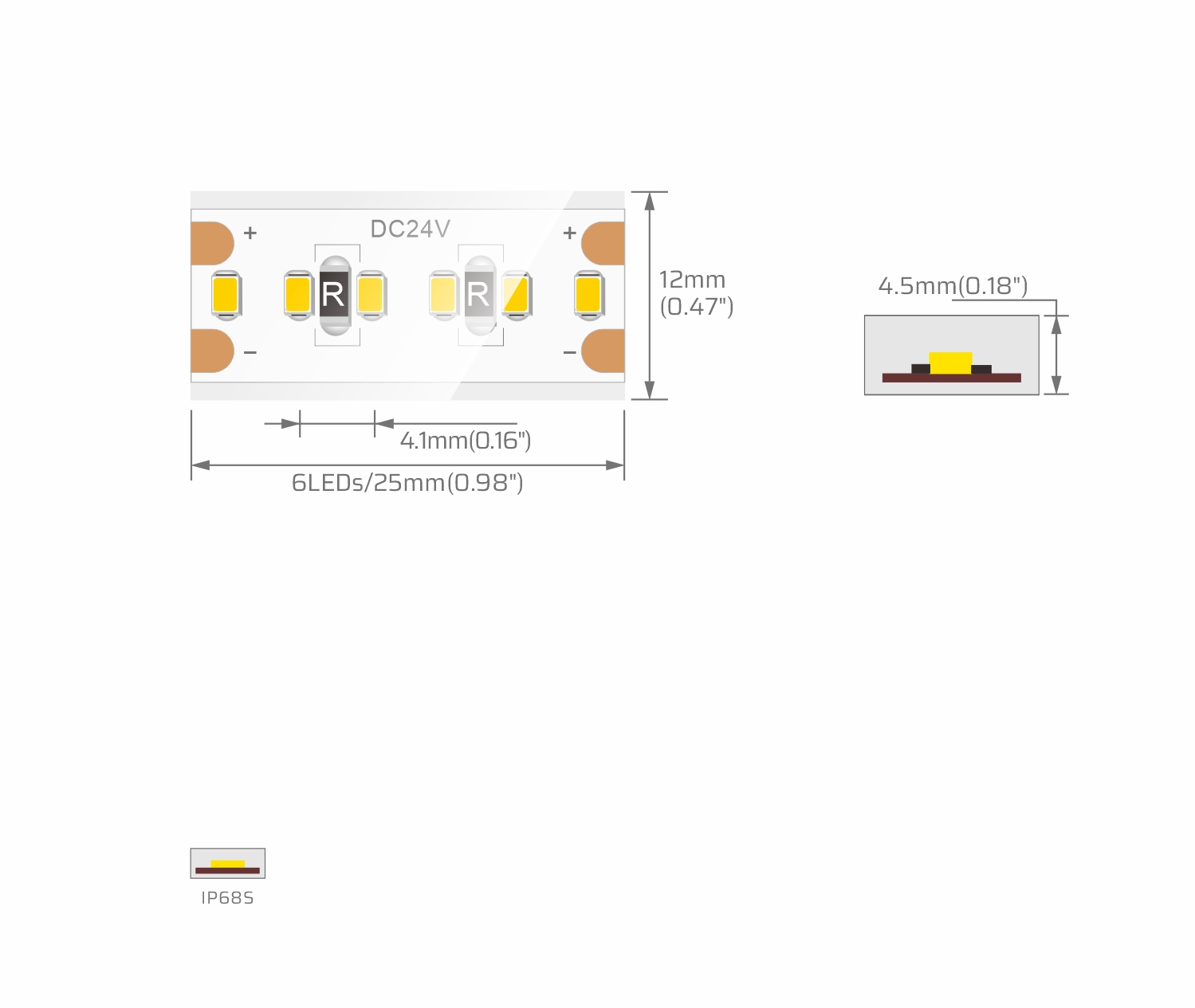

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 6LEDs/25mm(0.984′′)
LED Spacing: 4.1mm(0.161′′)
Width:12mm(0.472′′)
Height: 4.5mm(0.177′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 2oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 10W/m | Ra≥90 | SWW | 1800K | 755 | 76 | G |
| SWW | 2300K | 841 | 84 | G | ||
| WW | 2700K | 910 | 91 | F | ||
| WW | 3000K | 958 | 96 | F | ||
| WW | 3500K | 975 | 98 | F | ||
| NW | 4000K | 998 | 100 | F | ||
| NW | 5000K | 998 | 100 | F | ||
| PW | 6500K | 957 | 96 | F | ||
| 14.4W/m | Ra≥90 | SWW | 1800K | 1069 | 74 | G |
| SWW | 2300K | 1190 | 83 | G | ||
| WW | 2700K | 1288 | 89 | F | ||
| WW | 3000K | 1355 | 94 | F | ||
| WW | 3500K | 1380 | 96 | F | ||
| NW | 4000K | 1413 | 98 | F | ||
| NW | 5000K | 1412 | 98 | F | ||
| PW | 6500K | 1355 | 94 | F | ||
| 19.2W/m | Ra≥90 | SWW | 1800K | 1400 | 73 | G |
| SWW | 2300K | 1559 | 81 | G | ||
| WW | 2700K | 1687 | 88 | F | ||
| WW | 3000K | 1776 | 93 | F | ||
| WW | 3500K | 1807 | 94 | F | ||
| NW | 4000K | 1851 | 96 | F | ||
| NW | 5000K | 1850 | 96 | F | ||
| PW | 6500K | 1775 | 92 | F |
Product Downloads
Specification
Testing Report
Certificate
