12mm | 24V | 160LEDs | 14.4W | 50cut | #5492 | 2835 High Light Efficacy High Lumen PU LED Strip Light
- High-efficiency LEDs, providing professional linear lighting effect.
- PU potting RGB LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Technical Details
| Part No. |
DL-F28D80V24-5492-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
160 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
14.4W/m |
| Lumen/m (max.) |
1977 lm/m @4000K,14.4W |
| Lumen/W (max.) |
137 lm/W @4000K,14.4W |
| Lumen/w-N |
121 ~ 150 lm/W |
| Color |
R/G/B/Y |
| CRI |
Ra ≥90 |
| SDCM |
≤3 Step 1Bin |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP68 |
| Warranty |
3 years |
Related Specifications

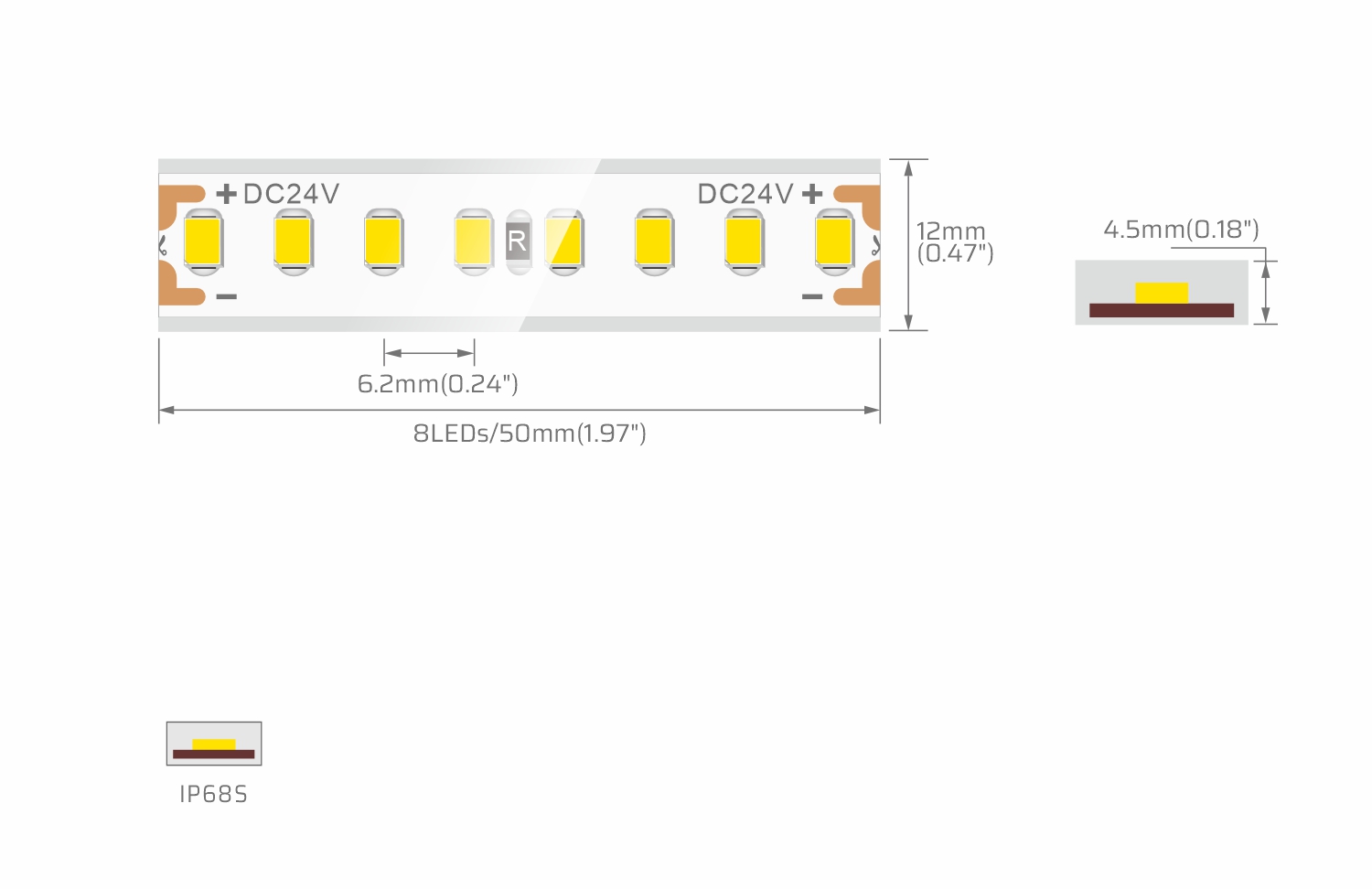

Length(max.): 5M(16.4′)/roll
Cutting Unit: 8LEDs/50mm(1.968′′)
LED Spacing: .6.2mm(0.244′′)
Width:12mm(0.472′′)
Height: 4.5mm(0.177′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 9.6W/m | Ra≥90 | SWW | 1800K | 1015 | 106 | F |
| SWW | 2300K | 1131 | 118 | E | ||
| WW | 2700K | 1223 | 127 | E | ||
| WW | 3000K | 1287 | 134 | E | ||
| WW | 3500K | 1310 | 137 | D | ||
| NW | 4000K | 1342 | 140 | D | ||
| NW | 5000K | 1341 | 140 | D | ||
| PW | 6500K | 1286 | 134 | E | ||
| 14.4W/m | Ra≥90 | SWW | 1800K | 1495 | 104 | F |
| SWW | 2300K | 1665 | 116 | E | ||
| WW | 2700K | 1802 | 125 | E | ||
| WW | 3000K | 1896 | 132 | E | ||
| WW | 3500K | 1930 | 134 | E | ||
| NW | 4000K | 1977 | 137 | D | ||
| NW | 5000K | 1975 | 137 | D | ||
| PW | 6500K | 1895 | 132 | E | ||
| 19.2W/m | Ra≥90 | SWW | 1800K | 1957 | 102 | F |
| SWW | 2300K | 2181 | 114 | E | ||
| WW | 2700K | 2360 | 123 | E | ||
| WW | 3000K | 2483 | 129 | E | ||
| WW | 3500K | 2527 | 132 | E | ||
| NW | 4000K | 2588 | 135 | E | ||
| NW | 5000K | 2587 | 135 | E | ||
| PW | 6500K | 2482 | 129 | E |
