12mm | 24V | 140LEDs | 14.4W | 50cut | #4524 Classic PU LED Strip Light
- Utilizes Classic PU LEDs, providing professional linear lighting effect.
- PU potting 3014 LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Technical Details
| Part No. |
DL-F34D70V24-4524-* |
|---|---|
| SMD Type |
3014 SMD |
| LED Qty |
140 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
14.4W/m |
| Lumen/m (max.) |
1339 lm/m @4000K,14.4W |
| Lumen/W (max.) |
93 lm/W @4000K,14.4W |
| Lumen/w-N |
90 ~ 120 lm/W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP68 |
| Warranty |
3 years |

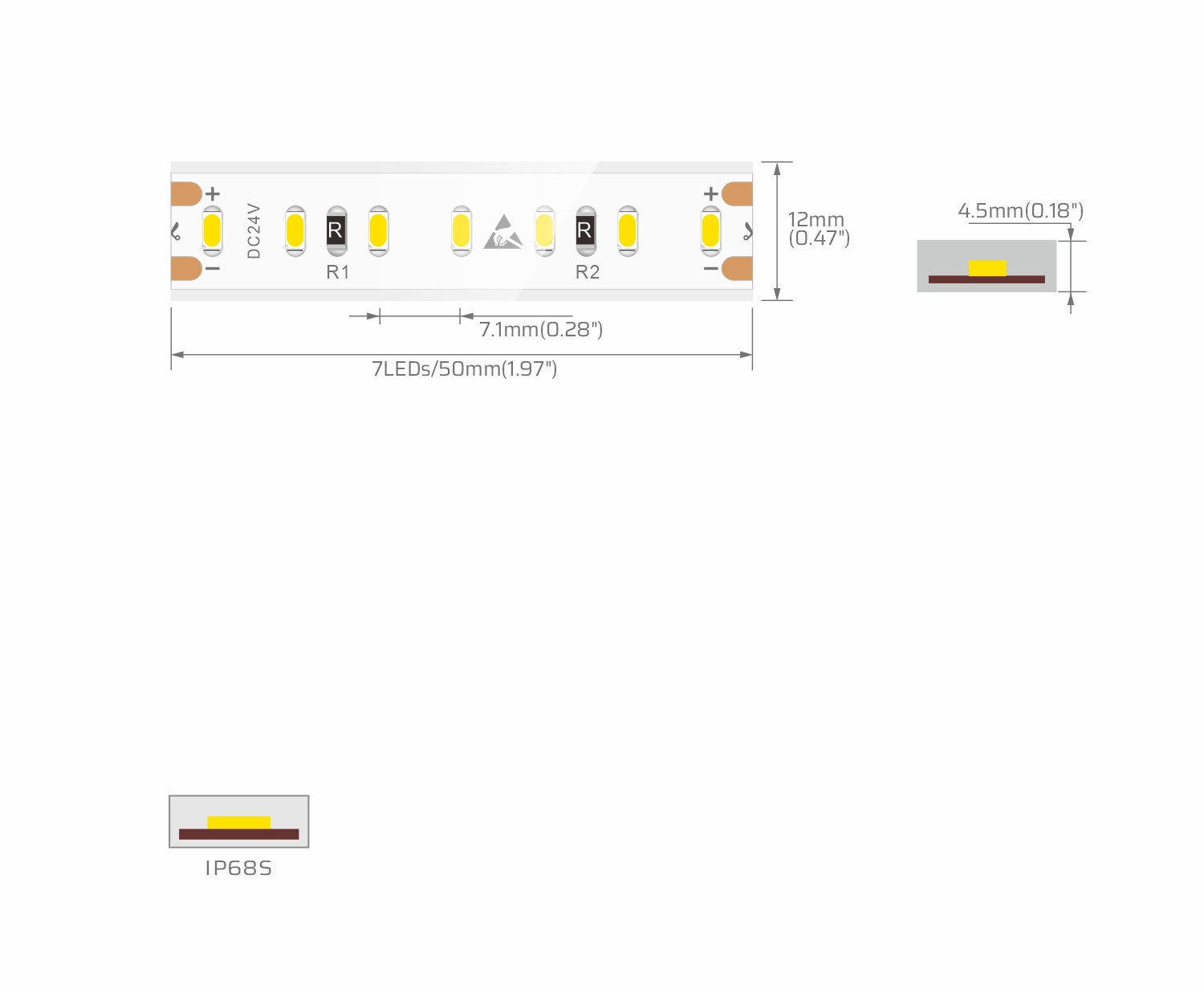

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 7LEDs/50mm(1.968′′)
LED Spacing: 7.1mm(0.279′′)
Width:12mm(0.472′′)
Height: 4.5mm(0.177′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 12W/m | Ra≥90 | SWW | 1800K | 852 | 71 | G |
| SWW | 2300K | 949 | 79 | G | ||
| WW | 2700K | 1027 | 86 | F | ||
| WW | 3000K | 1081 | 90 | F | ||
| WW | 3500K | 1100 | 92 | F | ||
| NW | 4000K | 1127 | 94 | F | ||
| NW | 5000K | 1126 | 94 | F | ||
| PW | 6500K | 1080 | 90 | F | ||
| 14.4W/m | Ra≥90 | SWW | 1800K | 1012 | 70 | G |
| SWW | 2300K | 1128 | 78 | G | ||
| WW | 2700K | 1220 | 85 | G | ||
| WW | 3000K | 1284 | 89 | F | ||
| WW | 3500K | 1307 | 91 | F | ||
| NW | 4000K | 1339 | 93 | F | ||
| NW | 5000K | 1338 | 93 | F | ||
| PW | 6500K | 1283 | 89 | F | ||
| 16.2W/m | Ra≥90 | SWW | 1800K | 1132 | 70 | G |
| SWW | 2300K | 1262 | 78 | G | ||
| WW | 2700K | 1365 | 84 | G | ||
| WW | 3000K | 1437 | 89 | F | ||
| WW | 3500K | 1462 | 90 | F | ||
| NW | 4000K | 1497 | 92 | F | ||
| NW | 5000K | 1496 | 92 | F | ||
| PW | 6500K | 1436 | 89 | F |
Product Downloads
Specification
Testing Report
Certificate
Product Accessories
No accessories for this product now！
