12mm | 24V | 128LEDs | 14.4W | 62.5cut | #3015 | 2835 High Light Efficacy High Lumen PU LED Strip
- High-efficiency LEDs, providing professional linear lighting effect.
- PU potting High-efficiency LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Technical Details
| Part No. |
DL-F28D64V24-3015-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
128 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
14.4W/m |
| Lumen/m (max.) |
1996 lm/m @4000K,14.4W |
| Lumen/W (max.) |
139 lm/W @4000K,14.4W |
| Color |
White |
| CRI |
Ra ≥90 |
| SDCM |
≤3 Step 1Bin |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP68 |
| Warranty |
3 years |

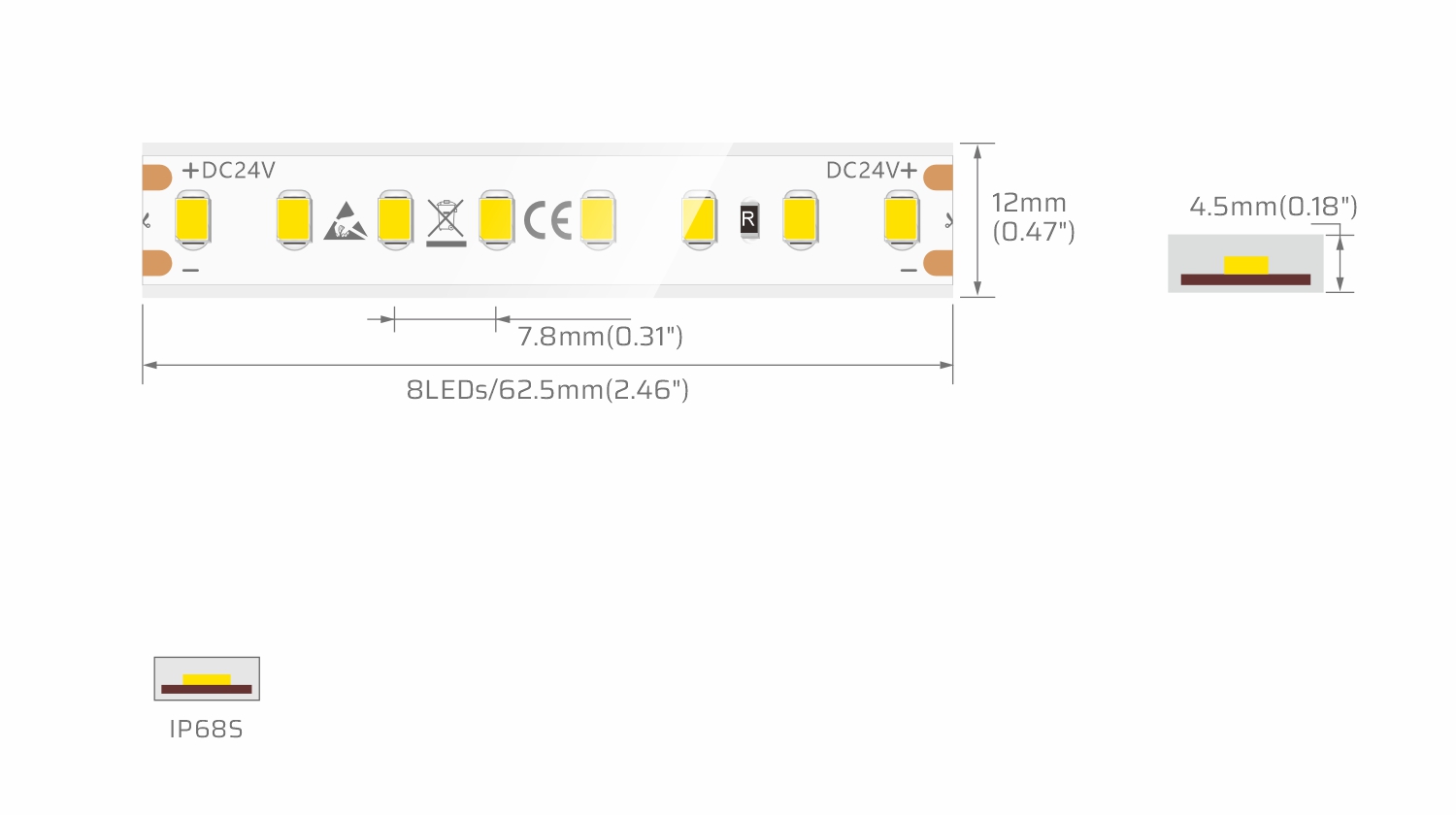

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 8LEDs/62.5mm(2.460′′)
LED Spacing: 7.8mm(0.307′′)
Width:12mm(0.472′′)
Height: 4.5mm(0.177′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 10W/m | Ra≥90 | SWW | 1800K | 1066 | 107 | F |
| SWW | 2300K | 1187 | 119 | E | ||
| WW | 2700K | 1284 | 128 | E | ||
| WW | 3000K | 1352 | 135 | D | ||
| WW | 3500K | 1376 | 138 | D | ||
| NW | 4000K | 1409 | 141 | D | ||
| NW | 5000K | 1408 | 141 | D | ||
| PW | 6500K | 1351 | 135 | D | ||
| 14.4W/m | Ra≥90 | SWW | 1800K | 1509 | 105 | F |
| SWW | 2300K | 1681 | 117 | E | ||
| WW | 2700K | 1819 | 126 | E | ||
| WW | 3000K | 1914 | 133 | E | ||
| WW | 3500K | 1949 | 135 | D | ||
| NW | 4000K | 1996 | 139 | D | ||
| NW | 5000K | 1994 | 139 | D | ||
| PW | 6500K | 1913 | 133 | E | ||
| 19.2W/m | Ra≥90 | SWW | 1800K | 1976 | 103 | F |
| SWW | 2300K | 2201 | 115 | E | ||
| WW | 2700K | 2382 | 124 | E | ||
| WW | 3000K | 2506 | 131 | E | ||
| WW | 3500K | 2551 | 133 | E | ||
| NW | 4000K | 2612 | 136 | D | ||
| NW | 5000K | 2611 | 136 | D | ||
| PW | 6500K | 2505 | 131 | E |
