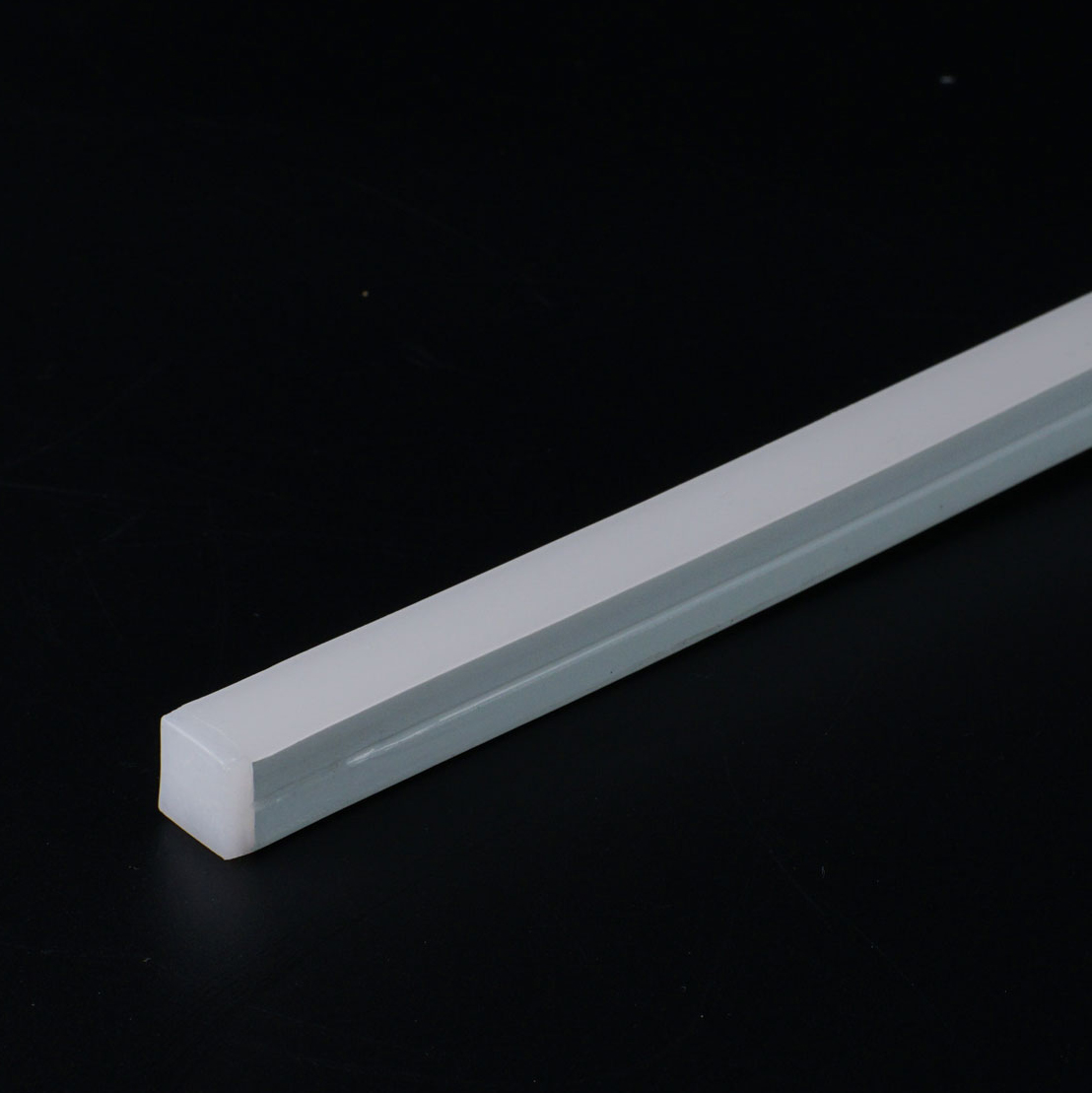

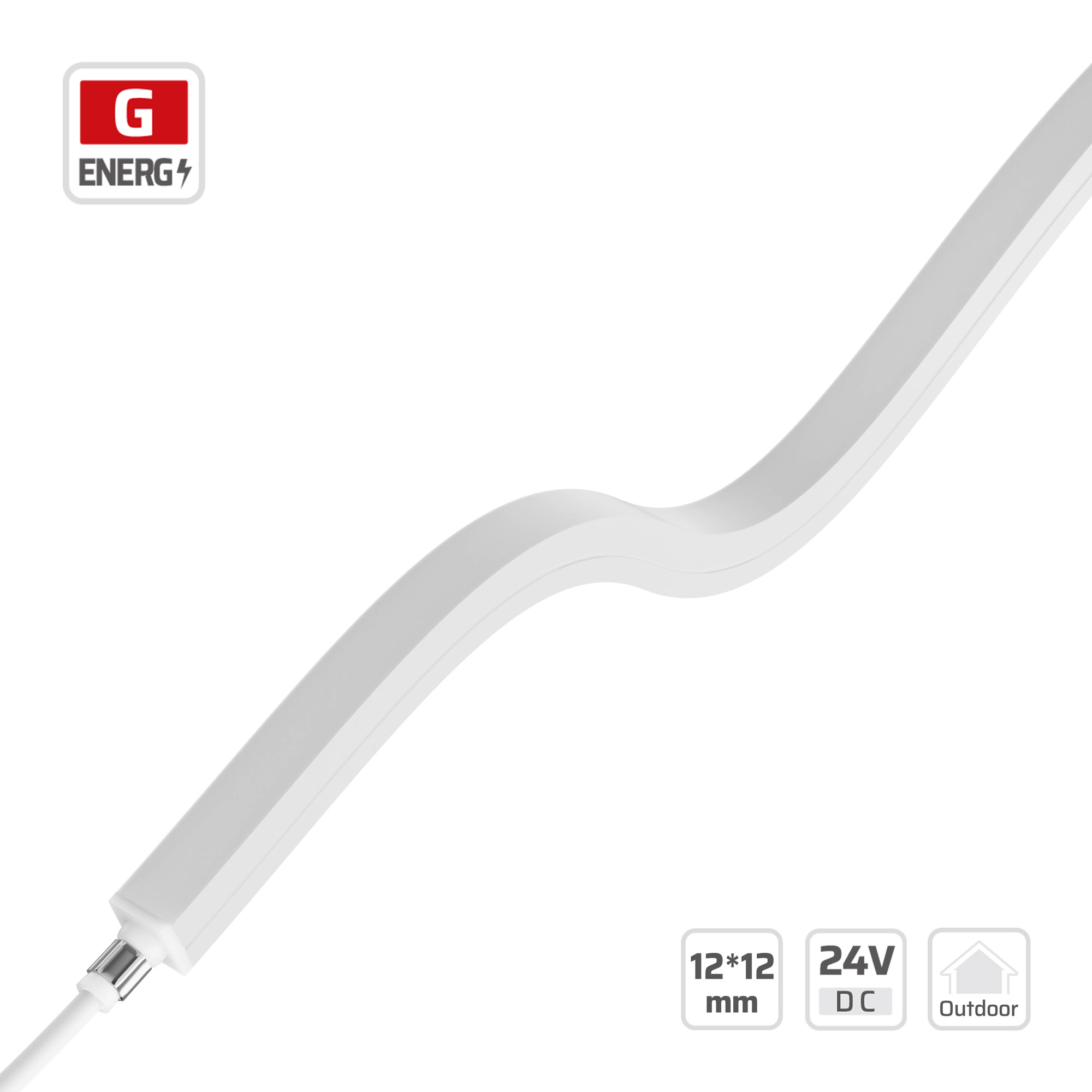

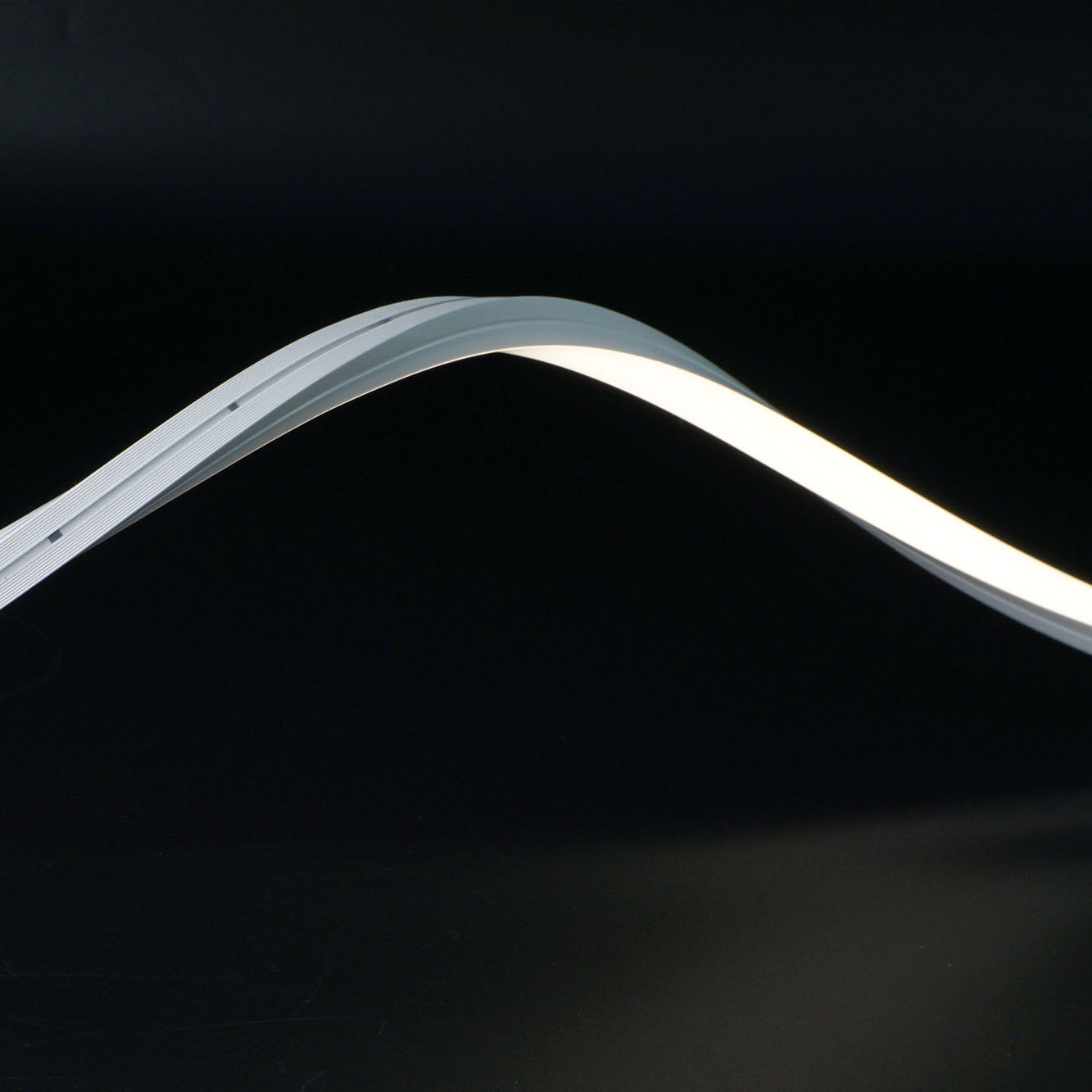

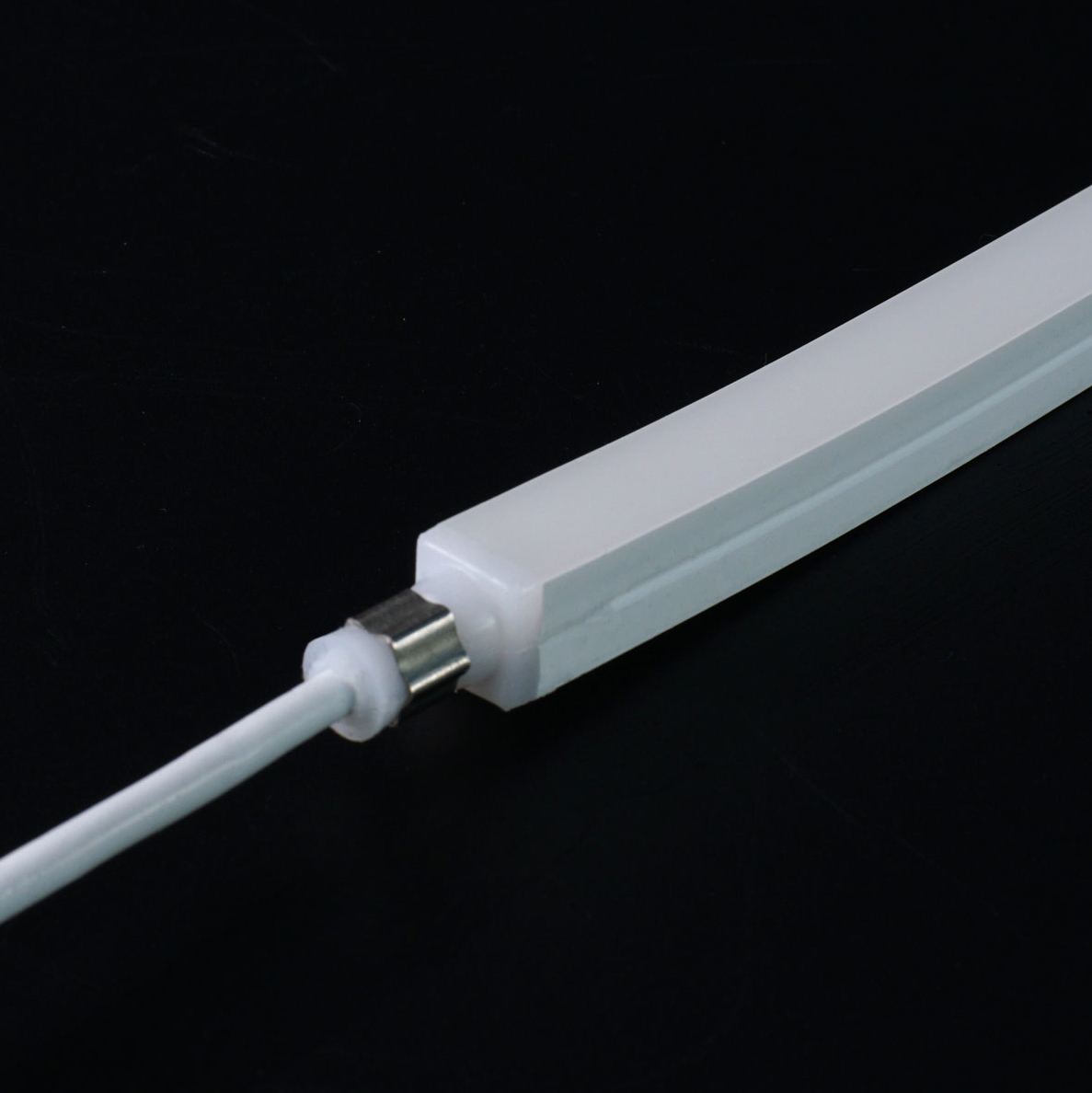

12*12mm | 24V | 120LEDs | 12W | 50mm/cut | #1212T-EE | 1212 Silicone Flexible Neon Light
- 1212mm silicone injection-moulded design, offering flexibility and durability.
- Full encapsulation protection with high resistance: salt, water, UV, abrasion, and chemical corrosion resistant.
- High-performance silicone material with stable molecular structure, ensuring no discoloration or aging during long-term use.
- Precision manufacturing process, ensuring uniform light distribution and minimizing light dark zones.
- Multi-angle bending performance, freely shapeable, meeting various creative lighting requirements.
- Widely applicable in indoor and outdoor scenarios: architectural contours, landscape decoration, commercial displays, artistic lighting.
Technical Details
| Part No. |
DL-NF28C60V24-1212T-EE-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
120 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
12W/m |
| Lumen/m (max.) |
814 lm/m @4000K |
| Lumen/W (max.) |
68 lm/W @4000K |
| Color |
White |
| CRI |
Ra ≥80 ,Ra ≥90 ,Ra ≥95 |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP67 |
| Warranty |
3 years |
Related Specifications
Length(max.): 5M(16.4′)
Cutting Unit: 6LEDs/50mm(1.97′′)
LED Spacing: 8.334mm(0.33′′)

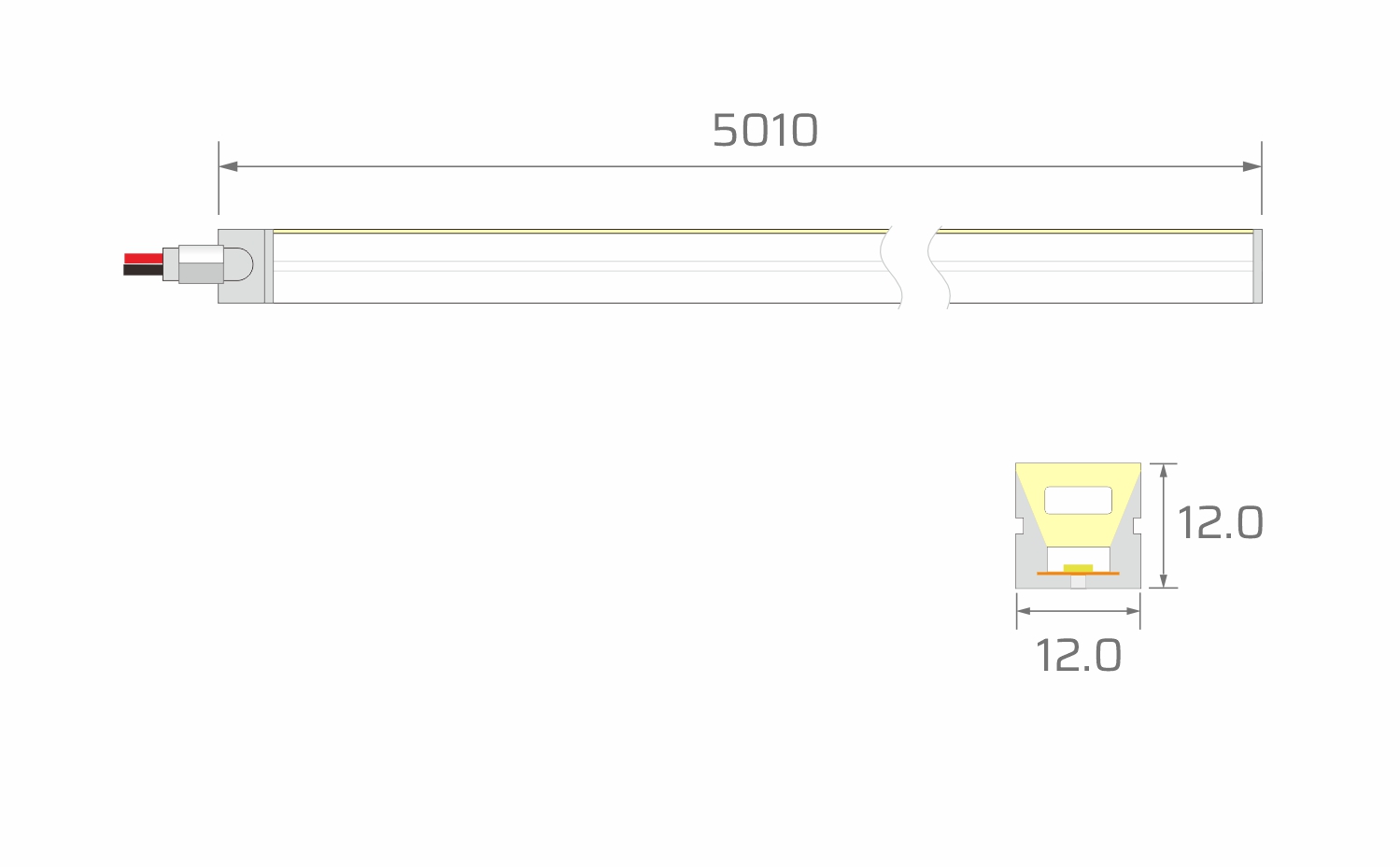

Size: 12x12mm
Copper foil: 3oz
Min. Bend: Φ60mm(2.36″)
Lifetime: 50000h
Certified: CE/RoHS
EMC compliance: EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 12W/m | Ra≥80 | SWW | 1800K | 776 | 65 | G |
| WW | 2700K | 897 | 75 | G | ||
| WW | 3000K | 971 | 81 | G | ||
| NW | 4000K | 1019 | 85 | G | ||
| PW | 6500K | 925 | 77 | G | ||
| Ra≥90 | SWW | 1800K | 616 | 51 | G | |
| WW | 2700K | 742 | 62 | G | ||
| WW | 3000K | 781 | 65 | G | ||
| NW | 4000K | 814 | 68 | G | ||
| PW | 6500K | 780 | 65 | G | ||
| FS | WW | 2700K | 601 | 50 | G | |
| WW | 3000K | 635 | 53 | G | ||
| WW | 3500K | 654 | 55 | G | ||
| NW | 4000K | 672 | 56 | G |
