10mm | 48V | 14.4W |50cut | #15927 | SOB High output SOB CC Series
- 48V single-end power supply, maximum length up to 15 meters, reducing wiring requirements
- The special desgin provide excellent flexibility, and strong bending resistance.
- With thicker PCB, better for heat dissipation, keep the good consitent brightness from begin to end.
- Built-in chip protection stents, make it higher power available. Special power is customizable.
- More flexible options: More special CCT, Higher CRl, different power
- This series product is the linear lighting solution with the mature and stable technology.lt has the the excellent colorconsistency. Using in decorative project, props display item etc.
Technical Details
| Part No. |
DL-FSOBA150V48-15927-* |
|---|---|
| SMD Type |
SOB |
| LED Qty |
300 LEDs/m |
| Voltage |
DC 48V |
| Power Option |
14.4W/m |
| Lumen/m (max.) |
1436 lm/m @4000K，14.4W |
| Lumen/W (max.) |
100 lm/W @4000K，14.4W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP65 |
| Warranty |
3 years |

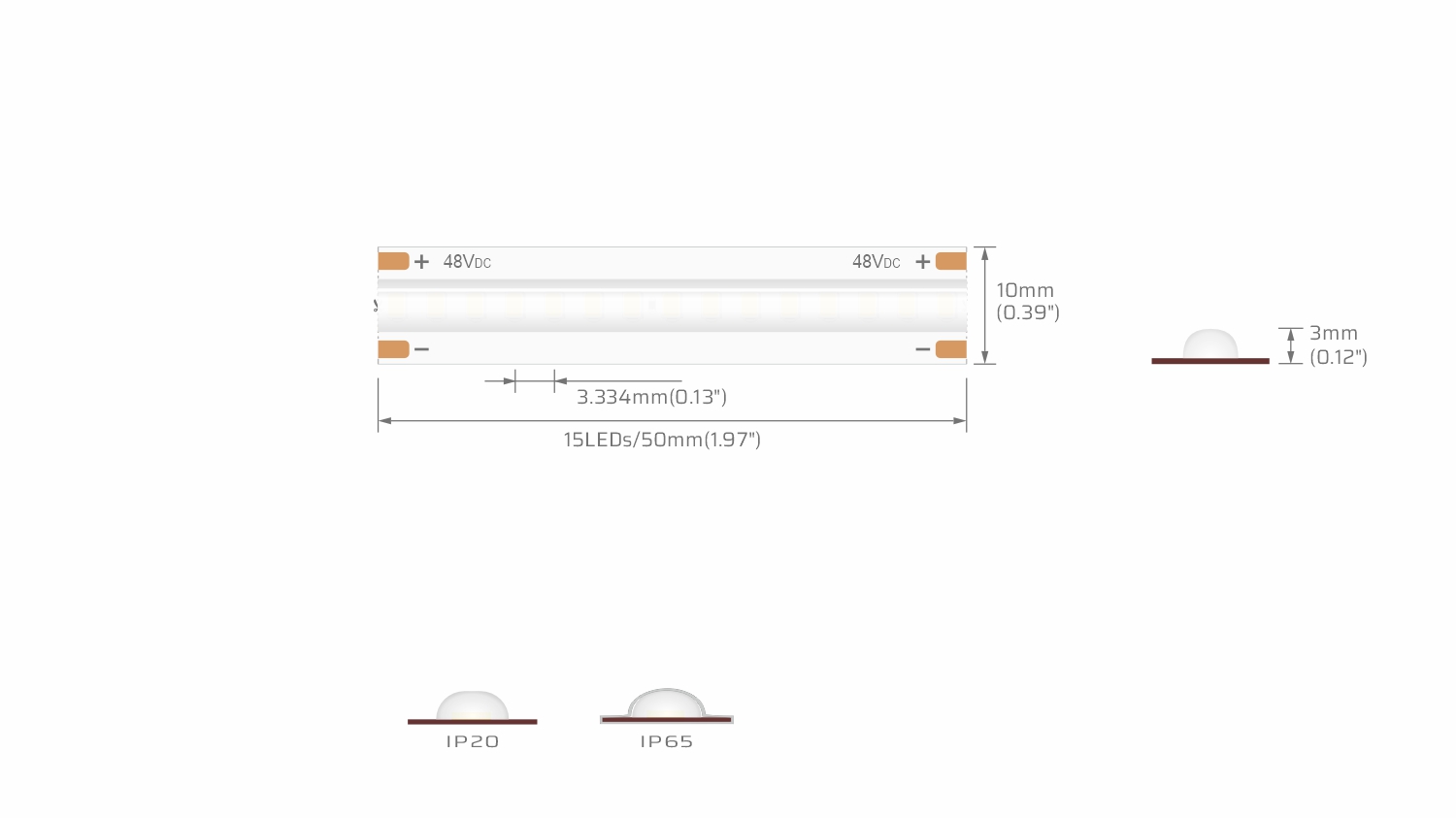

Related Specifications
Length(max.): 15M(49.213′)
Cutting Unit: 15LEDs/50mm(1.969′′)
LED Spacing: 3.334mm(0.131′′)
LED Height: 3.0mm(0.118′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000
Certified: CE/RoHS
EMC compliance: EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 14.4W/m | Ra≥90 | WW | 2700K | 1309 | 91 | G |
| WW | 3000K | 1377 | 96 | F | ||
| NW | 4000K | 1436 | 100 | F | ||
| NW | 5000K | 1435 | 100 | F | ||
| PW | 6500K | 1377 | 96 | F | ||
| FS | WW | 2700K | 1061 | 74 | G | |
| WW | 3500K | 1154 | 80 | G | ||
| NW | 4000K | 1185 | 82 | G |
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 19.2W/m | Ra≥90 | WW | 2700K | 1639 | 85 | G |
| WW | 3000K | 1724 | 90 | F | ||
| NW | 4000K | 1798 | 94 | F | ||
| NW | 5000K | 1796 | 94 | F | ||
| PW | 6500K | 1723 | 90 | F | ||
| FS | WW | 2700K | 1328 | 69 | G | |
| WW | 3500K | 1445 | 75 | G | ||
| NW | 4000K | 1484 | 77 | G |
