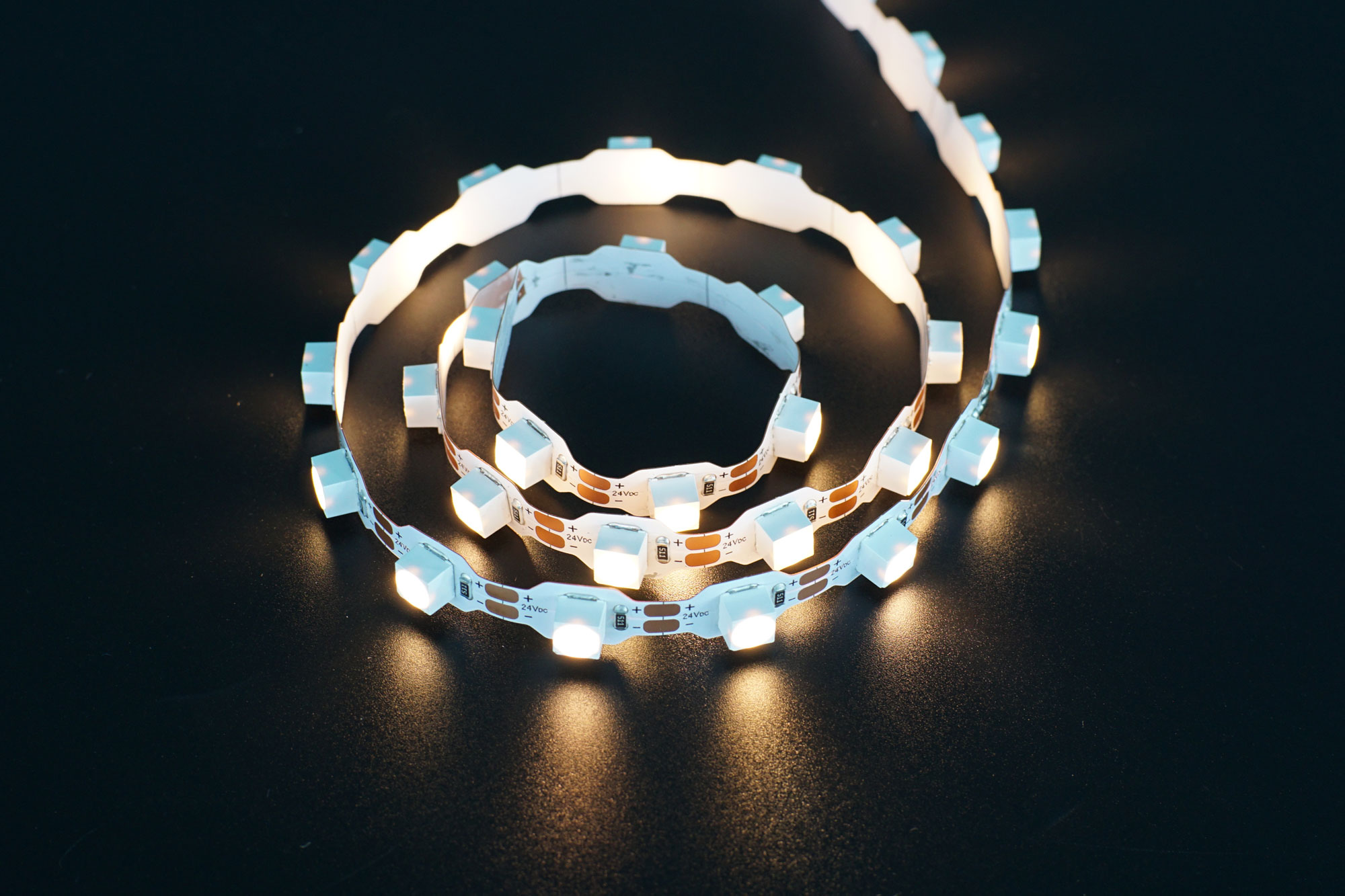

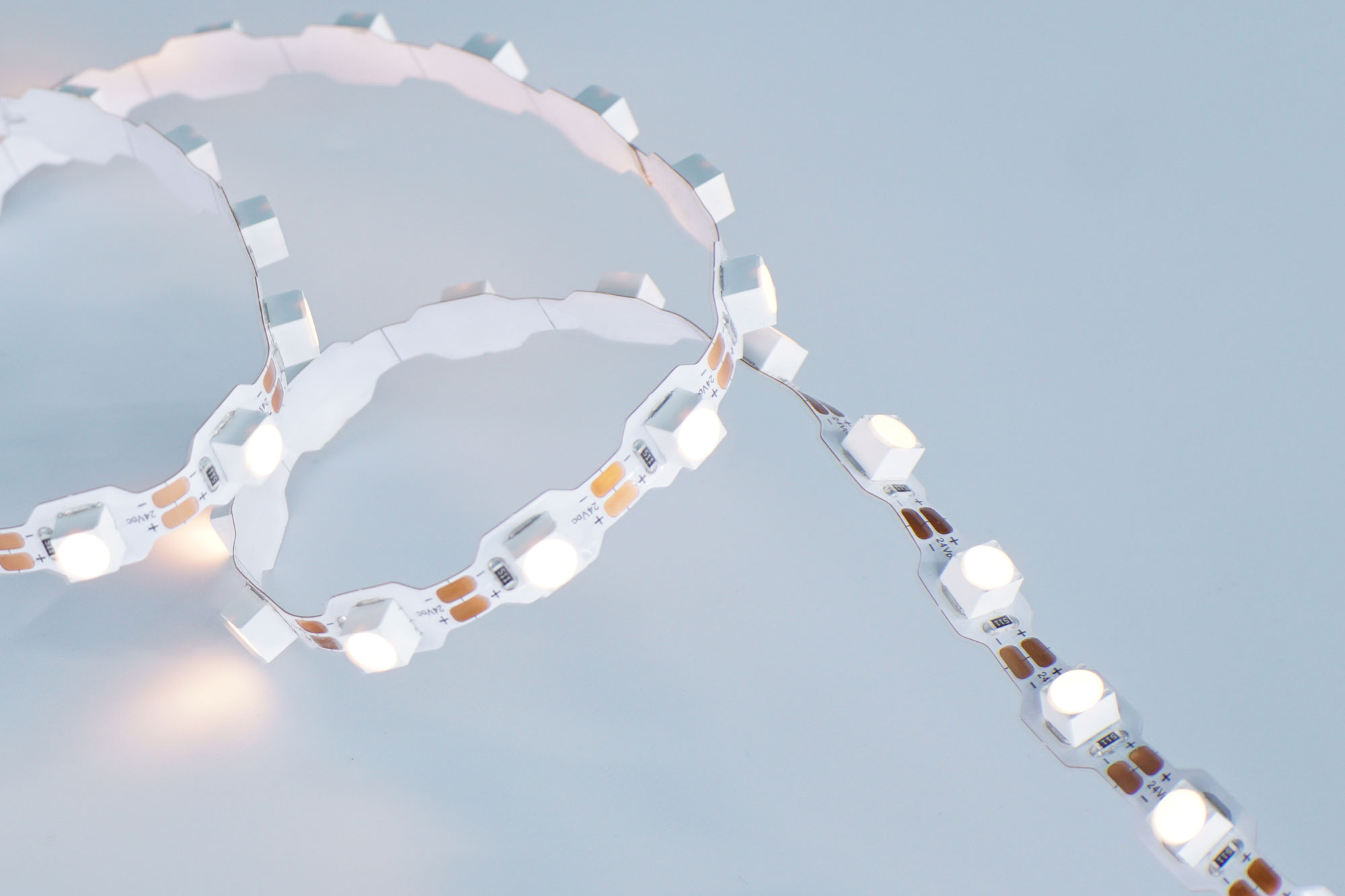

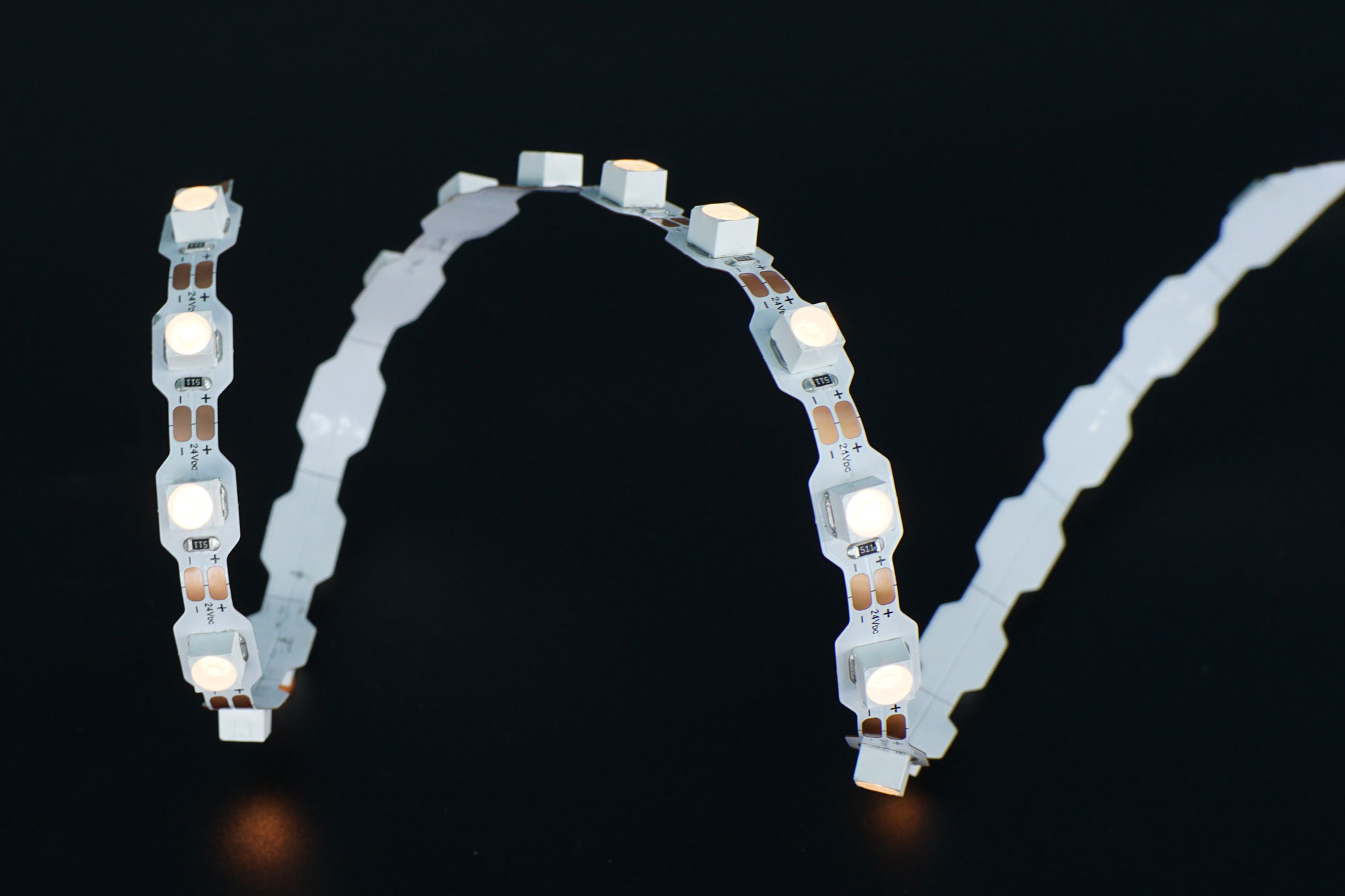

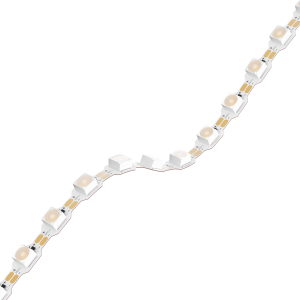

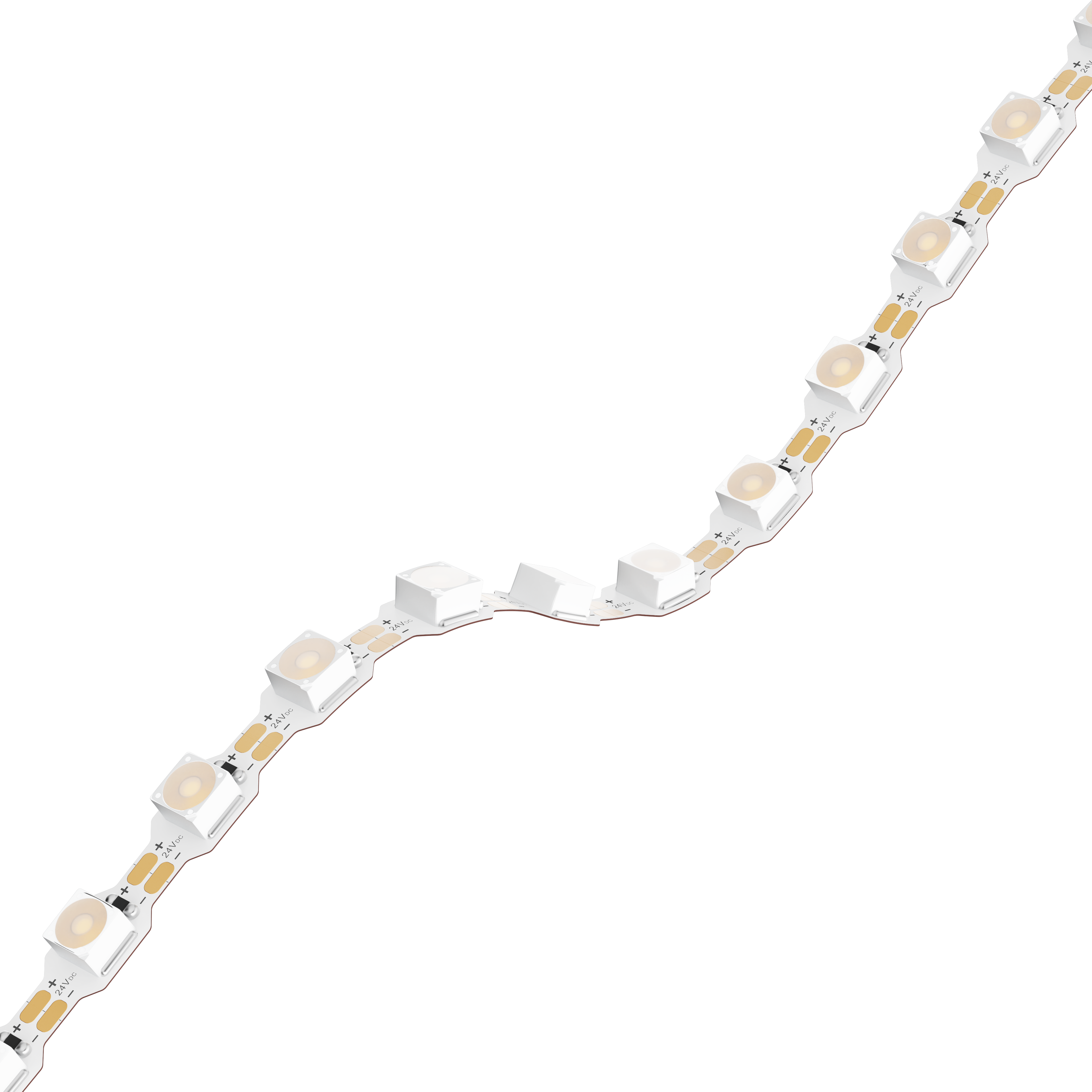

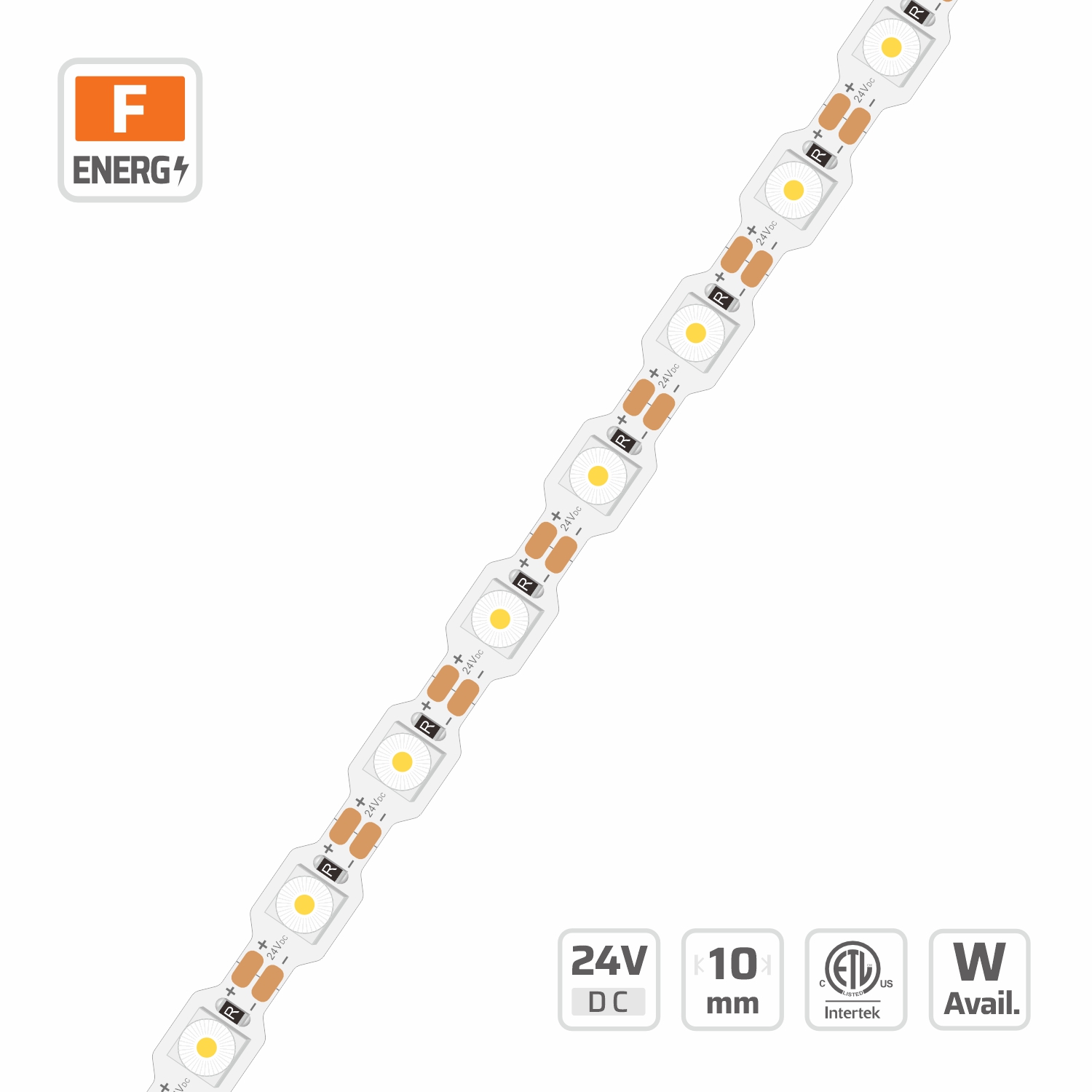

10mm | 24V | 50LEDs | 17.2W | 20mm/cut | #17936 | 6060 High Density LED Strip
- Excellent optical performance,through the design of special shapes, the distribution of light can be improved.
- High brightness,the 6060 LED chip size is 6mm×6mm, which is relatively large and can accommodate more light-emitting chips.Suitable for outdoor billboards, stage lighting, and other scenarios with high brightness requirements.
- Good heat dissipation,the larger size provides a larger heat dissipation area and lower thermal resistance, effectively reducing the operating temperature of the LED chip, thereby improving stability and service life.
Technical Details
| Part No. |
DL-F60A25V24-17936-* |
|---|---|
| SMD Type |
6060 SMD |
| LED Qty |
50 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
17.2W/m |
| Lumen/m (max.) |
1469 lm/m @4000K,17.2W |
| Lumen/W (max.) |
85 lm/W @4000K,17.2W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
10mm |
| Beam Angle |
40° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
3 years |

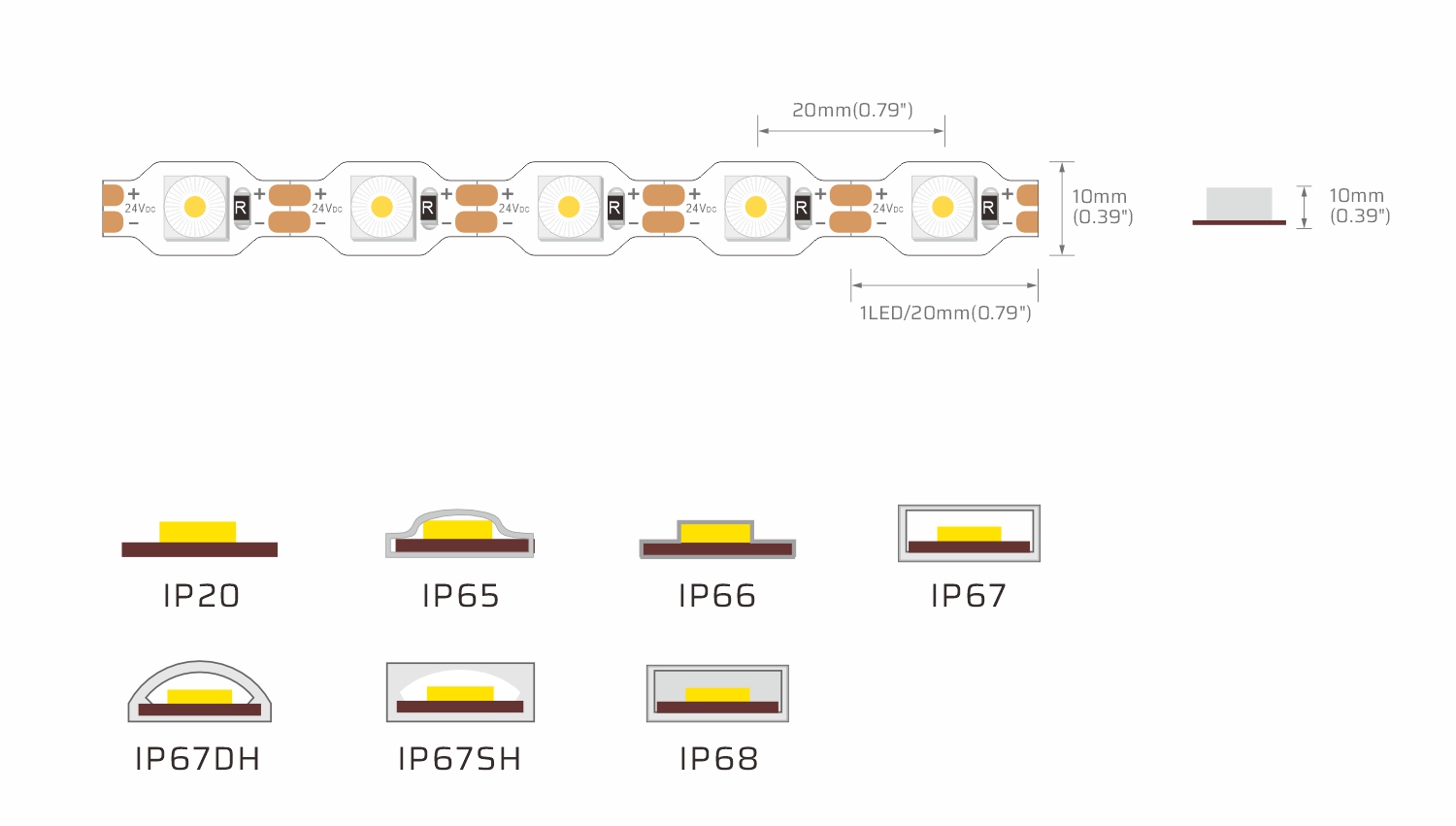

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 1LED/20mm(0.79′′)
LED Spacing: 20mm(0.79′′)
Height: 4.8mm(0.19′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 3oz
Lifetime: 50000h
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 17.2W/m | Ra≥90 | SWW | 1800K | 1111 | 65 | G |
| WW | 2700K | 1339 | 78 | G | ||
| WW | 3000K | 1410 | 82 | G | ||
| NW | 4000K | 1469 | 85 | F | ||
| PW | 6500K | 1409 | 82 | G | ||
| FS | WW | 2700K | 1086 | 63 | G | |
| WW | 3000K | 1146 | 67 | G | ||
| WW | 3500K | 1181 | 69 | G | ||
| NW | 4000K | 1213 | 71 | G |
