10mm | 24V | 350LEDs | 13W | 20cut | #5379 Ultra Density PU LED strip light
- High density on PCB, no lighting spot, can make maximum 720leds/meter for single row using the SMD2110.
- This super intense LED strip uses SMD2110 LEDs with slimmer LEDs and denser arrangement, this fine pitch strip can provide evener light distribution and help create a more natural lighting environment.
- PU potting RGB LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Technical Details
| Part No. |
DL-F21D175V24-5379-* |
|---|---|
| SMD Type |
2110 SMD |
| LED Qty |
350 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
13W/m |
| Lumen/m (max.) |
1243 lm/m @4000K,13W |
| Lumen/W (max.) |
96 lm/W @4000K,13W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP68 |
| Warranty |
3 years |
| Length |
1~5m |
Related Specifications

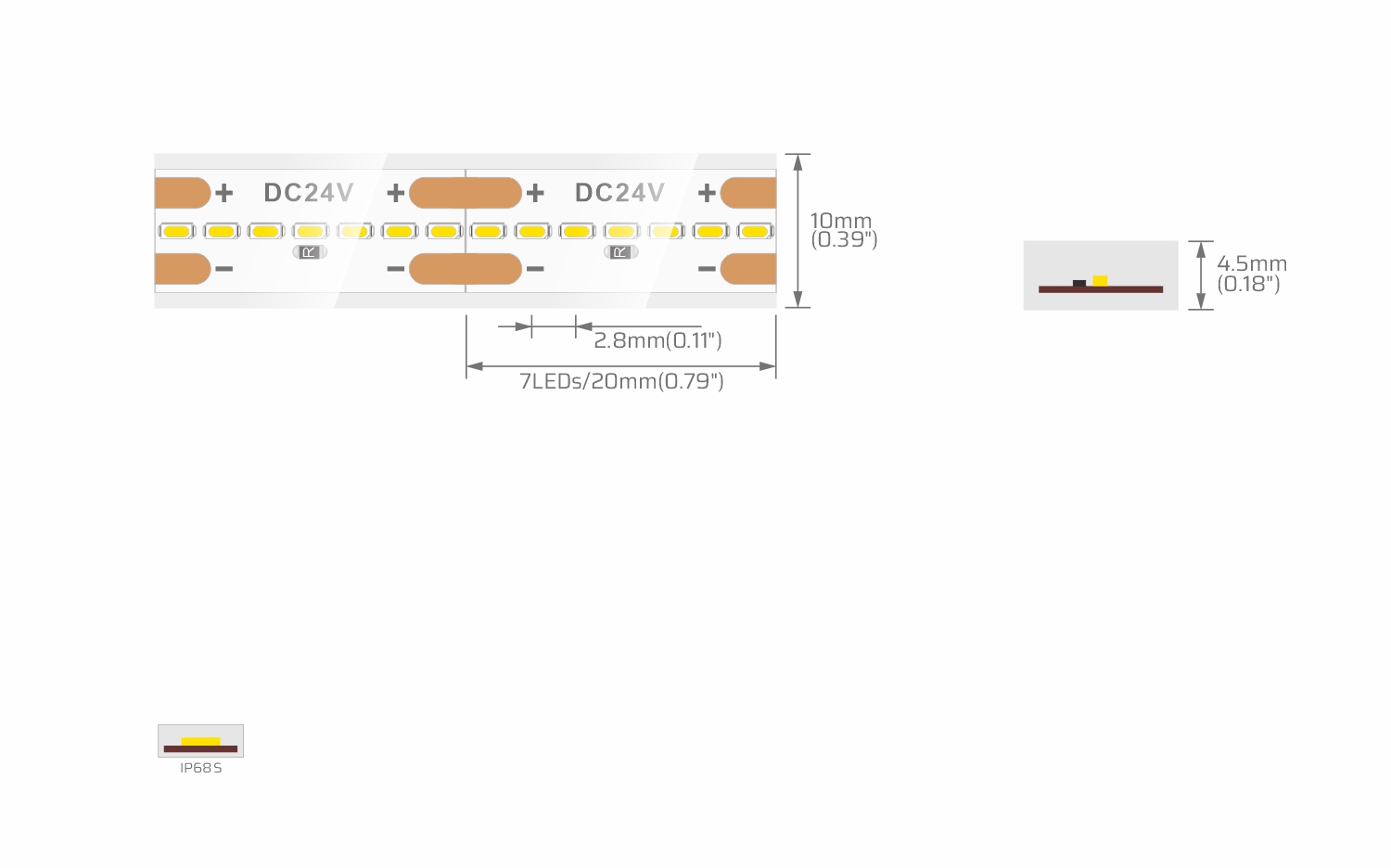

Length(max.): 5M(16.4′)/roll
Cutting Unit: 7LEDs/20mm(0.787′′)
LED Spacing: 2.8mm(0.110′′)
Width:10mm(0.394′′)
Height: 4.5mm(0.177′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 9.6W/m | Ra≥90 | SWW | 1800K | 703 | 73 | G |
| SWW | 2300K | 783 | 82 | G | ||
| WW | 2700K | 847 | 88 | F | ||
| WW | 3000K | 892 | 93 | F | ||
| WW | 3500K | 907 | 95 | F | ||
| NW | 4000K | 929 | 97 | F | ||
| NW | 5000K | 929 | 97 | F | ||
| PW | 6500K | 891 | 93 | F | ||
| 13W/m | Ra≥90 | SWW | 1800K | 940 | 72 | G |
| SWW | 2300K | 1047 | 81 | G | ||
| WW | 2700K | 1133 | 87 | F | ||
| WW | 3000K | 1192 | 92 | F | ||
| WW | 3500K | 1214 | 93 | F | ||
| NW | 4000K | 1243 | 96 | F | ||
| NW | 5000K | 1242 | 96 | F | ||
| PW | 6500K | 1192 | 92 | F | ||
| 19.2W/m | Ra≥90 | SWW | 1800K | 1355 | 71 | G |
| SWW | 2300K | 1509 | 79 | G | ||
| WW | 2700K | 1633 | 85 | F | ||
| WW | 3000K | 1718 | 90 | F | ||
| WW | 3500K | 1749 | 91 | F | ||
| NW | 4000K | 1791 | 93 | F | ||
| NW | 5000K | 1790 | 93 | F | ||
| PW | 6500K | 1717 | 89 | F |
