10mm | 24V | 280LEDs | 14.4W | 25cut | #16829 | 2020 Digital RGB LED Strip light.
- 2020 RGB 3-in-1 Miniature Design
- Delivers high-quality green light to ensure pure green color.
- RGB color mixing produces a pure white light, guaranteeing no color distortion.
- Supports various external dimming modes: 0-10V, DALI, and PWM.
- High-efficiency design ensures long-term stability and consistency.
- Suitable for a wide range of applications, including architectural lighting, commercial lighting, and decorative lighting.
Technical Details
| Part No. |
DL-F20A140V24-16829-* |
|---|---|
| SMD Type |
2020 SMD |
| LED Qty |
280 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
14.4W/m |
| Lumen/m (max.) |
720 lm/m @RGB |
| Lumen/W (max.) |
50 lm/W @RGB |
| Color |
RGB |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
3 years |

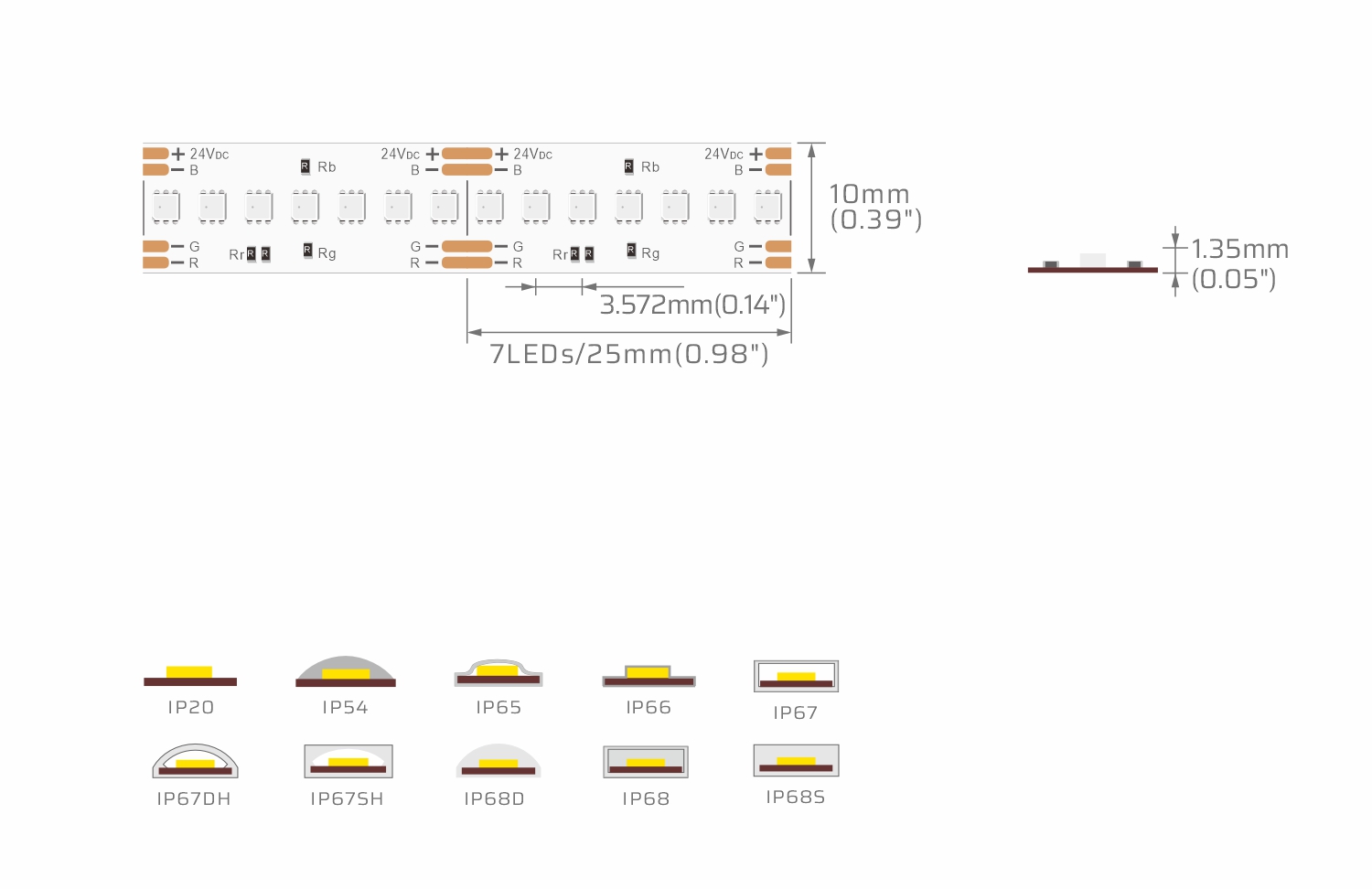

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 7LEDs/25mm(0.984′′)
LED Spacing: 3.572mm(0.141′′)
LED Height: 1.35mm(0.053′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | Color | Wavelength(λ) | LM/m | LM/W | Erp |
| 14.4W/m | RGB | / | 720 | 50 | G |
| 6.4W/m | Red | 620~625nm | 218 | 34 | G |
| 4.2W/m | Green | 520~525nm | 403 | 96 | F |
| 4W/m | Blue | 460~470nm | 108 | 27 | G |
