10mm | 24V | 18W | 41.667cut | #11586-N | High-Efficiency Classic Stable LED Strip
- High-Efficiency 2835 SMD LEDs, ensuring excellent brightness and energy efficiency.
- Classic stable LED chip design for long-lasting performance and reliable operation.
- High-density 192 LEDs per meter, providing uniform and consistent lighting.
- Compatible with multiple dimming systems, including PWM, DALI, and 0/1-10V, allowing flexible brightness control.
- Suitable for commercial building lighting, museum and art exhibition lighting, architectural decorative lighting, office and retail space lighting, hotel and restaurant lighting, and home decorative lighting.
Technical Details
| Part No. |
DL-F28A96V24-11586-N-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
192 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
18W/m |
| Lumen/m (max.) |
2797 lm/m @4000K,18W |
| Lumen/W (max.) |
155 lm/W @4000K,18W |
| Color |
White |
| CRI |
Ra ≥90 |
| SDCM |
≤3 Step 1Bin |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
5 years |
Related Specifications

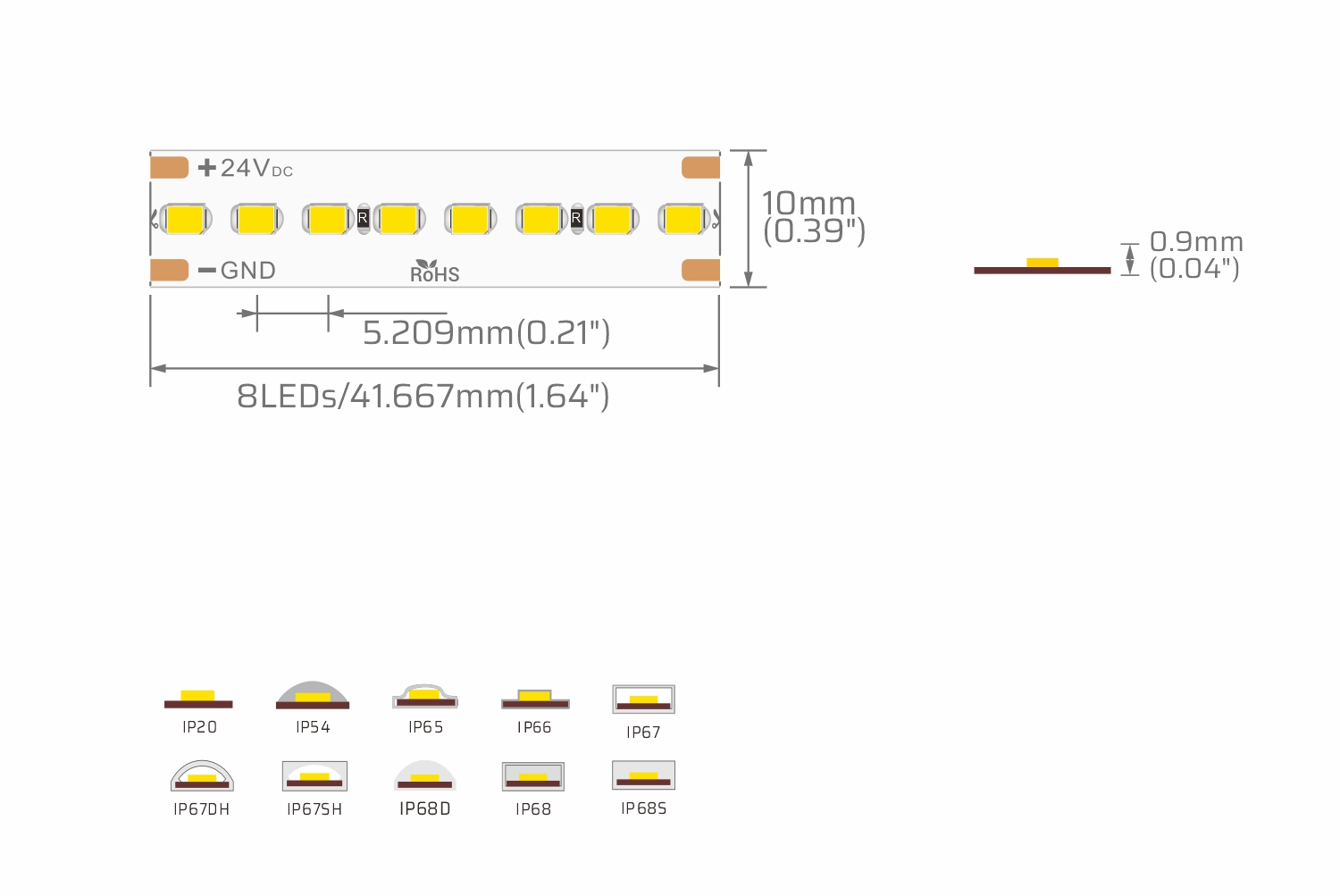

Length(max.): 5M(16.4′)/roll
Cutting Unit: 8LEDs/41.667mm(1.64″)
LED Spacing: 5.209mm(0.205′′)
LED Height: 0.9mm(0.035′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000
Certified: CE/RoHS
EMC compliance: EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 18W/m | Ra≥90 | SWW | 1800K | 2115 | 118 | E |
| WW | 2700K | 2550 | 142 | D | ||
| WW | 3000K | 2683 | 149 | D | ||
| NW | 4000K | 2797 | 155 | D | ||
| PW | 6500K | 2681 | 149 | D | ||
| FS | WW | 2700K | 2066 | 115 | E | |
| WW | 3000K | 2182 | 121 | E | ||
| WW | 3500K | 2248 | 125 | E | ||
| NW | 4000K | 2309 | 128 | E |
