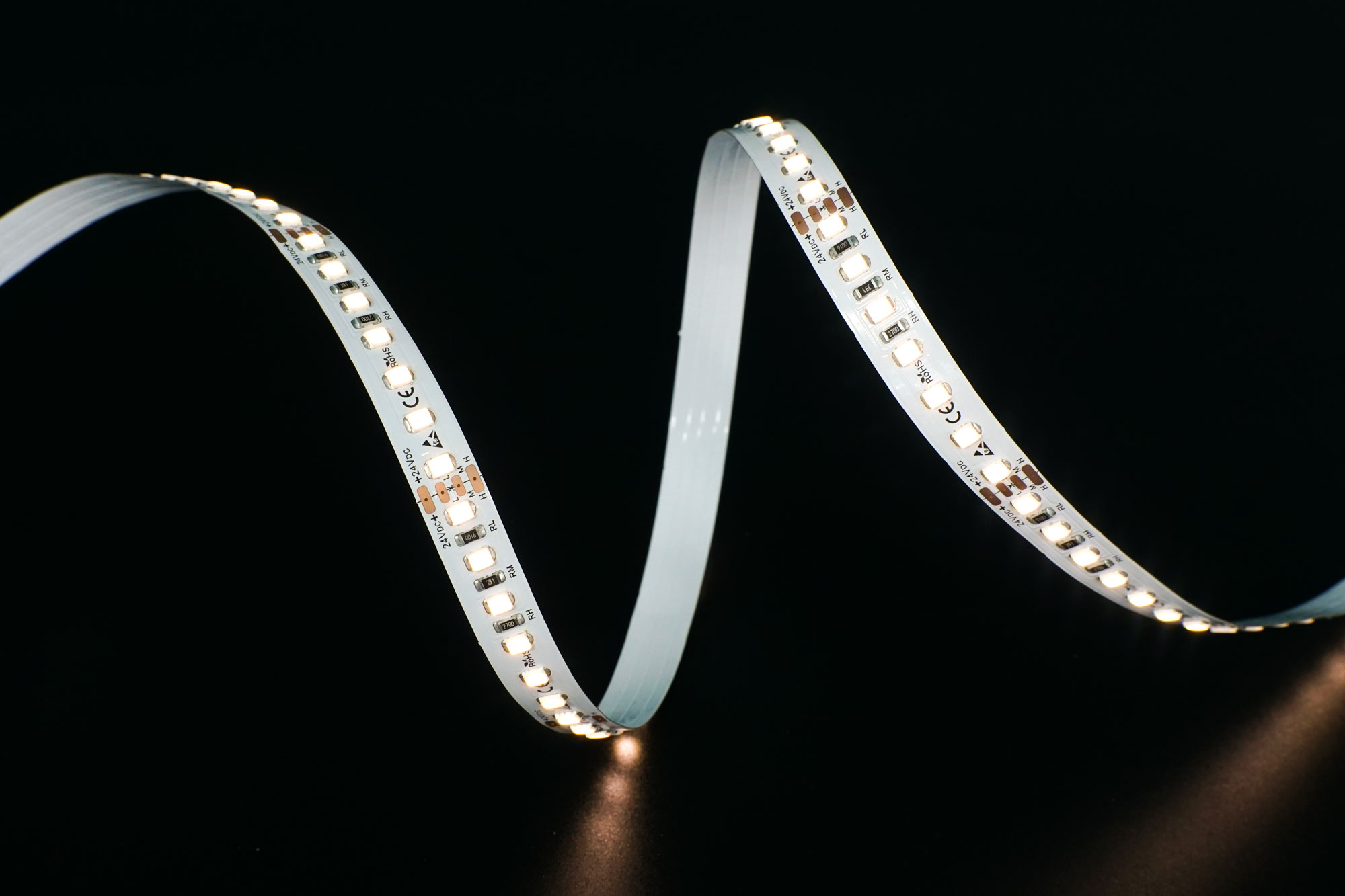

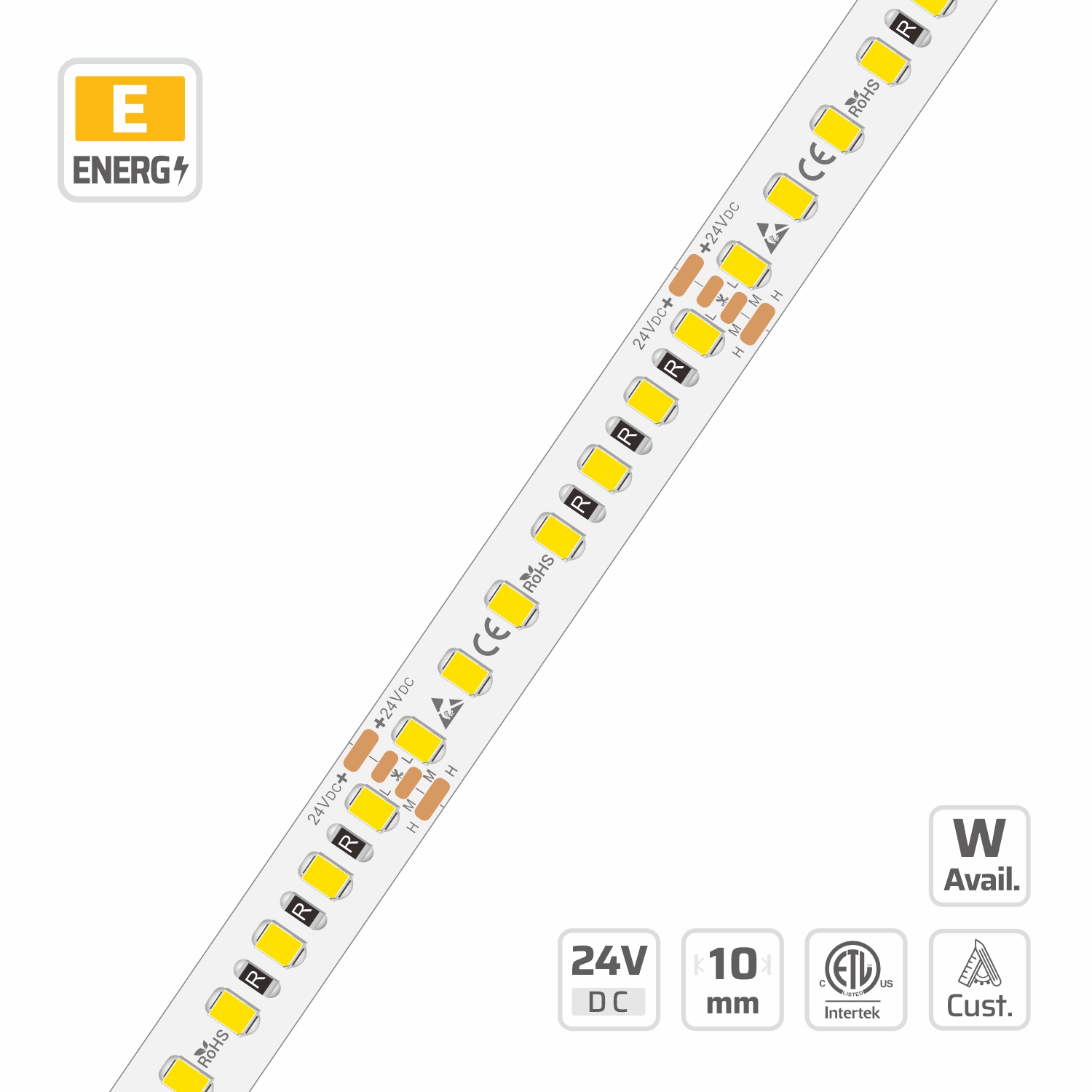

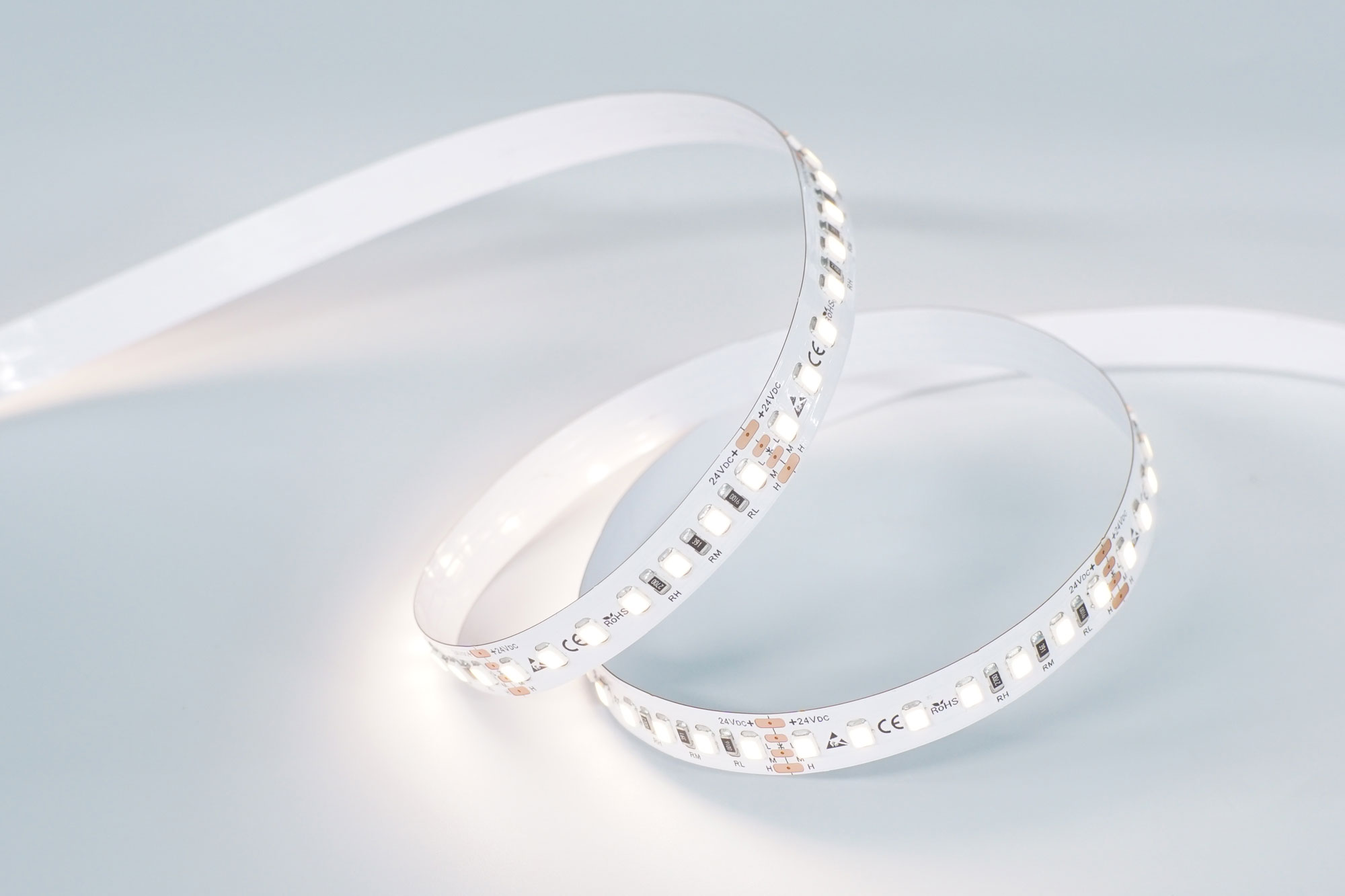

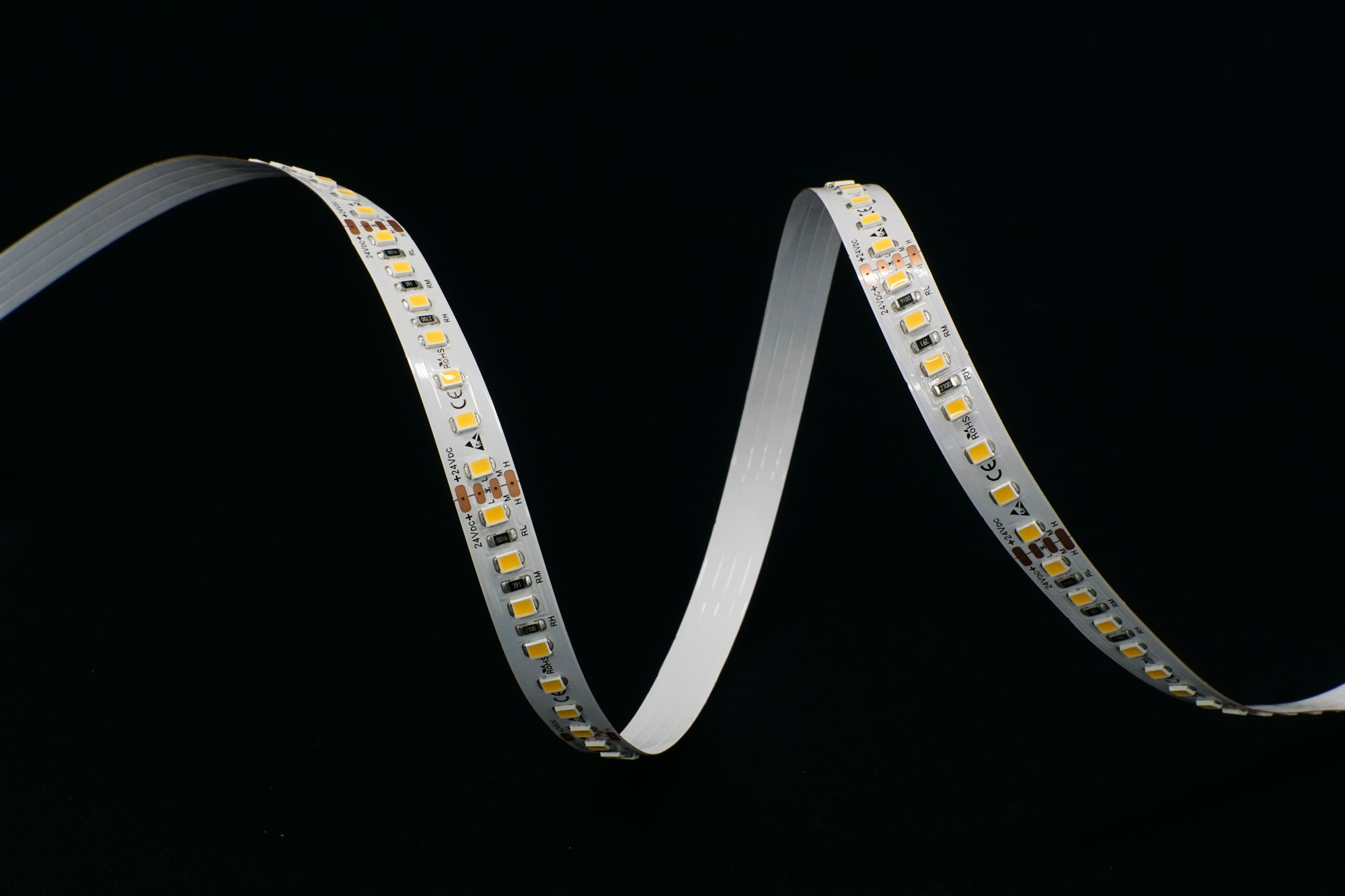

10mm | 24V | 140LEDs | 16W | 50mm/cut | #18367 | 2835 Six Powers Switchable in One LED Strip
- Unique Circuit Design: Achieve various power outputs through different wiring methods, with available options of 3W, 6W, 9W, 12W, 14W, and 16W.
- High-Efficiency Series: Each circuit segment includes 7 LEDs, achieving relatively high brightness output under the same power consumption.
- High Adaptability: Its adjustable power allows it to adapt to various usage scenarios and spaces, catering to diverse lighting needs.
- Long Service Life and Warranty: Offers a service life of 50,000 hours and a 5-year warranty, ensuring product reliability.
- Notes:When operating at high power, please be mindful of the wattage of the power supply to ensure stable current supply and safety.
Technical Details
| Part No. |
DL-F28A70V48-18367-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
140 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
16W/m |
| Lumen/m (max.) |
2092 lm/m @4000K,16W |
| Lumen/W (max.) |
128 lm/W @4000K,16W |
| Color |
White |
| CRI |
Ra ≥90 |
| SDCM |
≤3 Step 1Bin |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
5 years |

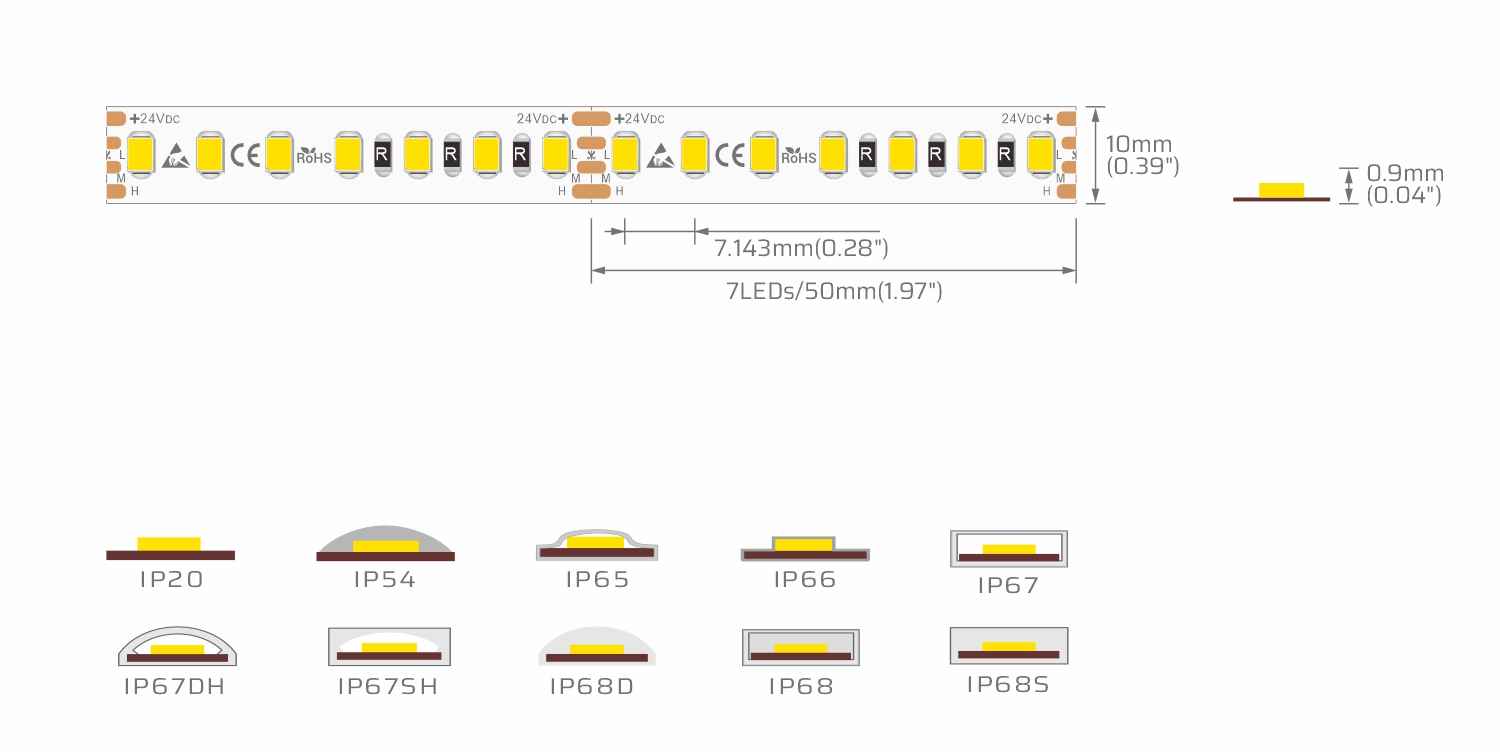

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 7LEDs/50mm(1.97′′)
LED Spacing: 7.143mm(0.28′′)
Height: 0.9mm(0.04′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 3oz
Lifetime: 50000h
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | Wire | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 3W/m | L | Ra≥90 | NW | 4000K | 394 | 132 | E |
| 6W/m | M | Ra≥90 | NW | 4000K | 869 | 133 | E |
| 9W/m | H | Ra≥90 | NW | 4000K | 1191 | 132 | E |
| 9W/m | LM | Ra≥90 | NW | 4000K | 1192 | 132 | E |
| 11W/m | LH | Ra≥90 | NW | 4000K | 1504 | 131 | E |
| 14W/m | MH | Ra≥90 | NW | 4000K | 1862 | 129 | E |
| 16W/m | LMH | Ra≥90 | NW | 4000K | 2092 | 128 | E |
