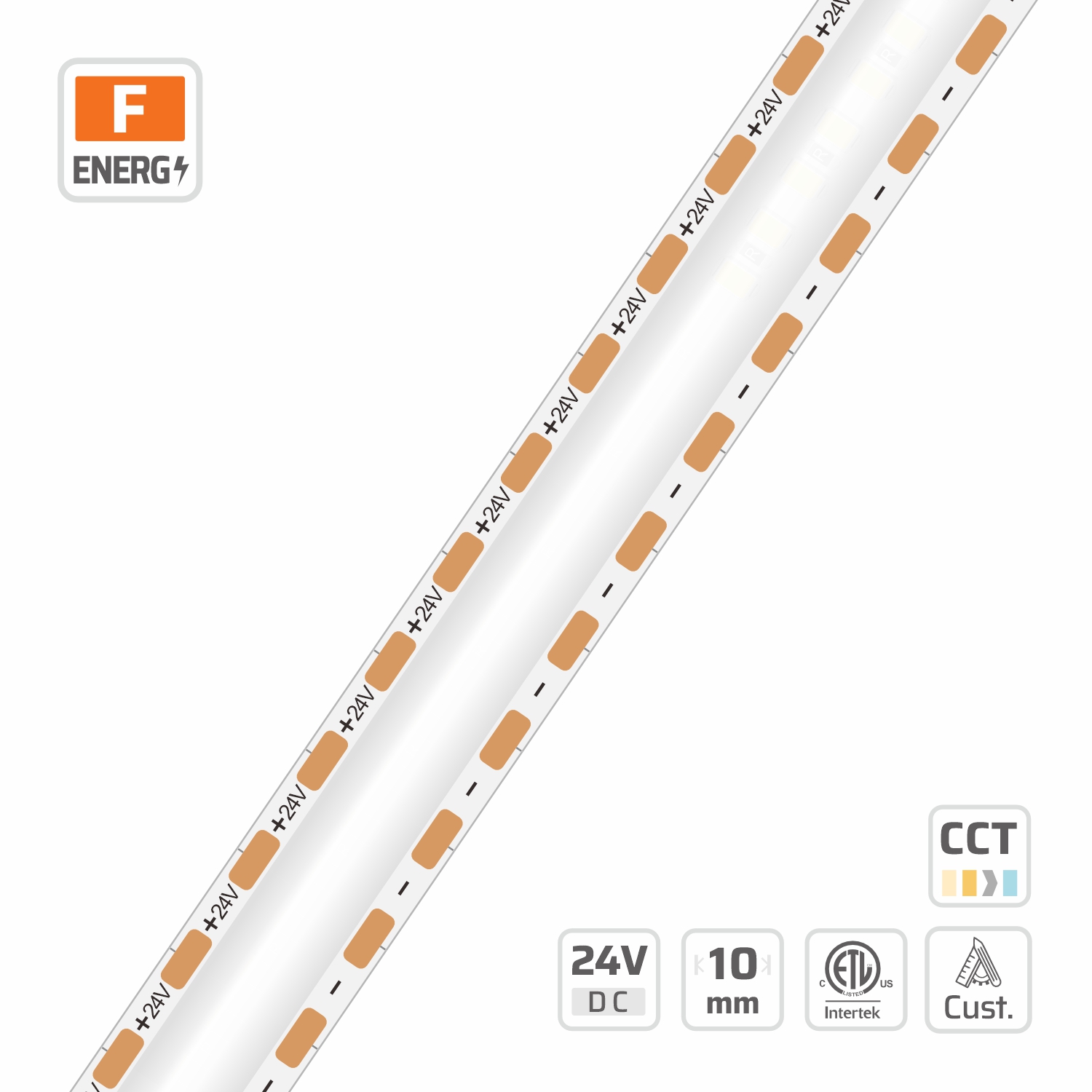

10mm | 24V | 14.4W | 3.33cut | #14159-IP67 | SOB Single-Color Micro-Cut LED Strip Light
- High brightness and uniform light
- Compact Design and cut-free.
- Energy Efficiency.
- Multiple Color Temperature Options:1800k~6500k
- IP67 waterproof and Dustproof desgin.
- Highly flexible installation, outdoor use.
Technical Details
| Part No. |
DL-FSOBJ150V24-14159-IP67-* |
|---|---|
| SMD Type |
SOB |
| Voltage |
DC 24V |
| Power Option |
14.4W/m |
| Lumen/m (max.) |
1613 lm/m @4000K |
| Lumen/W (max.) |
112 lm/W @4000K |
| Color |
CCT |
| CRI |
Ra โฅ90 |
| Width |
10 mm |
| Height |
6.5 mm |
| PCB Width |
8mm |
| Beam Angle |
120ยฐ |
| IP Process |
IP67 |
Related Specifications
length(max.): 5m(16.4โฒ)
Cutting unit: 1LEDs/3.333mm(0.13″)
LED Spacing:ย 3.333mm(0.13โฒโฒ)
Width: 10mm(0.39โฒโฒ)
Height: 6.5mm(0.25โฒโฒ)
Mounting:ย 3M tape
Min. bend:ย ฮฆ60mm(2.36โณ)
Copper foil:ย 3oz
On-off times:ย 10000๏ผtest times๏ผ
Certification:UL
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Energy Efficiency Class |
| 14.4W | Raโฅ90 | SWW | 2700K | 1469 | 102 | F |
| 14.4W | Raโฅ90 | WW | 3000K | 1555 | 108 | F |
| 14.4W | Raโฅ90 | NW | 4000K | 1613 | 112 | E |
| 14.4W | Raโฅ90 | PW | 6500K | 1555 | 108 | F |
Product Downloads
Specification
Testing Report
Certificate
Product Accessories
No accessories for this product now๏ผ
